Vanishing tumors of thyroid: histological variations after fine needle aspiration

Introduction

Fine needle aspiration (FNA) cytology is considered the gold standard in the diagnosis of thyroid nodules that may require surgical excision. The advent of FNA has led to a decreased number of unnecessary surgeries performed for benign thyroid tumors; however, malignant nodules can be missed in a minority of cases (1,2). The reported sensitivity of thyroid FNA results is 65–99% while its specificity is 72–100% (3-5). A standard protocol followed after detection of a thyroid nodule on palpation is to perform a thyroid ultrasound (US). According to the revised guidelines of the American Thyroid Association (ATA), thyroid US is being increasingly used for nodules >1 cm in size. Nodules presenting with US features suspicious of malignancy, such as presence of micro-calcification, hypo-echogenicity, “taller-than-wide” shape and increased vascularity, are subsequently examined by FNA biopsy to detect the presence and type of cancer cells (6). However, 15–20% of the nodules are deemed indeterminate on cytological results (7). The Bethesda System for Reporting Thyroid Cytopathology (TBSRTC) uses three categories that fall in the “grey zone” between benign and malignant cytology: follicular lesion of undetermined significance/atypia of undetermined significance (FLUS/AUS), suspicion for follicular neoplasm (FN)/Hürthle cell neoplasm, and suspicious for malignancy, the sensitivity of which is variable according to different investigators (7-11). The definite diagnosis of these nodules is provided by histological examination following surgical excision of the tumor.

Interestingly, FNA performed on these nodules can (infrequently) lead to reactive changes that are observed 20–40 days after initial FNA. These changes are expressed in the form of atypical nuclei, hemorrhagic cysts, fibrosis, cystic degeneration, necrosis, and squamous metaplasia on specimen histopathology after the patient undergoes surgical excision (12-14). Following FNA, these changes can partially or extensively replace thyroid tumor tissue, obscuring the final diagnosis of the previously biopsy-proven tumor. Consequently, changes in histological features may lead to an altered diagnosis that finally renders the nodule negative for malignancy on surgical pathology. These lesions are called vanishing tumors and are of great clinical concern to surgeons. This scenario influences treatment and can lead to an ambiguous management strategy by clinicians. In the literature, vanishing tumors of the prostate have been reported for the past few years, the incidence of which is on a decline (15,16). The vanishing tumor phenomenon has been recently described in thyroid gland by some authors (17,18).

In this study, we conducted a retrospective analysis of patients that were referred to our institution for thyroid disorders and management. We then identified the number of patients diagnosed with vanishing tumors by evaluating their surgical pathological reports.

Materials and methods

We retrospectively evaluated the data of 656 patients who were referred for surgical intervention to our institution from April 2008 to July 2015. All patients underwent pre-surgical US examination of the neck to look for suspicious features of malignancy. According to ATA guidelines, thyroid nodules presenting with these features were referred for US-guided FNA biopsy, performed on patients meeting the criteria for the same. All of these patients underwent at least one FNA that was performed at our institution and had a cytological diagnosis. Repeat FNA was performed if the cytology was non-diagnostic. However, expert opinions were involved wherever necessary. Patients were then directed to subsequent lobectomy/thyroidectomy according to their cytological results and/or symptomatic disease due to nodular size. The aspiration cytology and specimen pathology were read by expert cytopathologists. Subsequently, the surgical pathological reports for all the patients were reviewed. Our criteria was set on inclusion of nodules that had (I) suspicious features of malignancy on US; (II) nodules with positive FNA diagnosis and (III) surgical specimens showing FNA-induced degenerative changes or were rendered negative of tumor after a biopsy-proven diagnosis. FNA-induced reactive changes such as cystic degeneration, hemorrhage, calcification, cholesterol crystals, fibrosis and granulation tissue were looked for in specimen pathology. After selection of patients, the FNA cytological and surgical pathological results were compared to identify nodules displaying a vanishing tumor phenomenon. Nodules for which cytological and pathological results provided a definitive diagnosis of the nature of the tumor, without any reactive changes, were not included in the analysis.

All data was collected under desired variables and was arranged using Microsoft Excel. Statistical analysis was performed using standard Microsoft Excel calculations.

Results

A retrospective data on a total of 656 patients was reviewed from the years 2012–2015. Of all the patients referred for surgical intervention, seventeen patients (2.5%) were identified with vanishing tumors. Females contributed to a larger proportion (88.2%) of these tumors as compared to males. The mean age of the patients was 49.5±16.1 years. Patients were selected for surgical intervention according to clinical observations, suspicious features of neck US and FNA results. FNA-proven results were observed to be TBSRTC indeterminate in seven (41.1%) and benign in ten (58.8%) patients. Furthermore, results of preoperative FNA cytology were compared with surgical pathology of the included cases.

Following surgical intervention, specimen pathology revealed widespread replacement of all tumors by FNA-induced reactive changes. The size of vanishing tumors was 2.46±1.5 cm in greatest dimension. The lesions were reported to have diverse features such as hemorrhagic cysts, fibrosis, squamous metaplasia, and necrosis. Some of these nodules were entirely replaced by these reactive changes, making the final diagnosis difficult to interpret. Additionally, peripherally compressed parenchyma in these nodules assisted with the final diagnosis. Overall, there were seven tumors that were entirely replaced by reactive changes (case 1–5, 7, 16). Of these tumors, the FNA cytology was benign in five, FLUS in one and suspicious for malignancy in one. On specimen pathology, the nodules with benign cytology on FNA showed extensive changes such as cholesterol granulomas, fibrosis and regional squamous metaplasia and nodules completely filled with hemorrhage in two. There were no discrete lesions identifiable on specimen pathology. The final diagnosis of these nodules was determined by thin rim of compressed peripheral parenchyma. Furthermore, the nodule with FNA diagnosis of FLUS (case 3) also showed extensive regressive changes consistent with a diagnosis of reactive changes secondary to prior FNA. This nodule had small focal area of intra-capsular invasion within the fibrous tissue with the final diagnosis of FN. Additionally, deeper sections of this surgical specimen also revealed a single micro-focus suspicious for papillary thyroid carcinoma (PTC) arising in an atypical FN. The residual tumor cells of PTC were embedded deeply within the nodule to diagnose PTC arising in atypical FN.

The remaining ten nodules showed partial replacement of tumors by regressive changes (case 6, 8–15, 17). These lesions had FNA diagnosis of indeterminate in five (FLUS in three, FN in one and suspicious for malignancy in one) and benign in five nodules. For partial replacement, there were multiple foci of regressive changes replacing more than one nodule in the form of hemorrhage, fibrosis, siderosis, dystrophic calcification, and squamous metaplasia within the same nodule with tumor tissue. For cytological benign nodules, hemorrhagic cysts and the parenchyma within the same nodule helped to detect the nature of the tumor. These nodules were provided with the final diagnosis of nodular hyperplasia with regressive changes consistent with reaction to needle aspiration. On extensive review of the specimen with cytological benign result (case 6), residual tumor cells consistent with a diagnosis of PTC were seen arising in the background of a follicular tumor which showed extensive cystic degeneration. The specimen (case 14) with a diagnosis of FN on cytology (right lobe) underwent Afirma Gene Expression Classifier (GEC) test which provided a diagnosis of “suspicious”, however, pathology revealed multiple cystic hemorrhagic nodules ranging from 1.6–2.7 cm on the right side. There was intra-capsular extension of the follicular adenomatous tissue with degenerative changes on deeper sections. The patient also had FNAC performed on the left lobe that detected AUS; however, surgical pathology did not reveal any malignant tissue in the entire gland.

Furthermore, we observed three nodules (case 7, 10 and 12) that presented with focal areas of optically clear nucleoplasm suspicious of PTC; however, no malignant cells were detected. These lesions had FNA-cytology as benign in one and FLUS in two. One of the latter two indeterminate nodules had suspicious features of malignancy on prior US with FNA-cytology showing an additional focus suspicious for FN of uncertain malignant potential. However, due to extensive fibrosclerotic changes, no malignancy was detected on surgical pathology of this nodule. All three nodules were deemed negative of malignancy on final pathological diagnosis. The remaining nodules with indeterminate cytology displayed nodular hyperplasia on histopathology. Table 1 displays characteristics of individual cases with variable degrees of FNA cytology and surgical pathological results.

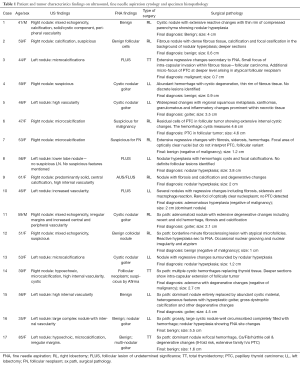

Table 1 Patient and tumor characteristics findings on ultrasound, fine needle aspiration cytology and specimen histopathology
Full table

Discussion

When the final surgical pathology diagnosis shows only degenerative changes in a patient with a previous definitive diagnosis on FNA, clinicians cannot create a complete and thorough management plan. US-guided FNA can result in changes including hemorrhage, fibrosclerosis, siderosis, granulomatous inflammation and squamous metaplasia, which may ultimately alter final pathologic diagnosis. We observed that some of the nodules with indeterminate results on FNA had suspicious features of malignancy on previous neck US, but no malignant cells on surgical pathology. One explanation for the discrepancies between cytopathology and surgical pathology results can be described by inherent sensitivity and specificity of the FNA and subjective findings on the final surgical pathology. Whether this phenomenon is due to a false positive FNA result or a true disappearance of a thyroid tumor is still debatable. Literature reports false positive rates of FNA cytology between 2–10% (4,5). In total, we had four surgical cases that presented with high clinical, imaging or pathological suspicion of malignancy but were ultimately diagnosed as benign by expert pathologists. One of these nodules also underwent Afirma GEC that was reported as “suspicious,” carrying approximately a 40% risk of malignancy. Afirma is an RNA-based molecular test that determines the risk of malignant behavior on an indeterminate cytological sample. This nodule was eventually confirmed as a benign adenoma, due to well-described histologic changes encountered in the nodule (19,20).

FNA is a cost-effective, minimally invasive diagnostic tool that may interrupt and cause traumatic microvascular injury within the nodule, leading to reactive secondary tissue changes. A retrospective case series of 620 patients was performed at UCLA where they reported 12 cases identified with infarction following needle aspiration. Only eight of these nodules had a clear diagnosis of PTC on FNA. Surgical pathology provided a diagnosis of infarcted PTC after surgical excision in all 12 cases (21). There are several other reports on infarcted PTC in the literature that suggest these lesions could be a potential cause of true disappearance of tumors (22-25). The characteristic features of PTC include the presence of nuclear grooves, pseudoinclusions, and papillary fronds, but it can become difficult to differentiate between follicular tumors, PTC and follicular variant of PTC on the basis of cytology. Nevertheless, certain other conditions of the thyroid that mimic histological features of PTC, including Hürthle cell neoplasms, chronic lymphocytic thyroiditis, nodular hyperplasia, hyalinizing trabecular adenoma, and medullary thyroid carcinoma, could lead to a false positive and incorrect cytological diagnosis (26,27).

Because of their infrequent occurrence, data on vanishing tumors involving the thyroid gland is limited in the current literature. Eze et al. reported 14 such cases that were prospectively reviewed to identify regressive changes (17). Similar to our results, they observed microscopic development of cystic degeneration, hemorrhage and other reactive changes partially and/or entirely replacing the nodules. Six of the 14 nodules had malignant FNA cytology. Of these nodules, successful diagnosis of malignancy was established in only four nodules, while the rest were rendered benign. They also suggested that FNA cytology may be considered sufficient to support the diagnosis and plan management in such cases. They also supported the requirement of second opinions for surgical pathology, should the need arise (17). Another study at Asan Medical Center reported six cases of disappearing PTC. All of these cases had malignant FNA diagnosis, however, none of the specimens showed malignant cells on resection (18). Another interesting finding reported by this group showed that two of the six cases had lymph nodes positive for PTC with no malignancy in thyroid gland. This is suggestive of true disappearance of papillary tumor.

The vanishing tumor phenomenon has been reported in multiple prostatectomy specimen (15,16). However, unlike thyroid, prostate malignancy is usually initially diagnosed on core needle biopsy, which is usually the sentinel event leading to prostatectomy. One of the major concerns for clinicians is the absence of management guidelines after vanishing tumors are detected. It is not clear whether to continue follow up the patient to detect any signs of recurrence of the disease or deem the patient disease-free. It is also unclear whether modifications are required in current therapeutic strategies after diagnosing vanishing lesions. Another concerning issue is the presence of underlying mutations in thyroid carcinoma. BRAF-mutation has been increasingly associated with PTC that carries an aggressive course (28-30) and poor prognosis with nodal metastasis and distant tumor spread. Therefore, clinicians and surgeons should be aware of these circumstances and involve an expert second opinion when necessary. Additionally, because the specimen final pathology shows only sparse tumor cells and reactive changes, the staging may be altered, adversely affecting patient management. Therefore, efforts must be made to minimize the occurrence of histological alterations following FNA. It may be of importance to utilize the French (capillary) technique in thyroid FNA rather than the more traumatic negative pressure aspiration technique (31,32).

The limitations of this study include (I) known biases of retrospective study, and (II) lack of data on long-term follow-up of these patients which prevents us from commenting on recurrence or further advancement of the disease where vanishing tumors were seen on pathology.

Conclusions

Vanishing tumors of the thyroid have recently been described as one of the most unusual circumstances in thyroid pathologies. Endocrinologists and thyroid surgeons should be aware of such lesions when providing postoperative counseling.

Acknowledgements

None.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

References

1. Yeh MW, Demircan O, Ituarte P, et al. False-negative fine-needle aspiration cytology results delay treatment and adversely affect outcome in patients with thyroid carcinoma. Thyroid 2004;14:207-15. [Crossref] [PubMed]
2. Leonard N, Melcher DH. To operate or not to operate? The value of fine needle aspiration cytology in the assessment of thyroid swellings. J Clin Pathol 1997;50:941-3. [Crossref] [PubMed]
3. Yoon JH, Kwak JY, Moon HJ, et al. The diagnostic accuracy of ultrasound-guided fine-needle aspiration biopsy and the sonographic differences between benign and malignant thyroid nodules 3 cm or larger. Thyroid 2011;21:993-1000. [Crossref] [PubMed]
4. Sclabas GM, Staerkel GA, Shapiro SE, et al. Fine-needle aspiration of the thyroid and correlation with histopathology in a contemporary series of 240 patients. Am J Surg 2003;186:702-9; discussion 709-10. [Crossref] [PubMed]
5. Sidawy MK, Del Vecchio DM, Knoll SM. Fine-needle aspiration of thyroid nodules: correlation between cytology and histology and evaluation of discrepant cases. Cancer 1997;81:253-9. [Crossref] [PubMed]
6. Gharib H, Papini E, Paschke R, et al. American Association of Clinical Endocrinologists, Associazione Medici Endocrinologi, and European Thyroid Association medical guidelines for clinical practice for the diagnosis and management of thyroid nodules: executive summary of recommendations. J Endocrinol Invest 2010;33:51-6. [Crossref] [PubMed]
7. SZ Ali, C Edmund, editors. The Bethesda System for Reporting Thyroid Cytopathology. Definitions, Criteria and Explanatory Notes. NY, USA: Springer US, 2010.
8. Mehra P, Verma AK. Thyroid cytopathology reporting by the bethesda system: a two-year prospective study in an academic institution. Patholog Res Int 2015;2015:240505.
9. Al-Sayer HM, Krukowski ZH, Williams VM, et al. Fine needle aspiration cytology in isolated thyroid swellings: a prospective two year evaluation. Br Med J (Clin Res Ed) 1985;290:1490-2. [Crossref] [PubMed]
10. Silverman JF, West RL, Larkin EW, et al. The role of fine-needle aspiration biopsy in the rapid diagnosis and management of thyroid neoplasm. Cancer 1986;57:1164-70. [Crossref] [PubMed]
11. Cusick EL, MacIntosh CA, Krukowski ZH, et al. Management of isolated thyroid swellings: a prospective six year study of fine needle aspiration cytology in diagnosis. BMJ 1990;301:318-21. [Crossref] [PubMed]
12. Recavarren RA, Houser PM, Yang J. Potential pitfalls of needle tract effects on repeat thyroid fine-needle aspiration. Cancer Cytopathol 2013;121:155-61. [Crossref] [PubMed]
13. LiVolsi VA, Merino MJ. Worrisome histologic alterations following fine-needle aspiration of the thyroid (WHAFFT). Pathol Annu 1994;29:99-120. [PubMed]
14. Ersöz C, Soylu L, Erkoçak EU, et al. Histologic alterations in the thyroid gland after fine-needle aspiration. Diagn Cytopathol 1997;16:230-2. [Crossref] [PubMed]
15. Goldstein NS, Bégin LR, Grody WW, et al. Minimal or no cancer in radical prostatectomy specimens. Report of 13 cases of the "vanishing cancer phenomenon". Am J Surg Pathol 1995;19:1002-9. [Crossref] [PubMed]
16. Kosarac O, Zhai QJ, Shen S, et al. Minimal or no residual prostatic adenocarcinoma on radical prostatectomy: a 5-year experience with "vanishing carcinoma phenomenon". Arch Pathol Lab Med 2011;135:1466-70. [Crossref] [PubMed]
17. Eze OP, Cai G, Baloch ZW, et al. Vanishing thyroid tumors: a diagnostic dilemma after ultrasonography-guided fine-needle aspiration. Thyroid 2013;23:194-200. [Crossref] [PubMed]
18. Jang EK, Song DE, Gong G, et al. Positive cytology findings and a negative histological diagnosis of papillary thyroid carcinoma in the thyroid: is it a false-positive cytology or a disappearing tumor? Eur Thyroid J 2013;2:203-10. [PubMed]
19. McIver B, Castro MR, Morris JC, et al. An independent study of a gene expression classifier (Afirma) in the evaluation of cytologically indeterminate thyroid nodules. J Clin Endocrinol Metab 2014;99:4069-77. [Crossref] [PubMed]
20. Bhatia P, Deniwar A, Friedlander P, et al. Diagnostic potential of ancillary molecular testing in differentiation of benign and malignant thyroid nodules. Anticancer Res 2015;35:1237-41. [PubMed]
21. Liu YF, Ahmed S, Bhuta S, et al. Infarction of papillary thyroid carcinoma after fine-needle aspiration: case series and review of literature. JAMA Otolaryngol Head Neck Surg 2014;140:52-7. [Crossref] [PubMed]
22. Epstein EJ, Chao J, Keller C, et al. Infarcted papillary thyroid cancer after fine needle aspiration biopsy. Endocrine 2011;40:322-3. [Crossref] [PubMed]
23. Das DK, Janardan C, Pathan SK, et al. Infarction in a thyroid nodule after fine needle aspiration: report of 2 cases with a discussion of the cause of pitfalls in the histopathologic diagnosis of papillary thyroid carcinoma. Acta Cytol 2009;53:571-5. [Crossref] [PubMed]
24. Kini SR. Post-fine-needle biopsy infarction of thyroid neoplasms: a review of 28 cases. Diagn Cytopathol 1996;15:211-20. [Crossref] [PubMed]
25. Judkins AR, Roberts SA, Livolsi VA. Utility of immunohistochemistry in the evaluation of necrotic thyroid tumors. Hum Pathol 1999;30:1373-6. [Crossref] [PubMed]
26. Baloch ZW. LiVolsi VA. Cytologic and architectural mimics of papillary thyroid carcinoma. Diagnostic challenges in fine-needle aspiration and surgical pathology specimens. Am J Clin Pathol 2006;125 Suppl:S135-44. [PubMed]
27. Kitano M, Sugitani I, Toda K, et al. Cytopathological review of patients that underwent thyroidectomies based on the diagnosis of papillary thyroid carcinoma by fine needle aspiration cytology but were later found to have benign tumors by histopathology. Surg Today 2013;43:632-7. [Crossref] [PubMed]
28. Kimura ET, Nikiforova MN, Zhu Z, et al. High prevalence of BRAF mutations in thyroid cancer: genetic evidence for constitutive activation of the RET/PTC-RAS-BRAF signaling pathway in papillary thyroid carcinoma. Cancer Res 2003;63:1454-7. [PubMed]
29. Gandolfi G, Sancisi V, Torricelli F, et al. Allele percentage of the BRAF V600E mutation in papillary thyroid carcinomas and corresponding lymph node metastases: no evidence for a role in tumor progression. J Clin Endocrinol Metab 2013;98:E934-42. [Crossref] [PubMed]
30. Adeniran AJ, Zhu Z, Gandhi M, et al. Correlation between genetic alterations and microscopic features, clinical manifestations, and prognostic characteristics of thyroid papillary carcinomas. Am J Surg Pathol 2006;30:216-22. [Crossref] [PubMed]
31. Sharma C, Krishnanand G. Histologic analysis and comparison of techniques in fine needle aspiration-induced alterations in thyroid. Acta Cytol 2008;52:56-64. [Crossref] [PubMed]
32. Rizvi SA, Husain M, Khan S, et al. A comparative study of fine needle aspiration cytology versus non-aspiration technique in thyroid lesions. Surgeon 2005;3:273-6. [Crossref] [PubMed]
