A comprehensive analysis of the diagnostic and prognostic value associated with the SLC7A family members in breast cancer

Introduction

Breast cancer (BC) is the most common type of cancer in women (1). It is a heterogeneous disease with major variations in incidence, clinical outcome, prognosis, and response to therapy (2). There are various subtypes of BC depending on the expression of the estrogen receptor (ER), progesterone receptor (PR), human epidermal growth factor receptor 2 (HER2), and histological grade (3). According to global cancer data from 2020, BC has replaced lung cancer as the most prevalent cancer worldwide, with 2.26 million cases compared to 2.2 million cases of lung cancer for the same year (4).

The Warburg effect is widely accepted as a common feature of metabolic reprogramming (5). However, accumulating evidence suggests that tumor cells depend on aerobic glycolysis as well as mitochondrial metabolism (6,7). Tumorigenesis depends on the reprogramming of cellular metabolism as both direct and indirect consequences of oncogenic mutations (8). The main nutrients consumed by mammalian cell proliferation are glucose and Amino acids and the conversion of glucose to lactate may help the amino acid divide into more new cells (9). For this reprogramming, tumor cells may regulate amino acid uptake by modulating the level or activity of specific amino acid transporters (10). Therefore, metabolic reprogramming based on these transporters may be a promising therapeutic target (11).

The SLC (Solute Carrier) series contains 65 SLC gene families with 458 different human transporter genes (12). SLC7A is an amino acid transporter/glycoprotein related family which is divided into two subgroups: the cationic amino acid transporters (the CAT family, SLC7A1–4 and SLC7A14) and the glycoprotein-associated amino acid transporters (the gpaAT family, SLC7A5–13) (13,14). Most members of the CAT subfamily have functional characteristics that promote diffuser function and mediate the entry and outflow of cationic amino acids (15). The gpaAT family, as known as an L-type amino acid transporter (LATs), is the heavy subunits and disulfide-linked heterodimers with the catalytic transporter subunits (16). The inhibition of solute carrier (SLC)7A5-mediated leucine influx has been associated with the downregulation of glycolytic metabolism, resulting in cancer-associated metabolic reprogramming, indicating that this molecule has a regulatory role in glycolysis reprogramming (17,18). SLC7A1 (Cat-1) regulates the survival of human breast cancer cell lines (19). In humans, moderate SLC7A3 expression has been observed in the brain, uterus, mammary gland, and testis (20). High SLC7A5 expression is associated with poor prognosis in different types of human cancers (21), including BC (22). However, the functional and prognostic significance of the other SLC7A family genes in BC remains unclear.

We hypothesized that the gene expression of the SLC7A family may be strongly associated with BC. Therefore, this study used multiple bioinformatics databases to analyze the expression of the SLC7A family genes in BC patients and evaluated their prognostic value. We present the following article in accordance with the REMARK reporting checklist (available at https://gs.amegroups.com/article/view/10.21037/gs-21-909/rc).

Methods

Ethics statement

All datasets were derived from public databases. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). As no patients were recruited in our study, ethics approval was not required.

Oncomine analysis

The SLC7A family transcript levels in different cancers were downloaded from the Oncomine website (https://www.oncomine.org/resource/login.html) and analyzed using Student’s t-test. A P value <0.01 and a fold change ≥2.0 were used as cutoff values.

Gene Expression Profiling Interactive Analysis (GEPIA) dataset

The correlation between the expression of the SLC7A family genes and the clinicopathological stages of patients and tumors were analyzed using the GEPIA (http://gepia.cancer-pku.cn/), web-based tool. Provisional datasets from TCGA and Genotype-Tissues Expression consortia were used.

The Cancer Genome Atlas (TCGA) and the Kaplan-Meier (KM) plotter database analyses

BC RNA-sequencing-based gene expression data (“Level_3_HTSeq-FPKM _normalized”) and patient survival data were downloaded from TCGA (https://portal.gdc.cancer.gov/). and used as the training dataset Data from the KM plotter database was used as the test dataset. The RNA-sequencing data were converted from fragments per kilobase of transcript per million mapped reads (FPKM) format to the transcripts per kilobase million mapped reads (TPM) format using log2 (TPM+1). A total of 1062 BC samples were categorized based on median RNA-sequencing data (TPM). Patients were grouped into a “high” or “low” signature expression group based on the median signature expression score. The ggplot2 package from the R software (version 3.6.3) was used to visualize the results. The KM plotter database was used for validation (23,24). Duplicate and redundant samples were removed and any biases between arrays were excluded.

Immunohistochemistry

Tissue processing and embedding was performed by the Department of Pathology, The Third Hospital of Nanchang. Antigen retrieval was performed by boiling the slides in a steamer with citrate buffer (pH 6.0, 95 °C) for 15 minutes. The 3-mm tumor sections were incubated with a rabbit anti-SLC7A5 antibody (1:500 dilution) and an anti-SLC7A4 antibody (1:200 dilution) at 4 °C overnight. Slides were then rinsed 3 times in phosphate buffered saline (PBS) and incubated with a secondary antibody at room temperature for 10 minutes, then counterstained with DAB for 2 minutes, followed by hematoxylin for 40 seconds. The above washing steps were repeated at each round of staining. Positively stained tissues were visualized by light microscopy (Olympus 600 auto-biochemical analyzer, Tokyo, Japan). As an additional control, the same procedure was performed without addition of primary antibodies.

Statistical analysis

Cox regression and survival analyses were performed using the R survival package (v 3.2-10), and the survminer package (version 0.4.9) was used for visualization. The rms package (6.2-0) was used to generate a nomogram for predicting overall survival (OS), progression-free interval (PFI), and disease-specific survival (DSS) in BC. A formal test of heterogeneity among subgroups was performed for each subgroup analysis. A P value <0.05 was considered statistically significant. Samples with missing clinical data were excluded from the multivariable analysis and nomograms. Prognostic data were obtained from a previous study (25).

Statistical analysis was performed in R (v.3.6.3), using pROC (version 1.17.0.1) for receiver operating characteristics (ROC) statistics and ggplot2 (v.3.3.3) for generating figures. A ROC curve was generated to evaluate the diagnostic performance of the SLC7A family.

Gene Set Enrichment Analysis (GSEA)

The Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analysis and Gene Ontology (GO) analysis for functional annotation of gene sets were performed using the R package cluster-Profiler (26). GO functional annotations in the categories biological process (BP), cellular component (CC), and molecular function (MF) were used to elucidate the biological implications of differential gene expression. GSEA (27) was performed using C2.CP.v.7.2 gene set collections from the Molecular Signature Database (https://www.gsea-msigdb.org/gsea/msigdb/index.jsp) and cluster-Profiler (version 3.14.3) (26). Terms with false discovery rate (FDR) <0.25 and P_adjust<0.05 were considered significant.

Analysis of the correlation between immune responses and the expression of the SLC7A family

ESTIMATE gives a measure of the immune-cell infiltrates using RNA-sequencing data through single-sample (ss) GSEA based on an inferred immune signature. The algorithm calculates the relative overexpression of immune cell types by implementing the “GSVA” function from the GSVA package (v.1.34.0) (28) in R (v.3.6.3) with method specification ssGSEA. Correlation analysis of immune response and the expression of the SLC7A family genes was performed using Spearman correlation. In total, 24 reported immune cell markers were evaluated (29).

Results

The levels of the SLC7A family transcripts in breast tumors

The expression of the SLC7A gene family was examined in various cancers by comparing normal tissues with tumor tissues using the Oncomine data (30-32) (Figure 1, Table 1). SLC7A1, SLC7A5, and SLC7A8 levels were significantly upregulated in human BC (P<0.05). SLC7A9, SLC7A13, and SLC7A14 were not expressed in normal breast tissues (P<0.05), whereas SLC7A3 and SLC7A4 expression levels were substantially decreased compared to normal tissues (P<0.001).

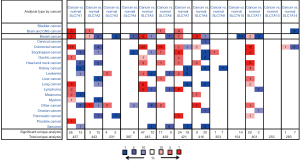

Figure 1 The levels of the SLC7A family gene transcripts in breast tumor samples using the Oncomine databases.

The correlation between the SLC7A family mRNA levels and the clinicopathological stages of BC patients

The mRNA levels of the SLC7A family in BC and normal breast tissues was compared using the TCGA data. SLC7A5, SLC7A7, SLC7A8, SLC7A11, and SLC7A13 mRNA levels were substantially higher in BC compared to normal breast tissue (P<0.05). In addition, SLC7A1 and SLC7A9 mRNA levels were significantly higher in BC tissue compared to normal breast tissue (P<0.01). However, SLC7A3, SLC7A4, SLC7A10, and SLC7A14 mRNA levels were lower in BC tissues compared to normal tissues (P<0.01) (Figure 2).

Figure 2 The mRNA expression of the SLC7A family genes in breast cancer tissue and healthy breast tissue. *, statistically significant; ***, strongly significant; ns, not significant.

Using the GEPIA dataset, the correlation between the expression of the SLC7A family members and BC tumor staging was analyzed. SLC7A2, SLC7A4, SLC7A5, and SLC7A13 were significantly positively correlated with tumor stages, whereas the other family members did not significantly differ in expression among tumor stages (Figure 3).

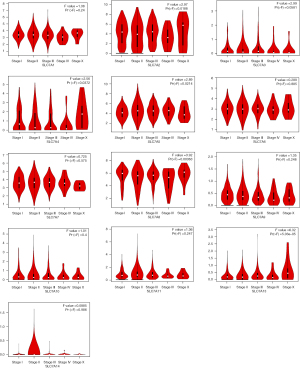

Figure 3 An analysis of the association between the expression of the SLC7A family genes and tumor staging in breast cancer patients using GEPIA. GEPIA, Gene Expression Profiling Interactive Analysis; Stage X, Staging is unknown.

The correlation between SLC7A family mRNA levels and improved prognosis of BC patients

To date, only a few members of the SLC7A family have been investigated for potential prognostic value in the TCGA cohort. As SLC7A12 has only been discovered in mice to date, it was not included in the bioinformatics analysis. KM analysis of prognosis was performed for the SLC7A family members using the TCGA data. The results of the Cox regression modeling showed that high SLC7A3 expression could be considered a significant prognostic marker for OS time in BC patients, with a hazard ratio (HR) of 0.59 and log rank P of 0.001. The median survival time of patients with high SLC7A3 expression was 131.5 months (Figure 4). High SLC7A5 expression in BC patients indicated a poorer survival time (HR =1.72, log rank P=0.001), and the median follow-up for patients was 116.4 months. The other SLC7A family members were not correlated with OS (Figure 5). For PFI, SLC7A4 (HR =0.67, P=0.019) and SLC7A5 (HR =1.73, P=0.001) were identified as prognostic biomarkers (Figure 5). For DSS, SLC7A4 (HR =0.50, P=0.003) and SLC7A5 (HR =2.31, P<0.001) were identified as prognostic biomarkers (Figure 6).

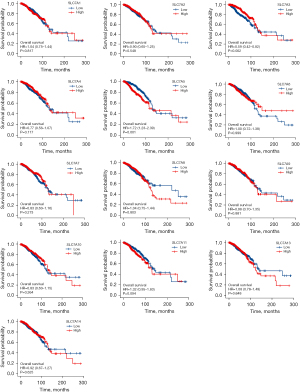

Figure 4 An analysis of the association between the expression of the SLC7A family genes and OS in breast cancer patients using the TCGA database. OS, overall survival; TCGA, The Cancer Genome Atlas.

Figure 5 An analysis of the association between the expression of the SLC7A family genes and PFS in breast cancer patients using TCGA database. PFS, progression-free survival; TCGA, The Cancer Genome Atlas.

Figure 6 An analysis of the association between the expression of the SLC7A family genes and DSS in breast cancer patients using TCGA database. DSS, disease-specific survival; TCGA, The Cancer Genome Atlas.

In the KM plotter database, analysis indicated that higher than median expression levels of SLC7A4 (HR =0.83, log rank P=0.048) and SLC7A5 (HR =1.64, log rank P=2.4e-07) were correlated with favorable OS for BC. For SLC7A3, the result was not significant (HR =0.78, log rank P=0.65) (Figure 7A-7C).

Figure 7 An analysis of the association between the expression of SLC7A3-5 and the prognosis of breast cancer patients using the Kaplan-Meier plotter database, as measured by (A-C) OS; (D-F) DMFS; (G-I) RFS; and (J-L) PPS. OS, overall survival; DMFS, distant metastasis-free survival; RFS, relapse-free survival; PPS, post-progression survival.

SLC7A5 (HR =1.98, log rank P<1e-16) indicated a poorer distant metastasis-free survival (DMFS) time in patients with BC. High expressions of SLC7A3 revealed a good DMFS (HR =0.66, log rank P=0.0025) (Figure 7D-7F).

High expressions of SLC7A3 (HR =0.71, log rank P=1.1e-05) and SLC7A4 (HR =0.76, log rank P=1.7e-07), indicated good relapse-free survival (RFS) (Figure 7G-7I).

High SLC7A5 expression indicated a poor post-progression survival (PPS) time (HR =1.29, log rank P=0.032), whereas high SLC7A4 expression indicated a good PPS time in patients with BC (HR =0.69, log rank P=0.041, HR =0.77, log rank P=0.025, respectively) (Figure 7J-7L).

Interestingly, examination of the TCGA and KM plotter datasets revealed that high expression of SLC7A4 and SLC7A5, and possibly SLC7A3, in breast tumors is associated with survival progression.

Thus, exploratory subgroup analyses were performed for these 3 genes in terms of OS, PFI, and DSS, as well as for TNM factors, menopausal status, ER status, PR status, HER2 status, and tumor stage. Prespecified subgroups were compared via Cox regression analysis (Table 2). KM analyses showed that high expression of SLC7A3 and SLC7A4 was associated with better OS compared to low expression of these genes in certain BC subgroups, including T3, 4, N1, 2, 3, and M0; stages III and IV; ER-positive; PR-positive; and HER2-negative patients (Figure 8). Moreover, in patients with high SLC7A5 expression, the T1, 2, N1, 2, 3, and M0 subgroups, the stages I and II subgroups; the ER-positive subgroup, and the PR-positive subgroup all showed very poor prognosis. However, there were no statistically significant associations in the HER2 status subgroup (Figure 8).

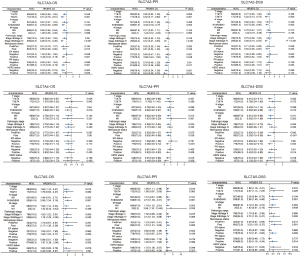

Figure 8 Subgroup analyses examining the association between SLC7A3-5 expression and OS, PFI, and DSS in breast cancer patients. OS, overall survival; PFI, progression-free interval; DSS, disease-specific survival.

A nomogram integrating SLC7A3, SLC7A4, and SLC7A5 expression and independent clinical risk factors (TN pathological stage, ER, PR, HER2, and menstrual status) was constructed based on 1000 bootstrap replicates (Figure 9). The higher the total number of points on the nomogram, the worse the prognosis. The C-index values were 0.820 for SLC7A3, 0.784 for SLC7A4, and 0.792 for SLC7A5. The deviation correction line in the calibration plot was close to the ideal curve (i.e., a 45° line), indicating that the prediction model outputs were in good agreement with the observed results (Figure 9).

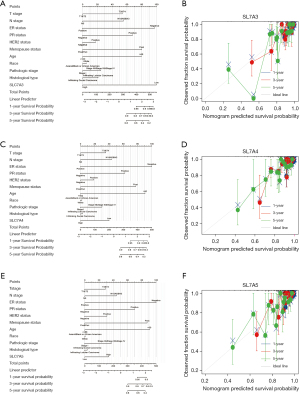

Figure 9 A nomogram integrating SLC7A3, SLC7A4, and SLC7A5 expression, and independent clinical risk factors (A,C,E). The deviation correction line in the calibration plot for SLC7A3, SLC7A4, and SLC7A5 is shown (B,D,F).

Furthermore, an immunohistochemical (IHC) assay was developed to examine SLC7A4 and SLC7A5 expression in formalin-fixed BC tissue. SLC7A5 expression in tumor tissues was found to be significantly higher than that in normal breast tissues. Conversely, SLC7A4 expression in normal tissues was significantly higher than that in breast tumor tissues (Figure 10).

Figure 10 Validation of SLC7A4 and SLC7A5 expression in breast cancer tissue by immunohistochemistry. N, normal tissue; T, tumor tissue.

Diagnostic value of the SLC7A family genes in BC patients

The predictive value of each SLC7A family member was evaluated in BC patients based on the AUC using the TCGA data. SLC7A10 and SLC7A14 had outstanding diagnostic value in distinguishing BC patients from healthy individuals (AUC 0.910 and 0.926, respectively). SLC7A3, SLC7A5, SLC7A8, and SLC7A11 also showed excellent diagnostic value (with AUC values of 0.862, 0.828, 0.702, and 0.769, respectively). SLC7A1, SLC7A2, SLC7A4, SLC7A6, SLC7A7, SLC7A9, and SLC7A13 had moderate prognostic value for distinguishing BC patients (AUC values of 0.571, 0.509, 0.664, 0.532, 0.659, 0.566, and 0.691, respectively) (Figure 11).

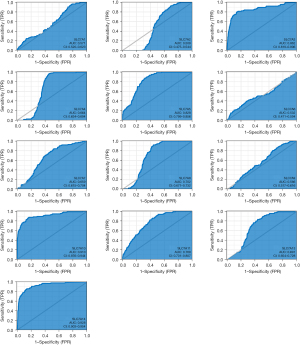

Figure 11 The diagnostic value of the SLC7A family genes for distinguishing breast cancer patients. The ROC curve and AUC were used to assess the predictive value. ROC, receiver operating characteristic; AUC, area under the curve.

Functional enrichment analysis of SLC7A family genes

GO enrichment analysis of the SLC7A genes that were significantly differentially expressed in BC revealed various over-represented terms in three functional groups, namely, CC, BPs, and MF (Figure 12A-12D).

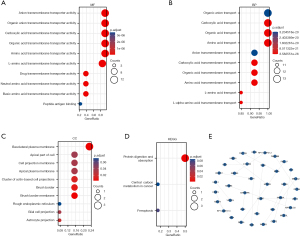

Figure 12 GO and KEGG analysis. (A-D) Functional enrichment analysis of the SLC7A family genes. (E) A network diagram of the SLC family genes and the TOP20 related genes. GO, Gene Ontology; KEGG, Kyoto Encyclopedia of Genes and Genomes; SLC, solute carrier.

In the CC category, the SLC7A family genes that were upregulated in breast tumor tissues were primarily involved in basolateral plasma membrane, brush border membrane, brush border, cluster of actin-based cell projections, astrocyte projection, glial cell projection, apical plasma membrane, cell projection membrane, apical part of the cell, and rough endoplasmic reticulum. In the BP category, they were primarily involved in amino acid transport, amino acid transmembrane transport, L-alpha-amino acid transmembrane transport, L-amino acid transport, organic acid transmembrane transport, carboxylic acid transmembrane transport, organic acid transport, carboxylic acid transport, and anion transmembrane transport. According to KEGG pathways analysis, the genes were involved in protein digestion and absorption (SLC7A7, SLC7A9, and SLC7A8), ferroptosis (SLC7A11), and central carbon metabolism in cancer (SLC7A5). Figure 12E shows an interactive network of the most highly enriched terms (colored by cluster-ID, where distinct colors indicate enriched pathways).

SLC7A1 and SLC7A3-5-related signaling pathways were obtained via GSEA (Figure 13).

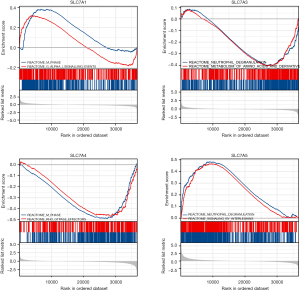

Figure 13 A GSEA for SLC7A1 and SLC7A3-5. GSEA, Gene Set Enrichment Analysis.

The correlation between SLC7A family gene expression and immune infiltration

Although the complex interactions between solid tumors and their microenvironment remain unclear, studies have shown that immune infiltrates are significantly related to the progression and prognosis of BC (33-35). A ssGSEA was conducted to determine the relative abundance of various immune cell types based on expression data from TCGA. Significant differences in relative SLC7A family gene expression were observed between tumor and normal tissues for immune cells (Figure 14). We found significant correlations among SLC7A family expression levels (Figure 15A). In addition, the correlation coefficients between SLC7A family member expression and immune-cell subsets were determined (Figure 15B). The results showed that SLC7A expression levels were closely correlated to 24 immune cell markers. T helper 2 (Th2) cells, natural killer (NK) CD56^bright cells, and NK cells were the most strongly correlated with SLC7A family genes, suggesting that SLC7A family members play a role in BC by modulating immune cell infiltration. Notably, SLC7A7 expression was strongly positively correlated with immune-cell infiltration. Programmed cell death protein 1 (PDCD1 or PD-1) and programmed death-ligand 1 (PD-L1 or CD274) levels were positively correlated with SLC7A5, SLC7A6, and SLC7A7 expression (Figure 15C,15D).

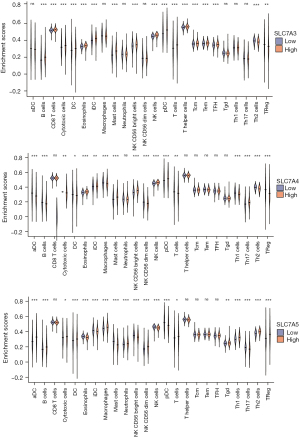

Figure 14 The relationship between SLC7A3-5 expression and immune infiltration in breast tumors and normal breast tissues. ns, P≥0.05; *, P<0.05; **, P<0.01; ***, P<0.001.

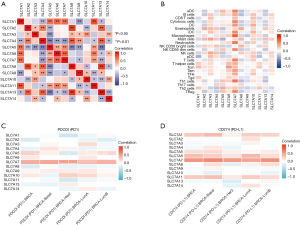

Figure 15 A relative analysis of the SLC7A family genes (A) The correlation between the levels of the different SLC7A family gene members. (B) The correlation between the expression of the SLC7A family genes and immune infiltration. (C) The correlation between the expression of the SLC7A family genes and programmed cell death protein 1 (PDCD1 or PD-1) expression. (D) The correlation between the expression of the SLC7A family genes and programmed death-ligand 1 (CD274 or PD-L1) expression.

Discussion

To the best of our knowledge, this study represents the first comprehensive evaluation of various large, well-established, and validated databases, including TCGA, and the KM database. We systematically documented the expression, prognostic value, relationship with immune infiltration and functional enrichment of the SLC7A family genes in BC. ROC analysis revealed that SLC7A family genes have a significant diagnostic value for BC and may play an important role in BC pathogenesis. Univariate survival analysis demonstrated that BC patients with high SLC7A5 expression had poor prognosis. In contrast, high SLC7A3 and SLC7A4 expression were associated with good prognosis. This data also provided a genomic explanation for the adverse prognosis associated with specific clinical, pathologic, and molecular features. It also confirmed that the occurrence of BC is highly dependent on glucose metabolism (7). Accumulating evidence suggests that SLC7A members that encode amino acid and glucose transporters may be therapeutic targets in cancers.

SLC7A1 has been suggested as a promising therapeutic target for colorectal cancers (36), hepatoblastomas (37), BC cell lines (19), pediatric sarcomas, and brain tumors (38).

SLC7A2 promotes the proliferation, migration, and invasiveness of ovarian cancer cells and was thus identified as a prognostic biomarker and potential therapeutic target for ovarian cancer (39,40). Differential gene expression analysis of different patient subgroups stratified based on apoptotic caspase expression suggested that SLC7A2 may be a prognostic biomarker with independent prognostic value in BC (41-43). In our survival analysis of the KM plotter database, significant differences were observed between expression levels of SLC7A2 and prognosis.

High expression of SLC7A3, SLC7A5, and SLC7A11 has been associated with poor prognosis in papillary thyroid carcinoma patients (44). In addition, SLC27A4 may be a new potential therapeutic target for lung tumor chemotherapy (45). Similarly, in our study, BC patients with high SLC7A4 expression had better prognosis. SLC7A5 expression is upregulated with tumor progression and correlates with poor clinical outcomes, and thus, has emerged as an important factor in cancer-associated metabolic reprogramming (46-48). In HER2-negative BC, LAT1 (SLC7A5) may serve as an important prognostic and predictive marker and a potential therapeutic target (49), as validated by our results. A growing body of evidence has demonstrated that metabolic reprogramming contributes to the acquisition and maintenance of robustness associated with malignancy (50,51). These findings are in line with our results. SLC7A5 plays a role in subtype-specific activation of immune-cell infiltration (52). mTOR signaling regulated by SLC7A5/SLC7A6 is a sensor of dynamic alterations in nutrients in the tumor microenvironment (53,54).

SLC7A7 plays a critical role in the pathogenesis of T-cell acute lymphoblastic leukemia (55). SLC7A7 variants have been associated with the risk of glioma in a Chinese population (56,57). SLC7A8 is a prognostic biomarker in ER-positive low-invasive BC (58).

Ferroptosis is an iron-dependent form of non-apoptotic cell death. Upregulation of SLC7A11 expression is highly dependent on glucose and glutamine levels, which may be therapeutic targets, and are associated with ferroptosis (59,60). In this current study, KEGG pathway analysis revealed that SLC7A11 is associated with ferroptosis.

Immunotherapy has been recognized as a promising cancer treatment, and T-cell tumor infiltration has been associated with effective immunotherapy in cancer patients (61). High expression of T-cell and B-cell signatures predicts improved OS in various tumor types, including BC (CD8 T cells, HR =0.36, 95% confidence interval: 0.16–0.81, P=0.01) (62). NK cells are an important mediator of the anti-tumor immune response and kill malignant cells (63). The current study demonstrated a correlation between SLC7A family gene expression and infiltrating immune cells. Thus, SLC7A5 and SLC7A7 may provide a rationale for immunotherapy in BC patients. The KEYNOTE-012 randomized phase Ib study of pembrolizumab in patients with advanced triple-negative BC suggested that the overall response rate was 18.5%, and the median time to response was 17.9 weeks (range, 7.3–32.4 weeks) (64). Our results suggested that SLC7A7 may be a candidate predictive biomarker for immunotherapy efficacy and is associated with prognosis in BC patients. SLC7A family genes in BC play an important role in the growth and survival of cancer, making potential new therapeutic targets. The application prospect is potential to provide new strategies for drug discovery, pharmacokinetics, drug delivery, drug elimination and medically related transporters in the future.

Although our findings improve the understanding of the relationship between the SLC7A family members and BC, there were some limitations to this study. First, the data were obtained from public databases, and although the data quality was uniform, it may not be completely rigorous. The number of male patients with tumor stage M were too small for subgroup analysis. Further experimental studies are needed to confirm our results. Second, the specific role of SLC7A in BC development should be comprehensively assessed, with consideration given to broader clinical factors. The current analyses were limited by the lack of certain information in public databases. Third, the correlation between SLC7A expression at the mRNA and protein levels should be verified in cellular experiments and clinical trials. Fourth, the precise mechanisms by which SLC7A contributes to BC development warrants further research.

In conclusion, this study provided some insights into the role of SLC7A in BC and identified potential diagnostic and prognostic biomarkers. Indeed, SLC7A5 expression may be a biomarker of poor prognosis in BC patients, while high SLC7A4 expression may suggest good prognosis. Overall, the SLC7A family has good diagnostic efficacy in BC. Finally, the SLC7A family members may be predictive biomarkers for determining the efficacy of immunotherapy and the prognosis of BC patients.

Acknowledgments

We would like to acknowledge the support provided by www.xiantao.love.

Funding: None.

Footnote

Reporting Checklist: The authors have completed the REMARK reporting checklist. Available at https://gs.amegroups.com/article/view/10.21037/gs-21-909/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://gs.amegroups.com/article/view/10.21037/gs-21-909/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
