Impact of intraoperative radiotherapy on the perioperative period of patients after breast-conserving surgery

Introduction

Breast cancer (BC) is one of the most common malignant neoplasms in women, and treatment with total mastectomy may adversely affect the patient’s psychology and aesthetic satisfaction. The combination of breast-conserving surgery therapy (BCS) and whole breast radiation therapy (WBRT) has become one of the major treatment paradigms of early BC. A number of studies have confirmed that breast conserving surgery combined with adjuvant radiotherapy has the same effect as mastectomy. Postoperative whole breast radiotherapy is an important clinical treatment for early breast cancer, which can effectively improve the quality of life of patients (1,2). Although postoperative adjuvant radiotherapy has been proved to be beneficial, there are still some patients who did not receive radiotherapy after tumor resection due to long postoperative radiotherapy cycle, cumbersome travel to hospital, and worry about the side effects of multiple radiotherapy (3). Secondly, conventional radiotherapy is usually started 4–6 months after surgery, which affects the accuracy of tumor bed location; moreover, the α/β ratio of breast tissue is low, so conventional fractionation radiotherapy may not achieve the best radiobiological effect. In addition, patients with traditional fractionated extracorporeal radiotherapy must bear the dual burden of body and mind (4): rough breast skin, deepening pigmentation and atrophy of local skin or prosthesis. It not only seriously affects the beauty of breast, but also reduces the quality of life of patients. Intraoperative radiotherapy (IORT), including accelerated partial breast irradiation (APBI) and targeted intraoperative radiotherapy (TARGIT-IORT), delivers all radiation directly to the tumor bed during lumpectomy, allowing all radiation to be delivered in a single dose to the region where recurrence would most likely occur. This method has the additional merits of being able to accurately position the target region under direct vision during operation, protecting surrounding normal tissue, and shortening the course of treatment (5). For some patients with selective early BC, IORT can even confer satisfactory local control rate and good cosmetic effect (6). As the largest related international prospective randomized phase III clinical study, the TARGIT-A study (7,8) showed that IORT can replace external radiation therapy for the treatment of patients with selective breast cancer in the early stage. Meanwhile, the Mannheim Medical Center reported (9,10) that for early selective breast cancer, a 50 kv X-ray is safe and effective. Although these results indicate that the effect of intraoperative radiotherapy is significant, intraoperative radiotherapy has not been widely used in clinical practice, and it is still not one of the standard treatment options for breast conserving surgery of early breast cancer. Therefore, it is still necessary to further study the clinical and anticancer mechanism of intraoperative radiotherapy for breast cancer. Indeed, considerable research has focused on the oncologic safety, acute/chronic toxicity, and cosmetic effect of BC treatment, but few studies have evaluated the perioperative application of IORT in depth. We thus conducted a retrospective analysis of the data of 160 early BC patients collected from June 2016 to December 2019, the results of which are detailed in this paper. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/gs-20-727).

Methods

General data

A retrospective analysis of 160 early BC patients who underwent BCS from the period between June 2016 and December 2019 in the Department of Breast Surgery at the Second Affiliated Hospital of Guangzhou Medical University was conducted. Of these patients, 100 (62.5%) were women who underwent IORT during BCS, with IORT being applied using the Intrabeam system. The study protocol was approved by the hospital ethics committee (No.2016-hs-10). Mammography, sonography, and magnetic resonance imaging (MRI) were used in all patients before surgery. The inclusion criteria were as follows: (I) desire for breast-conserving surgery, (II) unifocal tumor size ≤3 cm, (III) age >35 years, (IV) negative margins after resection, (V) clinical and radiologic N0 patients. The exclusion criteria were as follows: (I) multifocal patients with extensive intraductal component, (II) previous history of radiotherapy on the ipsilateral breast, (III) patients with bilateral BC, (IV) inflammatory breast cancer. The Breast surgeon communicate with patients and their families to inform them of the risks and meanings of IORT. Patients were enrolled in either the BCS + IORT group or the BCS group in accordance with their opinion. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). Individual consent for this retrospective analysis was waived.

Surgery

Breast-conserving surgery

First, clinically negative axillary lymph nodes were subjected to biopsy by methylene blue dying for sentinel nodes. Generally, it was required that at least 3 sentinel nodes be excised. If the frozen biopsy yielded a positive result, the axillary lymph nodes would be directly dissected; otherwise, the axillary lymph nodes would be exempt from dissection. Next, the tumor mass was excised under general anesthesia according to palpation or localization results to 1­–2 cm beyond the surrounding normal tissues; tissues were sampled intraoperatively at 10 points surrounding the tumor cavity and at the basilar part and subjected to frozen biopsy. Finally, if the result was positive, the excision would be extended by 1 cm (for up to 2 times); otherwise, the tumor bed would be subjected to IORT with Intrabeam system (20 Gy to the surface of the applicator) with an adapter of appropriate size (2–5 cm). Upon the completion of the radiotherapy, the tumor cavity was fixed with 4 titanium clamps. After an extensive surgery, the surrounding flap tissue was widely released, and negative pressure drainage was performed and sutured in stage I. Upon completion of the surgery, for patients in the BCS group who were exempt from IORT.

Radiotherapy

Intraoperative radiotherapy

If the frozen biopsy of the residual cavity yielded a negative result after the extended resection of the tumor, the size of residual cavity was measured and reported to the radiation oncologist, and IORT was delivered using the Intrabeam system with a 2.0–5 cm adapter. A dose of 20 Gy was delivered to the surface of the spherical applicator for IORT for a median duration of 25 minutes (range, 12–47 minutes). The edges of the skin incision were everted so any part of skin was at least 1 cm away from the applicator surface and protected with moist aseptic gauze to avoid excessive radiation exposure. Conventional whole breast external beam radiotherapy (EBRT) was administered (50 Gy in 25 fractions, tumor bed boost omitted) post-operatively to patients with high-risk factors (metastatic axillary lymph nodes ≥ R3, aged ≤60, lymphatic vessel invasion/lymphovascular invasion, invasive lobular carcinoma, etc.)

Subsequent therapy

Subsequent chemotherapy, endocrine therapy, and targeted therapy regimens of all patients were carried out in accordance with National Comprehensive Cancer Network guidelines (NCCN) guidelines and conventional whole breast EBRT was delivered 2 weeks after the completion of chemotherapy (or after the wounds healed).

Statistical analysis

SPSS 26.0 was used for data analysis. Measurement data in normal distribution are expressed as mean ± standard deviation ($\overline{x}\pm s$); a t-test was carried out for intergroup comparisons of two sets of independent, normally distributed data with a homogeneity of variance; enumeration data are provided either in the number of cases or percentages and were subjected to chi square test or Fisher’s exact probability test. A P value <0.05 was considered statistically significant.

Results

The analysis of general clinical patient data from June 2016 to December 2019 revealed that 160 female breast cancer patients underwent BCS at the Second Affiliated Hospital of Guangzhou Medical University. There was no difference of statistical significance (P>0.05) between the BCS group + IORT group and the BCS group in terms of age, tumor size, oncology grading, hormone receptor status, and human epidermal growth factor receptor 2 (HER-2) status (Table 1).

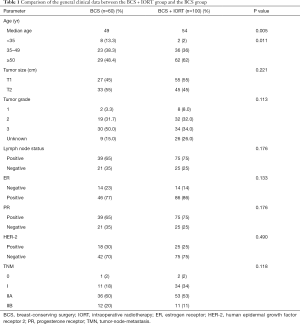

Table 1 Comparison of the general clinical data between the BCS + IORT group and the BCS group
Full table

Comparison of intraoperative conditions

There was no significant difference between the groups in terms of amount of bleeding, length of postoperative hospitalization, and time to extubation; however, the surgery duration in the BCS + IORT group was significantly prolonged, and the difference was statistically significant (P<0.05) (Table 2).

Table 2 Comparison of intraoperative and postoperative conditions between the BCS + IORT group and the BCS group
Full table

Comparison of postoperative complications

There were no significant statistical differences (P>0.05) between the groups in terms of the incidences of seroma, hematoma, infection, or erythema (Table 3).

Table 3 Incidences of postoperative complications in the BCS + IORT group and the BCS group
Full table

Discussion

In 1889, Stephen Paget, a British surgeon, found that the distribution of metastatic cancer was not random. Tumor cells had a special growth tendency to some organs and environments. He was the first to put forward the “seed soil” theory. In this hypothesis, he compares cancer cells to “seeds” and the destination of cancer metastasis to “soil”. In other words, cancer cells can spread around like seeds, but seeds only grow in fertile soil. Therefore, it is considered that tumor metastasis is a special tumor cell (seed), which can survive in a suitable microenvironment (soil) of tumor bed (11). Surgery may change the microenvironment of tumor bed, stimulate the proliferation of residual tumor cells, and increase the risk of local recurrence near the primary tumor after breast conserving surgery. The drainage fluid produced by breast conserving surgery and intraoperative radiotherapy “soaks” the “soil”, resulting in increased expression of anti-tumor cytokines such as IL-4, IL-5, IL-13, TNF and IFN. At the same time, the expression of cytokines positively related to tumor proliferation, migration and invasion is decreased, such as VEGF-R, gro-1, etc. (12). A single high-dose radiation during operation is more conducive to destroying tumor microvessels (13), improving the recognition and killing effect of immune cells in tumor microenvironment, such as CD8 + T cells (14), resulting in changes in tumor microenvironment And free radical attack biological macromolecules (nucleic acid, protein, enzyme and ester) lead to biomolecule damage, which is more effective than conventional radiotherapy in killing breast cancer stem cells (15), and affecting multiple cell pathways (16-18) and interfering with DNA damage repair (19,20), so as to achieve the effect of destroying tumor cells. The technological bottleneck of IORT has recently been overcome as a result of the emergence of compact linear accelerators, which are free from the drawbacks of conventional radiotherapy equipment, such as the need for special shielding protection, immobility, long anesthesia duration, and conveyance of the patient during therapy (21,22). The Intrabeam system has been widely used in clinical practice due to its low-energy (50 kV) X-ray, low penetrability, fast attenuation of radiation dose, and a lack of special shielding protection requirements. In a comparative study by Vaidya et al. (23), the 5-year recurrence-free survival rates in the TARGIT group and ERBT group were 93.9% and 92.5%, respectively. The difference between the groups was not statistically significant (P=0.35), demonstrating that the delivery of IORT using the Intrabeam system is safe, feasible, and effective. Many of the relevant studies have mainly focused on the safety (24), acute/chronic toxicity, and cosmetic effect of BC treatment (25,26), while little focus has been placed on the influence of acute toxicity on the perioperative application of IORT. The primary objective of our current study was thus to analyze the perioperative effect of IORT with Intrabeam system on early BC patients who underwent BCS. In the international, multicenter, prospective randomized control TARGIT-A study (25,26), 2,232 early BC patients aged above 45 were recruited with 1,113 of them being randomized into the IORT group, in which the incidence of seroma was 3.1% and the wound infection rate was 1.8%. In our study, the incidence of seroma was 6.0% and the infection rate was 5.0%; the infection rate was thus slightly higher than that in the TARGIT-A study (Table 4), but was comparable to the matched patients undergoing BCS over the same period. The wound infection rate arising from IORT varies significantly in the currently available studies, ranging from 2.3% to 13.6% (27-29). This difference might be attributable to the different radiotherapy equipment and methods used in the studies, and to the effect that variable patient characteristics, surgical procedures, and postoperative therapies might have had on toxicity and side effects. It was reported (30) that factors like old age, obesity, diabetic anemia, chronic obstructive pulmonary disease, large tumor size, and smoking could have adverse influence on the complications in operative wounds of BC surgery. This is evident from the distribution characteristics of patients who experienced infection in their operative incision: 1 patient had a large tumor excised and subjected to RT with a 5 cm adapter for as long as 45 minutes; 3 patients were 70 years old; 1 patient had a BMI of 35.5 (probably an important factor that contributed to the infection); indeed, Ahn et al. (31) identified advanced age and high body mass index (BMI) as risk factors for wound complications. The use of prophylactic antibiotics can reduce the incidence of wound infection. Of the 5 patients who experienced wound infection, only 1 had been administered prophylactic antibiotics. Of the 5 patients with wound infection in the IORT group, 3 had been identified with Staphylococcus aureus infection. These patients' incision was healed later after having been opened up, fully drained, and treated with antibiotics; 2 had not been identified with any bacterial infection, and their incision was healed after having been opened up and fully drained; the median time to the recovery of these patients was 4.0 (range, 1–11) months. One patient in the BCS group experienced incision infection, and culture test revealed S. aureus infection; the patient received anti-infection treatment, and the wound was healed 3 weeks later. The healing performance of patients in the IORT group was significantly decreased, and this decrease might be associated with the blood vessel damage and tissue fibrosis caused by a large dose of irradiation.

Table 4 Incidences of postoperative complications in the TARGIT-A group and BCS + IORT group
Full table

In our study, the operative duration of BCS was 159.3±36.7 minutes, which is a bit higher than the duration of 128.3±31.2 minutes reported in the reference literature (32). This could be related to the number of frozen tissue samples taken during the surgery. It was a routine practice in our study that samples be taken at 1–10 sites in the residual cavity for intraoperative frozen pathological examination. This generally took 1 hour, and consequently the surgery duration was prolonged. The surgery duration in the BCS group was significantly shorter than that in the IORT group, probably because the preparation of radiation equipment, double purse-string suturing, wrapping of the adapter, and the delivery of IORT are time-consuming. Finally, there was no statistical difference between the groups in terms of intraoperative bleeding and time to extubation.

In conclusion, the delivery of IORT merely prolongs the operation time without an accompanying rise in the incidence of perioperative complications. IORT using the Intrabeam system can safely deliver radiation therapy, is well-tolerated, has acceptable acute toxicity, and does not increase the risk of surgery or the incidence of perioperative complications.

Acknowledgments

Funding: Funding was provided by the Clinical Study and Application of New Technology and New Business, the Second Affiliated Hospital of Guangzhou Medical University (no. 2017-XJS-Y-02).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/gs-20-727

Data Sharing Statement: Available at http://dx.doi.org/10.21037/gs-20-727

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/gs-20-727). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). Individual consent for this retrospective analysis was waived. The study protocol was approved by the hospital ethics committee (No.2016-hs-10).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
