Transoral endoscopic thyroidectomy vestibular approach in a patient with Class III goitre (operative steps and video)
Introduction
Cunchuan Wang reported a transoral endoscopic thyroidectomy vestibular approach (TOETVA) in 2012 (1), and the modification of that approach, currently known as TOETVA was first reported by Angkoon Anuwong in 2016 (2). This approach has gradually become accepted worldwide and has quickly become a widely discussed topic due to the advantage of leaving no scars.
The use of TOETVA is limited to some extent. According to the criteria from different centers, most agree that the thyroid gland should be small enough, <25–40 mL, depending on the center (3-6), otherwise it is difficult to resect the tissue under endoscopy and more difficult to remove in a transoral way.
However, with meticulous dissection of the mental nerve and a lateral approach to the thyroid gland, on 20 September 2019, we successfully completed TOETVA for a female patient with a history of keloid scarring and a large goitre measuring 205 mL (Class III goitre). We present a video of this case report (Video 1).
We present the following article in accordance with CARE reporting checklist (available at http://dx.doi.org/10.21037/gs-20-147).
Case presentation
A 53-year-old female with a previous history of a chest keloid presented with neck swelling (Figure 1A,B). Three years prior she had been treated for a diagnosis of Hashimoto’s thyroiditis (HT) and regularly used 25 µg levothyroxine per day. One year ago, the neck swelling worsened and she was treated with an increase dose of 100 µg L-thyroxine per day. During that time, local surgeons suggested she have a thyroidectomy but she refused because of the fear of having a scar and a keloid. In September 2019 she went to our hospital for further treatment. She did not complain about dysphagia or dyspnea. The Swallowing Impairment Score [SIS-6, to evaluate the degree of swallowing disorder (7)] was 4 points. The ultrasound image showed that the left thyroid lobe was 70 mm × 46 mm × 35 mm; the right lobe was 66 mm × 43 mm × 33 mm and the isthmus of the thyroid was 20-mm thick. No nodules were found in either lobe. A CT scan found that the upper pole of left gland was higher than the level of the hyoid bone (Figure 1C,D). The patient was very eager for TOETVA and was informed of the risk that the procedure might change to open thyroidectomy (OT) if the tissue was too large to remove.
There were no abnormal findings from a flexible nasopharyngeal laryngoscopy. Thyroid hormones were thyroglobulin (TG): 0.036 ng/mL, total thyroxine (TT4) 8.848 µg/mL, total triiodothyronine (TT3) 0.920 ng/mL, thyroid-stimulating hormone (TSH) 0.267 µIU/mL, thyroid peroxidase antibody (TPO-Ab) 68.221 IU/mL, and thyroglobulin antibody (TG-Ab) 78.112 IU/mL. Other preoperative examinations showed that she could tolerate general anesthesia. The principal surgeon who performed this operation had extensive experience (over 400 cases).
All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.
Methods
Preoperative preparation
No oral infection was found. The patient had a general endotracheal anesthesia through oral intubation in a supine position with a pillow placed under her shoulder. Because the incision was in the oral cavity (which might cause infection), an intravenous infusion of cefamandole was prepared to use during the surgery.
Mental nerve dissection
After disinfection three times, the main surgeon sat near the patient’s head and one assistant sat on the left side of the patient. The lower lip was retracted by the assistant to expose the oral vestibule.
The process of mental nerve dissection has been described in detail by Peng et al. (8): the design of the incision began at the midpoint of the vestibule about 1cm inferior to the gingival edge. A curved mosquito forceps was used for separating the submucosa, and the incision was lengthened horizontally from both ends of the mucosa incision. The branches of the mental nerves were exposed. Muscle was incised at the middle of the vestibule under the mucosa incision and separated downward to the mandible surface.
Building working space
Expansion solution with a volume of 5 mL (1 mg adrenaline in 500 mL saline) was injected subcutaneously from the chin to the hyoid bone. A blunt tip dilator was then used for creating a subcutaneous tunnel towards suprasternal fossa. After two 5-mm trocars were separately inserted into the inner side of the inner branches of the mental nerve and a 10-mm trocar was inserted into the middle tunnel, CO2 with a constant pressure of 6 mmHg was injected into the space. An electrocoagulation hook diathermy and an ultrasonic scalpel were alternately used to reduce bleeding. The space was established down to the sternal notch with the lateral border at the sternocleidomastoid muscles. The middle of the anterior neck skin was lifted with a Vicryl Plus suture 4-0 (Ethicon, Inc.) and fixed to an arc-shaped omnidirectional fixed device above the patient’s neck. This arc-shaped omnidirectional fixed device was first used in our study in 2017 (9) (patent: No. 201821210473.4 registered under China).
Resection of right thyroid gland and isthmus
The linea alba was incised. After separation from the right gland, the strap muscles were then retracted to the right with a 4-0 suture fixed to the arc-shaped device. The pyramidal lobe was separated from the trachea by an electrocoagulation hook diathermy. An atraumatic grasping forceps was used for grasping the right thyroid gland. Part of the sternothyroideus was resected for a better view. After the superior thyroid artery and veins were severed, the upper pole can be separated completely. The recurrent laryngeal nerve (RLN) was carefully identified with the help of intraoperative neuromonitoring (IONM). Berry’s ligament was cut. After resection the gland was not immediately removed from the workspace. If it had been removed, the oral incision would need to have been enlarged, which would then cause CO2 leakage.
Resection of the left thyroid gland

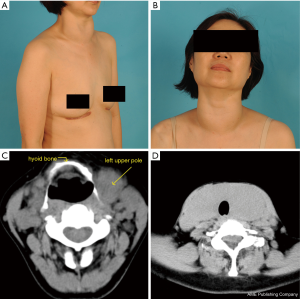

As the upper pole of left gland was at the level of the hyoid bone shown in the CT, it was difficult to expose it in a traditional way as it was for the incision of the right lobe. Therefore, we decided to use “the lateral approach to the thyroid gland” (10): The boundary between the lateral strap muscles and the medial sternocleidomastoid muscle was opened using the electrocoagulation hook. The omohyoid muscle was in the way, so it was transected. The potential space between the left gland and the left strap muscles was then opened from the lateral side to the medial side and the upper pole of the thyroid was then revealed. The following steps were similar to those used for the right lobe. There was some residual tissue. The parathyroid and the RLN were carefully identified and protected under IONM.
Removal and measurement
The left gland was put into a specimen bag and then removed through the subcutaneous tunnel which was originally used for the 10-mm trocar insertion. Because the size of tissue was large, we extended the tunnel along the surface of the mandible. The tunnel was enlarged near the two sides of the mental foramen with an electrotome. Therefore, it became easier to remove the entire tissue. In addition, there was a certain position for its taking out, which was “let the thinner part go first and vertically”, otherwise it might be difficult to deliver the specimen (Figure 2). The right lobe and isthmus were removed successfully in the same way by using a new specimen bag.
There was still some residual tissue which needed to be removed. However, the tunnel needed to be enlarged for removal, which would surely have cause air leakage. Thus, the 10-mm trocar was wrapped with a latex glove, so that the tunnel could be sealed to solve this problem. As the main part of the gland was taken out, the working space was spacious and the residual tissue was easily removed and was taken out in a new specimen bag.
The left gland measured 7.7 cm × 5.4 cm × 4.0 cm (without its residual tissue) (Figure 3A), a volume of 90 mL (with the residual tissue). A measuring vessel containing normal saline was used for measuring its volume (minimum scale: 5 mL, approximate read: 1 mL). The right gland and isthmus measured 10.1 cm × 9.0 cm × 4.0 cm (Figure 3B), a volume of 115 mL. Both were sent for fast pathological examination, and there were no malignant findings.
Closure
The operational space was flushed with sterile water and then bleeding was meticulously checked and stopped. According to our previous study of the drainage in TOETVA, the volume of the patient’s drainage was estimated to be greater than 150 mL in total (11). Thus, we considered it safe to install a drain. A central venous catheter was used as a drain tube. (Brand: Tuoren, outer diameter 1.7 mm, inner diameter 1.0 mm), which would result in a smaller scar than a normal drainage tube (11). After the oral incision was sutured with a running sutured using 5-0 absorbable suture material, the catheter was connected to a high negative drainage bottle (Brand: German Pfm Medical Mepro Gmbh, volume: 400 mL, pressure: 98 kPa). There was about a 50 mL blood loss. The whole operation time was 195 min.
Postoperative management
The patient was allowed to have a liquid diet 6 hours later. During the first day an ice compress was put behind the chin to relieve swelling. Her pain score was assessed by using the Visual Analogue Scale/Score (VAS) that ranges between 0 to 10. The lower the score, the less pain she experienced. In the first postoperative day (POD1), the VAS was 3 points. It had dropped to 1 when she was discharged on the third postoperative day (POD3). Although she did not complain about hoarseness, her vocal cord function was still checked by laryngoscopy the next day, and showed a normal result. Intravenous antibiotics were given for 3 days to prevent infection and intravenous calcium for 2 days to prevent temporary low calcium. The drainage tube was removed 3 days after the operation and the total drainage volume was 180 mL. A blood test of thyroid function in the third day showed normal parathyroid hormone (PTH) (30.67 pmol/L) and Ca2+ (2.4 mmol/L).
Follow-up
No complications developed. She was asked to take 100 µg levothyroxine everyday and to exercise the neck everyday. She was very satisfied with the operation. Figure 4 shows her appearance in postoperative month 3 (POM3). A tiny scar left by the drain disappeared and her SIS-6 dropped to 1 point after one month of her discharge.
The sensation of skin (lower lip, chin, under the chin) was measured for several aspects (touch, pain, temperature) times different times (pre-operation, POD1, POD3, POM1, POM3) to assess mental nerve injury. This method was originated by Bartling et al. (12) and then refined for our study. A cotton swab lightly touched on the left side of the lower lip, and then touched the right side. She was asked whether she could tell the two-point discrimination. If yes, the distance between two points was gradually reduced until the patient could not discriminate two points of contact. The distance was recorded as the minimal identifiable distance in millimeter (Table 1). A similar technique was used to test for the ability to perceive pain; but a 27-gauge needle was used instead of swabs. For the temperature test an iced metal stick and a warm metal stick (about 43 centigrade) were used.
Full table
The blood test on POM3 showed; TG <0.04 ng/mL, TT4 7.17 µg/mL, TT3 0.73 ng/mL, TSH 18.32 µIU/mL, TPO-Ab 8.894 IU/mL, TG-Ab 6.256 IU/mL, and PTH 64.2 pg/mL. The levels of TPO-Ab and TG-Ab were much lower than the preoperative levels.
Discussion
Indications for TOETVA

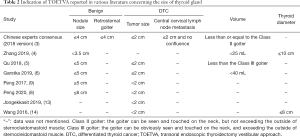

Unlike OT, the limited working space and endoscopic technique restricts the indication for TOETVA. The indications according to the size are listed in Table 2. Other indications: no evidence of clinical or radiographic lateral nodal metastasis or distant metastasis and no previous surgery or radiation of the neck (3-6,8,9,13,14). No severe oral cavity infection, such as an abscess (3,5,13). No invasion of the esophagus or trachea (4,8,9). No history of chin augmentation by a silicone implant (13).
Full table
In this case, we challenged the current indications and succeeded. This success resulted from not only our technique but also from the patient’s strong wishes and their trust, which was appreciated.
The actual size of the thyroid tissue was larger than what it was measured by ultrasound in this case, and this statement was also reported in Hongjuan’s study (15). Possible reasons include the depth which the probe could detect was limited because her thyroid tissue was thick and behind the strap muscles. Thus, the boundaries of the posterior surface of the thyroid could not be clearly detected with ultrasound.
Mental nerve dissection
This technique was first mentioned by Xiaowei Peng and colleagues in 2017 (9). In 2019 he conducted a further study (10), a comparative trial between one group with mental nerve dissection and another group with the conventional three incisions, the most commonly known way of incision in TOETVA (3,13,16). He pointed out its three advantages: to protect the mental nerve, to facilitate specimen removal, and to avoid the “chopsticks effect” (the interference between the endoscopic appliance in each hand and the endoscope).
It is our experience that an injury to the mental nerve can numb the mucosal and cutaneous surfaces of the lower lip and chin for 6–12 months. On the contrary, those whose mental nerve is not injured commonly feel a numb lower lip during the first month after the operation and this feeling is relieved during the first 3 months or sooner (8). In this case, the patient’s mental nerve was dissected and protected during the operation. In the follow-up period we measured the numbness of different areas (lower lip, chin, under the chin) of innervation by the mental nerve as a measure of nerve injury. This method was feasible and straightforward. She complained about lip numbness during POD1, but it gradually resolved in POM1 and almost became normal in POM3.

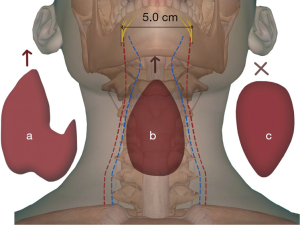

During the specimen removal the distance between both sides of her mental nerve was 5.0 cm, so the thyroid gland had to go through a narrow subcutaneous tunnel. We were cautious not to enlarge the tunnel to the two sides of the mental foramen unless the mental nerve had been carefully dissected. In this case, the tunnel was enlarged at the two sides of the mental foramen with an electrotome to make a better delivery for the large thyroid gland (Figure 3). Although dragging the nerve could not be avoided during the removal of the specimen bag due to the large size of tissue, we were sure that the integrity of the nerve was protected.
Additionally, there was little “chopsticks effect” in this case according to the main surgeon’s perception. Because a larger incision can increase the mobility of the upper lip (the lip could be dragged to the level of the chin or even under the chin), compared to the conventional three incisions, the mobility of the two 5-mm trocars increased and the chopsticks effect was minimized.
Lateral approach to the thyroid gland
This approach has been used in OT in cases where the upper pole of the thyroid was difficult to expose (10,17), but it was not yet reported for use with TOETVA. To expose the upper lobe, it is more common to incise the cervical linea alba and to retract the strap muscles to the affected side, as we did while resecting the right thyroid gland in this case. However, for the left lobe the upper pole was large and at a high level to the hyoid bone. It was hidden beneath the strap muscles and could not have been thoroughly exposed no matter how hard the strap muscles were dragged if we had used a traditional approach like the right lobe. It was hard to visualize the left upper pole with the endoscope. Nor could it be seen by direct vision through the incision.
Therefore, the approach of the lateral strap muscles was applied. As is shown in the video, we grasped a part of the gland and the upper pole was dragged by its near tissue. It could not be seen thoroughly until it was fully dissected. If we loosened the grasp, the upper pole would retract back to its original position and be hidden. The first assistant also played an important role during this procedure, and had to know how to control the endoscope well to provide a better field of vision. The upper parathyroid gland was also preserved. In conclusion, this approach can be used not only in OT but also in TOETVA, which makes the dissection of the upper pole easier and safer.
Other discussion
IOMN has always been recommend in thyroid surgery for navigation and confirmation of the functional integrity of the RLN during both OT (18) and TOETVA (19). We highly recommend the use of IONM in cases like these.
HT is the most common endocrine disorder, as well as the most common cause of hypothyroidism. The fibrous variant of HT is characterized by an enlarged, hard, and lobulated thyroid (20). In this case, the patient had hypothyroidism for years and the size of the goitre gradually grew, which met the indication of thyroidectomy. Luckily, the thyroid gland was not stiff according to the surgeon’s observations. Elastography can assess the risk of malignancy and provides information about the degree of hardness in tissue (21). However, we did not apply elastography before the surgery to quantify the stiffness of the goitre, which was a deficiency.
Thyroid hormone tests showed a satisfying result during the third postoperative month, as the level of TPO-Ab and TG-Ab dropped compared with the preoperative results. This proved that subtotal/total thyroidectomy is still one of the effective treatment for HT (20).
Additionally, we might have been too cautious about the postoperative treatment as we prolonged the use of antibiotics and intravenous calcium compared to other cases.
We do not recommend an unskilled surgeon perform this surgery on a patient with Class III goitre. We recommend that only those who have extensive surgical experience (at least 100 cases) proceed with this technique.
Conclusions
With the improved techniques above, it is possible to remove a benign goiter over 200 mL using TOETVA. By carefully designing the operative steps it is feasible to use the transoral approach in patients who have a benign thyroid disease with Class III goitre, if the patient strongly desires using this technique. Whether TOETVA can be applied in all the Class III goitre remains to be seen, far more clinical trials and evidence are needed.
