Rotational intraperitoneal pressurized aerosol chemotherapy in a porcine model

Introduction

Peritoneal carcinomatosis (PC) occurs commonly in advanced or recurrent disease of solid tumors. More than 80% of patients with advanced ovarian cancer and 10–60% of those with recurrent colorectal cancer show PC (1,2). However, PC is one of the important factors related to the failure of treatment in patients with ovarian and colorectal cancers, who usually show poor survival of less than 20 months (3).

The current strategy using intravenous (IV) chemotherapy is limited to improve the prognosis of PC because it develops as a result of multi-drug resistance (4). Thus, intraperitoneal (IP) chemotherapy has been suggested to increased survival, in particular, in patients with advanced ovarian cancer in phase III trials (5,6). However, increased toxicities by IP chemotherapy lead to reduced cycles of chemotherapy, which can contribute to the lack of superiority compared to IV chemotherapy (7).

For increasing the effect of IP chemotherapy, hyperthermic intraperitoneal chemotherapy (HIPEC) after cytoreductive surgery has been introduced, which shows the drug effect under hyperthermia of 41–43 °C by destroying the microtubule system, inducing protein degeneration, and inhibiting angiogenesis in tumors (8,9). Although HIPEC has been shown to improve survival compared to IV chemotherapy in advanced ovarian cancer (10), limited distribution and diffusion of drugs, and grade 3 or 4 renal and hepatic toxicity of 20% preclude the expansion of its application in the clinical setting (11).

On the other hand, pressurized intraperitoneal aerosol chemotherapy (PIPAC) demonstrates the effect by delivering drugs to the parietal and visceral peritoneum in the form of aerosol under the abdominal pressure of 12 mmHg induced by the laparoscopic system (12). Low dose equivalent to about 1% dose of drugs for IV chemotherapy and normothermia in PIPAC may decrease treatment-related toxicity compared to HIPEC (13,14). In spite of the use of resistant drugs, treatment response, and quality of life are improved by repetitive application of PIPAC due to the increased distribution and penetration depth of drugs (15,16).

Nevertheless, heterogeneous distribution of drugs is the major limitation of PIPAC because the nozzle is placed at the possible outlying position to the tumor-bearing tissues, which may be related to the reduced penetration depth. Thus, rotation of the nozzle and change of spray direction can be considered to overcome this limitation (17). Therefore, we developed a novel prototype for PIPAC, and will compare the distribution of drugs between PIPAC and rotational intraperitoneal pressurized aerosol chemotherapy (RIPAC) system in a porcine model mimicking human body (Video 1).

Operative techniques

Prototype development

For delivering drugs in the form of aerosol, we made a novel prototype for PIPAC (18).

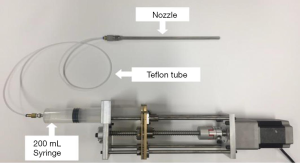

The novel prototype for PIPAC sprays approximately 30 µm drug droplets at a flow rate of 30 mL/min with 7 bar pressures. The average diameter of sprayed region with concentrated dye was approximately 18.5 cm, which comparable to that of the current system of PIPAC (Figure 1).

Figure 1 Novel prototype for PIPAC. PIPAC, pressurized intraperitoneal aerosol chemotherapy.

Preparation

We used two female swine, which weighed from 40 to 50 kg. For evaluating the distribution of drugs, we used 1% methylene blue of 150 mL made by dilution of 1.5% methylene blue of 100 mL (Sigma-Aldrich, Seoul, South Korea) into 0.9% NaCl of 0.9%. Capnoperitoneum was made by CO₂ insufflation via a Veress needle. We inserted three 12-mm bladeless trocars (Transport^®; Dalim Corp., Seoul, South Korea) along the midline of the abdomen for IP chemotherapy, which was used as passages for insertion of the nebulizer, laparoscopic camera, and devices.

Operative procedure

For PIPAC, the nebulizer was inserted into a 12-mm bladeless trocar, and 1% methylene blue of 150 mL was nebulized at 30 mL/min over a few seconds in the room temperature by the syringe pump which we developed previously (20 °C) (18), and the abdominal pressure was maintained at 12 mmHg for 30 minutes. The aerosol was eliminated using a pressure-limited waste system including filter.

For RIPAC, we developed the conical pendulum motion device, which consists of a DC motor (12V/1.5A, GM35A-3323, Motorbank, Seoul, South Korea), a 3-D printed rotational stick, two end-stops (PCB mounted End-stop switch, RepRap, England) and an Arduino Uno. The nozzle was inserted in a 3-D printed rotational stick, and locked with screw. The angle between the nozzle and the vertical line was determined 30 degrees by calculating the spraying angle of approximately 70 degrees. The rotational stick could not rotate the same direction continually because Teflon tube connected to the syringe pump could be got tangled. Thus, the rotational stick moved repeatedly clockwise and counterclockwise (Figure 2). Thereafter, 1% methylene blue of 150 mL was nebulized like PIPAC.

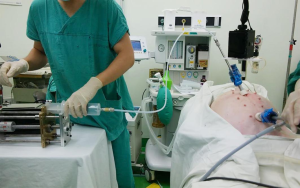

Figure 2 Setting of RIPAC in swine. RIPAC, rotational intraperitoneal pressurized aerosol chemotherapy.

After completion of IP chemotherapy using 1% methylene blue, we sacrifice the two swine, and compared the distribution of methylene blue throughout the entire abdominal cavity between PIPAC and RIPAC. As a result, RIPAC stained the visceral and parietal peritoneum more strongly than PIPAC (Figure 3).

Figure 3 Comparison of the distribution of drugs by using 1% methylene blue staining between (A) PIPAC and (B) RIPAC. PIPAC, pressurized intraperitoneal aerosol chemotherapy; RIPAC, rotational intraperitoneal pressurized aerosol chemotherapy.

Comments

This experiment confirmed the potential that RIPAC can be superior to PIPAC in terms of the distribution of drugs into the peritoneum in a porcine model. In subsequent experiments, we also confirmed that RIPAC was superior to PIPAC in terms of the penetration depth and tissue concentration of drugs by repetitive experiments in a porcine model (19), which strongly suggests the potential that RIPAC may be more effective than PIPAC for treating PC.
