Radioactive iodine treatment of papillary thyroid carcinoma in Japan

Introduction

Radioactive iodine (RAI) therapy is one of the mainstays for managing patients with differentiated thyroid carcinoma (DTC) and has a definitive role in selected cases with distant metastases (1). However, the effectiveness of ablative or adjuvant RAI therapy for preventing oncologic events in surgically curable diseases has been controversial (2-4), and it has not been widely used in Japan (5-7). For example, only 1.5% of patients received RAI therapy for papillary thyroid carcinoma (PTC) in our department between 1981 and 1991, even though 35% of the cohort were deemed to have high-risk PTC (8). As Higashi et al. described, there are several reasons for this, including “radiophobia” among Japanese individuals, surgeons’ belief in the effectiveness of less than total thyroidectomy (i.e., subtotal thyroidectomy or lobectomy) which precluded use of RAI, and limited availability of facilities for RAI therapy (7).

Availability of RAI therapy

In Japan, RAI therapy has not been readily provided in a timely manner to patients in need (6,7). Successive nationwide surveys on the status quo of RAI therapy for DTC in Japan have revealed that the number of beds dedicated to inpatient care has decreased. In contrast, the number of inpatient cases treated with RAI for adjuvant or therapeutic purposes has increased to nearly 3,000 during the past two decades (Figure 1) (9-14). There are two reasons for the decline in available beds (5-7). First, the Ministry of Health, Labour and Welfare of Japan has established fairly stringent and comprehensive regulations on the use of radioactive materials and release of patients following RAI therapy. Medical institutions have been spending a considerable amount to equip and maintain exclusive facilities, such as shield rooms, local air exhausters, filters, drainage, and waste disposal tanks, to observe the rules. However, the second reason is that the Japanese health insurance system does not fully reimburse the actual expenses. More than 90% of respondents in the nationwide survey felt that coverage was insufficient (12). Therefore, several hospitals had to abandon RAI therapy because of the financial load (7).

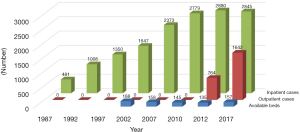

Figure 1 Time trends of the numbers of available beds, outpatient cases, and inpatient cases of RAI therapy for thyroid cancer.

Another problem is that patients with recurrent disease have to wait for a long time to receive RAI therapy. Although the average waiting time decreased from 5.2 months in 2010 to 3.8 months in 2018, there is still room for improvement (Figure 2) (9-13). In fact, the distribution and availability of medical facilities vary across the country, and some patients have to wait for >9 months to receive treatment for their metastatic lesions (13). This observation posed serious concerns on the potential effects of such a long waiting period on the oncologic outcomes. Higashi et al. reported that delayed RAI therapy for metastatic DTC was significantly associated with poor disease-specific survival, and the hazard ratio of the interval from surgery to initial RAI therapy ≥180 days compared to that of <180 days was 4.22 (95% CI, 1.55–11.5) (15).

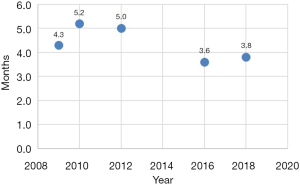

Figure 2 Average waiting time (months) to receive RAI therapy for thyroid cancer.

To overcome the potential harm caused by the shortage of dedicated facilities, Japanese experts initiated thyroid remnant ablation for DTC with a dose of 1,110 MBq of RAI in an outpatient clinic, following a pivotal study that examined the safety of the procedure. Kusakabe et al. of the Japanese Society of Nuclear Medicine concluded that outpatient-based ablation with 1,110 MBq of RAI after total thyroidectomy in patients with DTC was safe if applied under appropriate supervision and guidance by experts with specific qualifications (16). The number of patients treated with ablative RAI therapy in an outpatient basis increased from 764 in 2012 to 1,642 in 2017, according to the surveys (Figure 1) (14). In contrast, the number of inpatient cases remained at the same level, and the waiting time did not show a significant change (Figures 1,2). The need for RAI therapy for metastatic lesions can be expected to increase because patients with PTC with high-risk features have sustained hazard of developing recurrence, even ≥10 years after initial treatment (8). Moreover, it is recommended that RAI therapy be performed first for unresectable progressive DTC, and molecular-targeted drugs are indicated only when the lesions are refractory to the treatment.

Clinical practice guidelines for thyroid cancer

Following the initial development of the clinical practice guidelines for thyroid tumors in 2010 (17-19), the Japan Association of Endocrine Surgeons (JAES) and the Japanese Society of Thyroid Surgeons (JSTS) revised the guidelines in 2018 (20,21). The guidelines set four risk categories as an initial assessment of PTC based on the pre- or intraoperative findings according to the UICC TNM classification (22): very low-risk PTC measuring ≤1 cm without any metastases (T1aN0M0); low-risk PTC measuring 1.1–2 cm without any metastases (T1bN0M0); high-risk PTC having at least one of the features including tumor size >4 cm, extrathyroidal extension or extranodal extension to adjacent structures except for the sternothyroid muscle, clinical node metastasis >3 cm, and M1; and intermediate-risk PTC, which indicates a tumor that does not meet any of the definitions for the very low-, low-, or high-risk categories (17-21). The guidelines are unique in that the management strategies are recommended according to the risk categories (Figure 3). Active surveillance without surgery can be an option for patients with very low-risk PTC, while lobectomy, along with prophylactic central node dissection, is a treatment of choice for very low- and low-risk PTC. Total thyroidectomy plus appropriate central/lateral lymph node dissection followed by RAI therapy and thyrotropin suppression therapy is recommended for high-risk PTC. For intermediate-risk PTC, sound judgment is required to determine the extent of thyroidectomy and lymph node dissection by considering each patient’s characteristics and prognostic factors.

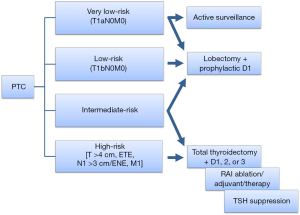

Figure 3 Flowchart of the initial management of PTC (the revised Japanese clinical practice guidelines for thyroid tumors) (20,21). PTC, papillary thyroid carcinoma; ETE, extrathyroidal extension; ENE, extranodal extension; D1, lymph node dissection of the central neck area; D2, lymph node dissection of the unilateral neck area; D3, lymph node dissection of the bilateral neck area.

Considering the poor prognosis associated with high-risk PTC (8), Japanese experts reached a consensus that employing all available treatments would be necessary to reduce oncologic events. This recommendation must have been reflected in the rise of ablative RAI therapy on an outpatient basis during the past decade (Figure 1). However, so far, there is no substantial evidence to support the advantages of total thyroidectomy, ablative RAI therapy, and thyrotropin suppression therapy (21).

RAI therapy: definitions, goals, and evidence

The Japanese guidelines classify RAI therapy into three categories in line with those set by the latest guidelines developed by the American Thyroid Association (ATA) in 2015: ablation, adjuvant therapy, and treatment (Figure 4) (23). Ablation aims to eliminate remnant normal follicular cells to facilitate the detection of recurrence by measuring thyroglobulin (Tg) levels. Adjuvant therapy is expected to improve recurrence-free and disease-specific survival by destroying microscopic residual cancer cells. RAI treatment is a therapy for a persistent disease that is not suitable for surgical therapy. Although the recommended dose of RAI for adjuvant therapy is 3,700–5,600 MBq (100–150 mCi), it is not attainable in Japan because the dedicated resources have been quite limited, as described above. Some patients who are candidates for adjuvant RAI therapy have been treated with 1,110 MBq (30 mCi) of RAI under “ablation.”

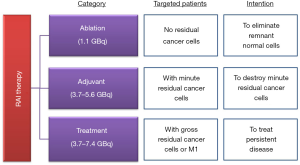

Figure 4 Category, targeted patients, and intention of RAI therapy (the revised Japanese clinical practice guidelines for thyroid tumors) (20,21).

Ablation

Recently, researchers from three institutions in Japan reported the efficacy of ablation using RAI 1,110 MBq (Figure 5) (24-26). Ablation success was achieved in 53% (95% CI, 38–68%) at Gunma University, 74% (95% CI, 61–83%) at Kyoto University, and 23% (95% CI, 15–33%) at Tokyo Women’s Medical University. Several factors may explain the observed differences. The criteria in assessing a diagnostic whole-body scan (DxWBS) and the definitions of ablation success were different among the three reports. Particularly, Abe et al. used the most stringent definition for ablation success comprising of negative DxWBS and stimulated Tg level <2 ng/mL compared to that used by the other two studies (26). Study populations were also different in terms of the risk class of PTC. The proportion of patients with high-risk PTC was 23% at Gunma University, 34% at Kyoto University, and 45% at Tokyo Women’s Medical University, whereas that of patients with low-risk PTC was 13%, 0%, and 0%, respectively. Furthermore, the investigators from Gunma and Kyoto University classified patients according to the ATA 2015 guidelines, while the authors at the Tokyo Women’s Medical University referred to the Japanese 2018 guidelines. The two guidelines differ in some respects in defining the risk class for PTC (Figure 6). The Japanese classification is based on the pre- and intraoperative assessment, while the ATA classification uses pathological evaluation. For example, T3a (>4 cm) PTC without lymph node metastasis would be classified as high-risk based on the Japanese guidelines, but it would be classified as low-risk based on the ATA guidelines. In contrast, T1b PTC with more than five microscopic lymph node metastases would still be classified as low-risk in Japan, but it would be classified as intermediate-risk in the United States. Nonetheless, all three studies observed that the serum Tg level, either pretreatment or at the time of treatment, is associated with the success or failure of ablation (24-26).

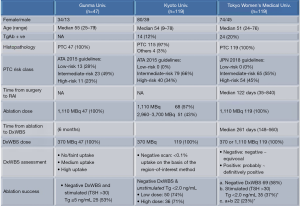

Figure 5 Efficacy of ablation using 1,110 MBq in Japan. TgAb, anti-thyroglobulin antibody; PTC, papillary thyroid carcinoma; ATA, American Thyroid Association; JPN, Japanese; NA, not available; DxWBS, diagnostic whole-body scan; Tg, thyroglobulin.

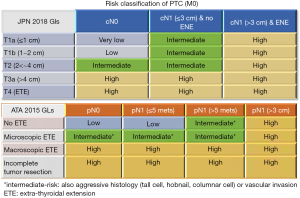

Figure 6 Risk classification of PTC. PTC, papillary thyroid carcinoma; ETE, extrathyroidal extension; ENE, extranodal extension.

Adjuvant therapy

Finding relevant studies showing evidence of effectiveness, harms, and patients’ views were vital in formulating recommendations for RAI adjuvant therapy during the revision of the Japanese guidelines. However, the development encountered a few difficulties as follows (20,21): first, some studies included both PTC and FTC under the name “differentiated thyroid carcinoma (DTC)” in the study population. Moreover, the definitions of risk class varied among studies and were different from those in the revised Japanese guidelines. Second, the distinction between “ablation”, “adjuvant”, and “treatment” was not always made accordingly, even in the relevant literature. Finally, there was a wide variation in the RAI doses among the studies.

Figure 7 summarizes the recommendations and evidence of ablative or adjuvant therapy for PTC presented in the Japanese 2018 guidelines (20,21). The optimal extent of thyroidectomy for low-risk PTC is lobectomy. Thus, RAI ablation is not recommended. There were no reports in which the study population fit the classification of intermediate-risk PTC defined by the Japanese 2018 guidelines. Ruel et al. demonstrated the association between RAI administration and all-cause mortality in 21,870 cases of intermediate-risk PTC (pT3N0cM0-x, pT1-3N1cM0-x) registered in the National Cancer Database in the United States (27). The hazard ratio of adding RAI therapy was 0.71 (95% CI, 0.62–0.82) for the entire population and 0.64 (95% CI, 0.45–0.92) for patients aged <45 years. However, the absolute risk differences were quite small [1.9% (95% CI, 1.2–2.6%) for the entire population and 0.6% (95% CI, 0.1–1.1%)] for patients aged <45 years). Jonklaas et al. defined Stages III or IV DTC as high-risk disease and reported that adjuvant RAI therapy was associated with improved survival. The estimated risk ratios were 0.74 (95% CI, 0.63–0.91) for all-cause mortality, 0.68 (95% CI, 0.53–0.88) for carcinoma death, and 0.76 (95% CI, 0.60–0.68) for carcinoma recurrence (28). The literature does not demonstrate that the use of adjuvant RAI therapy is effective in preventing oncologic outcomes in patients with high-risk PTC defined by the Japanese 2018 guidelines. Therefore, the quality of evidence supporting each recommendation was marked with representing poor evidence (20,21).

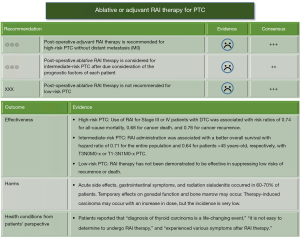

Figure 7 Ablative or adjuvant RAI therapy for PTC (the revised Japanese clinical practice guidelines for thyroid tumors) (20,21). PTC, papillary thyroid carcinoma.

Treatment

RAI therapy is strongly recommended for lung or bone metastasis, while it is weakly recommended either local recurrence or lymph node metastasis that is inoperable for some reason but requires therapy. Although the Japanese 2018 guidelines cited some numerical data from the literature regarding the effectiveness of the treatment (Figure 8), the validity of such estimates is unsatisfactory because of the retrospective nature of their designs, limited number of subjects, and concomitant interventions that made patients’ clinical courses complex (20,21).

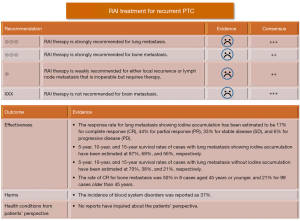

Figure 8 RAI treatment for recurrent PTC (the revised Japanese clinical practice guidelines for thyroid tumors) (20,21). PTC, papillary thyroid carcinoma.

Dynamic evaluations and decisions

The definitions of RAI ablative or adjuvant therapy are apparent. However, clinical judgments may change according to the findings of imaging studies and serum Tg levels (Figure 9). When a patient is found to have residual accumulations outside the thyroid beds on the whole-body scan following RAI administration and the lesions are confirmed by other imaging modalities, the individual must have treatments with either RAI ≥3,700 MBq or salvage surgery. In contrast, if the scan shows I-131 accumulation in the thyroid bed alone, then a decision will be made based on a follow-up diagnostic scan (DxWBS) and serum Tg level at 6–12 months. A patient has no residual disease when the DxWBS shows no accumulation of RAI and stimulated Tg level <2 ng/mL. In patients with uncertain responses defined by either a positive DxWBS scan at the thyroid bed or stimulated Tg level ≥2 ng/mL, a second administration of RAI ≥1,110 MBq needs to be considered.

Figure 9 Dynamic evaluations and decisions on ablative or adjuvant RAI therapy. WBS, whole-body scan; R0, curative resection; +ve, positive; -ve, negative; DxWBS, diagnostic whole-body scan; CT, computed tomography; US, ultrasonography; Tg, serum thyroglobulin level.

Future directions

While RAI treatment is a crucial element in the management of differentiated thyroid carcinoma throughout the world, its use in Japan has been unique as compared to that in other countries due to various reasons. Now thanks to an evidence-based approach, we recognize no apparent differences in the recommendations for RAI use between in our latest guidelines and those in western ones (23).

The objective of the JAES 2018 guidelines is to improve health-related outcomes in patients with thyroid tumors by minimizing gaps in knowledge among physicians. However, further clinical research is needed to make shared decision more evidence based. It is vital to conduct studies to examine the long-term outcomes of patients with intermediate- or high-risk PTC in Japan, yet such reports have never been published. The ablation success rate can be an alternative measure to determine the efficacy of RAI therapy using 1,110 MBq. Abe et al. concluded that low-dose RAI therapy might be inadequate in achieving successful ablation based on their observations (26). To this end, we are still facing the barrier to provide RAI therapy to patients as appropriate. Japanese experts in nuclear medicine have been making efforts to obtain approval for high-dose RAI administration on an outpatient basis to overcome the limited availability of resources for therapy (29). All relevant health professionals need to work closely in practice and research to ameliorate the current situation to care for patients with thyroid cancer.
