Peculiar anatomic variation of recurrent laryngeal nerve and EMG change in a patient with right substernal goiter and pre-operative vocal cord palsy—case report

Introduction

Preoperative vocal cord palsy (VCP) is often associated with recurrent laryngeal nerve (RLN) invasion by an advanced thyroid malignancy. However, the reported incidence of preoperative VCP in benign thyroid tumor is 0.2–1% (1-3). Possible mechanisms of preoperative VCP in benign thyroid lesion include compression, stretching, and inflammation.

Intraoperative neuromonitoring (IONM) is helpful for localizing and identifying the RLN during surgery, for elucidating the mechanism of nerve injury, and for predicting vocal cord function after resection of the thyroid lobe (4). In this case of a right substernal goiter with preoperative VCP, a peculiar anatomic variation of the RLN and an EMG change were detected when IONM was used for early localization of the RLN during lateral thyroid dissection. The RLN was well preserved after surgery, and vocal cord function completely recovered. To the best of our knowledge, this study is the first to report an EMG change in a peculiar anatomic variation of RLN. We present the following case in accordance with the CARE reporting checklist (available at http://dx.doi.org/10.21037/gs.2020.03.36).

Case presentation

A 52-year-old male patient without underlying disease suffered from hoarseness for 1 month. Laryngoscopic examination revealed right vocal cord fixation. A computed tomography scan showed a large substernal goiter on the right-side lobe (Figure 1). Thyroid echo and fine needle aspiration cytology indicated a benign thyroid nodule in the Bethesda Reporting System.

Figure 1 Large right substernal goiter revealed by preoperative computerized tomography scan.

During surgery, IONM was performed using the standard procedure (V1-R1-R2-V2) (5). Before thyroid dissection, vagus nerve stimulation revealed a weak EMG signal with prolonged latency of 9.50 mS (Figure 2A). Localization of the RLN revealed the nerve running above the tumor with latency of 6.25 mS (Figure 2B). The RLN was abnormally positioned on top of the thyroid tumor and was compressed by the tumor and clavicle bone (Figure 3A). After careful dissection of the RLN, the tumor was completely resected (Figure 3B). Pathology study supported a diagnosis of benign nodular goiter. One month later, the patient had normal results for subjective voice analysis, and vocal cord movement was symmetrical.

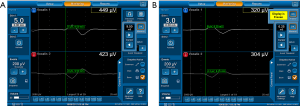

Figure 2 Weak EMG signals with prolonged latency obtained by stimulation (A) vagus nerve for 9.5 mS and (B) recurrent laryngeal nerve for 6.25 mS. EMG, electromyography.

Figure 3 An abnormal acquired-ventral RLN trajectory. (A) The RLN abnormally ran above the thyroid tumor and was compressed by the tumor and clavicle bone; (B) after careful dissection of the RLN, the tumor was completely resected. RLN, recurrent laryngeal nerve.

Discussion

Preoperative RLN palsy may occur in either benign or malignant thyroid tumor. Before unilateral surgery on the lesion side, the RLN must be identified and the neural injury mechanism must be found to ensure selection of an appropriate neural management strategy, including re-innervation. The management and postoperative outcome of the paralyzed RLN will also decisively influence the neural management strategy if contralateral surgery is required. IONM is useful for identifying and preserving the RLN in a thyroid tumor with preoperative VCP. A detectable EMG signal in the case with VCP may indicate residual neural function in the form of retained electrical conductivity. Lorenz et al. reported 41 patients (14%) out of 285 patients with preoperative VCP had a detectable EMG signal. Among the 41 patients, their VN and RLN amplitudes were significantly lower compared to patients with intact VN and RLN (6). If the RLN is preserved during surgery, functional recovery is as high as 38% to 89% in patients whose nerves do not have direct invasion of malignancy (1,2). Therefore, when IONM is performed in patients with preoperative VCP, vagus nerve stimulation should be performed routinely to confirm residual neural function. If an EMG signal is detected, the RLN should be mapped and dissected carefully to confirm that sacrifice of the nerve is unavoidable. In this case, VCP resulted from RLN compression. The EMG signals were consistently weak and had prolonged latency (9.5 mS latency for right vagus nerve and 6.25 mS latency for RLN). Normal latency for the right vagus nerve and RLN is 4 and 2.25 mS, respectively (Figure 4).

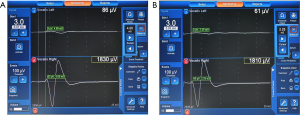

Figure 4 Normal latency after stimulation of (A) right vagus nerve for 4 mS and (B) recurrent laryngeal nerve for 2.25 mS.

In this case, a large goiter with substernal extension protruded from an anatomically abnormal right RLN; instead of ascending in the right tracheoesophageal groove, the right RLN ran across the thyroid tumor. Anatomic variations, including embryological and acquired sources, are classified in the International RLN Anatomic Classification System (7). The patient in this case had an abnormal acquired-ventral RLN trajectory. If IONM is not used for early localization of the RLN, the chance of nerve injury in a patient with an anatomically aberrant nerve is high. During dissection, 3–5 mA of stimulus current was used to map the full course of the RLN. This report describes this anatomic variant and the importance of early RLN localization (4) during surgery in patients with right substernal goiter. Until now, an anatomic variant of RLN and EMG change has not been described and documented with photographs in the English medical literature.

Worgan et al. reported that a short duration of VCP increases the chance of postoperative recovery of vocal cord function (8). Therefore, thyroid tumor resection and RLN decompression should be performed as soon as possible to maximize the potential for functional recovery of the vocal cords. In this case, surgery was performed 1 month after a VCP diagnosis, and vocal cord function recovered within 1 month after surgery.

Conclusions

This case study is a good example of effective surgical treatment in patients with preoperative VCP and demonstrates the following. First, preoperative VCP can occur in benign thyroid tumor. Second, in thyroid tumor with preoperative VCP, surgery should be performed as soon as possible to maximize the potential for recovery of vocal cord function. Third, IONM is still useful for RLN identification and preservation in thyroid tumor patients who have preoperative VCP. Fourth, RLN palsy caused by tumor compression causes a peculiar EMG change and significantly prolonged latency. Finally, for this rare anatomic variant of RLN, early localization of the RLN position should be performed in patients with a right substernal goiter.
