The analysis of differential diagnosis of benign and malignant thyroid nodules based on ultrasound reports
Original Article

The analysis of differential diagnosis of benign and malignant thyroid nodules based on ultrasound reports

Shumei Miao1,2, Mang Jing1,2, Rongrong Sheng1,2, Dai Cui3, Shan Lu4, Xin Zhang1,2, Shenqi Jing1,2, Xiaoliang Zhang1,2, Tao Shan1,2, Hongwei Shan1,2, Tingyu Xu1, Bing Wang1, Zhongmin Wang2, Yun Liu2

1Department of Information, The First Affiliated Hospital of Nanjing Medical University, Nanjing210096, China;2Department of Medical Informatics, School of Biomedical Engineering and Informatics, Nanjing Medical University, Nanjing211166, China;3Department of Endocrinology, 4Health Education Section, The First Affiliated Hospital of Nanjing Medical University, Nanjing210096, China

Contributions: (I) Conception and design: S Miao, Z Wang, Y Liu, D Cui, S Lu, X Zhang; (II) Administrative support: Y Liu, Z Wang; (III) Provision of study materials or patients: S Miao, M Jing, S Jing, H Shan; (IV) Collection and assembly of data: S Miao, R Sheng, X Zhang; (V) Data analysis and interpretation: S Miao, R Sheng, T Shan, T Xu; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Yun Liu, PhD; Zhongmin Wang, PhD. Department of Medical Informatics, School of Biomedical Engineering and Informatics, Nanjing Medical University, Nanjing 211166, China. Email: liuyun@njmu.edu.cn; wzm.cn@139.com.

Background: Thyroid cancer is a common endocrine tumor, the incidence of which is increasing each year. Early diagnosis and treatment can effectively prevent thyroid cancer. This article uses Chinese’s ultrasound reports to determine the value of early diagnosis.

Methods: The clinical data center of the First Affiliated Hospital of Nanjing Medical University was screened for patients diagnosed with a thyroid nodule, who had undergone a thyroid function test, ultrasound records and pathological assessment. A total of 811 patients with a total of 1,290 pathologically confirmed nodules (506 benign and 784 malignant) were enrolled. Logistic regression was used to analyze the variables that significantly affected malignant nodules. The sensitivity and specificity of ultrasound thyroid imaging-reporting and data system (TI-RADS) classification results for benign and malignant tumors were calculated.

Results: The age of the patients had a very significant difference in the classification of benign and malignant nodules (P<0.001), and the marital status was significantly different (P<0.05). Gender and medical insurance had no significant effect (P>0.05). Thyroglobulin (TG), free thyroxine (FT4), and free triiodothyronine (FT3) had significant effects (P=0.003) on the incidence of malignant nodules in patients, while thyroid-stimulating hormone (TSH) had no significant effect (P>0.05). Ultrasound analysis showed a Youden’s index of 78.97%, a positive predictive value of 93.20%, and a negative predicted value of 84.10% at the most excellent classification effect. The sensitivity was 89.0%, the specificity was 89.9%; much greater than the classification model based on the thyroid function test (sensitivity =80.6%, specificity =55.8%).

Conclusions: The present study verifies the effectiveness of using TI-RADS classification for diagnosis of benign and malignant thyroid nodules, and explores the use of new analysis methods for clinical data. To reduce dependence on the doctors, ultrasound image data and clinical phenotypic data can be further used to assist clinical decision making.

Keywords: Pathological; thyroid; thyroid imaging-reporting and data system (TI-RADS); ultrasound

Submitted Dec 12, 2019. Accepted for publication Mar 12, 2020.

doi: 10.21037/gs.2020.04.03

Introduction

Thyroid cancer is one of the most common types of cancer in the endocrine system and accounts for more than 10% of malignant tumors (1), which is much higher than the incidence of other head and neck tumors. In recent years, the incidence of thyroid cancer has increased year by year; now it is the fifth most common cancer diagnosed in females, and it is expected to become the second most common malignancy in females and the ninth most common malignancy in males by the year 2030 (2). The study of thyroid nodules has received extensive attention from clinicians and researchers. Some thyroid nodules have a high cancer rate. Early diagnosis and treatment of thyroid nodules can effectively prevent thyroid cancer and avoid serious consequences (3,4). How benign and malignant nodules should be identified from patients’ clinical data, and how malignant nodules should be identified from a large number of thyroid nodules are very important and challenging considerations in the clinic (5).

In clinical practice, neck ultrasound and fine-needle aspiration (FNA) of thyroid nodules are often used for primary diagnosis. Ultrasound is noninvasive, convenient, and inexpensive, and it does not expose the patient to damaging radiation. Thus, ultrasound is preferred for screening thyroid nodules and for carrying out preoperative assessment compared with the more expensive and invasive FNA approach (6,7). The results of ultrasound examination usually determine whether patients should undergo puncture or surgery. The American College of Radiology (ACR) released the thyroid imaging-reporting and data system (TI-RADS) in 2009 to standardize ultrasound results. This specification makes the assessment of benign and malignant thyroid nodules clearer. Application of the TI-RADS classification helps to regulate domestic ultrasound diagnosis; the standard was revised in 2015 (8,9).

In this paper, the latest medical information technology is used to analyze patient data obtained from Nanjing Medical University in 2017. The value of the TI-RADS for the diagnosis of benign and malignant thyroid nodules is analyzed according to the TI-RADS classification and pathological results. The TI-RADS result suggest whether patients with thyroid nodules should undergo further invasive examinations and provide a reference for diagnosis and treatment.

Methods

General information

Clinical data from patients with thyroid nodules was collected from the clinical data center of the First Affiliated Hospital of Nanjing Medical University. This data included basic patient information, clinical diagnoses, laboratory test reports, examination reports, and medical records, etc. Pathological reports are used as the gold standard to classify benign and malignant nodules. Patients with thyroid nodules were selected with the following conditions: (I) patients with benign thyroid nodules: diagnosed as “thyroid nodule” (E04.101), “thyroid tumor” (D44.001), or “thyroid cyst” (E04.102) by a specialist in previous clinical diagnostic records, with a record of thyroid ultrasound, confirmed by pathological analysis as a benign nodule, who were excluded from the diagnosis and treatment records diagnosed by a specialist as a malignant tumor patient; or (II) patients with malignant thyroid nodules: patients diagnosed as “thyroid nodules” (E04.101), “thyroid tumors” (D44.001), “thyroid cyst” (E04.102) or “thyroid malignancy” (C73.x00) by a specialist in previous diagnostic records, with a record of thyroid ultrasound, confirmed by pathological diagnosis as a malignant nodule. Taking the pathological diagnosis date from January 1st, 2017 to December 31st, 2017 as the query condition, a total of 1,196 pathological reports met the above conditions; then 1,558 ultrasound report and ultrasound images were retrieved from selected patients. Then excluding patients who have not taken thyroid function test in the hospital, excluding patients whose ultrasound examination after the pathological examination, excluding patients without ultrasound examination before thyroidectomy, finally who achieved a one-to-one correspondence between their preoperative thyroid function test, preoperative ultrasound and pathological report entered the study cohort. A total of 811 patients were enrolled.

Ultrasound and pathological report analysis

Radiologists reported the ultrasound records in accordance with the international TI-RADS classification. When the grading judgment of the patient was difficult to define, it was marked as level between the two levels in the report (e.g., in patients between 4C and 5, the level of the ultrasound report was set as 4c-5). Using natural language processing technology to achieve automatic extraction of nodule position and TI-RADS classification.

The pathologist observed the histological features of the left and right nodules and indicates whether the nodules were benign or malignant in pathological reports. The common pathological diagnoses were papillary thyroid carcinoma, nodular goiter, thyroid follicle gonadal adenomas, and thyroiditis. We classified papillary carcinoma as malignant, while others are benign. Similarly, natural language processing techniques were used to automatically extract nodule sites and to determine the benign and malignant classifications.

Statistical methods

SPSS 22.0 and the R language platform, RGui (64-bit), were used to perform statistical analyses. A t-test was used to analyze the study variables of thyroid nodules. The relationship between patients’ basic characteristics and benign and malignant thyroid tumors was analyzed. A P value of <0.05 was considered statistically significant. Logistic multiple regression analysis was used to analyze the risk factors for thyroid function in thyroid nodules. We used the TI-RADS classification of ultrasound diagnosis to analyze the effect of classification on the diagnosis of thyroid nodules. Parameters such as sensitivity, specificity, Youden’s index, positive predictive value, and negative predictive value were calculated. The receiver operating characteristic (ROC) curve area was calculated to observe the relationship between ultrasound results and the final benign and malignant diagnosis.

Results

Patients with thyroid nodules were screened using data from the clinical data center of the First Affiliated Hospital of Nanjing Medical University, and information on the preoperative thyroid function test, preoperative ultrasound and pathological report data was collected in 2017. The pathological report results were used as the gold standard for diagnosis of benign and malignant tumors. A total of 811 patients were enrolled. The analysis of basic characteristics is shown in Table 1. There were a total of 161 patients in the benign group and 650 in the malignant group. The data does not indicate the proportion of patients with benign and malignant nodules in the general population. The reason for this proportion is the pathological examination result is the grouping standard while patients who perform pathological examination are often malignant. The result showed that the mean age of patients in the malignant tumor group was lower than the mean age of patients in the benign tumor group. The incidence of malignant nodules in the non-elderly group was significantly greater than that observed in the elderly group (P<0.001). The ratio of males to females with nodules was 1:3.33. The nodules occurred mostly in middle-aged patients aged 40–60 years, which, accounted for approximately 50% of nodules. The results were highly consistent with the results of published literature, but gender had no significant effect on the occurrence of malignant nodules (P>0.05). The incidence of malignant nodules in patients who were married was significantly greater compared with patients who were not married (P<0.05), while medical insurance status had no significant effect on the incidence of malignant nodules (P>0.05).

Table 1

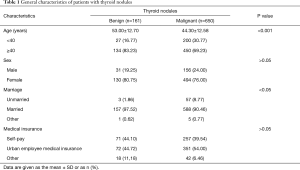

Table 1 General characteristics of patients with thyroid nodules
Full table

Analysis of correlation nodules classification and thyroid function test results

The influence of thyroid function index on benign and malignant thyroid nodules was analyzed previously; however, different researchers have different opinions. This paper retrospectively analyzed the influence of thyroid function indicators such as free thyroxine (FT4), free triiodothyronine (FT3), thyroid-stimulating hormone (TSH) and thyroglobulin (TG), on the occurrence of malignant nodules based on 811 patients at the First Affiliated Hospital of Nanjing Medical University. Logistic regression was used to analyze the factors affecting pathology results by univariate and multivariate analyses. P<0.01 was considered statistically significant. Table 2 shows the results of the univariate analysis and the variables that impacted the diagnosis. TG, FT4 and FT3 were key factors in judging whether nodules were benign or malignant. Multivariate logistic regression analysis was used to perform on the variables with significant factors in the univariate analysis, and the independent risk factors and the odds ratios (OR) value of each factor were calculated. The diagnostic score table was obtained according to the OR values. The ROC curve was drawn and the cut-off value was determined. We constructed a multivariable logistic regression model to predictive thyroid malignancy that includes age, TG, FT4 and FT3 as predictors, which reached an optimism-corrected area under the ROC curve (AUC) of 0.727. As shown in the ROC curve in Figure 1, the optimal cutoff level of diagnostic score for predicting the thyroid malignancy was 109.6, whose sensitivity and specificity were 80.6% and 55.8%, respectively. The evaluation of predicting the diagnostic accuracy of thyroid malignancies was relatively low.

Table 2

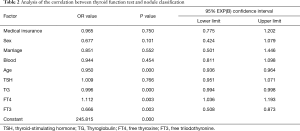

Table 2 Analysis of the correlation between thyroid function test and nodule classification
Full table

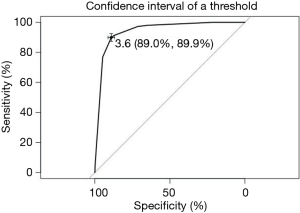

Figure 1 ROC graph based on multivariate analysis. ROC, receiver operating characteristic.

Comparison between ultrasound reports and pathological reports

The TI-RADS grading system published by the ACR, provides a relatively objective scoring system for sonographers and surgeons to evaluate in five major areas: nodule composition, echo, morphology, margin, and strong echo. The scoring system of ACR divides the thyroid nodules into five levels. Ultrasound enables clinical experts to diagnose the benign and malignant nodules. In the present study, we diagnosed the benign and malignant nodules using the TI-RADS grading results in ultrasound reports, and evaluated the classification using the accuracy of classification of benign and malignant nodules. In the ultrasound reports, the doctors released inspection reports according to the ACR TI-RADS standards and further refined the grades. The grading was divided into nine levels: 2, 3, 4a, 4a-4b, 4b, 4b-4c, 4c, 4c-5, and 5. If the doctor’s grading judgment was difficult to define, the levels intervening between the two levels in the report were marked (e.g., for patients between 4c and 5, the level of the ultrasound report was 4c-5).

Since the results of ultrasonography and pathological diagnosis of the left and right sides were often inconsistent, a total of 1,290 nodules with preoperative ultrasound results and pathological findings from 811 patients were examined. The 1,290 nodules comprised 506 benign nodules and 784 malignant nodules according to the results of pathological diagnoses. For ultrasound grades 2, 3, 4a, 4a-4b, 4b, 4b-4c, 4c, 4c-5, and 5, the rate of malignant nodules was 6.06%, 9.82%, 40.54%, 68.18%, 80.39%, 92.59%, 97.14%, 100%, and 100%. As the grade increases, the percentage of malignancy increased in turn. The ROC curve was constructed as shown in Figure 2. ROC analysis indicated the potential predictive value of preoperative ultrasound results with an AUC of 0.942 [95% confidence interval (CI): 0.930–0.955]. A cut-off of 3.6  (ultrasound grade) was individuated for using preoperative ultrasound results to predict malignant nodules, showing a sensitivity of 89.0% and a specificity of 89.9%. The sensitivity and specificity of the respective categories of diagnosis are shown in Table 3. The actual malignant percentage has a high degree of compliance with the theoretical malignant percentage, which shows that ultrasonography has good diagnostic value for thyroid nodular disease.

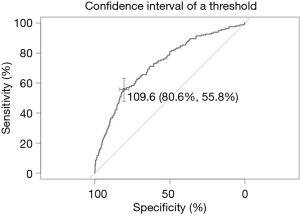

Figure 2 ROC graph based on ultrasound report. ROC, receiver operating characteristic.
Table 3

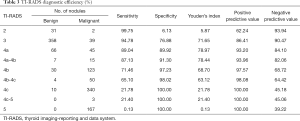

Table 3 TI-RADS diagnostic efficiency (%)
Full table

The rate of thyroid nodule malignancy increases continuously with an increase in ultrasound classification from category 2 to category 5, reaching the highest point on Youden’s index at the 4a classification. Using the settings: 4a as 3.5, 4a-b as 3.75, 4b as 4, 4b-c as 4.25, 4c as 4.5 to calculate the ROC curve, the best prediction point was grade 4a which is obviously higher than other categories. Category 4a achieved a positive predictive value of 93.2% and a negative predictive value of 84.1% and its recognition ability to judge whether the nodule was benign or malignant was the highest. The sensitivity of the ROC curve in Figure 2 is 89.0% and the specificity is 89.9%; significantly greater than the corresponding values in Figure 1 (sensitivity =80.6%, and the specificity =55.8%). The TI-RADS model requires a grade 4 scoring standard for moderately suspected malignant risk. The data also demonstrates that the use of the TI-RADS score as a reference for benign and malignant nodules has a high reference value.

Discussion

Thyroid cancer in young patients

The ratio of male to female patients with nodules was 1:3.33 and nodules were observed most frequently in middle-aged patients aged 40–60 years (approximately 50%). The average age of patients with malignant nodules was lower. The incidence of nodules in the non-elderly group was significantly greater than the incidence of malignant nodules in the elderly group. One reason for this phenomenon is that patients’ senses of health management have increased, and nodules can be detected earlier than before (10). Another reason is that young people's hormone levels are unstable, and life pressures are high, which affects thyroid function, and can induce abnormalities and malignant changes. In particular, hormone levels in young women (e.g., high estrogen progestin ratios owing to the absence of ovulation, and high levels of estrogen during prenatal life reveal the incidence of thyroid nodules (11).

Association between thyroid function tests and nodule classification

Thyroid cancer and thyroid nodules are the most prevalent form of thyroid endocrine disorder. In our study, we analyzed the classification of benign and malignant nodules using measures of thyroid function. Changes in FT4, FT3, TSH, and TG are common indicators of changes in thyroid function (12-15). These indicators were analyzed and modeled; both FT4 and FT3 had significant effects on malignant nodules and were key factors that could be used to diagnose benign and malignant nodules. The results are consistent with those of a previously published study (16). The risk of papillary thyroid cancer was also inversely associated with serum FT3 in all participants, and was positively associated with the serum FT4. The present study showed only a minimal association with TSH, suggesting that the hypothalamic-pituitary axis is less affected by thyroid nodules. TG is also closely related to benign and malignant outcomes.

Advantages of ultrasound

Ultrasound image features are key in the diagnosis of benign and malignant thyroid nodules (17-20). In this paper, the TI-RADS and patients’ thyroid functions were analyzed separately. The comparative analysis found that ultrasound diagnosis has obvious advantages for the analysis of benign and malignant nodules. The percentage of malignant nodules according to the ultrasound classification increased from grade 2 to grade 5. Since the diagnosis level of each radiologist is different, methods to reduce the rate of misdiagnosis and improve diagnostic accuracy should be identified (21-23). Particularly for reports with scores of 4 or greater, the results have a significant impact on the patients' further treatment options. This study showed that the ultrasound classification 4a achieved the best benign and malignant classification with a positive predictive value of 93.2% and a negative predictive value of 84.1%. The study also verified the effectiveness of the TI-RADS classification for the diagnosis of benign and malignant thyroid nodules.

Conclusions

At present, imaging-based diagnosis and medical care explore in cancer analysis and diagnosis. The present study compared ultrasound reports with thyroid function for nodule classification. The study verifies use of the ACR TI-RADS classification for the diagnosis of thyroid nodules, whether benign or malignant. Subsequent research should further analyze ultrasound images, extract key image features, and model them together with existing clinical variables, using a convolutional neural network to introduce an unbiased computer-aided diagnostic tool to assist radiologist with less experience. Further studies should optimize diagnosis using artificial intelligence and provide the clinic with more accurate information to assist clinical decision making.
