Surgical implications of recent modalities for parathyroid imaging

Background

Clinical or subclinical primary hyperparathyroidism (PHPT) is one of the most common endocrine disorders in the world. Since the 1970s, when measuring serum calcium and parathormone became routine, we have observed an increasing number of patients with PHPT (1). In the United States, the prevalence has jumped from 0.08 to about 0.5 per 1,000, and in Europe the prevalence is about 3 per 1,000 overall, particularly affecting individuals aged 55–75 years (2,3). PHPT is characterized by excessive secretion of parathyroid hormone (PTH), usually by enlarged parathyroid glands. PHPT is most frequently caused by a single adenoma (89%); hyperplasia of all the parathyroid glands or double adenomas are less frequently observed (6% and 4% respectively); in extremely rare cases it is caused by carcinoma (4). Among the many symptoms of PHPT, the most common is recurring nephrolithiasis due to hypercalcemia and low serum phosphate, osteoporosis, fractures, profound weakness and the involvement of other organs, e.g., neuropsychiatric abnormalities, depression, gastrointestinal and cardiovascular symptoms—all of which reduce the quality of life (5). Increasingly, however, especially in developed countries, we observe patients with asymptomatic PHPT or nontypical syndromes (6).

Generally, parathyroidectomy is the treatment of choice in symptomatic patients, stabilizing the progression of complications caused by the destruction activity of PTH. However, there are some controversies regarding the indications for parathyroidectomy in asymptomatic patients. Over the past two decades the criteria used to qualify asymptomatic patients for parathyroidectomies have been reevaluated. The latest criteria for surgery of the parathyroid glands include serum calcium more than 1.0 mg/dL above the reference limit, creatinine clearance <60 cc/min, markedly reduced bone density at any site (a T-score <−2,5 or fragility fracture), and age less than 50 years (7). Some cases with secondary hyperparathyroidism (S-HPT) and tertiary hyperparathyroidism (T-HPT) are indicated for parathyroidectomy as well.

S-HPT is usually caused by chronic renal failure. Chronic renal insufficiency results from phosphorus retention. A strict inverse balance exists between serum levels of phosphorus and calcium, so that phosphorus retention induces hypocalcemia, which stimulates PTH secretion and parathyroid enlargement. Other causes of S-HPT include vitamin D deficiency or intestinal malabsorption. T-HPT refers to the development of autonomous parathyroid hyperfunction, characterized by hypercalcemic hyperparathyroidism in patients with preexisting S-HPT. Bone pain, skeletal deformities (renal osteodystrophy), muscle weakness, growth retardation and extraskeletal calcifications are the main clinical manifestations of this disorder (5,8).

Persistent or recurrent hyperparathyroidism is another indication for parathyroidectomy; it occurs in 5–10% of patients following primary parathyroidectomy. If the serum calcium level is elevated in the immediate postoperative period, persistent hyperparathyroidism is recognized. It is caused by a failure to localize the abnormal parathyroid gland, inadequate resection of unrecognized multi-gland disease, or the presence of metastatic parathyroid carcinoma. Familial hyperparathyroidism, especially multiple endocrine neoplasia type 1 (the MEN1 syndrome), usually predisposes the patient to persistent hyperparathyroidism. In cases when hyperparathyroidism reappears after a period exceeding 6 months after surgery, recurrent hyperparathyroidism is recognized (9).

Since the first successful parathyroidectomy was performed in 1925 with bilateral neck exploration, it came to be viewed as the treatment of choice in PHPT (10). Parathyroid surgical techniques have evolved over the years from bilateral neck exploration, to minimally invasive single parathyroid gland exploration, to minimally invasive video-assisted parathyroidectomy (11).

Localization of the abnormal parathyroid gland before surgery is crucial for the operation to be effective. The main difficulty in locating the parathyroid glands is their unpredictable location resulting from migration in the embryonic period. In 80% of patients, the parathyroids are located on the posterior capsule of the thyroid, above and inferior to the crossing of the recurrent laryngeal nerve and inferior thyroid artery (11-13). In 15% they are located on the posterolateral surface of the superior thyroid gland. In 5% of cases the parathyroids more posterior in the neck, in retropharyngeal or retroesophageal position. Symmetry is more often observed in the superior parathyroid glands; only 70% of the inferior glands are symmetric (14). About 0.5–4% of all parathyroid glands are hidden in the thyroid. Anomalies in parathyroid numbers are observed in 3–6% of individuals (5,13,14).

Many years ago, when parathyroid surgery was first developed, preoperative diagnoses of the parathyroid glands were not as important as the experience and skill of the surgeon performing the operation, particularly in cases of PHPT. Bilateral exploration of the neck was usually the main way to localize parathyroid pathologies. But increased incidences of reoperations of the parathyroid glands and the rapid development of minimally invasive methods led to the development of new localization techniques (15). Nowadays various noninvasive and invasive imaging studies are available. The noninvasive studies include ultrasound (US), computed tomography (CT), magnetic resonance (MR) and ^99mTc-methoxyisobutylisonitrile (MIBI) scintigraphy combined with single-photon emission CT (SPECT/CT). Invasive studies, usually reserved for reoperative cases, include US or CT-guided fine-needle aspiration (FNA) with concomitant PTH assay, parathyroid angiography and selective venous sampling (SVS) for the PTH gradient (11). Among the latest technologies, the four-dimensional (4D)-CT scan, positron emission tomography (PET)/CT and PET/MR are very promising, and are going to have surgical implications in the future.

Neck US

Ultrasonography was introduced in the late 1970s particularly for diagnosing PHPT. As a noninvasive, inexpensive method with no radiation or contrast, US is usually still the first method used before surgery to localize parathyroid abnormalities. Generally, a normal parathyroid gland cannot infallibly be visualized with US, but enlarged hypercellular adenomas have a distinct appearance that allows them to be detected. Typical US features of parathyroid adenomas are homogeneous hypoechoicity, ovoid shape, hypervascularity in power Doppler imaging and, often, an extrathyroidal feeding vessel entering the parathyroid gland at one of the poles (16,17). US is most useful in identifying parathyroid adenomas that are close to the thyroid gland, but less useful in cases of abnormal tissue localized ectopically in the neck, behind the trachea/esophagus, or in the mediastinum. The sensitivity and positive predictive value (PPV) of US for detecting enlarged parathyroid glands ranges from 51% to 96%, and the specificity is 71% (18-20). US is quick, noninvasive, safe and less expensive than other imaging methods. However, several factors decrease the sensitivity and PPV of US, for example concomitant thyroid nodules, multiple parathyroid adenomas or parathyroid hyperplasia (21,22). It is possible to use ultrasonography intraoperatively to more precisely locate parathyroid adenomas or for US-guided fine-needle biopsy to measure the PTH level, which can help to differentiate an intrathyroid parathyroid adenoma from thyroid nodules (22). The disadvantages of this method include its low value in cases of non-anatomical localizations (substernal, retrotracheal or intramediastinal) of parathyroid glands and its inability to distinguishing parathyroid gland from lymph nodes (15,23). Another limitation of this technique is operator-dependent. According to many authors, USs performed by parathyroid surgeons have been shown to have a higher sensitivity than radiologist-performed parathyroid ultrasonography (24-26).

CT, 4D-CT

Contrast-enhanced CT is a valuable radiological imaging tool for localizing parathyroid adenomas. The main advantage of this method is that scanning from the base of the skull to the mediastinum allows the detection of ectopic adenomas. The most difficult to find are small parathyroid adenomas, because lymph nodes or tortuous vessels may be mistaken for them. The reported sensitivity of CT ranges from 46% to 87% (19,27,28).

4D-CT is a novel method of multiphase CT imaging, characterized by rapid, easily reproducible high-resolution images of anatomic details, useful for surgical planning. The name comes from 3-dimensional (3D)-CT with the addition of a fourth dimension based on changes in contrast perfusion in the tissues over time, which helps identify adenomas more clearly than normal 3D-CT. Parathyroid adenomas have rapid uptake and early washout of intravenous contrast compared to the thyroid. Typically, the 4D-CT protocol for parathyroid adenoma localization includes a pre-contrast scan, an arterial phase scan (25–30 seconds after the contrast bolus), a venous phase scan (approximately 30 seconds after the arterial phase scan) and a delayed phase scan (about 30 seconds after the venous phase scan). The reported sensitivity of 4D-CT scans is as high as 88% (29). The main challenge in the interpretation of 4D-CT images is differentiating parathyroid adenomas from normal lymph nodes, thyroid nodules and vascular structures. Vu et al. showed that parathyroid adenomas had lower baseline density than thyroid tissue, a greater increase in density from baseline to the arterial phase than the thyroid gland, and much faster contrast washout in the venous and delayed phases than the thyroid (30). Careful observation during the early arterial phase allows vascular structures to be distinguished from parathyroid adenomas. The lymph nodes, in turn, show no enhancement in the arterial phase (31). Eichhorn-Wharry et al. showed that 4D-CT is particularly successful in cases of mild hypercalcemia, elevated PTH and smaller adenomas (32).

Magnetic resonance

Another type of radiological imaging used to locate parathyroid adenomas is MR, which is especially useful for patients who require reoperation because of persistent or recurrent hyperparathyroidism. In MR imaging a typical parathyroid adenoma is an enhancing lesion with isointensity on T1-weighted images and increased signal intensity on T2-weighted images. However, on both T1- and T2-weighted images, parathyroid adenomas may appear isointense or enhanced (33). In the past, 1.5 Tesla and non-dedicated protocols were followed, and the sensitivity of MR was reported as 43–71%, comparable to CT (34). As in CT scans, in MR imaging enlarged lymph nodes, thyroid nodules or tortuous vessels can cause false positives (35). The development of 3 Tesla MR and dedicated protocols for the neck improved the sensitivity of parathyroid adenoma detection. Argiro et al. compared the effectiveness of ^99mTc-MIBI and 3 Tesla MR imaging in parathyroid adenoma localization; they reported the sensitivity of 3 Tesla MR as 97.7%, the specificity as 97.5%, with PPV 93.7% and negative predictive value (NPV) 99.2% (36).

Nuclear medicine imaging

^99mTc-MIBI scintigraphy

The most common nuclear medicine imaging technique for preoperative localization of parathyroid adenomas is ^99mTc-MIBI scintigraphy. This method based on the preferential uptake of sestamibi in mitochondria-rich parathyroid adenoma cells and no uptake in normal functioning parathyroid glands. Two different acquisition methods have been used: subtraction and dual-phase images. In the subtraction method, a radiotracer specific to thyroid, such as ^99mTc-pertechnetate or ¹²³iodium, is subtracted from a scan with ^99mTc-MIBI to enhance parathyroid adenomas. Dual-phase imaging is based on early and delayed images following intravenous administration of ^99mTc-MIBI (10–15 minutes vs. 2–3 hours). Parathyroid adenomas exhibit increased uptake and persistence of radiotracer activity, which is washed out of normal thyroid tissue (37). Unfortunately, in up to 30% of patients this characteristic washout is not seen (38). Three imaging methods have been used in parathyroid scintigraphy: 2-dimensional planar imaging, 3D SPECT and SPECT/CT combined with low-dose CT (SPECT/CT). The hybrid SPECT/CT method has been shown to be superior to normal SPECT, dual-phase planar and subtraction scintigraphy because of the combined functional and anatomical information.

At present, ^99mTc-MIBI SPECT/CT is the most frequently used nuclear imaging method (Figure 1). However, it gives false negatives in as many as 30% of cases (39). The sensitivity of ^99mTc-MIBI SPECT/CT scintigraphy ranges from 61% to 79%, and the specificity is 71%. It is more reliable in identifying larger parathyroid adenomas (>1.8 cm) (40); the most frequent cause of false-negative scintigraphy results are smaller parathyroid adenomas (41). The most difficult is to localize are small parathyroid adenomas (<1.4 mL), ectopic adenomas, adenomas in patients with coexistent multinodular goiter and in patients who have undergone primary neck surgery. Functional imaging with ^99mTc-MIBI scintigraphy may give false positives, because some hyperplastic thyroid lesions have extended retention of ^99mTc-MIBI. The most important factors influencing the PPV of scintigraphy are the presence of concomitant thyroid nodules and the size of the parathyroid adenoma. Each method has its strong and weak points, but the sensitivity of combined ^9mTc-MIBI SPECT/CT scintigraphy is as high as 80% (42).

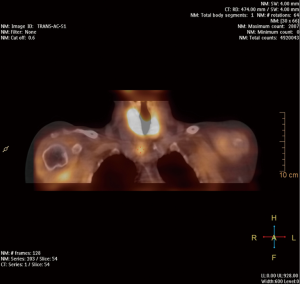

Figure 1 Parathyroid adenoma under right lobe of thyroid—^99mTc-MIBI SPECT/CT. MIBI, methoxyisobutylisonitrile; SPECT, single-photon emission computed tomography; CT, computed tomography.

^99mTc-MIBI is also the only radiotracer used to localize parathyroid adenomas by intraoperative radioguidance. An intraoperative gamma-probe detector is most successful 2–3 hours after intravenous tracer injection. Norman et al. carried out scintigraphy on the day of surgery, administering 740 MBq of ^99mTc-MIBI intravenously. Dual-phase scintigraphy was performed 20 minutes and 2 hours after the injection; after approximately 2.5–3 hours, gamma-probe guided surgery began (43,44). Casara et al. performed ^99mTc-MIBI scintigraphy a few days before surgery; then low-dose 37 MBq ^99mTc-MIBI was ok administered intravenously just before the start of the operation, and intraoperative PTH (IOPTH) monitoring was used to confirm complete removal of the parathyroid adenoma (45,46). Although ^99mTc-sestamibi scans are now the most common nuclear medicine imaging technique used for preoperative localization in PHPT, a more sensitivity nuclear medicine imaging technique is needed.

PET/CT and PET/MR

Hybrid PET and CT scanning is one of the most accurate imaging methods for diagnosis because of the fusion of anatomical data from CT and metabolic information from PET (Figure 2). PET/CT is used for diagnosis in oncology, cardiology and neurology. Replacing CT with MR, hybrid PET/MR imaging is usually better for diagnosing or assessing diseases that are better seen in MR imaging—for example prostatic cancer. Many different radiotracers are used in PET imaging. To diagnose parathyroid adenomas, the most promising radiotracer appears to be ¹⁸F-flurocholine (¹⁸FCH). Choline plays an essential role in the biosynthesis of the phospholipids of cell membranes. So far, ¹⁸FCH PET/CT has been used for the staging and restaging of patients with clear cell renal carcinoma and prostate cancer. The currently available data show an increased accumulation of choline in parathyroid adenomas as well as in hyperplastic parathyroid glands. Broos et al. showed that the highest sensitivity of ¹⁸FCH PET/CT was 97% (47). In a prospective dual-center study with 100 patients with PHPT, Beheshti et al. compared the sensitivity ¹⁸FCH PET/CT and ^99mTc-MIBI scintigraphy. ¹⁸FCH PET/CT imaging was performed 60 minutes after intravenous injection of 3.2 MBq of ¹⁸FCH per kg of body weight. The sensitivity of PET/CT was 93.7%, which was markedly greater than that of ^99mTc-MIBI SPECT/CT, which showed a sensitivity of 60.8%. The specificity, PPV, NPV and overall accuracy of ¹⁸FCH PET/CT in the detection of parathyroid adenomas were 93.7%, 96.0%, 90.2%, 97.4% and 95.3% respectively (48). Huber et al. published the results of 26 patients with PHPT who underwent ¹⁸FCH PET/CT or PET/MR scanning. Adenomas were detected in 25 patients (96.2%), confirmed intraoperatively, and none of the patients needed revision surgery during the follow-up (49). In 2017, Kluijfhout et al. published the results of a prospective pilot study of ¹⁸FCH PET/MR imaging in ten patients with negative or inconclusive results of US and ^99mTc-MIBI scintigraphy scans for parathyroid adenomas. After intravenous administration of 3 MBq/kg of ¹⁸FCH, PET imaging was performed, as well as T1- and T2-weighted MR imaging before and after contrast enhancement. The authors showed 90% sensitivity and 100% PPV for ¹⁸FCH PET/MR. The median adenoma SUVmax was 4.9, which was significantly higher than the thyroid SUVmax (2.7) (P=0.008) (50).

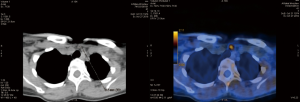

Figure 2 Parathyroid adenoma—¹⁸F-fluorocholine PET/CT. PET, positron emission tomography; CT, computed tomography.

Conclusions

Parathyroid imaging should be considered only when a diagnosis of hyperparathyroidism and indications for surgery have been established and the patient has agreed to undergo surgery (11,37). Historically, four-gland parathyroid exploration during bilateral neck revision by an experienced surgeon was the standard of care. Nowadays surgeons are focused on smaller incisions and less soft-tissue dissection, so minimally invasive parathyroidectomy (MIP) is performed in the majority of patients with hyperparathyroidism. MIP has changed surgeons' views on the necessity of preoperative parathyroid diagnoses, since it is possible only with a precise location established preoperatively. Moreover, precise preoperative localization is crucial for patients undergoing reoperation or in cases of persistent hyperparathyroidism (1,6,11,15,37).

There are two different algorithms for localizing parathyroid pathologies in first-time operations and in cases of recurrence or persistent disease (11). In a primary parathyroidectomy accurate localization allows surgeons to perform a minimally invasive procedure. When a biochemical diagnosis of hyperparathyroidism is confirmed in patients with or without symptoms, US and ^99mTc-sestamibi scans are usually performed; two positive and concordant examinations allow surgeons to fine-tune parathyroid surgery. If one of the images is negative, focused exploration with IOPTH measurement or unilateral exploration for two parathyroid glands is recommended. If both the US and the ^99mTc-sestamibi are negative, or when they are or discordant, bilateral exploration with IOPTH measurement is the standard protocol (51).

Re-operation of the parathyroid glands is a surgical coup de maître requiring not only perfect localization, but also supporting documentation such as previous surgical and pathology reports. The localization study includes many tests, ranging from the noninvasive (US, ^99mTc-MIBI, CT, MR, PET/CT, PET/MR) to the invasive (SVS and FNA) (11,51). FNA parathyroid biopsy was first described in the 1980s (52,53). The main advantage of FNA biopsy is the high specificity in distinguishing parathyroid and non-parathyroid tissues. This test should not be used before primary operations, as it is an invasive method. Measuring the PTH levels of the aspirate is more sensitive than FNA cytology, which could be mistaken for follicular thyroid tissue (54). The development of the PTH radioimmunoassay led to SVS. The accuracy of this method is 83%, and the sensitivity with intact PTH assay (IPTH) is about 95% (21). SVS is reserved for parathyroid reoperation in case of negative, equivocal or conflicting noninvasive studies. Technically SVS is a very difficult examination, requiring an experienced interventional radiologist. Fine needle biopsy (FNB) is considered the first invasive procedure to try in cases where US and ^99mTc-MIBI fail to provide the two concordant tests needed before parathyroid reoperation can commence. SVS should be considered only where CT, 4D-CT, MR, PET/CT or PET/MR are unavailable (11,37). The comparison of advantages and disadvantages of different parathyroids imaging techniques is shown in Table 1.

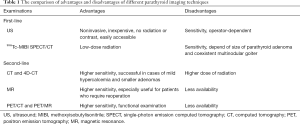

Table 1 The comparison of advantages and disadvantages of different parathyroid imaging techniques
Full table

Finally, the choice of parathyroid imaging method requires knowledge of the radiation dose given. Effective dose of ^99mTc-MIBI SPECT is about 6 mSv when administered radioactivity is 740 MBq. If low dose CT is added to the SPECT effective dose increases to about 8–9 mSv. Absorbed dose for thyroid is about 4 mGy. The correct choice of radiation dose is particularly important in patients where parathyroid gland disorders coexist with thyroid disease. The dose of the radiation dose given after 4D-CT could block iodine uptake of the thyroid for many weeks (14,55).

To sum up, there is no perfect imaging method for the parathyroid gland, and selecting the best preoperative imaging to localize parathyroid glands is difficult. The sensitivities of imaging techniques vary significantly from institution to institution, depending on the levels of expertise and variations in the patient populations. Moreover, the results vary between high- and low-volume centers (41). Hyperparathyroidism is seldom a problem in the general population, with a prevalence of about 0.7%. There are usually few centers in any given country where high-volume surgeons perform these operations (42). That is why there is no single superior way to diagnose parathyroid pathology before surgery. High-definition US is still the main examination considered basic in preoperative localization imaging for PHPT. The use of more than one imaging method usually provides more accurate preoperative localization. Among the new techniques, the most promising seem to be 4D-CT and PET/CT or PET/MR scanning, but neither of these is widely available in in low-volume centers. In the majority of centers, ^99mTc-MIBI scans are the most frequently performed, although they have a low rate of sensitivity compared to SPECT/CT (11,37,41). Possible imaging techniques and their implications for surgical treatment should be considered in the context of overall expenses: a higher initial imaging cost imaging may result in higher rates of intraoperative parathyroid localization, lowering the overall costs of parathyroid treatment. Finally, it should be mentioned that the choice of a given imaging method to much extent is determined by the availability of a given test in a local healthcare environment. Unfortunately, imaging techniques such as CT, 4D-CT, MR, PET/CT or PET/MR are still unavailable in many small centers all over the world.

Acknowledgments

Acknowledgements for photo PET/CT to Zbigniew Podgajny, PhD, Affidea PET Wrocław.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.
