The association between tumor’s location and cervical lymph nodes metastasis in papillary thyroid cancer

Introduction

Papillary thyroid cancer (PTC) always have a favorable prognosis, but with the risk of cervical lymph nodes metastasis and regional recurrence (1,2). The incidence of cervical lymph node metastasis in patients with PTC is about 30–80% (3-7). As reported, the lymph node metastasis usually has little impacts on survival, but it would increase the risk of postoperative recurrence (8). It’s reported also that cervical lymph node metastases are associated with compromised survival in young patients (9). Therefore, preoperative assessment of the risk of lymph node metastasis is essential for guiding treatment. Many characteristics have been identified as the risk factors of lymph node metastasis for PTC, such as gender, age, extrathyroid invasion, etc. (8,10-13).

The location of thyroid nodules was reported to be associated with lymph node metastasis in PTC. Hunt et al. (14) reported that tumor in the superior aspect of the thyroid lobe has a higher risk of lateral cervical metastasis. However, Lee et al. (15) supported that the risk of central and lateral cervical lymph node metastasis was higher in PTC patients with posterosuperior lesion. Currently, little is known about the association between the location of PTC and the risk of lymph node metastasis. Therefore, this study is intended to explore the association between tumor’s location and the risk of lymph nodes metastasis in PTC.

Methods

Patients

The medical records of all PTC patients who underwent surgery by one experienced surgeon (Dr. Qiang Shen) in the department of head & neck surgery in Fudan University Shanghai Cancer Center between January 1, 2011 and December 31, 2017 were reviewed retrospectively. All patients provided written informed consent for their information to be stored in the hospital database and used for research, and this study was approved by the Ethical Committee of Fudan University Shanghai Cancer Center (ID: JS170). Of all 4,382 patients, 3,116 patients were excluded according to our inclusion/exclusion criterion: 320 patients with previous thyroid surgery, 523 patients underwent non-thyroid surgery, 357 patients with incomplete imaging data, 101 patients with inconsistent results between preoperative imaging and pathological examinations, 733 patients with benign pathological tumors, 501 patients with large size tumors that are difficult to evaluate the ultrasonic partition, 536 patients with multifocal tumors, 13 patients with pathology of non-papillary thyroid carcinoma and 32 patients with obscure evaluation for nodal metastasis by current system of 6 levels in pathology. Finally, 1,266 patients were enrolled in this research. A cohort of 1,266 consecutive PTC patients who underwent primary surgical therapy for unifocal tumor with complete clinical, pathological, and imaging data were enrolled in this study.

Initial treatment

Before surgery, each patient underwent an ultrasonography (US) and enhanced cervical CT examination. US-guided fine-needle aspiration (FNA) was not performed routinely. Lobectomy plus ipsilateral central lymph node dissection (CLND) was typically performed as the initial surgical treatment for PTC patients with malignant lesions limited to a single lobe. Total thyroidectomy (TT) or near total thyroidectomy (nTT) was performed at the time of the initial operation when the condition is as following: the primary tumor >1 cm, undetermined nodules in the contralateral lobe by US, regional metastases or multifocal tumors. Histology of the frozen sections (FS) assisted surgeons in determining the extent of the surgical procedures. Selective lateral lymph node dissection (LLND), including levels II–V, was performed in cases with pathologically proven lateral lymph node metastasis or suspicious lymph nodes observed intraoperatively or on preoperative imaging.

The location of thyroid nodules

The location of the thyroid nodules was estimated by preoperative ultrasonography. One ultrasonologist who did not know about the pathological results estimated all ultrasound findings. According to the ultrasonography, the thyroid glands were divided into different portions (Figure 1). Since there is no clear anatomical division, the thyroid glands are bisected in the three axes. When the nodules were occupied two or more than two portions, the location was determined based on the majority or the center of the nodules. The large tumors that were difficult to evaluate the ultrasonic location were excluded from this study.

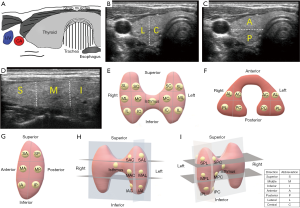

Figure 1 Ultrasonographic views of thyroid gland and different localization methods of PTC tumors. (A) Diagram of thyroid anatomy; (B) in the longitudinal view, the gland was divided into superior (S), middle (M), and inferior (I) positions; (C) in the coronal view, the gland was divided into lateral (L) and central (C) positions; (D) in the sagitta view, the gland was divided into anterior (A) and posterior (P) positions; (E) longitudinal coronal location. The gland was divided into superior central (SC), superior lateral (SL), middle central (MC), middle lateral (ML), inferior central (IC), inferior lateral (IL) and isthums positions; (F) longitudinal sagittal location. The gland was divided into superior anterior (SA), superior posterior (SP), middle anterior (MA), middle posterior (MP), inferior anterior (IA), inferior posterior (IP) and isthmus positions. (G) Sagittal coronal location. The gland was divided into anterior central (AC), anterior lateral (AL), posterior central (PC), posterior lateral (PL) and isthmus positions; (H) 3D location in anteroposterior view. The superior anterior central (SAC), superior anterior lateral (SAL), middle anterior central (MAC), middle anterior lateral (MAL), inferior anterior central (IAC), inferior anterior lateral (IAL) and isthmus positions were shown; (I) 3D location in posteroanterior view. The superior posterior central (SPC), superior posterior lateral (SPL), middle posterior central (MPC), middle posterior lateral (MPL), inferior posterior central (IPC), inferior posterior lateral (IPL) and isthmus positions were shown. IJV, internal jugular vein; CA, carotid artery.

Statistical analysis

Statistical analyses were performed using SPSS ver. 22.0 (SPSS Inc., Chicago, IL, USA). Patient characteristics were compared using the chi-square test for categorical variables and Student’s t-test for continuous variables. The relationship between several clinicopathologic factors and the risk of lymph node metastasis was assessed. Among the factors, the location of tumor was analyzed in three axes, three two-dimensional (2D) planes and one three-dimensional (3D) space. We performed a logistic regression multivariate analysis that included the risk factors which had a significant relationship with lymph node metastasis in the univariate analysis. A P value <0.05 was considered significant. Receiver operating characteristic (ROC) curve and the C-statistics was used to evaluate the accuracy of different localization methods.

Results

Characteristics of the study cohort

As shown in Table 1, 1,266 PTC patients were enrolled in this study. The cohort consists of 326 males and 940 females, of whom 1,058 patients (83.6%) were ≤55 years old. Among the cohort, 261 PTC patients (20.6%) were accompanied with Hashimoto’s disease and 118 patients (9.3%) with goiter. Extrathyroidal extension occurred in 59 patients (4.7%). All 1,266 patients were pathologically diagnosed as PTC. There were 997 patients (78.8%) with papillary thyroid microcarcinoma (PTMC), and totally 1,221 patients (96.4%) with tumor smaller than 1.5 cm. All 1,266 patients underwent central lymph node dissection (CLND), and 75 patients (5.9%) of them underwent lateral lymph node dissection further. Central lymph node metastasis (CLNM) occurred in 451 patients (35.6%), and lateral lymph node metastasis (LLNM) in 56 patients (4.4%). After a mean 18.1 months of follow-up, 11 patients (0.87%) occurred regional recurrence. No patient died or had distant metastasis during follow-up.

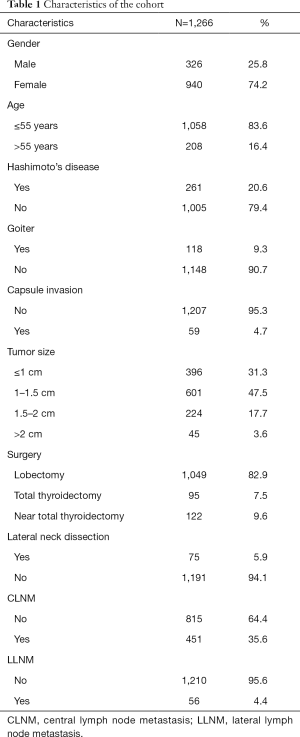

Table 1 Characteristics of the cohort
Full table

Central lymph node metastasis

In the univariate analysis, female (OR=0.465, P<0.001) and the patients >55 years old (OR=0.312, P<0.001) had less risk of CLNM, and tumor size was also related with CLNM (OR=2.039, P<0.001) (Table 2). Hashimoto’s disease, goiter and capsule invasion wasn’t related with CLNM (P>0.05). The tumors in the inferior portion and isthmus were at higher risk of CLNM in the longitudinal axis (the inferior portion: OR=1.478, P=0.034; isthmus: OR=2.679, P<0.001). There was no difference between different portions in sagittal and coronal axis. In the longitudinal sagittal plane, inferior anterior tumors and isthmus tumors were related with CLNM (inferior anterior tumors: OR=1.692, P=0.033; isthmus: OR=2.828, P=0.001). Compared with superior central nodules in the longitudinal coronal plane, lateral superior nodules (OR=1.937, P=0.049), middle central nodules (OR=1.882, P=0.044), middle lateral nodules (OR=2.056, P=0.021), inferior central nodules (OR=2.383, P=0.007), inferior lateral nodules (OR=2.355, P=0.014) and isthmus nodules (OR=4.300, P<0.001) all showed a higher risk of CLNM. In the sagittal coronal plane, isthmus tumors were statistically associated with CLNM (OR=2.166, P=0.002). For the 3D location, middle posterior lateral nodules (OR=2.575, P=0.028), inferior anterior central nodules (OR=2.829, P=0.016), inferior posterior lateral nodules (OR=2.759, P=0.039) and isthmus nodules (OR=4.526, P=0.001) were related with CLNM.

Table 2 Analysis of risk factors for central lymph node metastasis in papillary thyroid cancer (PTC)
Full table

Multivariate analysis was performed to reveal the association between gender, age, tumor size, tumors’ location in different planes and CLNM (Table 2). In all five analysis, gender, age and tumor size was related with CLNM. In the multivariate analysis of gender, age, tumor size and longitudinal location, the tumors in the inferior portion (OR=1.653, P=0.011) and isthmus (OR=2.259, P=0.004) were at higher risk of CLNM. Inferior anterior tumors (OR=1.998, P=0.009) and isthmus tumors (OR=2.505, P=0.004) were related with CLNM in the multivariate analysis of longitudinal sagittal location. For longitudinal coronal location, inferior central nodules (OR=2.616, P=0.005) and isthmus nodules (OR=3.452, P=0.001) showed a higher risk of CLNM compared with superior central nodules. In the sagittal coronal plane, isthmus tumors were statistically associated with CLNM (OR=1.827, P=0.024). For the 3D location, middle posterior lateral (OR=2.618, P=0.034), inferior anterior central (OR=3.555, P=0.005), inferior posterior lateral (OR=3.273, P=0.023) and isthmus (OR=3.962, P=0.004) nodules were related with CLNM. The ROC curves were analyzed for the five methods of location classification and CLNM in the multivariate analysis. As results, the 3D location showed the highest predictive value, of which the C-statistics was 0.724 (0.696–0.753) (Figure 2A). The nomogram and calibration curve of the 3D localization was shown in Figure 2B and 2C.

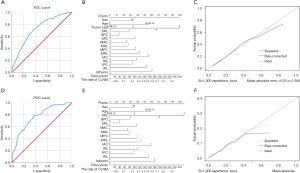

Figure 2 The ROC curve, nomogram and calibration curve of the 3D localization. (A) The ROC curve to evaluate the predictive value of CLNM; (B) the nomogram to evaluate the risk of CLNM; (C) the calibration curve to evaluate the predictive value of the nomogram about CLNM; (D) the ROC curve to evaluate the predictive value of LLNM; (E) the nomogram to evaluate the risk of LLNM; (F) the calibration curve to evaluate the predictive value of the nomogram about LLNM.

Lateral cervical lymph node metastasis

In the univariate analysis, gender (OR=0.562, P=0.042) and tumor size (OR=1.848, P<0.001) was related with LLNM (Table 3). Age, Hashimoto’s disease, goiter and capsule invasion wasn’t related with CLNM (P>0.05). The middle and inferior tumors in the longitudinal axis were at lower risk of LLNM (the middle: OR=0.405, P=0.003; the inferior: OR=0.254, P=0.001), and the lateral tumors in coronal axis were at higher risk of LLNM (OR=2.306, P=0.004). There was no difference between different portions in sagittal axis and longitudinal coronal plane (P>0.05). In the longitudinal sagittal plane, inferior anterior tumors were related with decreased risk of LLNM (OR=0.276, P=0.022). In the sagittal coronal plane, isthmus tumors were statistically associated with LLNM (OR=2.115, P=0.002). For the 3D location, middle anterior central nodules (OR=0.129, P=0.028) were at lower risk of LLNM.

Table 3 Analysis of risk factors for lateral lymph node metastasis in papillary thyroid cancer (PTC)
Full table

Multivariate analysis was performed to explore further the association between gender, tumor size, tumors’ location and LLNM (Table 3). In all six analysis, gender and tumor size was related with LLNM (P<0.05). In the multivariate analysis of gender, tumor size and longitudinal location, the tumors in the middle portion (OR=0.362, P=0.001), the inferior portion (OR=0.254, P=0.001) and the isthmus (OR=0.187, P=0.028) were statistically associated with LLNM. In the coronal axis, lateral tumors were at higher risk of LLNM (OR=2.252, P=0.005). Middle anterior tumors (OR=0.423, P=0.046) and inferior anterior tumors (OR=0.290, P=0.028) were related with LLNM in the multivariate analysis of longitudinal sagittal location. For longitudinal coronal location, middle central nodules (OR=0.260, P=0.044) showed a lower risk of LLNM compared with superior central nodules. In the sagittal coronal plane, isthmus tumors were statistically associated with LLNM (OR=1.821, P=0.023). For the 3D location, middle anterior central nodules (OR=0.102, P=0.015) were related with LLNM. The ROC curve and C-statistics were analyzed for the six methods of location classification and LLNM in the multivariate analysis. The C-statistics of 3D location, as the highest one, was 0.763 (0.701–0.824) (Figure 2D). The nomogram and calibration curve of the 3D localization was shown in Figure 2E,F.

Discussion

PTC has a strong propensity to metastasize to central and lateral lymph nodes. Surgery is the optimal treatment for primary tumor and lymph node metastasis of PTC. Although the lymph node metastasis usually has little impacts on survival, but it would increase the risk of regional recurrence and reoperation (1,2,8). Ultrasound plays an important role with high sensitivity and specificity in the preoperative evaluation of PTC. It could help distinguish the benign and malignant thyroid nodules and evaluate the lymph nodes metastasis (16,17). Accurate preoperative assessment of lymph node metastasis is crucial to determine the surgical procedures. If some features of the primary tumor examined by ultrasound could act as the risk factors for lymph node metastasis, it will be beneficial for further treatment.

Many characteristics have been identified as the risk factors of lymph node metastasis in patients with PTC, such as gender, age, extrathyroid invasion and lager tumor, etc. (7,10-13). The location of thyroid nodules was reported to be associated with lymph node metastasis in PTC, however, it is still controversial. The tumors in the upper lobes of the thyroid were reported to be at a higher risk of lateral cervical metastasis (3,14). It has been reported that the tumors located in the upper pole of the thyroid could spread directly to the upper part of the ipsilateral lateral cervical lymph node (18,19). Differently, Lee et al. (15) supported that the risk of central and lateral cervical lymph node metastasis was higher in PTC patients with posterosuperior lesion. Kwak et al. (20) showed that ultrasonographic feature of upper pole location have significant association with lateral nodal metastasis. Previous study from our center also showed that tumor location in the upper third of the thyroid lobe was associated with a lower risk of CLNM and a higher risk of LLNM (11). However, some studies have reported no significant association between tumor site and lymph node metastasis (21).

Previous studies enrolled heterogenous samples, such as multifocal, large tumors or recurrent cases, which could change the direction of lymphatic drainage. In addition, they all analyzed tumor’s location on a linear or planar basis, without taking into account the 3D location of the tumor. Thus, the present study included only previously untreated PTC patients with unifocal and not too large tumor. Furthermore, the tumor’s location was analyzed in three axes, three planes and one 3D space. As results, gender, age, tumor size and tumor’s location were found to be associated with CLNM, and gender, tumor size and tumor’s location was related with LLNM. In the ROC curve analysis, the 3D location showed the highest predictive value (C-statistics: 0.724 for CLNM; 0.763 for LLNM). The middle posterior lateral (OR=2.575, P=0.028), inferior anterior central (OR=2.829, P=0.016), inferior posterior lateral (OR=2.759, P=0.039) and isthmus tumors (OR=4.526, P=0.001) were at a higher risk of CLNM, and the middle anterior central tumors (OR=0.102, P=0.015) were related with lower risk of LLNM.

To present the results more visually, the pattern diagrams of the risk of lymph node metastasis to the patients with thyroid nodules in different locations have been drawn (Figure 3). In the longitudinal axis, the superior nodule is more likely to metastasize to the lateral cervical region, while the inferior and isthmus tumors are at higher risk of CLNM. In the coronal axis, the lateral tumors are more prone to LLNM. The inferior anterior tumors in the longitudinal sagittal plane, inferior central and isthmus tumors in longitudinal coronal plane are at higher risk of CLNM. From a cross-sectional view, the risk of both CLNM and LLNM are higher for isthmus tumors. In the 3D space, the medial inferior anterior and isthmic nodules close to the inferior thyroid vein, as well as the posterolateral middle and posterolateral inferior nodules close to the middle thyroid vein, metastasize more easily to the central region. To simplify the results, the tumors in the more interior and lower pole of thyroid were at higher risk for metastasizing to the central lymph nodes, and the tumors in the upper pole are more likely to have lateral lymph node metastasis, even skipping lateral cervical metastasis. Moreover, we hypothesized that the risk of lymph node metastasis for PTC nodules at different locations might be associated with venous reflux.

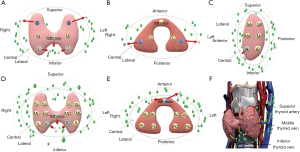

Figure 3 Patterns of lymph node metastasis in different views. (A) Longitudinal axis. The superior tumor is more likely to metastasize to the lateral region; the inferior and isthmus tumors are at higher risk of CLNM; (B) coronal axis. The lateral tumors are more prone to LLNM; (C) longitudinal sagittal plane. The inferior anterior tumors are at higher risk of CLNM; (D) longitudinal coronal plane. The inferior central and isthmus tumors are at higher risk of CLNM; (E) sagittal coronal plane. The risk of both CLNM and LLNM are higher for isthmus tumors; (F) 3D space. The medial inferior anterior, posterolateral middle, posterolateral inferior and isthmic tumors metastasize more easily to the central region.

Our study described the effects of the tumors’ location on the risk of lymph node metastasis in PTC. This is the first study using different linear, planar and stereoscopic localization methods to explore the association between tumors’ location and risk of lymph node metastasis. There are some limitations. To assess tumors’ location accurately, the patients included in this study were all with small tumors, which may partly explain the low incidence of LLNM (4.4%). Because of the small sample with LLNM, the analysis of tumor’s location and LLNM may be influenced. Thus, we will report our result of further study about LLNM in the near future. Since there were no definitive landmarks, the division of thyroid glands into the portions might be different depending on the various shapes of thyroid glands and the subjective judgement of ultrasonologist. A prospective analysis with more advanced ultrasound is necessary still in the future.

Acknowledgments

Funding: This study was supported by grants from the National Natural Science Foundation of China (No. 81702649 to NQ, No. 81572622 and No. 81272934 to QHJ, Nos. 81472498 and 81772851 to YLW).

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All patients provided written informed consent for their information to be stored in the hospital database and used for research, and this study was approved by the Ethical Committee of Fudan University Shanghai Cancer Center (ID: JS170).
