Applications of rib sparing technique in internal mammary vessels exposure of abdominal free flap breast reconstructions: a 12-year single-center experience of 215 cases

Introduction

Abdominal free flap breast reconstruction is the most prevalent practice in autologous breast construction since it has been introduced 30 years ago (1). Internal mammary vessels (IMVs) are preferred recipient vessels for the advantages of larger arterial diameter, less demand for a long pedicle than thoracodorsal vessels and avoidance of axillary scars (2-4). Besides, during exposure, an internal mammary lymph nodes biopsy can be carried out to help instruct oncological treatment (5).

Access to IMVs sometimes needs to resect part of the ribs or costal cartilages to fully expose the vessels (6). This could provide adequate space for operation, but on the other hand often causes post-operation pain, tenderness and contour deformity of the chest wall. In 2008, the rib sparing technique was first introduced and developed fast since then (7).

Previous studies showed that the intercostal space (ICS) was a major factor of conducting rib sparing technique (8). The learning curve of surgeons and equipment used in the operation could also influence the success rate (9). Our center has begun to perform abdominal free flap reconstruction since 2006, and there are more than 200 successful cases by December 2017. Rib sparing technique in IMVs exposure was applied since 2008 and has been used in 68 flaps by the end of 2017. This study included all the abdominal free flaps breast reconstructions done in our center from the beginning to December 2017. We attempted to analyze the related factors of choosing the recipient vessels and using rib sparing technique by comparison.

Methods

Patients

From November 2006 to December 2017, all the patients who underwent abdominal free flap breast reconstruction by the same surgeon in Fudan University Shanghai Cancer Center (FUSCC) were involved in the statistical analysis. Patients’ age, height, weight, body mass index (BMI) and history of treatment were collected from the medical records. Details of the reconstructions, including surgery time, flap types and complications were recorded by a specially assigned person.

ICS measurement

Preoperative slice chest CT examinations were performed with the Somatom Definition AS (Siemens Healthcare), the Sensation 64 (Siemens Healthcare), and the Brilliance (Philips Healthcare) using a tube voltage of 120 kV and a current of 200 mA. Images were transferred from the hospital’s picture archiving and communication system (PACS) to an off-line workstation. Maximum intensity projection (MIP) and multi-planner reconstructions (MPR) were performed. Raw data were reconstructed with the following standard parameters: slice thickness, 1.0 mm; increment, 1 mm; pitch, 1.078; field of view, 15 cm; and a matrix of 512×512. The ICS width was measured parallel to the IMVs position recorded in the operation in sagittal reconstructed images, as well as the depth measured from the surface of the pectoralis major muscle to the IMVs. Distance was measured between the parasternal line and IMVs in transverse reconstruction images (Figure 1).

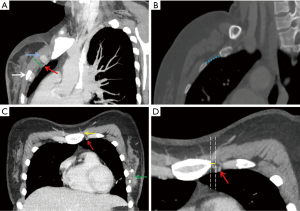

Figure 1 Measurement of intercostal space. (A,B) The internal mammary vessels were marked in sagittal reconstructed images (red arrow), parallel to the position recorded in the operation. The width of ICS (blue line) was measured between the costal cartilage (blue arrow) and the depth (green line) was measured from the surface of the pectoralis major muscle to the IMVs; (C,D) distance (yellow line) was measured between the parasternal line and IMVs in transverse reconstruction images. White arrow: the rib; green arrow: locating clips in breast tumor; yellow arrow: the sternum; red arrows in (C,D): internal mammary vessel. ICS, intercostal space; IMV, internal mammary vessel.

Techniques

The second and the third ICS was most frequently used. Electrocautery was used to split the pectoralis major muscle along its fibers. The intercostal muscle was incised partly to expose the IM vessels under microscope. The muscle excision to the sternal edge was performed slowly looking for the main vessels (identified by perivascular fat) and carefully ligating vessel branches with micro-clips or Bipoplar. If the ICS was inadequate for comfortable microvascular anastomosis, the costal cartilage was trimmed with a rongeur to create enough space. If the space was already enough, no extra processing of the ribs was required. All the arteries were interrupted anastomosed end-to-end with 9-0 nylon. Veins were end-to-end sutured or used venous coupler for anastomosis.

Outcomes assessment

The outcomes of rib sparing and rib resection were assessed by surgery time, postoperative hospitalization and complications. The median follow-up time was 18.5 months. Complications that need unplanned re-operation or re-admission were defined as the major complications, including total flap loss, partial flap loss and venous congestion. Minor complications included infection, hematoma, fat necrosis and wound problems.

Statistical analysis

The differences between groups were determined using Pearson’s Chi-square tests for categorical variables and t-tests for continuous variables. A linear regression analysis was used to determine trends in each parameter over time. All P values were two-sided. Statistical significance was set at a value of P<0.05. The SPSS program (version 23.0, SPSS, IBM) was used for statistical analysis.

Results

Patients characteristic and surgery

From November 2006 to December 2017, 215 patients underwent 218 abdominal-based free flap breast reconstructions by the same surgeon in FUSCC were included. Among which, 56 patients received axillary lymph nodes dissection (ALND) at the same time. The mean patient age was 42.2 years (range, 24–65) and the mean BMI was 22.60±2.53 kg/m² (range, 18.00–33.00). Of these eligible patients, 153 patients received immediate reconstructions while 65 received delayed reconstruction. In all, 16 patients received radiotherapy before breast reconstruction.

Choice of recipient vessels

Of the 218 flaps, 172 used IMVs as the recipient vessels, 13 used thoracodorsal vessels and 33 used subscapular vessels. To investigate the factors that might influence the choice of IMVs as the recipient vessels, we divided them into two groups based on the recipient vessels used in operation. Age of diagnosis, height, weight, BMI, timing of reconstruction, axillary surgery type and radiation therapy before reconstruction were included into the analysis. As a result, there was no statistical difference between the two groups for age and BMI. Of cases using thoracodorsal and subscapular vessels as recipient vessels, 87% were immediate reconstructions. As for the IMVs group, 65.7% were immediate and 34.3% were delayed reconstructions. It seemed that immediate reconstruction cases were less likely to use IMVs than other vessels as the recipient vessels (P=0.005). The same trends also showed in cases needing ALND during the surgery, as 56.5% of the other vessels group had ALND with only 17.4% in IMVs group (P<0.001). Patient’s height, weight, and radiotherapy history showed no statistically significant differences between the two groups (Table 1). During the operation, the mean ischemia time was 80.01 minutes. For IMVs group, it was 79.97±31.52 minutes, and for other vessels group, it was 80.23±17.03 minutes. There was no statistical difference in the ischemia time between the two groups (P=0.368).

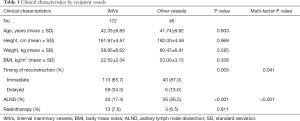

Table 1 Clinical characteristics by recipient vessels
Full table

Rib sparing technique

In 172 flaps used IMVs as the recipient vessels, 102 performed rib resection while 70 did not. We observed that the proportion of rib sparing was increased with time, from 7.4% in 2011 to 79.3% in 2017 (971.6% rise; R²=0.9109, P<0.001). Cases before 2011 were not taken into consideration since there were no more than 10 reconstructions occurred each year (Figure 2).

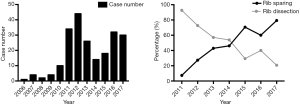

Figure 2 The numbers of abdominal free flap reconstruction surgeries and rib sparing rate in FUSCC each year. FUSCC, Fudan University Shanghai Cancer Center.

To further explore the rib sparing technique in IMVs exposure, we allocated the flaps in recent 5 years into rib sparing and rib resection group. Of the 110 cases, 66 were immediate constructions while 44 were delayed. Nine flaps were MS-1 subtype, 52 were MS-2 and 49 were MS-3 [deep inferior epigastric perforator flap (DIEP)]. Thirteen patients received ALND during the surgery. Five patients received previous radiotherapy. In total, 54 cases in rib-sparing group and 38 cases in rib resection group used venous coupler during the surgery. The most commonly used venous coupler was 2 mm in diameter, followed by 2.5 mm.

The patients in the rib sparing group were higher than those in the rib resection group (163.57±4.44 vs. 161.83±4.30 cm, P=0.047). Patients in the rib sparing group had younger age, smaller weight and BMI, but these differences did not achieve statistical significance. There was no statistical difference in flap types between the two groups (Table 2).

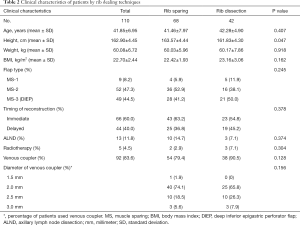

Table 2 Clinical characteristics of patients by rib dealing techniques
Full table

Of 110 flaps using IMVs, 103 patients had preoperative thin slice chest CT which allowed us to measure the ICS (92 between the second and third rib cartilages and 11 between the first and second ones). The mean ICS width was 2.65±0.54 cm in the rib sparing group and 2.25±0.38 cm in the rib resection group (P<0.001). The mean ICS depth was 1.07±0.22 cm in the rib sparing group and 1.12±0.21 cm in the rib resection group (P=0.241). The mean distance between the parasternal line and IMVs was 1.16±0.28 cm in the rib sparing group and 1.12±0.30 in the rib resection group (P=0.530) (Table 3).

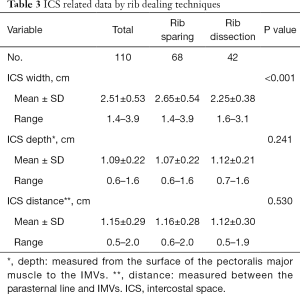

Table 3 ICS related data by rib dealing techniques
Full table

Outcome assessment

The surgery time and postoperative hospitalization was shorter in rib sparing group (7.39±1.70 vs. 7.91±1.73 hours, P=0.120; 7.43±2.34 vs. 7.81±2.91 days, P=0.450), but the differences were not statistically significant. The total complication rate was 16.2% in rib sparing group and 21.4% in rib resection group (P=0.612), and both the major and minor complication rate were lower in the previous group (Tables 4,5). We also tried to find out if there was a correlation between complications and ischemic time. However, the results showed that neither major nor minor complications nor fat necrosis were associated with ischemic time (P=0.565, 0.204 and 0.241).

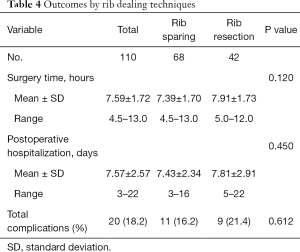

Table 4 Outcomes by rib dealing techniques
Full table

Table 5 Complications by rib dealing techniques
Full table

Discussion

The selection of suitable recipient vessels in free flap breast reconstruction is crucial for effective surgical outcomes (10,11). Although earlier, the thoracodorsal artery (TDA) and its branches were the preferred recipient vessels, nowadays, IMVs serve as the standard vessels (12). In our practice, the proportion of IMVs as recipient vessels showed a rising trend in general and remained over 90 percent for the recent 3 years. Using IMVs as recipient vessels in a free flap breast reconstruction has already become a common practice. The IMVs usually have larger arterial diameter and less demand for a long pedicle than the thoracodorsal system, which would reduce the requirements for anatomizing the recipient site (13-15). They have higher arterial pressure and large Venturi effect on venous drainage owing to the closer position to cardiac and thus decrease the risk of venous embolism (16). During the surgery, it can allow two surgeons sitting opposite one another to conduct microvascular anastomosis at the same time. Moreover, Using the IMVs spares the thoracodorsal vessels for use in latissimus dorsal flap reconstruction afterwards if the abdominal free flap failed.

Our results showed that of the immediate reconstruction cases, especially when the ALND was carried out during the same time, the thoracodorsal vessels and subscapular vessels were used more frequently than IMVs. This can be explained by the fact that these two vessels were exposed when doing the ALND, so it did not need the extra anatomy of IMVs (17). For the delayed reconstruction cases, some patients had previously axillary dissection, which made it hard to evaluate the condition of the thoracodorsal system, so IMVs were better choice under this situation. Previous study reported that chest-wall irradiation could cause IMVs being fragile and make them unsuitable to be recipient vessels (18). However, here we do not observe the differences of the chosen vessels based on radiotherapy history. This may owe to the small number of radiotherapy cases.

Traditionally, access to IMVs needs the dissection of a segment of the rib or costal cartilage to make fully exposure. Parrett et al. first introduced successfully IMVs preserved with total rib sparing technique in 2008 (7). Our center started to use this technique from 2009. The rib sparing rate increased yearly and maintained over 60% in the recent 3 years. Additionally, among patients who received rib sparing IMVs exposure in 2017, the mean ICS width was relatively smaller than that in 2013 (2.54 vs. 2.93 cm, P=0.124). This indicates that the rib sparing technique has an evident learning curve, but it does not demand a very long time for a surgeon to master it (8,16,19).

By comparing the patients’ characteristics of the rib sparing and resection group, we find that only the height of them had a statistical difference. We suggest this may be because the taller patients usually had a wider ICS, which made it easier to expose IMVs. By measuring the used ICS width based on pre-operation chest CT images, we do find that the width of rib sparing group was significantly bigger that the rib resection group (P<0.001). Kim et al. reported that the IMVs anastomosis can be performed safely in the ICS of at least 15 mm (20). Our data showed the minimum ICS width in rib sparing group was 1.4 cm, which was basically corresponding with his findings. Since every patient would routinely receive a chest CT scan to evaluate pulmonary situation before surgery, we could use these images to measure the ICS width to help making an operation plan and in no sense increasing patients’ financial burden (8,21).

Patients’ age, BMI, flap types, axillary surgery type and radiation therapy before reconstruction showed no statistical difference between the two groups, it therefore demonstrates that the rib sparing technique raises no special demands for the patients and can be widely applied in IMVs exposure in free flap breast reconstruction.

When it comes to the outcomes, the rib sparing group had less surgery time and hospitalization days. Since surgery time and hospital stay are usually associated with vascular complications and infection (22-24), and the follow up also revealed that the rib spring group had lower total complications rate, we suggest that the rib sparing technique is safer than rib resection.

In some cases, rib resection needs to be carried out when the exposure is inadequate for safe and comfortable microvascular anastomosis, or be used to extend the exposure distance of IMVs when the diameter of the vessels, especially that of the veins is mismatching (20). Sometimes, during IMVs anatomy, the vessels will be damaged or found thrombosis in anastomotic sites, resulting to the resection of ribs and re-anastomosis (25). Research revealed that difficulties of anastomosis during operation easily lead to postoperative vascular complications (26). This might explain why the patients underwent rib resection were more likely to have serious complications of the flaps. Additionally, studies showed that patients undergoing free flap breast reconstruction with rib sparing experienced less postoperative pain and had less thoracic deformity compared to those with rib resection (7,27,28). All these evidences indicate that the rib sparing technique is a less invasive technique and would benefit patients more.

In conclusion, our study revealed that IMVs are more popular choice as the recipient vessels in abdominal free flap breast reconstructions, especially when there is no axillary operation carried out at the same time. Rib sparing technique with less surgical damage may have the potential to decrease surgery time and hospitalization days, as well as decrease the probability to have severe complications. It could be used in most of the patients received free flap reconstruction when IMVs were used, particularly in taller patients and patients with a wider ICS.

There are some limitations in this study. Since all the reconstructions were performed by the same surgeon, the generalizability of our findings might be limited. Other limitations include the relatively small size of study cohort and the lack of patient-reported outcomes. Longer term and prospectively designed studies on this topic may give further clinical indications.

Conclusions

The IMVs exposure with rib sparing technique is a less invasive method and can be widely used in abdominal free flap breast reconstruction. In addition to its no strict demands for both patients’ characteristics and surgeons’ skills, it also has the advantages to decrease surgery time, hospital stay and severe complications rate. Preoperative slice chest CT scan can be used to measure the ICS width to provide suggestions for dealing with the ribs.
