Modified arytenoid muscle electrode recording method for neuromonitoring during thyroidectomy

Introduction

With the advancements of anatomical knowledge and surgical techniques, the incidence of recurrent laryngeal nerve (RLN) injury has been dramatically reduced, but the temporary and permanent RLN injuries still accounted for approximately 9.8% and 2.3% (1). Unilateral RLN injury resulted in hoarseness, while bilateral RLN injuries led to airway compromise, requiring emergent tracheostomy. Furthermore, it has been reported to be one of the most common causes of medicolegal litigation (2). In recent decades, intraoperative neuromonitoring (IONM) is widely used in clinics as an important assistant tool for protecting RLN (3). Moreover, the International Neural Monitoring Study Group (INMSG) have published international standard guidelines for standardizing the IONM procedure (4).

In 1969, Flisberg et al. have first reported transcricothyroid electromyography signal (EMG) recording method for IONM of RLN during thyroidectomy (5). In recent years, Petro (6) and Alon (7) have separately inserted two and single paired needle electrodes into the arytenoid muscle for IONM during thyroid surgery. These methods are reported to be feasible and reliable, but the parameters of EMG signals are not provided. Hence, in this study, the clinical characteristics of the parameters of EMG were analyzed by modifying the insertion direction of needle electrodes.

Methods

Criteria for admission of patients

From May 2017 to September 2018, patients with thyroid disease who were admitted to the Department of Thyroid Surgery (Peking University Shenzhen Hospital, Shenzhen, China) were enrolled in this study. The inclusion criteria were as follows: (I) patients with early differentiated thyroid cancer (DTC); (II) patients with benign thyroid disease, with a maximum diameter of more than 4 cm or symptoms of compression; and (III) primary hyperthyroidism patients scheduled for surgical treatment. The exclusion criteria were as follows: patients (I) with vocal cord paralysis as indicated by preoperative electronic laryngoscope; (II) with locally advanced DTC; (III) with undifferentiated thyroid cancer; and (IV) who underwent a redo thyroidectomy. Written informed consent was obtained from all patients, and they were informed regarding the intent to use IONM system that potentially aids in the localization and identification of RLNs, as well as to assess their function during operation. This study was approved by the Ethics Committee of Peking University Shenzhen Hospital (2019-024).

Evaluation of vocal cord function before and after operation

All patients underwent pre- and post-operative laryngo-fiberoscopic examination of the vocal cord function. If there is vocal cord paralysis, the electronic laryngoscope was performed again at 1, 3 and 6 months after operation. If the vocal cord function has not been recovered for more than 6 months, then it was regarded as permanent vocal cord paralysis. The above information was recorded in detailed.

IONM setup and surgical procedure

All patients underwent general anesthesia induced with lidocaine (1 mg/kg), propofol (4.0 µg/L), sufentanil (0.5 µg/kg), rocuronium bromide (0.3 mg/kg), and target-controlled infusion (TCI). After performing assisted ventilation for 5 min, the standard endotracheal tubes (male: 7 mm, female: 6 mm; Medtronic Xomed Inc., FL, USA) were inserted by assisted visible laryngoscope. Anesthesia maintenance was administered as follows: propofol (3.5–4.0 µg/L) as TCI continuous intravenous pumping and remifentanil (0.1 µg/kg/min) as continuous intravenous pumping.

The operation was performed by the same surgical team (Dr. P Li and QZ Liang). After successful anesthetic intubation, shoulders were cushioned with pillows to achieve cervical hyperextension. Standard procedures for thyroidectomy are implemented, followed by observation and palpation for the identification of bilateral angle points between the rectus cricothyroid muscle and the inferior margin of thyroid cartilage (TC). The two paired needle electrodes (length, 12.0 mm; diameter, 0.4 mm; Medtronic Xomed Inc., FL, USA) were then inserted in an outward and upward manner from the bilateral angle points to the arytenoid muscle (Figure 1A,B), The average time of needle electrodes placement is about 10 s. The channel leads from the needle electrodes were connected to the NIM-Response 3.0 (Medtronic Xomed Inc., FL, USA) Patient Interface. Head and neck procedure was selected to enter the thyroid mode. The monitoring system generates stimuli with a time window set to 50 ms and an amplitude scale set to 0.2 mV/division. The pulsed stimuli were 100 µs in duration and 4 Hz in frequency. The capturing of events was activated at a threshold of 100 µV. A standardized IONM procedure (V₁-R₁-R₂-V₂ signals) was strictly followed, and RLN was routinely mapped and exposed.

Figure 1 The modified arytenoid muscle EMG recording method: (A) visual identification of bilateral angle points between rectus cricothyroid muscle and inferior margin of TC; (B) two paired needle electrodes were outwards and upwards inserted into the bilateral angle points to arytenoid muscle; (C) needle electrodes were inserted outwards and upwards to avoid insertion into the cricoid cartilage and cricothyroid muscle; (D) the needle electrode were inserted into the superior arytenoid muscle and far from the vocal cord. EMG, electromyography; TC, thyroid cartilage.

Data recording and processing methods

Microsoft Office Excel 2007 was used for recording the data related to sex and age of the patients, and the results of laryngo-fiberoscopic examinations, and pathology. Moreover, the amplitude and latency of EMG before and after resection were expressed as mean ± standard deviation. GraphPad Prism 7.0 software was used to compare the differences among all parameters before and after surgery. A P value of ≤0.05 was considered to be statistically significant.

Results

A total of 92 patients including 35 men and 57 women, with a mean age of 40 years (range, 23–66 years) have successfully undergone thyroidectomy. There were 76 cases with papillary thyroid cancer (PTC), 8 cases with nodular goiter, 6 cases with follicular adenoma and 2 cases with primary hyperthyroidism. All the 124 nerves at risk (NAR) were recorded for typical EMG signals. The two RLN signals were lost during the operation. On the next day, electronic fiberoptic laryngoscope showed that one case had normal vocal cord movement, and another case with vocal cord dyskinesia was followed up for 6 months without recovery, and the remaining 90 cases (122 NAR) showed normal vocal cord movement. Two cases had a small amount of bleeding at the needling point, but achieved hemostasis after pressing for 5 minutes. No local hematoma, infection or broken needle electrode occurred in all cases.

In 122 NARs, the mean EMG amplitude was 1,857±1,718/2,347±2,323 µV for V1/R1 signals before resection, and 1,924±1,705/2,450±2,345 µV for R2/V2 signals after resection. No significant changes in EMG signals before and after resection (P=0.7601 and 0.7306) were observed. The mean EMG latency was 3.89±1.12/2.26±0.05 ms for V1/R1 signals before resection, and 3.87±1.17/2.27±0.08 ms for R2/V2 signals after resection. There were no significant differences before and after resection (P=0.8916 and 0.2428).

The clinical characteristics of EMG parameters were analyzed. The amplitude of left and right V1/R1 were 2,233±2,213/2,874±3,003 µV and 1,586±1,175/1,969±1,566 µV. This showed that the amplitude of left vagus and RLN were higher than the right ones (P=0.0388 and 0.0093). The latency of left and right vagus nerves was 5.02±0.70 and 3.08±0.50 ms, the latency of right vagus was shorter than the left ones (P<0.0001), but showed no significant difference in the amplitude and latency between different ages, sex and pathological types (Tables 1,2).

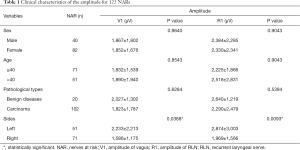

Table 1 Clinical characteristics of the amplitude for 122 NARs
Full table

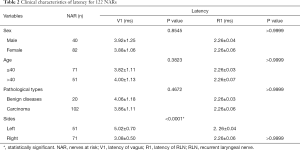

Table 2 Clinical characteristics of latency for 122 NARs
Full table

Discussion

Visual identification is considered as the gold standard for RLN protection during thyroid surgery. As an assistant tool, IONM has been accepted and used by several surgeons. According to the survey of American Association of Endocrine Surgeons (AAES), there is an increase in the use of IONM from 7% in 2001 to 37% in 2007 (8). The tracheal tube electrode for IONM during thyroid surgery was first reported in 1996 (9). Because of the essential advantages of easy setup and use, noninvasive nature, and capacity to derive larger areas of the target muscle, it is widely used in thyroid surgery. But there are still some limitations, which were as follows: (I) verifying the proper electrodes–cords position and readjusting the EMG tube remains troublesome and time-consuming for anesthesiologists; (II) displacement of EMG tube during surgical maneuvers on thyroid lobe or trachea often occurs, and may cause unstable EMG signals; (III) replacement of EMG tube is difficult when IONM is unexpectedly required during the operation; and (IV) the cost of EMG tube is relatively high (10-12).

The history of arytenoid muscle electrode for IONM during thyroidectomy was much early than that of tracheal tube electrode, and this was first reported by Flisberg et al. in 1969 (5). In recent years, Petro (6) and Alon (7) have separately inserted the two and single paired needle electrodes into the arytenoid muscle and IONM was performed during thyroid surgery. However, the insertion locations are both located in the central area of the cricothyroid membrane, where penetration into the vocal cord might not be completely avoided, and so we changed the insertion needle direction to the superior of arytenoid muscle and far from vocal cord. We believed that this modification had the following advantages: (I) the insertion position of needle electrodes has visual anatomical landmark and can easily locate during the operation; (II) insertion of needle tip into the superior of arytenoid muscle avoids injury to the vocal cord; (III) the obtained EMG signal is strong enough to meet the needs of IONM; and (IV) the needle electrodes are not located in the central area, but have little influence on the operation (Figure 1C,D).

Various EMG recording methods for IONM during thyroid surgery have been reported in the literature. Wu et al. have first reported the feasibility of transcutaneous EMG recording method in an animal study (13). However, the low EMG amplitudes recorded by this method are unreliable and limited in clinical practice. An alternative trans-TC EMG recording method that is feasible, safe, and reliable has been put forwarded by conducting several clinical and animal studies (14,15), but it is affected by the hardness of TC. The surface electrodes of TC obtained had relatively strong EMG signals and showed no invasiveness, but additional free TC is needed during the operation (16,17). In this study, the mean EMG amplitude of EMG signals were 1,857±1,725/2,347±2,333 µV and the maximum amplitude can be greater than 7,000 µV for vagus and RLNs (Figure 2A,B). Moreover, it was unaffected by the hardness of TC and did not require additional free TC, and the time-consuming of needle electrodes placement is about 10 s. So, we believed that this method was clinically feasible and convenient.

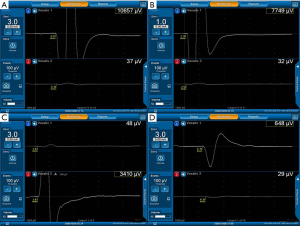

Figure 2 The EMG signals of modified arytenoid muscle recording method: (A) the maximum amplitude of vagus nerve. It is a typical three-directional waveform with a latency of 6.25 ms. When the stimulating current is 3 mA, the amplitude can be as high as 10,657 µV; (B) the maximum amplitude of RLN, and is also three-directional waveform with a latency of 6.25 ms. When the stimulating current is 1 mA, the amplitude can be as high as 7,749 µV; (C) the right needle electrode was placed in the right direction, and when the stimulating current was 3 mA, the amplitude of vagus nerve EMG signal was 3,410 µV; (D) when the left needle electrodes of the same patient were placed into the TC, the amplitude of vagus nerve EMG signal was only 648 µV. EMG, electromyography; RLN, recurrent laryngeal nerve.

The arytenoid muscle EMG signal recording method is an invasive procedure, and so the direction of needle insertion was modified. The paired needle electrodes do not penetrate the cricothyroid muscle and vocal cord, and so the incidence of muscle hematoma was rather low. But there may be small blood vessels between the cricothyroid muscle and TC, and we tried to avoid puncturing of these small blood vessels as far as possible. In this study, 2 cases had bleeding at the insertion point, and hemostasis was achieved by pressing for a short time. In order to avoid cricothyroid muscle injury, energy devices are not recommended for hemostasis.

This study suggested that the latency of left vagus was longer than those of the right. This was consistent with the results reported in Phelan et al. and Lorenz et al. study (18,19), and the possible reason for this is due to longer left conduction pathway. Interestingly, this study also showed that the amplitudes of left vagus and RLN EMG signals were higher than those of the right. We speculated that this may be due to the fact that our surgical team was always accustomed to perform thyroidectomy in the right side first. When left side thyroidectomy was initiated, the EMG signals may become stronger to complete due to metabolism muscle relaxants. In addition, we found that if the insertion direction is inappropriate, the amplitude of EMG signals on both sides in the same patient may show obvious differences (Figure 2C,D). According to our experience, the insertion direction should be gently modified either upward or outward obliquely through the spaces between cricothyroid muscle and TC. If the resistance was high, then the direction should be adjusted in time to avoid penetration into the TC.

In addition, we found that the amplitudes of EMG signals recorded by modified transcricothyroid method were obvious differences (1,857±1,718/2,347±2,323 µV for V1/R1), even between the left and right sides of same patient, We speculated that it may be related to the direction of needle electrode implantation (Figure 2C,D). Storck et al. (20) had studied cadaveric specimens by 3-dimensional magnetic resonance tomography, he found that when the needle was inserted from the center of inferior border of TC, if the target muscle is the thyroarytenoid muscle (TAM), the needle has to be deflected laterally by 30° and upward by 15°, and if we want to reach the lateral cricoarytenoid muscle (LCAM), the needle has to be deflected laterally by 30° and downward by less than 15°. The insertion depth is about 15 mm for the TAM and 20 mm for the LCAM. In this study, our target muscle was arytenoid muscle, so we also followed the puncture method by Storck et al. However, due to the individual differences in laryngeal size (especially between men and women) and the length of needle electrode (only 12 mm), the end of the needle electrode may not reach the arytenoid muscle in some cases. Instead, it reached the fat layer between TAM and LCAM, even within the LCAM.

The amplitudes of EMG signals for 122 NARs showed no significant changes before and after resection. The normal vocal cord movement was confirmed by electronic fibrolaryngoscope after operation. The negative predictive value (NPV) was 100%, and this was similar to that of the electrode of tracheal intubation (21,22). Two RLN EMG signals were lost, but the electronic fiberoptic laryngoscope showed that one case had normal vocal cord movement and in another case had vocal cord dyskinesia. However, the positive predictive value (PPV) should be further validated by clinical trials with larger sample size.

However, our study has some limitations, which were as follows: (I) the number of cases is rather small, and required animal experiments and larger clinical trials to verify its safety and validity; (II) there are fewer positive events, and its PPV should be further verified by larger clinical trials; and (III) this study lacked control group, and with this more cases can be monitored simultaneously by tracheal intubation vocal cord surface electrode monitoring method.

Conclusions

In conclusion, the arytenoid muscle electrode recording method proposed in this study was considered to be safe, feasible and reliable. The latency of right vagus EMG signals were shorter than the left ones and the amplitude of EMG signals might be related to the differences in the sides, but not related to age, sex, and pathological types of thyroid disease.

Acknowledgments

Funding: This work was supported by Shenzhen San-Ming Project (Grant No. SZSM201612010).

Footnote

Conflicts of Interest: The authors have no conflicts of Interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was approved by the Ethics Committee of Peking University Shenzhen Hospital (2019-024). Participant gave informed consent before taking part to this study.
