Delayed enhancement in differential diagnosis of salivary gland neoplasm

Introduction

Salivary gland neoplasms represent about 6% of all head and neck tumours (1). The incidence rate for both benign and malignant tumours is approximatively 5.5 cases per 100,000 and malignancies account 0.9 cases per 100,000 (2). Malignant lesions typically arise after 60 years, whereas benign tumours usually occur after 40 years (2). There is a slight prevalence of benign neoplasm in female sex while malignancies are equally distributed between sexes (2). Approximately 80% of all salivary gland tumours occur in the parotid gland while the 10–15% arise in the submandibular glands, and the remaining arise in the sublingual and minor salivary glands (2). The differentiation between benign and malignant tumours is very important in order to perform an optimal surgical planning. In fact, benign conditions are treated by more limited surgery which has a lower complication rate, while a more invasive surgery is required for malignancies (3). Therefore, successful treatment is related to their correct pre-operative evaluation. Radiological assessment plays a pivotal role in this setting, in particular for determining the nature of parotid gland lesion and for evaluating extra-glandular extension (4). Computed tomography (CT) scanning and magnetic resonance imaging (MRI) are the primary imaging modalities used to assess tumours of the salivary glands and in particular for parotid gland masses (5,6). Although MRI has demonstrated a better soft tissue differentiation in parotid lesion evaluation (7), contrast-enhanced CT provides useful information in tumour characterization as well as their relationships to nearby structures (8). Great importance has been given to CT imaging in differentiating salivary gland tumours basing on lesion enhancing pattern but very little has been published about this issue if compared to studies concerning the MRI findings (7-11). Furthermore, the improvement of multiphasic CT scanner has led to optimized protocols with increased lesion conspicuity and better definition between tumour and surrounding normal tissues. The aim of this study was to evaluate the diagnostic efficacy of delayed acquisitions on multiphasic CT in the characterization and differentiation of various histologic types of parotid tumours (pleomorphic adenoma, Warthin tumour and malignant tumours).

Methods

This retrospective study obtained the ethical approval by the institutional review board and the written informed consent was obtained from all patients.

Patient population

During a period of 3 years (from June 2014 to July 2017) all patients with clinically proven parotid enlargement underwent CT examination. All patients underwent to clinical examination and the pathological diagnosis was confirmed in all patients after surgery. The patients which satisfied the following criteria were included in our study: (I) CT examination performed in our Institution, (II) good-quality CT examinations, in particular, availability of optimal multiphasic acquisitions and (III) a parotid mass imaging diagnosis. Patients with absolute contraindication to perform CT were excluded by our analysis. All patient’s information’s were extracted from clinical charts.

CT imaging technique

All neck CT examinations were performed by using a multidetector CT scanner (Aquilion, Toshiba Medical Systems, Otawara, Japan) and following our standard protocol for salivary gland evaluation: 3-mm section thickness, 120 kV and 200 to 240 mA. All CT procedures were performed at baseline and after the administration of 100 mL of the tri-iodinated nonionic contrast agent Iomeron [Bracco, Milan, Italy (350 mg iodine per milliliter)] at a flow rate of 3 mL/sec into an antecubital vein by using an automated power injector. All images were acquired in the cranio-caudally direction from skull base to the thoracic inlet. All CT examinations included four acquisitions: without contrast medium; in the early phase (30 seconds after intravenous injection of contrast media); a delayed scan (after 120 seconds); and a further delayed scan (after 8 minutes). For the delayed enhanced images (8 min), the scanning range was limited only to the parotid gland in order to reduce radiations.

All images were quantitatively evaluated using a standardized circle region-of-interest (ROI), positioned on each lesion (as large as possible) in order to calculate the mean density expressed in Hounsfield unit (HU). Cystic and necrotic areas with constant low attenuation at each phase were excluded from the analysis just as calcifications. The images were analyzed by two independent radiologists with at least 10 years experienced in head and neck imaging on a dedicated workstation. The tumoral enhancement ratio was calculated between the 8-minutes delayed phase and the early phase (30-sec) for each lesion.

An analysis of variance was performed to evaluate differences of tumour attenuation among different CT phases. A P value <0.05 was considered statistically significant.

Results

Fourty-eight patients (22 males and 26 females; age range, 31–77 years) with at least one parotid lesion were included in our study. All patients had unilateral mass for a total of 48 tumors. 28 were pleomorphic adenomas, 15 Warthin’s tumours and 5 mucoepidermoid carcinomas. The histopathologic diagnosis was obtained after surgical resection in all patients. The lesions diameters ranged from 1.2 to 4 cm in the short axis (average 2.2 cm) and from 1.5 to 3.6 mm in the long axis (mean 2.1 cm). Twenty-eight lesions were located in the superficial lobe, nineteen in the deep lobes, while one lesion was located in the para-pharyngeal space (Warthin tumour). All 15 Warthin tumours showed a rapid contrast enhancement at the early phase (30 sec) and a progressive wash-out during the delayed phases (120 sec and 8 min). In contrast, the 89.2% (25 out of 28) of pleomorphic adenomas showed an increased enhancement through the different phases with the highest density at the 8-min delayed phase (Figure 1). Three of the remaining pleomorphic adenomas (11%), showed increased in enhancement only at the 8-min delayed phase. 3 out of 5 malignant carcinomas (60%) showed increasing enhancement up to the 120-sec scan followed by a marked decrease at the 8-min delayed phase while the remaining 2 (40%) did not show a decrease of density at the 8-min delayed phase (Figure 2). The mean tumour HU values for each phase are summarized in Table 1.

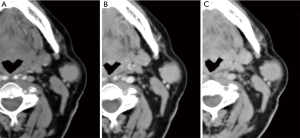

Figure 1 A 60-year-old woman with pleomorphic adenoma in the superficial lobe of the left parotid gland. (A) Axial early (30-sec) phase CT image showed a slight contrast-enhancement of the mass; (B) after 120-sec, CT scan showed an increase of tumour enhancement; (C) the delayed acquisition (after 8-min) demonstrated a continued slow increase in enhancement of the lesion.

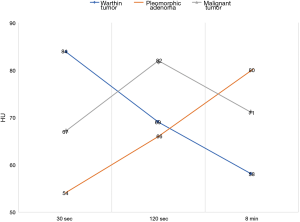

Figure 2 Time attenuation curves of different parotid tumours. Warthin tumours showed a rapid contrast enhancement at the early phase (30 seconds) and a progressive wash-out during the delayed phases (120 s and 8 min) while pleomorphic adenomas showed an increased enhancement during the delayed phases. The majority of malignant carcinomas showed a peak enhancement at 120-sec phase and a marked decrease at the 8-minute delayed phase.

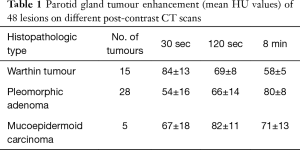

Table 1 Parotid gland tumour enhancement (mean HU values) of 48 lesions on different post-contrast CT scans
Full table

The difference of the mean HU values among each tumour type was not statistically significant if considered within the single phase (P>0.05). However, the ratio of lesion attenuation at 8-min delayed phase to that at early phase (30 sec) significantly correlated with the histological type; in particular, between Warthin tumours and pleomorphic adenomas (P<0.05) and between Warthin tumours and malignant tumours (P<0.05). However, there was no significant correlation between the lesion attenuation ratio between pleomorphic adenomas and malignant tumours.

Discussion

Parotid tumours are the most common among all salivary gland neoplasms. Although the majority of parotid lesions are benign, surgery represents the treatment of choice (3). However, due to the nearness of the facial nerve, it is very important to know the anatomical relationships in order to perform a meticulous surgical technique (6,9). Furthermore, it is very important to preoperatively know the aggressiveness of the tumour through a correct imaging assessment. CT has demonstrated high capabilities to determine not only location and extension, but also suggesting the nature of the tumour (8,10-12). However, CT has some limitations, such as radiation exposure and the use of iodinated contrast media with possible side effects. Many studies have proposed the MRI examination as the gold standard for distinguishing between benign and malignant parotid lesions (4,13-16). However, recent studies have demonstrated a comparable high sensitivity and specificity between these imaging modalities (7,17,18).

Our study revealed that benign tumours are more common than malignancies, reporting a prevalence of 89% for benign form. Within this group, pleomorphic adenoma has represented the most frequent neoplasm (65%) followed by the Warthin’s tumour (35%). These results are in agreement with those reported by several studies that described a prevalence of benign tumours between 70–90% and considered the pleomorphic adenoma as the most common benign tumour of the parotid gland (2,4,6). Moreover, parotid gland tumours occur in patients between 40–60 years with a slight prevalence of benign entities in the female sex (2,4), as resulted in our population. The vast majority of parotid tumours evaluated in our series occurred in the parotid gland (98%), while only one has interested the para-pharyngeal space; this prevalence agrees with other experiences (4). This finding result to be significant for the surgeon, as well known (8,9). The CT enhancement pattern of the parotid lesions reflects their pathological features, such as the vascular architecture. For this reason, CT is used to distinguish different tumour types. Many Authors have proposed different methods to evaluate the attenuation of parotid tumours during CT dynamic examinations (8-11,19-22). Moreover, many scanning protocols have been tested to evaluate the delayed enhancement of parotid tumours; in particular, many delayed acquisitions up to 25 minutes were proposed in order to achieve the better results (5,10). However, the same Authors noted some limitations in the evaluation of the enhancing pattern during the later phases. In our experience, we evaluated all tumours at only two delayed phases (120 sec and 8 min after contrast injection). The scan performed after 8 minutes resulted to be adequate to obtain useful informations for the lesion characterization as well as it has avoided further delayed acquisitions reducing the radiation dose. In fact, we found a clear different attenuation at 8-min delayed phase compared to that at the early phase (30 sec) between Warthin tumours and pleomorphic adenomas and between Warthin tumours and parotid carcinomas, achieving the correct diagnosis in all cases. These results are confirmed by only few past experiences, in which the “earliest” delayed scans (8–12 min) were considered suitable to evaluate the lesion enhancement (8,19). Moreover, these results have a remarkable technical implication because allow optimizing the scanning protocols reducing the CT acquisitions and improving the diagnosis of parotid gland lesions, especially where the biopsy is not easy to perform (23-32).

However, we did not find a correlation between the lesion attenuation ratio of pleomorphic adenomas and the malignant tumours in our study population. In fact, 3 malignant tumours have showed an increased enhancement at the 8 min delayed phase, likely the pleomorphic adenomas. This aspect was also described by Choi et al. (10) that suggested an overlap of histologic components between pleomorphic adenomas and some malignancies, not easy to distinguish even at the 25 minutes delayed scan. However, the Authors proposed different methods, such as the multinodular heterogeneous enhancement, as ancillary features to differentiate them on CT images.

The present study had a number of limitations, the first being its retrospective design, the small size of study population and the small number of malignant tumours.

In conclusion, our results confirmed the importance of delayed enhancement in the assessment of parotid tumours, in particular in the differentiation between Warthin tumours and pleomorphic adenomas and between Warthin tumours and malignant tumours. Moreover, the delayed phase included in our technical protocol and performed 8 minutes after contrast injection, might be helpful for diagnosing avoiding further delayed acquisitions. However, further studies are needed to determine the reliability of our technical protocol in order to select the correct timing of contrast administration when evaluating parotid tumours.
