Development and validation of an intratumoral-peritumoral deep transfer learning fusion model for differentiating BI-RADS 3–4 breast nodules

Lin Shi1 ORCID logo, Xinpeng Liu2, Jinyu Lai1, Feng Lu3, Liping Gu1 ORCID logo, Lichang Zhong1 ORCID logo

1Department of Ultrasound in Medicine, Shanghai Sixth People’s Hospital Affiliated to Shanghai Jiao Tong University School of Medicine, Shanghai, China; 2Faculty of Chinese Medicine, Macau University of Science and Technology, Macau, China; 3Department of Ultrasound in Medicine, Shuguang Hospital Affiliated to Shanghai University of Traditional Chinese Medicine, Shanghai, China

Contributions: (I) Conception and design: L Zhong, L Shi; (II) Administrative support: L Gu, L Zhong; (III) Provision of study materials or patients: L Zhong, L Shi, F Lu; (IV) Collection and assembly of data: X Liu, J Lai, F Lu; (V) Data analysis and interpretation: L Shi, L Zhong; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Lichang Zhong, MS; Liping Gu, MS. Department of Ultrasound in Medicine, Shanghai Sixth People’s Hospital Affiliated to Shanghai Jiao Tong University School of Medicine, No. 600, Yishan Road, Shanghai 200233, China. Email: tjuzhonglichang@163.com; guliping666@126.com.

Background: The Breast Imaging Reporting and Data System (BI-RADS) 3–4 breast nodules present a diagnostic challenge, as some benign lesions lead to unnecessary biopsies. Traditional imaging modalities like mammography and ultrasound often yield false positives due to limited specificity. While radiomics and machine learning show potential for improving accuracy, most studies focus on intratumoral features, neglecting the diagnostic value of peritumoral regions (PTRs). This study aimed to develop a non-invasive tool integrating intratumoral and peritumoral deep transfer learning (DTL) features to enhance risk stratification.

Methods: Clinical data (age, tumor size), ultrasound images, and parameters [calcification, color Doppler flow imaging (CDFI), BI-RADS] were retrospectively collected from 555 patients with BI-RADS 3–4 nodules confirmed by pathology at two Shanghai medical centers. Patients from Center 1 (Shanghai Sixth People’s Hospital Affiliated to Shanghai Jiao Tong University School of Medicine) were split into training (n=291) and internal validation sets (n=125) at a 7:3 ratio, while those from Center 2 (Shuguang Hospital Affiliated to Shanghai University of Traditional Chinese Medicine) formed an external validation set (n=139). Radiomics features from intratumoral and PTRs (5, 10, 20 voxels) were extracted using PyRadiomics, and DTL features were derived using a pre-trained ResNet-18 network. Combined features from DTL, radiomics, and clinical data were selected via least absolute shrinkage and selection operator (LASSO) regression. Machine learning models, including logistic regression (LR), random forest (RF), naive Bayes, K-nearest neighbors (KNN), and light gradient boosting machine (LightGBM), were constructed and compared using metrics like area under the curve (AUC). Ultrasound physicians independently reviewed images, and their performance was compared with the models.

Results: The cohort included 555 female patients (mean age: 48.11±14.83 years), with 72.07% of nodules lacking calcifications and 61.08% without CDFI signals. The naive Bayes model based on intratumoral and 10-voxel peritumoral DTL features performed best. In the training set, it achieved an AUC of 0.911 (accuracy: 0.852, sensitivity: 0.852, specificity: 0.852). In the internal and external validation sets, AUCs were 0.909 and 0.910, respectively, outperforming physicians’ AUCs of 0.722 and 0.745. The model also surpassed physicians in accuracy, sensitivity, specificity, and efficiency.

Conclusions: The DTL feature model integrating intratumoral and PTRs effectively predicts BI-RADS 3–4 nodule malignancy, outperforming ultrasound physicians. It aids in reducing unnecessary biopsies and improving treatment decisions.

Keywords: Breast nodule; ultrasound; deep transfer learning (DTL); intratumoral; peritumoral


Submitted Oct 23, 2024. Accepted for publication Mar 24, 2025. Published online Apr 25, 2025.

doi: 10.21037/gs-24-457


Highlight box

Key findings

• In this study, ultrasonic images were utilized to assess the diagnostic accuracy of deep transfer learning (DTL) features derived from intra-tumoral and peritumoral regions (PTRs) for distinguishing Breast Imaging Reporting and Data System (BI-RADS) 3–4 breast nodules.

What is known and what is new?

• The American College of Radiology (ACR) BI-RADS assists clinicians in formulating treatment plans for breast nodules. However, certain breast nodules, especially those categorized as BI-RADS 3–4, present a broad spectrum of malignancy probabilities, creating diagnostic dilemmas and potentially resulting in unnecessary surgeries or biopsy procedures.

• Developing an accurate and non-invasive method for determining the benignity or malignancy of breast nodules is of utmost importance.

What is the implication, and what should change now?

• The DTL feature model, which is based on intratumoral and PTRs, can efficiently predict the benignity and malignancy of BI-RADS 3–4 breast nodules. It outperforms ultrasound physicians in diagnostic performance and provides significant support for treatment decision-making in patients with breast nodules.


Introduction

Breast cancer is one of the most prevalent malignant tumors in women (1), and it is increasingly affecting younger age groups (2). It has become the leading cause of cancer-related deaths among women aged 20 to 59 years (3). Currently, ultrasound is one of the primary methods for early screening of breast cancer (4). Early diagnosis and treatment are critical for improving the survival rates and quality of life of breast cancer patients (5). The American College of Radiology (ACR) Breast Imaging Reporting and Data System (BI-RADS) (6) aids clinicians in developing treatment plans for breast nodules. However, certain breast nodules, particularly those classified as BI-RADS 3–4, exhibit a wide range of malignancy probabilities, posing diagnostic challenges and leading to unnecessary surgeries or biopsy procedures (7). Therefore, developing an accurate and non-invasive method for determining the benignity or malignancy of breast nodules is of paramount importance.

Over the years, various non-invasive diagnostic models have been developed to help clinicians differentiate benign from malignant BI-RADS 3–4 breast nodules, typically leveraging clinical risk factors, imaging features, and sometimes molecular biomarkers. Predictors such as patient age, nodule shape, margin characteristics, and vascularization patterns on Doppler ultrasound are often included (8-11). Although these models have improved diagnostic accuracy to some extent, they still face limitations, including inter-observer variability in image interpretation, reliance on limited feature sets, and suboptimal performance in specific subgroups of patients. These constraints underscore the need for more sophisticated approaches that can capture the subtle heterogeneity of breast nodules and minimize human interpretation biases.

Breast tumor tissues typically comprise tumor cells and stromal cells, which can induce significant changes in the peritumoral stroma (12). Research in tumor biology has highlighted the critical role of the tumor microenvironment in the initiation, progression, and metastasis of cancer (13). A comprehensive analysis of both the intratumoral region (ITR) and the peritumoral region (PTR) can enhance the differentiation between benign and malignant tumors (14). Radiomics enables the extraction of subtle features from medical images that are not discernible to the naked eye through high-throughput methods (15). These subtle features may be closely associated with tumor heterogeneity and specific biological behaviors of tumor cells (16).

Meanwhile, deep learning (DL), an advanced branch of artificial intelligence (AI), can mimic the human nervous system through multi-layer neural networks (17), performing hierarchical abstraction and feature extraction of complex image data to achieve efficient classification and prediction (18). In recent years, become a significant trend in medical imaging research.

The primary objective of this study is to evaluate the diagnostic value of ultrasound-based deep transfer learning (DTL) features derived from the ITR and various PTRs in distinguishing between benign and malignant BI-RADS 3–4 breast nodules. By integrating DTL features from both ITR and PTR, we aim to develop a more accurate, stable, and objective diagnostic model that enhances the differential diagnostic performance for BI-RADS 3–4 breast nodules, reduces misdiagnosis rates, and optimizes clinical decision-making. We present this article in accordance with the TRIPOD reporting checklist (available at https://gs.amegroups.com/article/view/10.21037/gs-24-457/rc).


Methods

Ethical approval

The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The two-center observational study was conducted using a retrospective cohort design and was approved by Ethics Committees of Shanghai Sixth People’s Hospital Affiliated to Shanghai Jiao Tong University School of Medicine (No. 2019-027) and Shuguang Hospital Affiliated to Shanghai University of Traditional Chinese Medicine (No. 2024-KY-117K). As a retrospective study, it was exempted from the requirement for patient informed consent.

Patient selection

We retrospectively collected data from female patients with breast nodules classified as BI-RADS 3–4 via ultrasound during routine preoperative examinations between June 2017 and June 2023 at two centers. The inclusion criteria were: (I) availability of final surgical or core needle biopsy pathological diagnoses; (II) breast ultrasound examination performed within 2 weeks prior to biopsy or surgery, with clear and complete two-dimensional grayscale ultrasound images of the target nodule’s maximum diameter, accompanied by detailed descriptive reports and clinical pathological data; (III) classification of the target lesion into BI-RADS 3–4A, 4B, or 4C according to the second edition of the ACR BI-RADS (6). The exclusion criteria included: (I) ambiguous pathological results; (II) tumors too large to be fully visualized in images; (III) patients who received anticancer treatments (such as chemotherapy, radiotherapy, or endocrine therapy) before surgery; (IV) incomplete imaging or clinical data.

Ultimately, Center 1 (Shanghai Sixth People’s Hospital Affiliated to Shanghai Jiao Tong University School of Medicine) included 416 patients (age range, 18 to 86 years) and Center 2 (Shuguang Hospital Affiliated to Shanghai University of Traditional Chinese Medicine) included 139 patients (age range, 19 to 88 years). We collected clinical and pathological data, including age, tumor size, BI-RADS classification, and postoperative or biopsy pathological diagnosis, from enrolled patients for subsequent statistical analysis. For patients with multiple BI-RADS 3–4 breast lesions, only the nodule with the highest BI-RADS category was included to ensure statistical independence of each observation. The nodules from Center 1 were randomly divided into a training set (n=291) and an internal validation set (n=125) at a ratio of 7:3, while nodules from Center 2 were used as an external validation set (n=139). The study workflow is illustrated in Figures 1,2.

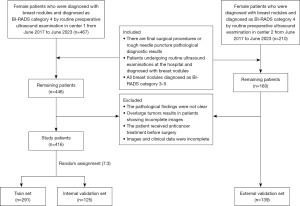

Figure 1 The process of patient enrollment. BI-RADS, Breast Imaging Reporting and Data System. Center 1, Shanghai Sixth People’s Hospital Affiliated to Shanghai Jiao Tong University School of Medicine; Center 2, Shuguang Hospital Affiliated to Shanghai University of Traditional Chinese Medicine.

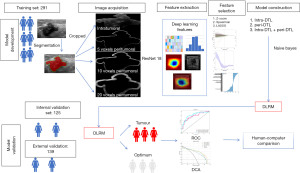

Figure 2 Deep learning radiomics analysis and model building. AUC, area under the curve; CI, confidence interval; DCA, decision curve analysis; DLRM, deep learning recommendation model; DTL, deep transfer learning; intra, intratumoral; LASSO, least absolute shrinkage and selection operator; peri, peritumoral; ROC, receiver operating characteristic.

Clinical data collection

We collected clinical characteristics of patients with BI-RADS 3–4 breast nodules, including age, tumor size, ACR BI-RADS classification, and surgical pathological results. All pathological results were obtained from surgical specimens or biopsy samples and served as the gold standard in this study.

Ultrasound image acquisition and preprocessing

Breast ultrasound images were acquired using five different ultrasound systems to ensure data diversity: GE LOGIQ E8, Siemens S2000, Philips EPIQ5, EPIQ7, and IU22. Each ultrasound device was equipped with a linear array probe with a working frequency range of 4 to 12 MHz, capable of generating high-resolution grayscale images. Standard imaging protocols were followed to minimize variability, including consistent probe positioning, compression force, and imaging angles. For each identified breast nodule, the largest unmarked long-axis grayscale ultrasound image was selected for analysis, and the maximum longitudinal diameter of each lesion was recorded to assess size-related features. All ultrasound images were stored in Digital Imaging and Communications in Medicine (DICOM) format to ensure compatibility with subsequent processing and analysis steps. According to the ACR BI-RADS guidelines (6), which provide a standardized scoring system for breast nodules, we classified BI-RADS scores of 3 to 4A as benign and 4B to 4C as malignant. For the controversial nodules, a physician with over 25 years of experience in breast ultrasound diagnosis made the final determination.

Prior to feature extraction, all ultrasound images underwent a series of preprocessing steps to enhance image quality and standardize the input data for deep learning models. Two experienced radiologists independently delineated the regions of interest (ROIs) of the nodules using ITK-SNAP software. In cases of initial annotation discrepancies, a third radiologist was consulted to achieve final consensus on ROI delineation.

The grayscale values of the images were normalized to a range of 0 to 1 to reduce variability introduced by different ultrasound devices and imaging parameters. Subsequently, bilinear interpolation was used to resize the images to 224×224 pixels to meet the input requirements of the DTL models. Additionally, by expanding the boundaries of the intratumoral ROI outward by 5, 10, and 20 voxels, multiple PTRs were defined to capture the contextual information of the surrounding tissue. These peritumoral ROIs were generated automatically to ensure consistency across all samples.

Feature extraction

DTL feature extraction

For deep learning-based feature extraction, we employed a pre-trained ResNet-18 convolutional neural network (CNN) as the primary feature extraction tool. The ResNet-18 model was initialized with weights pre-trained on the ImageNet dataset. To adapt the ResNet-18 model for ultrasound image analysis, the final fully connected layer was removed, retaining only the convolutional layers to extract high-level feature maps.

The preprocessed ultrasound images were input into the modified ResNet-18 model, and global average pooling was applied to obtain fixed-length feature vectors. This process was performed separately for the ITR and each defined PTR (5, 10, and 20 voxels), thereby generating distinct feature sets that capture both the tumor core and its surrounding microenvironment.

Feature selection and model construction

To identify the most discriminative features for differentiating benign from malignant nodules, a two-step feature selection process was implemented. First, analysis of variance (ANOVA) was conducted to evaluate the statistical significance of each feature, retaining those with P values below a predefined threshold (e.g., P<0.05). Subsequently, the least absolute shrinkage and selection operator (LASSO) regression method was applied to further refine the feature set by minimizing overfitting and enhancing the model’s generalizability. The optimal lambda parameter for LASSO was determined through cross-validation. Features selected from both radiomics and DTL approaches were used to construct machine learning models aimed at predicting the malignancy risk of BI-RADS 3–4 breast nodules. Three types of models were developed: intratumoral models, peritumoral models, and combined intratumoral and peritumoral models.

The diagnostic performance of the intratumoral model, peritumoral model, and combined intratumoral-peritumoral model was evaluated by comparing their area under the curve (AUC) values, accuracy, sensitivity, and specificity. The best-performing model was then compared with the diagnostic results of ultrasound physicians.

Statistical analysis

Statistical analyses were performed using Python and SPSS 26.0, with pathological results serving as the gold standard. Continuous variables were tested for normal distribution and homogeneity of variance. Normally distributed data were analyzed using independent two-sample t-tests, while non-normally distributed continuous variables were assessed using the Mann-Whitney U test. Categorical variables were analyzed using the χ2 test. Differences in AUC between different models were compared using the DeLong test. Selected clinical variables were evaluated using SPSS 26.0. Python 3.10 was utilized for calculating intraclass correlation coefficients (ICC), conducting Spearman rank correlation tests, performing Z-score normalization, and executing LASSO regression analyses. All statistical tests were two-sided, with P<0.05 considered statistically significant.


Results

Clinical characteristics analysis

A total of 555 female patients with breast nodules were included in this study, with postoperative pathological results indicating 275 cases as benign lesions and 280 cases as malignant lesions. The age range of the patients was 18 to 88 years, with a mean age of 48.11±14.83 years. The training group consisted of 291 patients (mean age 48.35±15.03 years), and the validation group comprised 264 patients (mean age 47.84±14.63 years). There were no significant differences between the two groups in terms of age (P=0.57), nodule location (P=0.86), and nodule diameter (P=0.38) (Table 1).

Table 1

Data for the clinical characteristics of all the patients

Feature name All Training Validation P value
Size (mm) 19.17±10.20 18.88±10.48 19.50±9.89 0.38
Age (years) 48.11±14.83 48.35±15.03 47.84±14.63 0.57
Calcification 0.60
   No 400 (72.07) 213 (73.20) 187 (70.83)
   Yes 155 (27.93) 78 (26.80) 77 (29.17)
CDFI 0.18
   No 339 (61.08) 186 (63.92) 153 (57.95)
   Yes 216 (38.92) 105 (36.08) 111 (42.05)
BI-RADS 0.53
   RADS 3–4A 387 (69.73) 199 (68.38) 188 (71.21)
   RADS 4B–4C 168 (30.27) 92 (31.62) 76 (28.79)
Side 0.86
   Left 285 (51.35) 151 (51.89) 134 (50.76)
   Right 270 (48.65) 140 (48.11) 130 (49.24)

Data are presented as number (percentage), mean ± standard deviation. BI-RADS, Breast Imaging Reporting and Data System; CDFI, color Doppler flow imaging.

Feature extraction model selection

To identify the optimal diagnostic model, we evaluated the performance of models based on different pre-trained networks (ResNet-18, ResNet-50, DenseNet-121, ViT, GoogLeNet, and VGG-11) (Table 2). The results showed that ResNet-18 performed the best, with AUCs of 0.811 [95% confidence interval (CI): 0.761–0.860] in the training set and 0.813 (95% CI: 0.737–0.890) in the internal validation set. In the training set, its accuracy, sensitivity, and specificity were 76.2%, 69.2%, and 83.1%, respectively; in the internal validation set, they were 75.4%, 75.0%, and 75.8%, respectively.

Table 2

Performance of the deep-transfer-learning pre-trained model

Model Group AUC (95% CI) Accuracy Sensitivity Specificity
ResNet-18 Training 0.811 (0.761–0.860) 0.762 0.692 0.831
Internal validation 0.813 (0.737–0.890) 0.754 0.750 0.758
ResNet-50 Training 0.806 (0.756–0.855) 0.752 0.678 0.824
Internal validation 0.778 (0.699–0.858) 0.722 0.578 0.871
DenseNet-121 Training 0.752 (0.697–0.806) 0.687 0.644 0.730
Internal validation 0.736 (0.650–0.823) 0.667 0.609 0.726
ViT Training 0.547 (0.481–0.613) 0.561 0.644 0.480
Internal validation 0.559 (0.459–0.661) 0.532 0.437 0.629
GoogLeNet Training 0.709 (0.650–0.768) 0.653 0.74 0.568
Internal validation 0.715 (0.624–0.805) 0.675 0.625 0.726
VGG-11 Training 0.695 (0.634–0.755) 0.680 0.507 0.851
Internal validation 0.708 (0.618–0.798) 0.651 0.594 0.710

AUC, area under the curve; CI, confidence interval; ViT, vision transformer; VGG, visual geometry group.

From each tumor ROI’s maximum cross-section and various peritumoral cross-sections (5 voxels, 10 voxels, 20 voxels), 512 to 2,048 DTL features were extracted from ultrasound images. Subsequently, feature selection was performed using Spearman rank correlation tests and LASSO regression, and features with non-zero LASSO coefficients were ultimately selected for model construction.

Feature extraction and model diagnostic performance

Intratumoral feature extraction and model diagnostic performance

From the ITR, 512 DTL features were extracted, and after LASSO selection, 26 non-zero radiomics features were obtained. The diagnostic performance of five machine learning models—logistic regression (LR), support vector machine (SVM), K-nearest neighbors (KNN), naive Bayes, and multi-layer perceptron (MLP)—was compared. The results indicated that the naive Bayes model significantly outperformed the other models in the validation cohort, with an AUC of 0.862 (95% CI: 0.796–0.928) in the internal validation set and 0.844 (95% CI: 0.778–0.909) in the external validation set. In the internal validation set, its accuracy, sensitivity, specificity, precision, and F1 score were 0.808, 0.875, 0.738, 0.778, and 0.824, respectively; in the external validation set, they were 0.777, 0.866, 0.694, 0.725, and 0.789, respectively (Table 3, Figure 3).

Table 3

Diagnosis efficacy of the naive Bayes machine learning model based on deep learning features

Model Group AUC (95% CI) Accuracy Sensitivity Specificity
Intra-DTL Training 0.878 (0.839–0.917) 0.797 0.826 0.768
Internal validation 0.862 (0.796–0.928) 0.808 0.875 0.738
External validation 0.844 (0.778–0.909) 0.777 0.866 0.694
Peri (5 voxels)-DTL Training 0.873 (0.833–0.914) 0.801 0.671 0.937
Internal validation 0.855 (0.787–0.924) 0.808 0.828 0.787
External validation 0.777 (0.700–0.855) 0.734 0.612 0.847
Peri (10 voxels)-DTL Training 0.903 (0.870–0.936) 0.821 0.765 0.880
Internal validation 0.907 (0.853–0.961) 0.848 0.922 0.770
External validation 0.891 (0.836–0.946) 0.856 0.791 0.917
Peri (20 voxels)-DTL Training 0.902 (0.867–0.936) 0.838 0.819 0.859
Internal validation 0.871 (0.812–0.932) 0.784 0.797 0.770
External validation 0.838 (0.772–0.904) 0.763 0.776 0.750
Intra-DTL+ peri (10 voxels)-DTL Training 0.911 (0.877–0.944) 0.852 0.852 0.852
Internal validation 0.909 (0.860–0.958) 0.824 0.734 0.918
External validation 0.910 (0.862–0.959) 0.863 0.881 0.847

AUC, area under the curve; CI, confidence interval; DTL, deep transfer learning; intra, intratumoral; peri, peritumoral.

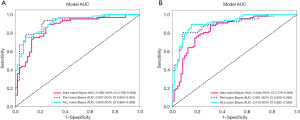

Figure 3 Diagnostic efficacy in different regions of internal validation (A) and external validation (B). AUC, area under the curve; CI, confidence interval; intra, intratumoral; peri, peritumoral.

Different PTR feature extraction and model diagnostic performance

From the PTRs at 5 voxels, 10 voxels, and 20 voxels, 512 DTL features were extracted, and after LASSO selection, 42 non-zero radiomics features were obtained. Among the five machine learning models, the naive Bayes model based on features from the 10-voxel PTR performed best, with AUCs of 0.907 (95% CI: 0.853–0.961) the internal validation set and 0.891 (95% CI: 0.836–0.946) in the external validation set. Its accuracy, sensitivity, specificity, precision, and F1 score in the internal validation set were 0.848, 0.922, 0.770, 0.808, and 0.861, respectively; in the external validation set, they were 0.856, 0.791, 0.917, 0.898, and 0.841, respectively (Table 3, Figure 3).

Combined intratumoral and peritumoral model diagnostic performance

From the intratumoral and 10-voxel PTRs, 1,024 DTL features were extracted, and after LASSO selection, 39 non-zero radiomics features were obtained. A naive Bayes model was constructed for diagnosis, achieving an AUC of 0.909 (95% CI: 0.860–0.958, Figure 4A) in the internal validation set and 0.910 (95% CI: 0.862–0.959, Figure 4B) in the external validation set. Its accuracy, sensitivity, specificity, precision, and F1 score in the internal validation set were 0.824, 0.734, 0.918, 0.904, and 0.810, respectively; in the external validation set, they were 0.863, 0.881, 0.847, 0.843, and 0.861, respectively. These results indicate that the combined intratumoral and peritumoral feature model outperformed models using only intratumoral or peritumoral features in both the training and validation sets (Table 3, Figure 3).

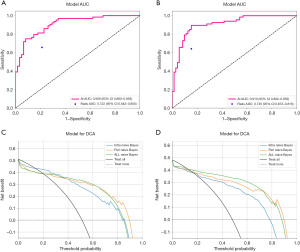

Figure 4 Deep learning model versus clinician diagnostic efficiency. (A) Deep learning model versus clinician diagnostic efficiency in internal validation. (B) Deep learning model versus clinician diagnostic efficiency in external validation. (C) Decision curve analysis of internal validation. (D) Decision curve analysis of external validation. AI, artificial intelligence; AUC, area under the curve; CI, confidence interval; DCA, decision curve analysis; intra, intratumoral; peri, peritumoral.

Ultrasound physician diagnostic performance

In differentiating between benign and malignant breast nodules, the diagnostic performance of clinical ultrasound physicians was as follows: an AUC of 0.722 (95% CI: 0.643–0.800) in the internal validation set and 0.745 (95% CI: 0.673–0.816) in the external validation set. In the internal validation set, their accuracy, sensitivity, specificity, precision, and F1 score were 0.720, 0.656, 0.787, 0.764, and 0.706, respectively; in the external validation set, they were 0.748, 0.642, 0.847, 0.796, and 0.711, respectively (Table 4).

Table 4

Deep learning model versus clinician diagnostic efficiency

Cohort Accuracy AUC (95% CI) Sensitivity Specificity PPV NPV Precision Recall F1 Threshold
Internal validation
   AI 0.824 0.909 (0.860–0.958) 0.797 0.852 0.850 0.800 0.850 0.797 0.823 0.971
   Physician 0.720 0.722 (0.643–0.800) 0.656 0.787 0.764 0.686 0.764 0.656 0.706 1.000
External validation
   AI 0.849 0.910 (0.862–0.959) 0.836 0.861 0.848 0.849 0.848 0.836 0.842 0.091
   Physician 0.748 0.745 (0.673–0.816) 0.642 0.847 0.796 0.718 0.796 0.642 0.711 1.000

AI, artificial intelligence; AUC, area under the curve; CI, confidence interval; NPV, negative predictive value; PPV, positive predictive value.

Overall, the combined intratumoral and peritumoral feature model outperformed models using only intratumoral or peritumoral features in terms of AUC, accuracy, sensitivity, and specificity. Compared to the diagnostic results of ultrasound physicians, the deep learning models demonstrated superior diagnostic efficiency (Figure 4).

Decision curve analysis (DCA)

DCA results indicated that the deep learning models had greater decision-making benefits than clinical physician diagnoses (Figure 4). Across different threshold probabilities, whether using intratumoral features, peritumoral features, or combined features, the naive Bayes models consistently yielded higher net benefits than the “all-treat” or “no-treat” strategies. Particularly within lower threshold ranges, all models exhibited significant net benefit improvements, suggesting that in actual clinical applications, these models can more effectively assist physicians in making rational treatment decisions, thereby reducing the risks of overdiagnosis and missed diagnoses.


Discussion

With the gradual increase in public awareness of health management and the widespread application of high-resolution ultrasound, the detection rate of breast nodules has risen annually (19). Consequently, the number of BI-RADS 3–4 category breast nodules has also increased, and there has been ongoing debate regarding their diagnostic and treatment strategies (20). Therefore, there is an urgent need for methods that can enhance the performance of differentiating benign and malignant BI-RADS 3–4 breast nodules. The study by Raza et al. (21) demonstrated that age is a significant clinical factor in predicting malignant breast tumors. Previous research has suggested that the ACR BI-RADS classification is an important factor in assessing the malignancy risk of breast nodules (22). However, its overall accuracy and benign detection rate are relatively low, potentially leading to overtreatment (23). Additionally, the diagnostic performance of ultrasound physicians largely depends on personal experience, highlighting the necessity for more stable and objective diagnostic methods to accurately differentiate the benignity and malignancy of ACR BI-RADS 4 category nodules.

Radiomics, as an emerging non-invasive technology, has shown tremendous potential in predicting tumor biomarkers. Unlike the previous study (24) that primarily focused on intratumoral features, our research simultaneously considers key biological features in the PTRs, which may enhance the predictive accuracy of radiomics models. The interactions between intratumoral and PTRs, such as the release of cytokines and the formation of an immunosuppressive microenvironment, influence tumor evolution and progression (25). This suggests that integrating intratumoral and peritumoral features within deep learning models could enhance their predictive capabilities.

In recent years, deep convolutional neural networks (CNNs) have achieved significant breakthroughs in the field of medical imaging (26). However, their implementation typically requires large amounts of training data, which can lead to overfitting (27). Transfer learning (TL) based on pre-trained CNNs can be effectively trained on smaller image datasets while mitigating the risk of overfitting (28), making it widely applicable in various medical image analyses. Our study results indicate that models based on intratumoral DTL features achieved AUCs of 0.862 (95% CI: 0.796–0.928) in the internal validation set and 0.844 (95% CI: 0.778–0.909) in the external validation set. Models based on peritumoral 10 voxels region DTL features achieved AUCs of 0.907 (95% CI: 0.853–0.961) in the training set and 0.891 (95% CI: 0.836–0.946) in the internal validation set. The combined intratumoral and peritumoral ultrasound DTL feature-based predictive model achieved AUCs of 0.909 (95% CI: 0.860–0.958) in the internal validation set and 0.910 (95% CI: 0.862–0.959) in the external validation set, demonstrating effective capability in predicting the benignity and malignancy of BI-RADS 3–4 breast nodules. Furthermore, its performance was superior to models based solely on intratumoral features, although the differences did not reach statistical significance (P>0.05). Additionally, the deep learning models outperformed ultrasound physicians outperformed physicians in terms of accuracy (e.g., 92.1% vs. 78.3%), sensitivity (e.g., 88.6% vs. 72.4%), and specificity, indicating their potential in clinical applications. Ji et al. demonstrated that a multicenter-validated Transformer-based Computer Aided Design (CAD) model significantly improved radiologists’ consistency in BI-RADS 3–5 nodule classification (Cohen’s κ =0.85) with 92.1% sensitivity and 88.6% specificity, offering a standardized AI solution to reduce diagnostic variability and unnecessary biopsies (29).

There are several limitations in this study. First, the number of images used for training and testing was relatively small, which may affect the stability of the models. Future research should collect more data to validate the generalizability of the models. Second, as a retrospective study, it requires larger-scale prospective trials to further validate the effectiveness of the models. Finally, this study delineated the ROIs only in two dimensions, neglecting the three-dimensional features of tumors, which may limit the models’ ability to capture the complex structures of tumors.


Conclusions

In summary, this study integrated DTL features from both intratumoral and PTRs to construct an efficient model for differentiating benign and malignant BI-RADS 3–4 breast nodules. The model demonstrated potential superiority over traditional ultrasound diagnosis and single radiomics models. Future studies should optimize the models further and validate them using larger, multicenter datasets.


Acknowledgments

None.


Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://gs.amegroups.com/article/view/10.21037/gs-24-457/rc

Data Sharing Statement: Available at https://gs.amegroups.com/article/view/10.21037/gs-24-457/dss

Peer Review File: Available at https://gs.amegroups.com/article/view/10.21037/gs-24-457/prf

Funding: The study was funded by the Science and Technology Development of Pudong New Area, Shanghai, China (No. 2023-Y52), Shanghai Sixth People’s Hospital Institutional Scientific Research Fund, Shanghai, China (No. ynhglg202407), and Shanghai Sixth People’s Hospital Institutional Scientific Research Fund, Shanghai, China (No. ynlglht202401).

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://gs.amegroups.com/article/view/10.21037/gs-24-457/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The two-center observational study was approved by Ethics Committees of Shanghai Sixth People’s Hospital Affiliated to Shanghai Jiao Tong University School of Medicine (No. 2019-027) and Shuguang Hospital Affiliated to Shanghai University of Traditional Chinese Medicine (No. 2024-KY-117K). As a retrospective study, it was exempted from the requirement for patient informed consent.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
