Development and validation of a screening model for benign and malignant breast masses based on S-Detect and microvascular flow imaging
Highlight box
Key findings
• We developed a breast cancer prediction model based on quantitative and objective clinical and ultrasound characteristics to aid in screening of breast cancer.
What is known and what is new?
• Ultrasound is extensively used for breast cancer screening due to its simplicity, lack of radiation exposure, and real-time dynamics. However, it is affected by subjective factors such as the sonologists’ skill, experience, and diagnostic ability.
• S-Detect can automatically extract and analyze the ultrasound image characteristics based on the Breast Imaging Reporting and Data System lexicon and objectively provide diagnoses of “possibly benign” and “possibly malignant” breast masses. Microvascular flow imaging enables the sensitive detection of low-flow microvessels, which can be quantified using vascular index. We constructed a nomogram model based on the ultrasound characteristics.
What is the implication, and what should change now?
• The newly constructed nomogram model can quantify the malignancy risk of breast masses, providing a reliable and objective initial assessment to help screen breast cancer while minimizing the influence of subjective judgment.
Introduction
Breast cancer is the most prevalent type of cancer worldwide in women (1,2). The incidence rates of breast cancer in young women are increasing annually in numerous countries (3). The type of breast cancer affecting young women is often more aggressive compared to that in older women and warrants increased attention (4). The implementation of breast cancer screening improves the rate of early diagnosis, which is a crucial first step in improving the prognosis of patients and reducing mortality (5). In high-income countries, mammography-based screening is considered the most common method for detecting breast cancer (6). Over the past few decades, mammography-based screening has been effective in decreasing breast cancer-associated deaths and improving patient prognosis, contributing to a >20% reduction in breast cancer mortality in women aged 50–69 years (7). Mammography exhibits a sensitivity of approximately 85% for the identification of breast cancer. However, it is not ideal for women with dense breast tissue, and it is sometimes difficult to differentiate between diseased and normal tissue with a sensitivity of only 47.8–64.4% (8). Chinese women have a higher percentage of dense breasts, and mammography-based screening has significant limitations in this population. A previous multi-center study demonstrated that ultrasound can be an effective tool for screening breast cancer in women with dense breasts, exhibiting superior sensitivity and specificity, and with a lower cost than mammography (9). In China, ultrasound is extensively used for breast cancer screening due to its simplicity, lack of radiation exposure, and real-time dynamics.
Currently, the Breast Imaging Reporting and Data System (BI-RADS) serves as a crucial foundation for the standardized assessment of breast mass risk (10). However, ultrasound also has limitations and requires examination with a handheld device by an experienced sonologist. The assessment of breast masses is affected by subjective factors such as the skill, experience, and diagnostic ability of the sonologists, and some atypical breast masses can be easily misdiagnosed, especially in some primary healthcare services (11). Moreover, the process of breast cancer screening is intensive and repetitive, which may lead to errors due to personnel fatigue. Several prediction models have been developed based on the ultrasound features available for distinguishing between benign and malignant breast masses. He et al. (12) constructed a prediction model of benign and malignant breast masses, which included the patient’s clinical features and BI-RADS-based ultrasound characteristics as the model predictors. This prediction model achieved an area under the curve (AUC) of 0.952. However, the model encompasses 12 predictors, which increase the workload involved in the breast cancer screening process. Furthermore, the ultrasound features, including irregular shape, irregular border, heterogeneous echo, microcalcification, and attenuation effects, are heavily dependent on the subjective assessment of experienced sonologists. In the model constructed by Yan et al. (13), predictors incorporated both conventional ultrasound and contrast-enhanced ultrasound features. This model demonstrated high diagnostic performance, achieving an AUC of 0.940. However, it is limited by longer exam durations and higher costs of contrast-enhanced ultrasound, as well as the potential risk of contrast agent allergy, making it unsuitable for mass breast cancer screening.
With the rapid development of technology, many new ultrasound methods are gradually being applied in clinical practice. Artificial intelligence (AI) has been utilized in the analysis of ultrasound images to help diagnose breast masses (14). Ultrasound S-Detect technology is based on convolutional neural networks and deep learning algorithms and is one of the most common AI technologies for evaluating breast masses (15). Ultrasound limitations can be overcome by using S-Detect, which can automatically extract and analyze ultrasound image features based on the BI-RADS lexicon, reducing the influence of subjective human factors. S-Detect can also objectively provide “possibly benign” and “possibly malignant” diagnoses. Indeed, a prospective multi-center study demonstrated that S-Detect has a high diagnostic value in distinguishing between benign and malignant breast masses, with a diagnostic AUC of 0.906, which is significantly higher than that of both experienced and less experienced sonologists (16). Although the performance of S-Detect in diagnosing breast lesions varies across studies, all of them affirm its clinical value in diagnosing breast cancer and its ability to effectively reduce the impact of subjective factors on diagnostic results, thereby improving the accuracy and reliability of the diagnosis (17). However, S-Detect technology cannot analyze the distribution of blood vessels within the mass. Breast cancer exhibits significant vascular dependency during its onset and progression, with its growth, invasion, and metastasis often accompanied by extensive angiogenesis (18). Malignant masses generally have a more complex and abundant network of blood vessels compared to benign masses (19). As a novel ultrasound technology, microvascular flow imaging (MVFI) can quickly and non-invasively visualize low-velocity microvessels within a breast mass, while the vascular index (VI) enables quantitative evaluation. Previous studies have indicated that the VI can help in distinguishing between benign and malignant breast masses (18,20). Moreover, the occurrence of breast cancer is closely related to age. To the best of our knowledge, very few prediction models are based on S-Detect and MVFI. Therefore, we try to use these ultrasound features to distinguish between benign and malignant breast masses by constructing an accurate, convenient, and efficient breast cancer prediction model. The model may help to screen breast cancer while minimizing the influence of sonologists’ subjective judgment. We present this article in accordance with the TRIPOD reporting checklist (available at https://gs.amegroups.com/article/view/10.21037/gs-2024-488/rc).
Methods
Sample size
In the previous study (13), predictive model achieved an AUC of 0.94. Using PASS 21.0 software for sample size estimation, a significance level of 0.05 and a margin of error of 2.5% were specified. The sample size, based on a 1:1 ratio of benign to malignant masses, is approximately 378. Thus, at least approximately 378 masses were required for this study.
Patients
The retrospective study was to described in a large patient cohort. The study received approval from the Medical Research Ethics Committee of the Second Affiliated Hospital of Anhui Medical University (No. SL-YX2022-015) and was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. Individual consent was waived due to the retrospective nature of the analysis. Patients with breast masses detected by conventional ultrasound in the Second Affiliated Hospital of Anhui Medical University between January 2021 and October 2024 were identified and further screened according to the eligibility outlined below.

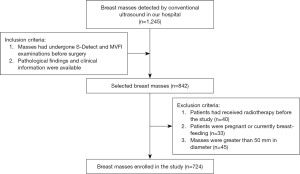

Inclusion criteria: (I) clear pathological findings and complete medical history after surgery or puncture biopsy; and (II) patients who underwent S-Detect and MVFI examinations before surgery. Exclusion criteria: (I) a mass >50 mm in diameter; (II) patients who had received radiotherapy before the study; and (III) patients who were pregnant or are currently breastfeeding. We evaluated 724 breast masses from 712 female patients in the final analysis. The pathology results served as the gold standard for confirming the diagnosis. Figure 1 provides a flowchart for the screening process.
Ultrasound examinations and image analysis

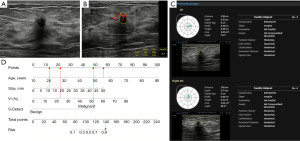

All breast examinations in the study were conducted utilizing a Samsung RS85A ultrasound system (Samsung Madison Ltd., Seoul, South Korea) with a 3–12 MHz linear probe. The patients were in a supine position with both breast areas fully exposed. First, a complete sweep of the breast was performed using conventional ultrasound to obtain two-dimensional grayscale images of the breast mass, recording its features (e.g., size and location). Subsequently, both of the maximum sections of the breast mass were selected and the S-Detect mode was activated. Clicking on the central area of the mass triggered the system to automatically identify and outline the mass boundary, which was manually adjusted as necessary to achieve the appropriate outline. The system then provided the diagnosis of “possibly benign” or “possibly malignant”. The maximum transverse and longitudinal sections of each mass were assessed. The final diagnosis was benign when both sections of each mass were diagnosed as “possibly benign”. The final diagnosis was malignant if the diagnosis in either section was “possibly malignant”. Finally, MVFI was used to visualize the blood flow in the mass. The region of interest was manually delineated along the boundary of the mass in the section exhibiting the richest blood flow, with the probe gently placed on the surface to prevent the application of any pressure. The quantitative VI was calculated automatically by the software. The average of three VI measurements was recorded as the final result.
Statistical analysis
Statistical analyses were conducted using SPSS 27.0 and R 4.4.0 software. The sample size was estimated using PASS 21.0 software. Continuous variables were described as means ± standard deviation (SD) or as medians (25th percentile, 75th percentile), and categorical variables were represented as frequencies (percentages). Categorical variables were assessed by the Chi-squared (χ2) test, and continuous variables were evaluated using the Mann-Whitney U test or Student’s t-test. The receiver operating characteristic (ROC) curves were plotted to reflect the diagnostic performance of the nomogram and S-Detect, and the DeLong test was used to compare significant differences between the AUC. The optimal cut-off value was determined using the maximum Youden index. The sensitivity and specificity of the nomogram model at this threshold were then calculated. The nomogram model was assessed using the Hosmer-Lemeshow test, calibration curve, and decision curve analysis (DCA). P value <0.05 was considered statistically significant for a two-sided test.
Results
Clinical and ultrasound characteristics
A total of 724 breast masses were evaluated in the study. The pathology examination-based diagnosis confirmed 431 malignant and 293 benign masses. The breast masses were randomized at a 7:3 ratio into the training (506 masses; mean age: 47.81±12.96 years; range, 16–87 years) and validation (218 masses; mean age: 47.71±13.54 years; range, 17–87 years) groups. The clinical and ultrasound characteristics of the breast masses are listed in Table 1. No significant differences were observed in any of the characteristics between the two groups (P>0.05). Table 2 shows the univariate risk analysis of the clinical and ultrasound characteristics of the training and validation groups. There was no correlation between the location of the mass and its malignancy or benignity (P>0.05). For the ultrasound features of the mass, S-Detect-based diagnosis and VI between malignant and benign masses showed significant differences (P<0.001).
Table 1
Characteristics | Total (n=724) | Training (n=506) | Validation (n=218) | Test statistics | P value |
---|---|---|---|---|---|
Pathology | χ2=0.28 | 0.60 | |||
Benign | 293 (40.47) | 208 (41.11) | 85 (38.99) | ||
Malignant | 431 (59.53) | 298 (58.89) | 133 (61.01) | ||
Age (years) | 47.78±13.12 | 47.81±12.96 | 47.71±13.54 | t=−0.10 | 0.92 |
Size (mm) | 22.51±9.89 | 22.32±9.79 | 22.97±10.11 | t=0.81 | 0.42 |
VI (%) | 6.30 (1.70, 12.50) | 6.15 (1.40, 13.10) | 6.40 (2.70, 11.95) | Z=−0.61 | 0.55 |
Location | χ2=0.01 | 0.91 | |||
Left | 363 (50.14) | 253 (50.00) | 110 (50.46) | ||
Right | 361 (49.86) | 253 (50.00) | 108 (49.54) | ||
Quadrant distribution | χ2=2.63 | 0.62 | |||
Outer upper | 327 (45.17) | 225 (44.47) | 102 (46.79) | ||
Outer lower | 148 (20.44) | 104 (20.55) | 44 (20.18) | ||
Inner upper | 155 (21.41) | 114 (22.53) | 41 (18.81) | ||
Inner lower | 67 (9.25) | 47 (9.29) | 20 (9.17) | ||
Others | 27 (3.73) | 16 (3.16) | 11 (5.05) | ||
S-Detect | χ2=1.03 | 0.31 | |||
Benign | 232 (32.04) | 168 (33.20) | 64 (29.36) | ||
Malignant | 492 (67.96) | 338 (66.80) | 154 (70.64) |
Data are presented as n (%), mean ± standard deviation, or median (25th percentile, 75th percentile). VI, vascular index.
Table 2
Characteristics | Training | Validation | |||||||
---|---|---|---|---|---|---|---|---|---|
Benign (n=208) | Malignant (n=298) | Test statistics | P value | Benign (n=85) | Malignant (n=133) | Test statistics | P value | ||
Location | χ2=0.13 | 0.72 | χ2=0.10 | 0.76 | |||||
Left | 102 (49.04) | 151 (50.67) | 44 (51.76) | 66 (49.62) | |||||
Right | 106 (50.96) | 147 (49.33) | 41 (48.24) | 67 (50.38) | |||||
Quadrant distribution | χ2=2.50 | 0.65 | χ2=1.07 | 0.90 | |||||
Outer upper | 95 (45.67) | 130 (43.62) | 39 (45.88) | 63 (47.37) | |||||
Outer lower | 40 (19.23) | 64 (21.48) | 17 (20.00) | 27 (20.30) | |||||
Inner upper | 50 (24.04) | 64 (21.48) | 17 (20.00) | 24 (18.05) | |||||
Inner lower | 19 (9.13) | 28 (9.40) | 9 (10.59) | 11 (8.27) | |||||
Others | 4 (1.92) | 12 (4.03) | 3 (3.53) | 8 (6.02) | |||||
Age (years) | 41.08±12.41 | 52.51±11.15 | t=−10.63 | <0.001 | 38.48±12.22 | 53.60±10.79 | t=−9.32 | <0.001 | |
Size (mm) | 17.84±8.74 | 25.44±9.27 | t=−9.39 | <0.001 | 20.39±10.45 | 24.62±9.57 | t=−3.07 | 0.002 | |
VI (%) | 1.45 (0.00, 8.70) | 8.45 (4.50, 15.83) | Z=−9.47 | <0.001 | 3.00 (0.40, 8.60) | 7.60 (4.80, 12.40) | Z=−4.98 | <0.001 | |
S-Detect | χ2=229.38 | <0.001 | χ2=101.54 | <0.001 | |||||
Benign | 148 (71.15) | 20 (6.71) | 58 (68.24) | 6 (4.51) | |||||
Malignant | 60 (28.85) | 278 (93.29) | 27 (31.76) | 127 (95.49) |
Data are presented as n (%), mean ± standard deviation, or median (25th percentile, 75th percentile). VI, vascular index.
Construction of the nomogram prediction model

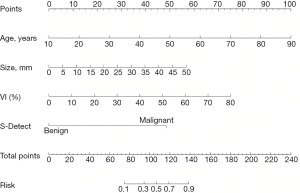

Characteristics that differed significantly (P<0.05) in the univariate risk analysis of the training group were incorporated into logistic regression. The results showed that age, size, VI, and S-Detect diagnosis were independent risk factors for breast cancer (P<0.05; Table 3). These independent risk factors were used to construct a nomogram for predicting breast cancer (Figure 2). The nomogram showed that the breast cancer risk for each mass can be determined by summing the points for each variable. Figure 3 depicts an example of the practical application of the nomogram prediction model.
Table 3
Variables | β | P value | OR (95% CI) |
---|---|---|---|
Age, years | 0.09 | <0.001 | 1.09 (1.06–1.12) |
Size, mm | 0.08 | <0.001 | 1.08 (1.05–1.12) |
VI | 0.06 | <0.001 | 1.07 (1.04–1.10) |
S-Detect | 3.35 | <0.001 | 28.37 (14.53–55.40) |
CI, confidence interval; OR, odds ratio; VI, vascular index.


Assessment of the nomogram prediction model

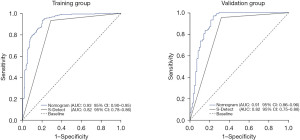

The ROC curves were plotted to evaluate the predictive ability of the nomogram. The AUC were 0.93 [95% confidence interval (CI): 0.90–0.95] and 0.91 (95% CI: 0.86–0.96) for the training and validation groups, respectively (Figure 4). The nomogram AUC was higher than that of the S-Detect alone (Z=7.69, P<0.001; Z=3.829, P<0.001; respectively). The diagnostic sensitivity and specificity of the nomogram were 93.3% (95% CI: 90.4–96.1%) and 79.8% (95% CI: 74.4–85.3%) in the training group, and 98.5% (95% CI: 96.4–100.0%) and 72.9% (95% CI: 63.5–82.4%) in the validation group, respectively. The Hosmer-Lemeshow test and calibration curve demonstrated significant concordance between the predicted and actual results of the nomogram (χ2=10.454, P=0.235; χ2=12.178, P=0.143; respectively; Figure 5). The DCA revealed that the nomogram had a significantly higher net clinical benefit than S-Detect alone (Figure 6).

Risk grouping for breast masses

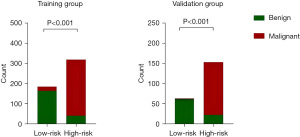

Total nomogram points were calculated for each breast mass, with an optimal cut-off value of 106.4 for total points and 0.495 for nomogram risk of breast masses in the training group. Breast masses with nomogram risk ≥0.495 were divided into the high-risk set, with <0.495 into the low-risk set. The proportion of malignant breast masses in the high-risk set was significantly higher than that in the low-risk set (P<0.001; Figure 7).
Discussion
In the study, we evaluated 724 breast masses from 712 female patients to develop a nomogram prediction model for breast cancer risk. Age, mass size, VI, and S-Detect-based diagnosis were independent risk factors for predicting breast cancer via multifactorial logistic regression analysis (P<0.05). The AUC, sensitivity, and specificity of the nomogram were 0.93, 93.3% and 79.8% in the training group and 0.91, 98.5%, and 72.9% in the validation group, respectively, demonstrating excellent prediction accuracy and sensitivity. The model showed significantly higher AUC and net clinical benefits than S-Detect. This finding indicated that the combined use of S-Detect and other indicators can effectively compensate for its limitations, thereby significantly enhancing the diagnostic accuracy for breast cancer.
A nomogram is a clinically valuable and convenient tool, offering the advantage of transforming intricate regression equations into intuitive visual graphs (21). By integrating clinical and ultrasound image features, variable axes with scales were utilized to demonstrate the interrelationships among the variables. The breast cancer probability for each mass was subsequently determined by summing the points for variable axes. Compared to other prediction models, the nomogram prediction model is more intuitive and facilitates individualized breast cancer risk assessment of patients by clinicians and sonologists. A nomogram can also serve as a practical and easy interdisciplinary communication bridge between clinicians and sonologists. Currently, nomogram models have been used to predict breast disease in many ways, including prediction of breast cancer, breast cancer presenting with axillary lymph node metastasis, breast cancer neoadjuvant chemotherapy to achieve pathologic complete remission response, and breast cancer recurrence and prognosis (22-26). The nomogram model developed in the study was aimed at predicting the risk of masses during breast cancer screening and providing an initial assessment of breast masses.
Wang and Che (27) constructed a nomogram model for predicting breast cancer that incorporated factors such as tumor vascular distribution parameters quantitatively assessed using superb microvascular imaging and BI-RADS classification obtained by conventional ultrasound. The nomogram model constructed by Guo et al. (28) was used to assess the risk of breast lesions preoperatively, integrating the results of the Angio Planewave ultrasensitive imaging to determine the blood flow and morphological information of breast lesions obtained through conventional ultrasound. All of these nomogram models showed good predictive performance. In contrast, the nomogram model in the present study was constructed based on quantitative and objective ultrasound and clinical features, all of which are easily accessible and simple to manipulate. The model was expected to objectively evaluate breast masses while minimizing the influence of subjectivity.
S-Detect technology relies on convolutional neural networks and deep learning algorithms. It has become the most widely used AI diagnostic system in breast mass evaluation based on BI-RADS criteria. S-Detect can autonomously recognize and analyze two-dimensional grayscale image features of breast masses, such as shape, orientation, margins, and internal echoes, effectively overcoming subjective bias and providing objective results of benign or malignant evaluations (29). The studies by Zhao et al. and Xia et al. (30,31) indicated that the diagnostic sensitivity and specificity of S-Detect technology were higher than those of resident sonologists, and its diagnostic capability showed no significant difference compared to that of experienced sonologists. The study by Di Segni et al. (32) indicated that the diagnostic sensitivity of S-Detect technology for focal breast lesions exceeded 90% and had a specificity of approximately 70%. These studies have all demonstrated the feasibility of S-Detect technology in predicting breast cancer. Notably, while S-Detect technology has a high sensitivity, its specificity is relatively low. It is likely that this method based on morphological characteristics of breast masses tends to provide a malignant diagnosis to minimize the risk of missing breast cancer. Considering the limitations of using S-Detect technology alone, it was combined with other indicators to enhance the specificity of the diagnosis.
Breast cancer development and progression are highly dependent on angiogenesis. Breast cancer tends to be more richly vascularized than benign breast masses, and these vessels distribute in a twisted, radial pattern around the peripheral and central areas of the mass (33). Therefore, assessment of angiogenesis in breast masses is essential for differentiating malignancy from benignity. MVFI is a novel ultrasound blood flow imaging technology that uses multidimensional filtering to eliminate clutter and motion artifacts, thereby providing a sensitive method for detecting microvessels with low flow velocities, which can be quantitatively assessed by VI (34). This technology has been applied to several organs, including the liver, fetal cranial brain, placenta, thyroid, mammary gland, and cervical lymph nodes, and its value for clinical detection of microvessels has been previously validated (35-39). Bartolotta et al. (35) used this technology to detect the vascular distribution of focal breast lesions to distinguish between benign and malignant lesions, with the final diagnostic AUC, sensitivity, and specificity of 0.70, 76.6%, and 64.1%, respectively. In the present study, the VI quantitatively evaluated the vascular distribution within breast masses as a predictive factor for breast cancer.
Hong et al. (40) found that many clinical features are associated with breast cancer, including patient age and mass size, which is in agreement with the present study results. Previous research has confirmed that age is a risk variable influencing the development and prognosis of breast malignancies at the molecular level (41). Breast cancer incidence shows a positive correlation with age, and the risk of malignancy tends to increase with age (42). Chen et al. (43) evaluated 1,203 cases of breast masses, and showed that the accuracy of ultrasound diagnosis for masses ≤1 cm, 1.1–2.0 cm, and >2.0 cm in size was 75.6%, 86.4%, and 88.4%, respectively. This is likely because larger breast masses have more typical morphological features, making ultrasound diagnosis easier.
In addition, the cut-off value for the nomogram risk can be utilized for risk stratification. Following risk stratification, special attention should be given to breast masses within the high-risk set, and further evaluation is recommended.
Despite the strengths, this study also has some limitations. First, this single-center study may lead to the potential for bias in our findings; consequently, studies with larger sample sizes and the adoption of a multi-center design are needed in the future to confirm our findings. Second, we only performed the internal validation. Although our predictive model showed great clinical utility, further validation with external groups is needed.
Conclusions
Our constructed nomogram exhibited excellent diagnostic efficacy, calibration, and clinical utility. This nomogram model can quantify the malignancy risk of breast masses, providing a reliable and objective initial assessment to aid in breast cancer screening.
Acknowledgments
None.
Footnote
Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://gs.amegroups.com/article/view/10.21037/gs-2024-488/rc
Data Sharing Statement: Available at https://gs.amegroups.com/article/view/10.21037/gs-2024-488/dss
Peer Review File: Available at https://gs.amegroups.com/article/view/10.21037/gs-2024-488/prf
Funding: The study was supported by
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://gs.amegroups.com/article/view/10.21037/gs-2024-488/coif). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study received approval from the Medical Research Ethics Committee of the Second Affiliated Hospital of Anhui Medical University (No. SL-YX2022-015) and was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. Individual consent was waived due to the retrospective nature of the analysis.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
