Ultrasound-guided thermal ablation therapy for papillary thyroid carcinoma: a bibliometric analysis from 2000 to 2023
Original Article

Ultrasound-guided thermal ablation therapy for papillary thyroid carcinoma: a bibliometric analysis from 2000 to 2023

Junping Zhang1,2,3#, Shanshan Li1,2,3#, Mengya Zhu1,2,3#, Wen Chen1,2,3, Anqi Huo4, Yuanyuan Deng1,2,3, Fang Lu1,2,3, Ying Liu1,2,3, Jixiong Xu1,2,3

1Department of Endocrine and Metabolism, The First Affiliated Hospital, Jiangxi Medical College, Nanchang University, Nanchang, China; 2Jiangxi Clinical Research Center for Endocrine and Metabolic Disease, Nanchang, China; 3Jiangxi Branch of National Clinical Research Center for Metabolic Disease, Nanchang, China; 4The First Clinical Medical College, Jiangxi Medical College of Nanchang University, Nanchang, China

Contributions: (I) Conception and design: J Zhang; (II) Administrative support: J Xu; (III) Provision of study materials or patients: None; (IV) Collection and assembly of data: J Zhang, S Li, M Zhu; (V) Data analysis and interpretation: J Zhang, W Chen, A Huo, Y Deng, F Lu, Y Liu; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Jixiong Xu, PhD. Department of Endocrine and Metabolism, The First Affiliated Hospital, Jiangxi Medical College, Nanchang University, 17 Yongwai Zheng Street, Donghu District, Nanchang, China; Jiangxi Clinical Research Center for Endocrine and Metabolic Disease, Nanchang, China; Jiangxi Branch of National Clinical Research Center for Metabolic Disease, Nanchang, China. Email: Jixiong.Xu@ncu.edu.cn.

Background: Papillary thyroid cancer (PTC) is increasingly treated with procedures. However, there is a lack of relevant systematic evaluation articles. Therefore, this study aims to explore the research landscape of PTC thermal ablation through bibliometric analysis.

Methods: We searched publications related to PTC thermal ablation therapy from January 1, 2000 to December 31, 2023, from the Web of Science Core Collection (WoSCC). Subsequently, bibliometric analyses were then performed using the R package “bibliometrix”, as well as VOSviewer and CiteSpace software, to visualize data on countries, institutions, journals, authors, keywords, and references.

Results: A total of 283 publications from 17 countries were retrieved, and the number of publications had shown a steady increase over the past decade, with China, the USA and South Korea being the top three contributing countries. The Chinese People’s Liberation Army General Hospital was the most prolific institution, with the International Journal of Hyperthermia being the most frequent publisher. The author with the highest number of publications was Yukun Luo. “Radiofrequency ablation” was identified as the most commonly used keyword, indicating a potential research hotspot for the future.

Conclusions: This bibliometric study comprehensively analyzed publications on PTC thermal ablation, providing valuable insights into the history and current status of this research field, while also offering guidance for future research directions.

Keywords: Papillary thyroid carcinoma; thermal ablation; ultrasound; bibliometric analysis


Submitted Oct 27, 2024. Accepted for publication Feb 11, 2025. Published online Feb 25, 2025.

doi: 10.21037/gs-24-466


Introduction

Papillary thyroid cancer (PTC) constitutes the predominant form of thyroid malignancy, encompassing approximately 84% of cases (1). PTC is distinguished by its indolent growth pattern and generally favorable prognosis (2). Over the past two decades, there has been a persistent rise in the global prevalence of PTC. In 2000, age-standardized incidence rates for thyroid cancer were documented at 10.1 per 100,000 women and 3.1 per 100,000 men, with corresponding age-standardized mortality rates of 0.5 per 100,000 women and 0.3 per 100,000 men (3). This trend has imposed substantial burdens on both socioeconomic factors and public health (4,5). Conventional therapeutic strategies have traditionally revolved around surgical management, typically involving total thyroidectomy followed by adjunctive radioactive iodine therapy, aiming at mitigating the risks of disease recurrence and metastasis (6). Nonetheless, these interventions carry inherent risks and may adversely impact patient well-being, necessitating careful consideration of potential complications and lifelong requirements for hormone replacement therapy (7,8).

In recent decades, the management paradigm of PTC has undergone profound evolution, driven by advancements in minimally invasive methodologies and precision medicine (9). Among these innovations, ultrasound-guided thermal ablation has emerged as a promising non-surgical approach for treating PTC. This technique utilizes ultrasound imaging to precisely deliver thermal energy, effectively ablating cancerous tissue within the thyroid gland (10). Thermal ablation encompasses diverse modalities such as radiofrequency ablation, microwave ablation, and laser ablation (11). Unlike conventional surgery, ultrasound-guided thermal ablation capitalizes on real-time imaging capabilities to target and treat malignant tissues accurately, while sparing adjacent healthy structures. This approach holds the potential for reduced complication rates and expedited recovery times (12-14). Typically performed on an outpatient basis without general anesthesia, thermal ablation minimizes hospitalization durations and appeals to patients seeking less invasive options or those unsuitable for surgery due to concurrent medical conditions (15,16).

The expanding literature on ultrasound-guided thermal ablation therapy for PTC underscores its growing adoption in clinical settings. However, there remains a paucity of comprehensive studies evaluating pertinent publications. This bibliometric analysis aims to scrutinize the scholarly output concerning thermal ablation for PTC from 2000 to 2023, offering a comprehensive synopsis of research trends, geographic distributions, and thematic focuses within this burgeoning area. This endeavor seeks to inform future therapeutic strategies and advance patient care in the coming years


Methods

Search strategies

This study utilized the Web of Science Core Collection (WoSCC) database to retrieve relevant literature and conduct bibliometric analysis, which covers a wide range of disciplines and provides accurate citation data. This database is extensively utilized in bibliometric analysis (17,18). The search strategy employed was as follows: TS (Topic) = ((papillary thyroid carcinoma) OR (thyroid papillary carcinoma) OR (thyroid papillary cancer) OR (papillary thyroid cancer) OR (papillary thyroid microcarcinoma) OR (thyroid papillary micro-carcinoma) OR (thyroid micropapillary carcinoma) OR (PTC) OR (PTMC)) AND TS = ((thermal ablation) OR (Radiofrequency Ablation) OR (Microwave ablation) OR (Laser ablation) OR (High-Intensity Focused Ultrasound Ablation)). Initially, two authors (J.Z. and S.L.) retrieved 311 records using this strategy, which was subsequently refined based on the following criteria to mitigate potential biases: (I) time span: from January 1, 2000 to December 31, 2023; (II) document type: article or review; (III) language: English. Ultimately, a total of 283 publications were included in the analysis, which output in “plain text” format with “full records and references”. Details of the screening process are illustrated in Figure S1.

Data analysis

The study utilized VOSviewer 1.6.20, CiteSpace 6.3.1, and the “bibliometrix” package of R (v4.3.1) for scientometric and visual analysis. VOSviewer, developed by Professors Nees Jan van Eck and Ludo Waltman in 2009 (19), visualizes citation, collaboration, and co-occurrence relationships among journals, references, countries, and institutions through imported data. The resulting network graph sizes nodes based on publication counts, with connections representing relationships between nodes. Nodes closely related are grouped into clusters of the same color. Citespace, an information visualization and analysis software based on Java developed by Professor Chaomei Chen (20), analyzes keywords and references displaying significant citation bursts. The “bibliometrix” package in R (v4.3.1) is an open-source tool for visual scientific literature analysis (21), highlighting dynamic changes in publications across countries and international collaboration. Ethical approval from the ethics committee was not required as the study utilized data from public databases.


Results

Growth trend of publications

This study identified a total of 283 publications that met the inclusion criteria related to PTC thermal ablation, including 219 articles and 64 reviews. The annual publication trends in this research field are illustrated in Figure 1. There were fewer publications in the early stages, but since 2014, the number of publications per year has increased rapidly. Approximately 91.17% of the publications were concentrated in the past decade, reflecting an increasing focus among researchers on the field of PTC thermal ablation therapy.

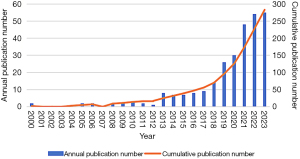

Figure 1 Annual and cumulative growth trends of publications.

Countries and institutions

Figure 2A, a world map, clearly shows the overall distribution of publications by country/region, with darker colors indicating higher publication numbers in those areas. The number of publications from each country is shown in Figure 2B. China leads significantly with 167 publications, followed by the United States (n=32), South Korea (n=32), and Italy (n=22). Other countries have published fewer than 10 articles each. In terms of citations, Chinese publications have the highest number of citations (n=2,587), but the average number of citations per article is only 15.5, much lower than France’s 39.6 (Table S1). Figure 2C illustrates international collaboration among countries, with China participating in the most collaborations, followed by South Korea, the United States, and France.

Figure 2 The field of thermal ablation of PTC. (A) World map of the distribution of country publications. (B) Number of publications from top 10 countries. (C) International collaboration between countries. (D) Number of publications from top 10 institutions. PTC, papillary thyroid cancer.

In addition, a total of 290 institutions conducted PTC thermal ablation studies. Figure 2D shows the top 10 institutions with the highest number of publications, seven of which are located in China. Among them, the Chinese People’s Liberation Army General Hospital leads the way with 49 publications. Meanwhile, the network of collaboration map between institutions were shown in Figure S2.

Journals and authors

A total of 111 journals published studies on the thermal ablation of PTC. Table 1 lists the top 10 journals based on the number of publications, with 70% of them categorized in Q2. The International Journal of Hyperthermia led with 42 publications, followed by Frontiers in Endocrinology (n=27) and European Radiology (n=17). However, Thyroid received the highest number of citations (1,666 times), followed by International Journal of Hyperthermia (816 times) and Journal of Clinical Endocrinology & Metabolism (628 times) (Table S2). Additionally, Figure 3 illustrates the collaborative network map of journals and co-cited journals, respectively.

Table 1

Top 10 journals with the most publications in the field of thermal ablation of PTC

Rank Journals Counts IF (2023) JCR (2023)
1 International Journal of Hyperthermia 42 3 Q2
2 Frontiers in Endocrinology 27 3.9 Q2
3 European Radiology 17 4.7 Q1
4 Thyroid 15 5.8 Q1
5 Frontiers in Oncology 10 3.5 Q2
6 Journal of Clinical Endocrinology & Metabolism 9 5 Q1
7 Endocrine 8 3 Q2
8 Medicine 7 1.3 Q2
9 Endocrine-Related Cancer 4 4.1 Q2
10 Journal of Vascular and Interventional Radiology 4 2.6 Q2

IF, impact factor; JCR, Journal Citation Reports; PTC, papillary thyroid cancer.

Figure 3 Collaborative network map of (A) the visualization of journal and (B) the visualization of co-cited journal.

A total of 1,156 authors have contributed to research in the PTC thermal ablation field. Table 2 lists the top 10 authors by publication count. The most productive author was Luo YK, with 36 articles (h-index =14), followed by Zhang Y (28 articles, h-index =13), Yan L (27 articles, h-index =12), Zhang MB (25 articles, h-index =13), and Xiao J (21 articles, h-index =8). A map of the collaboration network between the authors is shown in Figure S3. The colors indicate clusters, where close communication and similar research directions exist between nodes in the same cluster.

Table 2

Top 10 authors with the most publications in the field of thermal ablation of PTC

Rank Authors Counts TC H-index
1 Luo YK 36 724 14
2 Zhang Y 28 705 13
3 Yan L 27 359 12
4 Zhang MB 25 586 13
5 Xiao J 21 247 8
6 Yu MA 19 210 9
7 Li Y 18 262 9
8 Baek JH 16 630 13
9 Wei Y 16 190 8
10 Peng LL 15 185 8

PTC, papillary thyroid cancer; TC, total citations.

Keywords co-occurrence and bursts

Figure 4A shows the top 10 keywords with the highest frequency in the field of PTC thermal ablation, with “radiofrequency ablation” ranking first (n=79), followed by “thermal ablation” (n=60) and “ultrasound” (n=58). VOSviewer software was used to visualize the frequency of keyword occurrence, and 70 keywords with a frequency of 3 or more were analyzed, as shown in Figure 4B. The size of the nodes represents the frequency of keyword occurrence, while the distance between nodes represents their strength of association. Figure 4C displays the top 20 most frequently cited keywords, with the red line indicating the duration of the keyword outbreaks. As shown in the figure, in recent years, keywords such as “percutaneous laser ablation”, “association guidelines”, “ultrasound”, “papillary thyroid microcarcinoma”, “fine needle aspiration”, and “retrospective analysis” have red lines extending to 2023, indicating that these keywords have received sustained attention in recent years. In addition, Figure 4D shows the associations between the top 10 countries, institutions, and authors’ keywords.

Figure 4 Keywords. (A) The top 10 keywords with the highest frequency. (B) Network visualization of the keywords. (C) The top 20 keywords with the strongest citation bursts. The green lines represent the occurrence and development of keywords, while the red lines represent the duration of the outbreak. (D) The three-field plot of thermal ablation and PTC. PTC, papillary thyroid cancer.

Most-cited references

Table S3 presents the top 10 most cited articles in the field of thermal ablation for PTC. These articles were published between 2006 and 2021, with 90% published in the last decade and 60% were articles. The most cited article was published in the Annals of Surgery in 2006 entitled “Radiofrequency ablation and percutaneous ethanol injection treatment for recurrent local and distant well-differentiated thyroid carcinoma”, which has been cited 163 times.

Figure S4 displays the top 20 co-cited references with the strongest citation bursts, ranging in burst strength from 2.7 to 19.7. Red line segments denote periods of frequent citations. The most cited reference was a 2016 article published in the journal Thyroid titled “2015 American Thyroid Association Management Guidelines for Adult Patients with Thyroid Nodules and Differentiated Thyroid Cancer: The American Thyroid Association Guidelines Task Force on Thyroid Nodules and Differentiated Thyroid Cancer”.

Detail of the types of articles

Most of the literature on thermal ablation treatment for PTC focuses on primary thyroid cancer. There are a total of 38 studies related to the treatment of metastatic papillary carcinoma, which we have listed and included in Table S4. Regarding tumor size, the majority of thermal ablation treatments for PTC involve microcarcinomas, defined as those with a maximum diameter of less than 1 cm. We carefully reviewed the included literature and identified 12 studies that involved part or all of T1b stage PTC, which we have listed in Table S5.

In the included literature, there were a total of 130 publications on radiofrequency ablation, 67 on microwave ablation, 41 on laser ablation, and the remaining publications were comprehensive summaries, including reviews or meta-analyses on thermal ablation in the field of PTC, without detailed classification. Therefore, we can see that radiofrequency ablation was the most widely used method in PTC.


Discussion

This study performed a bibliometric analysis spanning from 2000 to 2023 to evaluate the scholarly output concerning thermal ablation therapy for PTC. It delineates emerging research patterns, global distribution, and thematic emphases within this domain. The findings underscore a marked surge in research pertaining to thermal ablation therapy for PTC in recent years, notably originating from countries such as China, the United States, and South Korea. The ensuing discourse expands upon these observations, their clinical implications, and prospective avenues for further investigation.

The evolution of academic publications serves as a pivotal barometer of developmental trajectories within a field (22). As evidenced by the results of curve fitting, the volume of literature pertaining to PTC thermal ablation therapy exhibited a significant rise from 2000 to 2023. Initially, from 2000 to 2012, scholarly output remained minimal and erratic, with fewer than 10 publications annually; however, a pronounced upward trend has been observed since 2013. This progression mirrors the gradual acceptance and validation of thermal ablation technology in the treatment of PTC. Early investigations primarily focused on establishing the feasibility and safety of this modality (23-25), while recent studies have increasingly explored its clinical applications and efficacy assessments (12,16,26). This shift underscores the transition of thermal ablation technology from laboratory experimentation to clinical implementation, offering a viable therapeutic avenue for PTC patients. As technology continues to advance and clinical evidence accumulates, thermal ablation is anticipated to emerge as a cornerstone of PTC treatment. Future research endeavors are likely to focus on optimizing treatment protocols, enhancing therapeutic outcomes, and integrating this technology more seamlessly into clinical practice. Concurrently, ongoing vigilance among researchers and healthcare providers will be crucial to staying abreast of the latest advancements, thereby enhancing treatment efficacy and patient care standards.

Regionally, China, the United States, South Korea, and Italy have emerged as key players in the realm of PTC thermal ablation therapy research. This distribution mirrors findings in ultrasound-guided thermal ablation for thyroid nodules, where China, Italy, and South Korea similarly take precedence (27). Notably, China stands out prominently with 167 publications, constituting 59% of the total corpus. This dominance underscores China’s rapid strides in medical research and technological innovation in recent years (28). Furthermore, the United States and South Korea have also made notable contributions, each contributing 32 publications. At the institutional level, a total of 290 organizations have engaged in research on PTC thermal ablation therapy. Chinese institutions not only lead in quantity but also in impact, with the Chinese People’s Liberation Army General Hospital leading the pack in terms of publication output. This underscores China’s substantial advantage and influence in advancing the field of PTC thermal ablation therapy research.

In terms of scholarly journals, the International Journal of Hyperthermia emerges as the foremost contributor, having published 42 articles on PTC thermal ablation therapy. It is closely followed by Frontiers in Endocrinology and European Radiology, which have published 27 and 17 articles, respectively. The robust impact and citation metrics of these journals underscore their pivotal role in shaping research within the realm of PTC thermal ablation therapy. Regarding prolific authors, Luo YK leads the field with 36 publications, illustrating substantial leadership in this area of study. Other notable contributors include Zhang Y, Yan L, and Zhang MB, whose extensive research efforts have significantly advanced the understanding and application of thermal ablation in treating PTC.

Recent developments in thermal ablation for PTC are reflected in a surge of new keywords, signaling emerging frontiers in this field. Keyword co-occurrence analysis identifies “radiofrequency ablation” as the most prevalent term, underscoring its pivotal role in PTC thermal ablation therapy. Additionally, “thermal ablation” and “ultrasound” are also prominent keywords, highlighting their widespread utilization and ongoing research emphasis in the treatment of PTC. Further scrutiny into keyword bursts reveals evolving research focuses on “percutaneous laser ablation”, “association guidelines”, “papillary thyroid microcarcinoma”, and “fine needle aspiration”. These emerging hotspots denote dynamic shifts within the research landscape and suggest potential future directions. Notably, there is a growing emphasis on technical innovation and standardized treatment protocols, alongside heightened attention to early disease detection and assessment. These insights into future research directions are pivotal for guiding clinical practice and advancing therapeutic approaches in PTC thermal ablation.

Currently, guidelines and consensus statements on the appropriateness of thermal ablation for PTC exhibit slight variations across different professional associations. The 2015 American Thyroid Association Management Guidelines and the 2017 South Korean Thyroid Radiofrequency Ablation Guidelines advocate that thermal ablation should be reserved for high-risk surgical candidates and patients unwilling to undergo additional surgery (29,30). In contrast, the 2018 Austrian Practice Guidelines do not endorse thermal ablation as a therapeutic option for malignant thyroid nodules (31). In 2020, Chinese experts published a consensus aiming to standardize the application of thermal ablation in treating thyroid tumors (32). The 2021 European Thyroid Association and Cardiovascular and Interventional Radiological Society of Europe recommend considering thermal ablation for PTC in patients categorized as: (I) high surgical risk; (II) with limited life expectancy; (III) having significant comorbidities; (IV) ineligible for surgery; or (V) opting against active surveillance (33). However, with the expanding clinical adoption of thermal ablation for PTC and the accumulation of research evidence, the Chinese expert consensus on PTC thermal ablation has progressively broadened its indications. This includes recommending thermal ablation as a primary treatment for T1aN0M0 PTC, proposing it as an alternative for T1bN0M0 PTC, considering its use following thorough evaluation in cases of PTC with capsule invasion limited to the capsule, isthmic PTC, or multifocal PTC (up to three nodules), and advocating for its application in managing new or recurrent lesions within residual thyroid tissue post-partial thyroidectomy, particularly in patients prioritizing thyroid function preservation or unable to undergo repeat surgery (34). Despite the increasing application of thermal ablation in PTC, its long-term safety and efficacy necessitate further investigation to provide robust support for clinical decision-making and treatment guidelines.

The bibliometric analysis provides new and objective perspectives on the emerging research focal points and trends in ultrasound-guided thermal ablation therapy for PTC across various dimensions. Nonetheless, this study is not without limitations. Firstly, while the WOSCC database is widely recognized as a reliable source for bibliometric analyses, it may not encompass all relevant articles. Secondly, there could be a selection bias attributable to the predominance of articles published in English. Thirdly, our study shows that Chinese scholars have published significantly more papers in this field than other countries, reflecting China’s investment in medical technology, equipment, and research funding, as well as the country’s active involvement and emphasis on this area of research. However, these studies may carry potential biases. Many are conducted by a limited number of institutions with small sample sizes, and are concentrated in specific regions, which may affect the generalizability of the results. To improve the reliability of the research, multi-center, large-sample, prospective studies should be strengthened, and international collaboration and academic exchange should be encouraged.


Conclusions

In conclusion, thermal ablation therapy for PTC represents a promising minimally invasive treatment with substantial clinical implications. Continued research and technological advancements are anticipated to further establish thermal ablation as a safe and efficacious option for a broader spectrum of PTC patients in the foreseeable future.


Acknowledgments

None.


Footnote

Peer Review File: Available at https://gs.amegroups.com/article/view/10.21037/gs-24-466/prf

Funding: This work was supported by the Jiangxi Provincial Science and Technology Innovation Base Construction - Clinical Medical Research Center (No. 20221ZDG02011); Jiangxi Provincial Science and Technology Innovation Base Plan - Provincial Clinical Medical Research Center (No. 2020BCG74001); and Jiangxi Provincial Natural Science Foundation (No. 20224ACB206010).

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://gs.amegroups.com/article/view/10.21037/gs-24-466/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.


References

  1. Boucai L, Zafereo M, Cabanillas ME. Thyroid Cancer: A Review. JAMA 2024;331:425-35. [Crossref] [PubMed]
  2. Affinito O, Orlandella FM, Luciano N, et al. Evolution of intra-tumoral heterogeneity across different pathological stages in papillary thyroid carcinoma. Cancer Cell Int 2022;22:263. [Crossref] [PubMed]
  3. Pizzato M, Li M, Vignat J, et al. The epidemiological landscape of thyroid cancer worldwide: GLOBOCAN estimates for incidence and mortality rates in 2020. Lancet Diabetes Endocrinol 2022;10:264-72. [Crossref] [PubMed]
  4. Zhao Q, Chen M, Fu L, et al. Assessing and projecting the global burden of thyroid cancer, 1990-2030: Analysis of the Global Burden of Disease Study. J Glob Health 2024;14:04090. [Crossref] [PubMed]
  5. Hu S, Wu X, Jiang H. Trends and projections of the global burden of thyroid cancer from 1990 to 2030. J Glob Health 2024;14:04084. [Crossref] [PubMed]
  6. Hay ID, Johnson TR, Kaggal S, et al. Papillary Thyroid Carcinoma (PTC) in Children and Adults: Comparison of Initial Presentation and Long-Term Postoperative Outcome in 4432 Patients Consecutively Treated at the Mayo Clinic During Eight Decades (1936-2015). World J Surg 2018;42:329-42. [Crossref] [PubMed]
  7. Smulever A, Pitoia F. High rate incidence of post-surgical adverse events in patients with low-risk papillary thyroid cancer who did not accept active surveillance. Endocrine 2020;69:587-95. [Crossref] [PubMed]
  8. Moon JH, Ryu CH, Cho SW, et al. Effect of Initial Treatment Choice on 2-year Quality of Life in Patients with Low-risk Papillary Thyroid Microcarcinoma. J Clin Endocrinol Metab 2021;106:724-35. [Crossref] [PubMed]
  9. Chen DW, Lang BHH, McLeod DSA, et al. Thyroid cancer. Lancet 2023;401:1531-44. [Crossref] [PubMed]
  10. Bojunga J, Trimboli P. Thyroid ultrasound and its ancillary techniques. Rev Endocr Metab Disord 2024;25:161-73. [Crossref] [PubMed]
  11. De Vita E, Lo Presti D, Massaroni C, et al. A review on radiofrequency, laser, and microwave ablations and their thermal monitoring through fiber Bragg gratings. iScience 2023;26:108260. [Crossref] [PubMed]
  12. Gao X, Yang Y, Wang Y, et al. Efficacy and safety of ultrasound-guided radiofrequency, microwave and laser ablation for the treatment of T1N0M0 papillary thyroid carcinoma on a large scale: a systematic review and meta-analysis. Int J Hyperthermia 2023;40:2244713. [Crossref] [PubMed]
  13. Li B, Qian Y, Huang Y, et al. Efficacy and safety of thermal ablation modalities for the treatment of papillary thyroid microcarcinoma: Systematic Review and network meta-analysis. Heliyon 2024;10:e25536. [Crossref] [PubMed]
  14. Yan L, Li W, Zhu Y, et al. Long-term comparison of image-guided thermal ablation vs. lobectomy for solitary papillary thyroid microcarcinoma: a multi-center retrospective cohort study. Int J Surg 2024;110:4867-75. [Crossref] [PubMed]
  15. Chen Z, Zhang W, He W. Ultrasound-guided thermal ablation for papillary thyroid microcarcinoma: A systematic review. Clin Endocrinol (Oxf) 2023;98:296-305. [Crossref] [PubMed]
  16. Marcy PY, Tassart M, Marchand JG, et al. Percutaneous Radiofrequency Ablation of Thyroid Carcinomas Ineligible for Surgery, in the Elderly. Curr Oncol 2023;30:7439-49. [Crossref] [PubMed]
  17. Cheng K, Guo Q, Shen Z, et al. Bibliometric Analysis of Global Research on Cancer Photodynamic Therapy: Focus on Nano-Related Research. Front Pharmacol 2022;13:927219. [Crossref] [PubMed]
  18. Cheng K, Zhang H, Guo Q, et al. Emerging trends and research foci of oncolytic virotherapy for central nervous system tumors: A bibliometric study. Front Immunol 2022;13:975695. [Crossref] [PubMed]
  19. van Eck NJ, Waltman L. Software survey: VOSviewer, a computer program for bibliometric mapping. Scientometrics 2010;84:523-38. [Crossref] [PubMed]
  20. Chen C. Searching for intellectual turning points: progressive knowledge domain visualization. Proc Natl Acad Sci U S A 2004;101:5303-10. [Crossref] [PubMed]
  21. Aria M, Cuccurullo C. bibliometrix: An R-tool for comprehensive science mapping analysis. Journal of Informetrics 2017;11:959-75.
  22. Peng C, He M, Cutrona SL, et al. Theme Trends and Knowledge Structure on Mobile Health Apps: Bibliometric Analysis. JMIR Mhealth Uhealth 2020;8:e18212. [Crossref] [PubMed]
  23. Papini E, Pacella CM, Misischi I, et al. The advent of ultrasound-guided ablation techniques in nodular thyroid disease: towards a patient-tailored approach. Best Pract Res Clin Endocrinol Metab 2014;28:601-18. [Crossref] [PubMed]
  24. Lim HK, Baek JH, Lee JH, et al. Efficacy and safety of radiofrequency ablation for treating locoregional recurrence from papillary thyroid cancer. Eur Radiol 2015;25:163-70. [Crossref] [PubMed]
  25. Kim JH, Baek JH, Sung JY, et al. Radiofrequency ablation of low-risk small papillary thyroidcarcinoma: preliminary results for patients ineligible for surgery. Int J Hyperthermia 2017;33:212-9. [Crossref] [PubMed]
  26. Cao XJ, Liu J, Zhu YL, et al. Efficacy and Safety of Thermal Ablation for Solitary T1bN0M0 Papillary Thyroid Carcinoma: A Multicenter Study. J Clin Endocrinol Metab 2021;106:e573-81. [Crossref] [PubMed]
  27. Tang J, Wang L, Sun Z, et al. Publications on ultrasound-guided thermal ablation for thyroid nodules from 2000 to 2022: a bibliometric analysis. Int J Hyperthermia 2023;40:2268874. [Crossref] [PubMed]
  28. Wu Y, Yin D, Abbasi K. China's medical research revolution. BMJ 2018;360:k547. [Crossref] [PubMed]
  29. Haugen BR, Alexander EK, Bible KC, et al. 2015 American Thyroid Association Management Guidelines for Adult Patients with Thyroid Nodules and Differentiated Thyroid Cancer: The American Thyroid Association Guidelines Task Force on Thyroid Nodules and Differentiated Thyroid Cancer. Thyroid 2016;26:1-133. [Crossref] [PubMed]
  30. Kim JH, Baek JH, Lim HK, et al. 2017 Thyroid Radiofrequency Ablation Guideline: Korean Society of Thyroid Radiology. Korean J Radiol 2018;19:632-55. [Crossref] [PubMed]
  31. Dobnig H, Zechmann W, Hermann M, et al. Radiofrequency ablation of thyroid nodules: "Good Clinical Practice Recommendations" for Austria: An interdisciplinary statement from the following professional associations: Austrian Thyroid Association (ÖSDG), Austrian Society for Nuclear Medicine and Molecular Imaging (OGNMB), Austrian Society for Endocrinology and Metabolism (ÖGES), Surgical Endocrinology Working Group (ACE) of the Austrian Surgical Society (OEGCH). Wien Med Wochenschr 2020;170:6-14. [Crossref] [PubMed]
  32. Xu D, Ge M, Yang A, et al. Expert consensus workshop report: Guidelines for thermal ablation of thyroid tumors (2019 edition). J Cancer Res Ther 2020;16:960-6. [Crossref] [PubMed]
  33. Mauri G, Hegedüs L, Bandula S, et al. European Thyroid Association and Cardiovascular and Interventional Radiological Society of Europe 2021 Clinical Practice Guideline for the Use of Minimally Invasive Treatments in Malignant Thyroid Lesions. Eur Thyroid J 2021;10:185-97. [Crossref] [PubMed]
  34. Society of Tumor Ablation Therapy of the Chinese Anti-Cancer Association. Chinese Medical Doctor Association College of Interventionalists Tumor Ablation Committee; et al. Expert consensus on thermal ablation of papillary thyroid cancer (2024 edition). Zhonghua Nei Ke Za Zhi 2024;63:355-64. [Crossref] [PubMed]
Cite this article as: Zhang J, Li S, Zhu M, Chen W, Huo A, Deng Y, Lu F, Liu Y, Xu J. Ultrasound-guided thermal ablation therapy for papillary thyroid carcinoma: a bibliometric analysis from 2000 to 2023. Gland Surg 2025;14(2):153-162. doi: 10.21037/gs-24-466
