Diagnostic challenges in calcitonin negative medullary thyroid carcinoma: a systematic review of 101 cases

Mashal Abaalkhail1 ORCID logo, Jehad Alorainy1, Omar Alotaibi1, Nawaf Albuhayjan1, Abdullah Alnuwaybit1, Saleh Alqaryan2,3, Mohammed Alessa2

1College of Medicine, King Saud University, Riyadh, Saudi Arabia; 2Department of Otolaryngology-Head and Neck Surgery, College of Medicine, King Saud University, Riyadh, Saudi Arabia; 3Division of Otolaryngology-Head and Neck Surgery, Department of Surgery, King Abdulaziz Medical City, Ministry of National Guard Health Affairs, Riyadh, Saudi Arabia

Contributions: (I) Conception and design: M Abaalkhail, M Alessa; (II) Administrative support: M Abaalkhail, J Alorainy, S Alqaryan; (III) Provision of study materials or patients: M Abaalkhail, J Alorainy, O Alotaibi, N Albuhayjan, A Alnuwaybit; (IV) Collection and assembly of data: M Abaalkhail, J Alorainy, O Alotaibi, N Albuhayjan, A Alnuwaybit; (V) Data analysis and interpretation: M Abaalkhail, J Alorainy, O Alotaibi, N Albuhayjan, A Alnuwaybit, S Alqaryan; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Mashal Abaalkhail, MBBS. College of Medicine, King Saud University, King Khalid Street, Riyadh 11362, Saudi Arabia. Email: Mashalbander@gmail.com.

Background: Calcitonin-negative medullary thyroid carcinoma (CNMTC), a rare form of MTC characterized by classic histopathology with normal serum calcitonin levels, presents a diagnostic challenge. This systematic review aims to summarize the clinical and pathological features of CNMTC and evaluate the utility of alternative biochemical markers.

Methods: Eligibility criteria for this systematic review included patients with a confirmed histopathological diagnosis of medullary thyroid carcinoma (MTC), normal preoperative serum calcitonin levels, or negative immunohistochemical (IHC) stain for calcitonin. A comprehensive electronic search strategy was employed on PubMed, Scopus, and Embase databases from January 1st, 1950, to March 9th, 2023.

Results: This systematic review consists of 32 studies with 101 patients (66% females, 33% males) with a mean age of 52.2 years. All patients had a preoperative serum calcitonin level below the upper reference limit. Out of 101 patients, only seven underwent the Pentagastrin Stimulation Test (PST), only two patients had elevated calcitonin levels after stimulation. A total of 59 patients were tested for carcinoembryonic antigen (CEA) levels, and the majority tested normal (n=51, 86.4%). A total of 57 patients (61.2%) were found to have positive IHC staining on operative specimens for calcitonin. No recurrence was reported in the majority of cases, only 10 patients (9.9%) experienced recurrence.

Conclusions: Despite the rarity of CNMTC, it is crucial to maintain a high level of suspicion when evaluating thyroid nodules. Total thyroidectomy with central neck dissection remains as the primary treatment. A multimarker approach may improve the sensitivity and specificity of CNMTC diagnosis and surveillance, particularly when calcitonin and CEA levels are inconclusive.

Keywords: Medullary thyroid carcinoma (MTC); calcitonin; procalcitonin (PCT); chromogranin A (CgA); carcinoembryonic antigen (CEA)


Submitted Jul 11, 2024. Accepted for publication Oct 10, 2024. Published online Oct 26, 2024.

doi: 10.21037/gs-24-292


Highlight box

Key findings

• This systematic review analyzed 101 cases of calcitonin-negative medullary thyroid carcinoma (CNMTC) from 32 studies. Although serum calcitonin levels were negative, 61.2% of patients showed positive immunohistochemical staining for calcitonin. Additionally, a majority of patients (86.4%) had normal carcinoembryonic antigen (CEA) levels. Furthermore, no recurrence was reported in the majority of cases.

What is known and what is new?

• Medullary thyroid carcinoma is typically diagnosed via elevated serum calcitonin levels and typical histopathology. CNMTC, however, presents with normal serum calcitonin, complicating the diagnosis. Traditional markers like CEA and newer ones like procalcitonin (PCT) are being investigated for their utility in CNMTC diagnosis and management.

• This review highlights that while CNMTC cases are rare, a significant number present with positive calcitonin staining despite normal serum levels. It underscores the potential of PCT and CEA as supplementary markers in CNMTC diagnosis and the importance of a multimarker approach for accurate detection and monitoring.

What is the implication, and what should change now?

• Given the diagnostic complexity of CNMTC, clinicians should maintain a high index of suspicion when evaluating thyroid nodules, even with normal serum calcitonin levels. Adopting a multimarker approach, including PCT and CEA alongside traditional markers, may enhance diagnostic accuracy and patient surveillance. Further research is needed to standardize diagnostic protocols, improve management strategies for CNMTC patients, and study the cost-effectiveness of a multimarker approach.


Introduction

Medullary thyroid carcinoma (MTC) is a rare neuroendocrine tumor (NET) that originates from the malignant proliferation of parafollicular C cells (1). It accounts for only 1–2% of all thyroid cancers (2), the majority of cases arise sporadically, while 25% of MTC cases arise from hereditary factors stemming from germline variants in the RET proto-oncogene as a component of the type 2 multiple endocrine neoplasia (MEN) syndromes (3). Calcitonin-negative MTC (CNMTC) is a rare and poorly understood primary neuroendocrine carcinoma of the thyroid that is characterized by classic MTC morphology with normal serum calcitonin. In 1989, the first case of MTC with normal or low serum calcitonin was reported (4). This entity of normal serum calcitonin and typical MTC histopathology has been referred to by several names, including “atypical MTC”, “calcitonin-negative MTC”, “C-cell-derived calcitonin-free neuroendocrine carcinoma of thyroid”, and “calcitonin-negative neuroendocrine tumor of thyroid” (5-9). Alternative biochemical markers such as procalcitonin (PCT) and carcinoembryonic antigen (CEA) have been suggested as adjuncts in the diagnosis of CNMTC (10). The aim of this systematic review is to comprehensively examine and summarize the existing literature on CNMTC, with a particular focus on its clinical and pathological features. This study will also evaluate the potential utility of alternative biochemical markers in diagnosing and monitoring this rare form of MTC. We present this article in accordance with the PRISMA reporting checklist (11) (available at https://gs.amegroups.com/article/view/10.21037/gs-24-292/rc).


Methods

The systematic review was carried out following the Cochrane Collaboration guidelines for conducting systematic reviews (12). The protocol for this study was registered in PROSPERO (registration No. CRD42023413564).

Eligibility criteria

This systematic review included studies that have reported a confirmed histopathological diagnosis of MTC, normal preoperative serum calcitonin levels, or negative immunohistochemical (IHC) stain for calcitonin and included patients who are 18 years of age or older. To maintain the integrity of the review, studies that are not published in English, non-peer-reviewed articles, systematic reviews, and books were excluded from the review. As CNMTC is a rare entity, this review has considered all study designs for inclusion, including case reports, case series, cross-sectional studies, case-control studies, and clinical prospective, retrospective cohort, or randomized/non-randomized clinical trials.

Information sources

The present systematic review utilized a comprehensive electronic search strategy starting from January 1st, 1950, until March 9th, 2023. A concept-by-concept approach was employed to retrieve all relevant scholarly articles from PubMed, Scopus, and Embase databases for CNMTC studies. The research topic was divided into three concepts, including “medullary thyroid carcinoma”, “calcitonin-negative neuroendocrine tumor”, and “calcitonin-negative medullary thyroid carcinoma”. The search field of each database was populated with Medical Subject Headings (MeSH) search terms and keywords related to each concept, and Boolean operators such as “AND” and “OR” were used to refine the search results. The entries for each concept were recorded and then combined using “AND” to eliminate duplicate entries. The retrieved entries from these databases and the references cited in the retrieved articles were combined as shown in the PRISMA flow diagram (Figure 1). Articles that did not meet the eligibility criteria, such as systematic reviews, books, and non-peer-reviewed articles, were excluded from the review list. No language, country, or publication date filters were applied to the search results. Advanced data tools in each of the database platforms were used to eliminate the ineligible materials. Furthermore, the bibliography of each included study in the final review was scanned, and non-original data articles not included in the final review were evaluated to identify any additional relevant studies.

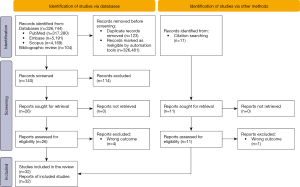

Figure 1 PRISMA flow diagram.

Study selection

The retrieved search results underwent an initial blinded review for abstracts and titles, with each study being screened by two independent authors. The studies were divided among four authors (M.A., O.A., A.A., J.A.). Initial screening was based on the title, with a brief abstract review conducted if there was uncertainty. Following title and abstract screening, the authors met and discussed all studies with conflict decisions. The full texts of the subsequent selections were retrieved and subjected to blind review against eligibility criteria. Each study was reviewed by two independent authors, with five authors (M.A., O.A., J.A., A.A., N.A.) being involved in the review process. Studies were excluded if they were deemed irrelevant. Additionally, studies that referred to their case as CNMTC but did not report either the preoperative level of serum calcitonin or the IHC stain were also excluded.

Data extraction

To extract data in a consistent manner, a standardized datasheet was utilized during the data extraction process. Five authors (M.A., O.A., J.A., A.A., N.A.) were involved in this process, with each study being extracted by two authors independently. Any discrepancies that arose during the data extraction process were resolved through discussion within the review team. The datasheet contained various parameters, such as the first author, title, year of publication, study location, study design, objective, number of cases, incidence, gender, age, preoperative assessment, intraoperative and postoperative assessment, nomenclature, follow-up time, and recurrence.

Risk of bias

A formal bias assessment was not carried out in this systematic review, given that it primarily comprised case reports and case series. Nonetheless, the team conducted a comprehensive evaluation of the quality of the included studies and disclosed any limitations or potential sources of bias in the review.


Results

A database search revealed 326,744 records which, after removal by automation tools and removing duplicates, were reduced to 140, with further screening excluding 118 studies and adding 11 manually via citation searching, this systematic review consists of 32 studies listed in Table 1.

Table 1

Studies included in the review

Author Title Journal Country Year Study design Number of cases
Sobol et al. (4) Hormone-negative, chromogranin A-positive endocrine tumors The New England Journal of Medicine USA 1989 Case-report 1
Niccoli et al. (13) Interest of routine measurement of serum calcitonin: study in a large series of thyroidectomized patients Journal of Clinical Endocrinology and Metabolism France 1997 Case series 2
Schmid et al. (8) “Atypical” medullary thyroid carcinoma with little or no calcitonin expression Virchows Arch Germany 1998 Retrospective cohort 1
Redding et al. (14) Normal preoperative calcitonin levels do not always exclude medullary thyroid carcinoma in patients with large palpable thyroid masses Thyroid USA 2000 Case report 1
Bockhorn et al. (15) Lack of elevated serum carcinoembryonic antigen and calcitonin in medullary thyroid carcinoma Thyroid Germany 2004 Case Report 1
Sand et al. (16) Serum calcitonin negative medullary thyroid carcinoma World Journal of Surgical Oncology Germany 2006 Case report 1
Dora et al. (17) Normal perioperative serum calcitonin levels in patients with advanced medullary thyroid carcinoma: case report and review of the literature Thyroid Brazil 2008 Case report 1
Wang et al. (9) Medullary thyroid carcinoma without marked elevation of calcitonin: a diagnostic and surveillance dilemma Thyroid USA 2008 Case report 1
Giovanella et al. (18) Serum calcitonin-negative medullary thyroid carcinoma: role of CgA and CEA as complementary markers The International Journal of Biological Markers Switzerland 2008 Case report 1
Alapat et al. (19) Disparity between tissue and serum calcitonin and carcinoembryonic antigen in a patient with medullary thyroid carcinoma Endocrine USA 2011 Case report 1
Chambon et al. (20) The use of preoperative routine measurement of basal serum thyrocalcitonin in candidates for thyroidectomy due to nodular thyroid disorders: results from 2733 consecutive patients J Clin Endocrinol Metab France 2011 Prospective cohort 2
Frank-Raue et al. (21) Prevalence and clinical spectrum of nonsecretory medullary thyroid carcinoma in a series of 839 patients with sporadic medullary thyroid carcinoma Thyroid Germany 2013 Retrospective cohort 6
Brutsaert et al. (22) Medullary thyroid cancer with undetectable serum calcitonin The Journal of Clinical Endocrinology & Metabolism USA 2015 Case report 1
Ismi et al. (6) Calcitonin-negative neuroendocrine tumor of thyroid gland mimicking anaplastic carcinoma: an unusual entity Gland Surgery Turkey 2015 Case report 1
Nakazawa et al. (7) C-cell-derived calcitonin-free neuroendocrine carcinoma of the thyroid—the diagnostic importance of CGRP immunoreactivity International Journal of Surgical Pathology Portugal 2014 Case report 1
Kasajima et al. (23) A calcitonin non-producing neuroendocrine tumor of the thyroid gland Endocr Pathol Japan 2016 Case report 1
Samà et al. (24) Clinical challenges with calcitonin‑negative medullary thyroid carcinoma Journal of Cancer Research and Clinical Oncology Italy 2016 Case series 4
Parmer et al. (25) Calcitonin-negative neuroendocrine tumor of the thyroid: follicular or parafollicular cell of origin? International Journal of Surgical Pathology USA 2017 Case report 1
Zhou et al. (26) Clinical and pathological analysis of 19 cases of medullary thyroid carcinoma without an increase in calcitonin Experimental and Toxicologic Pathology China 2017 Retrospective cohort 19
Tripathy et al. (27) Calcitonin-negative neuroendocrine tumor of the thyroid on 68Ga DOTANOC PET-CT Clinical Nuclear Medicine India 2019 Case report 1
Gambardella et al. (28) Medullary thyroid carcinoma with double negative calcitonin and CEA: a case report and update of literature review BMC Endocrine Disorders Italy 2019 Case report 1
Cipri et al. (29) An unusual case of medullary thyroid carcinoma and a revision of current literature Endocrine, Metabolic & Immune Disorders Drug Targets Italy 2019 Case report 1
Montgomery et al. (30) Calcitonin negative medullary thyroid cancer in ectopic thyroid tissue: a rare diagnosis in an unusual location BMJ UK 2020 Case report 1
Murphy et al. (10) Calcitonin-negative medullary thyroid carcinoma: the ‘triple-negative’ phenotype Annals of The Royal College of Surgeons of England UK 2020 Case report 1
Cai et al. (31) Calcitonin-negative neuroendocrine tumor of the thyroid with metastasis to liver-rare presentation of an unusual tumor: a case report and review of literature World Journal of Clinical Cases China 2020 Case report 1
Kim et al. (32) Serum calcitonin-negative medullary thyroid carcinoma: a case series of 19 patients in a single center Frontiers in Endocrinology South Korea 2021 Case series 19
Skutnik et al. (33) The difficulty of post-operative surveillance of calcitonin negative medullary thyroid cancer Journal of the Endocrine Society USA 2021 Case report 1
Rafaey et al. (34) Case report: a challenging clinical problem of calcitonin-negative medullary thyroid cancer diagnosis and surveillance Cureus Pakistan 2022 Case report 1
Baptista et al. (35) Brain metastasis from calcitonin-negative medullary thyroid carcinoma Annales d’Endocrinologie Portugal 2022 Case-report 1
Yue et al. (36) Oncologic outcomes of calcitonin-negative medullary thyroid carcinoma Frontiers in Endocrinology China 2022 Retrospective cohort 24
Ballal et al. (37) First-in-human experience with 177Lu-DOTAGA.(SA.FAPi)2 therapy in an uncommon case of aggressive medullary thyroid carcinoma clinically mimicking as anaplastic thyroid cancer Clinical Nuclear Medicine India 2022 Case report 1
Licata et al. (38) A rare case of negative serum calcitonin in metastatic medullary thyroid carcinoma: diagnosis, treatment, and follow-up strategy American Journal of Case reports Italy 2022 Case report 1

Demographics and preoperative findings

One hundred and one patients were identified, the gender was reported in 99 patients, 66 were females (66.6%), 33 were males (33.3%), and the remaining two cases did not specify the gender. The mean age among the patients was approximately 52.2 years. However, it is important to acknowledge that the studies conducted by Zhou et al. and Chambon et al. were not considered in the calculation. Chambon et al.’s study (20) did not specify the ages of its participants, and in the Zhou et al.’s study (26), it was reported that 16 patients were under 30 years old, while three patients were 30 years old or older. Out of 101 patients, the location of CTNMTC was reported in a total of 24 patients. Of these, 11 patients (45.8%) exhibited CTNMTC on the right side, while 8 patients (33.3%) on the left side. In addition, CTNMTC involved both lobes in 4 patients (16.6%) and was detected in ectopic thyroid tissue in a single patient (4.1%). In all included patients, the preoperative serum calcitonin levels were below the upper reference limit specified in each study, except for two cases in which serologic calcitonin was slightly elevated but presented with negative IHC staining for calcitonin. Notably, multiple immunoassays were employed for measuring the calcitonin levels, as summarized in Table 2. Out of 101 patients, only seven underwent the Pentagastrin Stimulation Test (PST), only two patients had relative elevated calcitonin levels after stimulation (100 and 372 pg/mL), while the remaining patients reported normal levels. A total of 59 patients were tested for CEA levels, and the results revealed that 8 of them had elevated CEA levels (13.6%) and 51 had normal CEA levels (86.4%). The serum CEA levels varied from 0.5 to 56 ng/mL. PCT level was measured in only two patients, with one patient showing mildly elevated levels, while the other had normal levels. Among the nine patients, serum chromogranin A (CgA) levels were measured, of whom five had normal values, and four had increased levels, including Murphy et al.’s study (10) that initially showed a negative result, but when repeated, demonstrated high levels.

Table 2

Preoperative serum marker levels and postoperative IHC stain & histopathology

Author Demographics Preoperative serum levels Postoperative IHC stain Postoperative histopathology
Gender Age (years) CT CT assay CEA (ng/mL) CT CgA Syn TG CEA RET Ki-67 Cell morphology
Sobol et al. F 82 N/A N/A + N/A + N/A N/A Ovoid, spindle shaped cells with abundant granular cytoplasm
Niccoli et al. [1] F 68 ElsaCT, Cis-Bioindustries, Gif sur Yvette, France N/A N/A N/A N/A N/A N/A N/A N/A N/A
Niccoli et al. [2] M 54 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Schmid et al. M 37 N/A N/A + + N/A N/A Enlarged, hyperchromatic nuclei
Redding et al. F 31 Radioimmunoassay 0.5 + + + N/A Cells with slightly granular amphophilic cytoplasm
Bockhor et al. F 50 Nichols Normal + + N/A + N/A Polyhedral, spindled cells with pink finely granular cytoplasm
Sand et al. F 73 N/A N/A + N/A N/A N/A + N/A N/A Cells with increased caryoplasmic ratio and partly spindled cytoplasm
Dora et al. M 43 Immulite 2000 0.78 + + + + N/A Spindle shaped cells
Wang et al. M 68 Slightly elevated N/A 56 + + N/A + N/A Highly cellular proliferation of epithelial cells
Giovanella et al. F 43 Immulite 2000 12.8 + + N/A N/A + N/A N/A Elongated cells with eosinophilic cytoplasm
Alapat et al. F 16 Immulite 2000 <1 + + N/A + N/A Basophilic finely granular cytoplasm
Chambon et al. NA NA IRMA N/A N/A N/A N/A N/A N/A N/A N/A N/A
Frank-Raue et al. [1] F 61 Nichols 1.3 + + + + <2% NA
Frank-Raue et al. [2] M 70 DiaSorin 2.1 + + + + <2% NA
Frank-Raue et al. [3] F 50 Nichols 2.8 + + + + 39% <5% N/A
Frank-Raue et al. [4] M 47 Immulite 2000 3.1 + + + + <10% N/A
Frank-Raue et al. [5] M 45 Noncommercial calcitonin assay N/A + + + + 60% >50% N/A
Frank-Raue et al. [6] F 45 Commercial calcitonin assays 1.7 + + + + 22% >50% N/A
Brutsaert et al. F 39 N/A 3.1 + + N/A N/A N/A N/A N/A
Ismi et al. M 57 N/A Normal + + N/A 70% Atypical cells with neuroendocrine chromatin
Nakazawa et al. M 76 Slightly elevated N/A N/A + + <2% (MIB-1) Eosinophilic cytoplasm, medium-sized and round, oval, and/or spindle-shaped nuclei
Kasajima et al. F 48 N/A 1.3 + + + 0.30% Polygonal to spindle shaped cells with indistinct cellular borders
Samà et al. [1] M 60 ICLA with Immulite analyzer N/A + + NA N/A + N/A Small uniform cells with mild to moderate cytological atypia
Samà et al. [2] F 66 ICLA with Immulite analyzer N/A N/A N/A NA N/A N/A N/A NA
Samà et al. [3] M 53 ICLA with Immulite analyzer 1.8 NA N/A + N/A NA
Samà et al. [4] M 62 ICLA with Immulite analyzer 6.3 + + NA N/A N/A NA
Parmer et al. F 74 N/A N/A + + + N/A 1% Spindle to round cells with clumped and salt and pepperish nuclear chromatin
Zhou et al. F: 8 ≥30: 3 Electrochemiluminescence N/A +ve 8/19 +ve 18/19 +ve 19/19 +ve 5/19 +ve 4/19 −ve 4/19 N/A 17 patients: mainly polygonal cells; 2 patients: mainly spindle cells
M: 11 <30: 16 −ve 11/19 −ve 1/19 −ve 14/19 −ve 15/19
Tripathy et al. F 58 N/A 3 N/A N/A N/A N/A N/A N/A N/A N/A
Gambardella et al. M 59 N/A N/A + + N/A N/A N/A Round and spindle shaped cells, with abundant eosinophilic cytoplasm
Cipri et al. F 45 N/A N/A + + N/A N/A N/A N/A
Montgomery et al. F 45 N/A Normal + + + N/A N/A Spindle shaped cells
Murphy et al. F 24 N/A N/A + + + (8.4%) Round to oval nuclei with slightly granular cytoplasm
Cai et al. F 56 N/A N/A + + N/A + (20%) Beam-shaped with significant cell atypia, thick and granular nuclear chromatin, obvious karyokinesis, and patchy necrosis
Kim et al. F: 17 50.1 (mean) Liaison XL and Immulite 2000 2.2 (mean) +ve 14/19 +ve 5/19 +ve 1/19 N/A +ve 9/19 −ve 5/19 N/A N/A
M: 2 −ve 4/19 −ve 14/19 −ve 3/19 +ve 4/19
Skutnik et al. F 71 N/A 2.6 + + + + N/A N/A Spindle and polygonal cells
Rafaey et al. F 55 N/A Normal N/A N/A N/A N/A N/A N/A N/A N/A
Baptista et al. M 64 N/A 4.1 + + + N/A N/A 5–10% N/A
Yue et al. F: 20 51.3 (mean) Chemiluminescent immunometric assay Elevated [2] +ve 14/20 +ve 7/20 N/A N/A +ve 10/20 ≤10%: 21 N/A
M: 4 Normal [22] −ve 10/20 −ve 17/20 −ve 14/20 >10%: 3
Ballal et al. M 56 N/A N/A N/A 45% (MIB-1) Large polygonal cells
Licata et al. M 39 Immulite 2000 3.7 + + + + + N/A Round, polygonal, spindle shaped cells with finely granular eosinophilic cytoplasm

, the interpretation is based on the upper limit of laboratory reference values from each individual article; , CEA levels were not reported for 6 out of the 19 patients and were not included in the calculation of the mean. IHC, immunohistochemical; CT, calcitonin; CEA, carcinoembryonic antigen; CgA, chromogranin A; Syn, synaptophysin; TG, thyroglobulin; F, female; M, male; N/A, not applicable; IRMA, immunoradiometric assay; ICLA, immunochemiluminescent assay; −/−ve, negative; +/+ve, positive.

Fine needle aspiration (FNA) and cytological findings

Among the 101 patients included in this review, only 21 reported performing FNA for diagnosis, summarized in Table 3. Ten out of the 21 patients who underwent FNA had immunostaining done for markers. Of the 10 patients, five were positive for calcitonin while four patients were negative for calcitonin but positive for other neuroendocrine markers, including CgA and synaptophysin. CEA immunostaining was performed in three patients only and was negative in all of them. Thyroid transcription factor-1 (TTF-1) staining was performed in two patients, and both had positive results. Cytokeratin-20 (CK-20) was done in only one patient and showed a negative result.

Table 3

FNA and cytology

Author FNA cytological examination CT-IHC
Redding et al. Nodule demonstrated atypical cells but was not diagnostic of MTC N/A
Bockhor et al. Neoplastic cells arranged in syncytia showed plasmacytoid features, uniform stippled chromatin with prominent nucleoli and occasional intranuclear grooves +
Dora et al. Positive for atypia, and the cellular pattern suggested malignancy N/A
Wang et al. Discohesive groups of cells with eccentric nuclei, finely granular chromatin, and no colloid
Giovanella et al. ِAggregates of elongated cells with finely granular cytoplasm and oval nuclei with coarsely clumped chromatin and nuclear pseudoinclusions +
Alapat et al. Neoplastic single cells with abundant granular cytoplasm, and eccentric uniform round to oval nuclei with punctuate chromatin +
Frank-Raue et al. [1] Cytological malignancy was suspected N/A
Frank-Raue et al. [3] Diagnosis of MTC had already been made based on the FNA material N/A
Brutsaert et al. Neoplastic cells arranged in syncytia with plasmacytoid features, uniform stippled chromatin with prominent nucleoli and occasional intranuclear grooves +
Nakazawa et al. Tumor cells had eosinophilic cytoplasm and small to medium size, hyperchromatic nuclei with mild to moderate atypia N/A
Kasajima et al. Oval to round nuclei with coarse chromatin patterns, nucleoli were indistinct. Mild to moderate cell adhesion and thin-walled vessel structures were frequently detected N/A
Parmer et al. Suspicious for malignancy N/A
Tripathy et al. Plasmacytoid cells showing abrupt nuclear pleomorphism with mitotic activity
Gambardella et al. Thyr 2, negative for malignant cells, according to SIAPEC-IAP classification N/A
Cipri et al. The cytology of No. 1 (9 mm) pointed to a Hürthle cell nodule, suspicious for follicular neoplasm, while No. 2 (10 mm) showed cellular atypia N/A
Murphy et al. Poorly cohesive groups of cells, spindle-shaped with stippled chromatin and no intranuclear inclusions or nuclear grooves
Cai et al. Suspicious for tumor cells N/A
Skutnik et al. Spindle-shaped neoplastic cells, some of them with marked cytologic atypia N/A
Rafaey et al. Single small piece of tissue infiltrated by the malignant neoplasm and showed nests of atypical round, plasmacytoid polygonal cells
Baptista et al. Consistent with MTC, showing malignant cells +
Licata et al. Compatible with schwannoma N/A

FNA, fine needle aspiration; CT-IHC, calcitonin immunohistochemical stain; MTC, medullary thyroid carcinoma; N/A, not applicable; −, negative; +, positive.

Post-operative histopathology and immunohistochemistry

Among the 101 patients, 93 patients underwent IHC staining for calcitonin, the results revealed 57 patients (61.2%) stained positive for calcitonin on IHC staining, while 36 patients (38.7%) had negative staining. Staining for calcitonin gene-related peptide (CGRP)-IHC was performed in three cases, with two patients showing positive results and one patient stained negative for it. CgA-IHC staining was performed in 93 patients and was positive in 58 (62.3%) cases, but negative in 36 patients (37.6%). CEA-IHC staining was performed in 83 patients, with 43 cases (51.8%) showing positive results and 40 cases (48.2%) showing negative results. A total of 40 patients had IHC staining for synacthen, of which 39 (97.5%) had positive staining, and one had negative staining. A thyroglobin (TG) IHC stain was performed on 44 patients, of whom 39 (88.6%) had negative results and 5 (11.4%) had positive results. TTF-1 staining was performed in 18 patients, it was found to be positive in 15 patients and negative in three patients. Of the 101 patients, 37 were genetically tested for the RET mutation, with six testing positive, but 28 test negative. Meanwhile, Frank-Raue et al. (21) reported RET mutations of 39%, 60%, and 22% in three of their patients. Among the 24 patients evaluated histopathologically, 17 showed the presence of amyloid substance while seven showed no evidence of amyloid. Diverse tumor cell morphologies were observed in the study population, ranging from round to elongated spindle-shaped forms, displaying varying cytoplasmic features. The findings are summarized in Table 2.

Operative findings, diagnosis & follow-up

The majority of cases (n=33, 33%) underwent total thyroidectomy with central lymph node dissection. Additionally, bilateral neck dissection was performed in 10 cases (10%). Meanwhile, only 20 (19.8%) out of the 101 cases described in Table 4 had a lobectomy. Two cases that were deemed unresectable utilized palliative radiation and chemotherapy as alternative treatments. Among the cases reviewed, 14 patients (13.9%) had lymph node metastasis, and 5 (4.9%) had distant metastasis. Of those with distant metastasis, lung metastasis was noted in 4 cases (3.9%), while the other case developed metastasis to the liver. The follow-up period ranged from 1 week to 6 years with a mean of 2.6 years. The majority of cases did not experience recurrence, including those who underwent a partial thyroidectomy. However, 10 patients (9.9%) experienced recurrence, which was detected by either imaging or serum CEA and PCT monitoring. Unfortunately, 3 patients (2.9%) in this review died during the follow-up period due to various causes, including respiratory failure from distant metastasis, as reported by Frank-Raue et al. (21), or central lung emboli and multiple lung and intracerebral metastases, as seen in Sand et al. report (16). Vascular thrombus formation was positive in 5 cases (4.9%). Multiple names were reported in the final diagnosis, including MTC, Non-secretory MTC, CNMTC, and Triple-negative MTC.

Table 4

Operative findings, diagnosis & follow-up

Author Type of surgery Size (mm) Tumor staging Name according to study Period of follow-up Patient outcomes
Sobol et al. Total thyroidectomy 20 N/A Calcitonin-negative, CgA-positive endocrine tumor 6, 11, 14, 23 months N/A
Niccoli et al. [1] Total thyroidectomy with central and bilateral lymph node dissection 2 N/A Micro MTC N/A N/A
Niccoli et al. [2] Total thyroidectomy with central and bilateral lymph node dissection 0.5 N/A Micro MTC N/A N/A
Schmid et al. N/A N/A N/A NETs of the thyroid N/A N/A
Redding et al. Right hemithyrodectomy, followed by completion thyroidectomy with bilateral lymph node dissection 30 N/A MTC with normal preoperative calcitonin levels 43 months No recurrence
Bockhor et al. Total thyroidectomy with central compartment lymph node dissection 20 pT2, Nx, Mx MTC N/A N/A
Sand et al. Total thyroidectomy with bilateral modified neck-dissection and resection of the right internal jugular vein and the left recurrent laryngeal nerve N/A pT3, L1, V1, R1, N1b MTC N/A Died 6 weeks after diagnosis
Dora et al. Total thyroidectomy 17 N/A MTC with normal serum calcitonin N/A N/A
Wang et al. Total thyroidectomy and radical neck dissection 20 N/A CNMTC 1, 6, 12 months No recurrence
Giovanella et al. Total thyroidectomy with central compartment lymph-node dissection 48 N/A MTC 1 month, 3 months, 2 years No recurrence
Alapat et al. Total thyroidectomy with central compartment nodal dissection and left modified radical neck dissection was performed 30 pT2, N0, M0 MTC 20 months No recurrence
Chambon et al. Total thyroidectomy and central neck dissection (level VI) and a modified radical neck dissection (levels II–IV) N/A N/A MTC N/A N/A
Frank-Raue et al. [1] Total thyroidectomy with lymph node dissection 10 T1, N0, M0 Nonsecretory MTC 6 years No recurrence
Frank-Raue et al. [2] Total thyroidectomy with lymph node dissection 80 T4, N0, M1 Nonsecretory MTC 2.25 years Lung metastasis
Frank-Raue et al. [3] Total thyroidectomy with lymph node dissection 20 T2, Nx, M0 Nonsecretory MTC 12.5 years Recurrence after 10 years indicated by CEA increase; after reoperation, disease free
Frank-Raue et al. [4] Total thyroidectomy with lymph node dissection 30 T2, N1, M0 Nonsecretory MTC 1.5 years N/A
Frank-Raue et al. [5] Total thyroidectomy with lymph node dissection 18 T1, N1, M1 Nonsecretory MTC 1.75 years Dead of disease, locally invasive tumor and pulmonary metastases; three reoperations because of local tumor infiltration, during follow-up
Frank-Raue et al. [6] Total thyroidectomy with lymph node dissection 55 T3, N1, M1 Nonsecretory MTC 3 years CT became slightly elevated. Dead because of pulmonary failure; (metastatic MTC)
Brutsaert et al. Total thyroidectomy with ipsilateral levels IIa, III, IV, and bilateral level VI lymph node dissection 20 T2, N0, Mx CNMTC N/A N/A
Ismi et al. Chemotherapy 150 N/A Calcitonin negative NET of thyroid N/A No recurrence
Nakazawa et al. Left hemithyroidectomy 60 pT3, pNx, pMx, pL0, pV1, pPn0, R0 Atypical MTC 18 months No recurrence
Kasajima et al. Left hemithyroidectomy with lymph node dissection 18 N/A Calcitonin non-producing NET of the thyroid gland N/A N/A
Samà et al. [1] N/A 38 pT2Nx CNMTC 10 years No recurrence
Samà et al. [2] N/A N/A pT3Nx CNMTC 10 years No recurrence
Samà et al. [3] N/A 12 pT1bN0 CNMTC 3 years No recurrence
Samà et al. [4] N/A 45 pT3N1b CNMTC 1 years No recurrence
Parmer et al. Total thyroidectomy 14–16 N/A Calcitonin negative NET of thyroid N/A N/A
Zhou et al. N/A 14 are <10 N/A Non-secretory MTC 6 years 3 cases were (+) for recurrence
5 are ≥10
Tripathy et al. N/A N/A N/A Calcitonin negative NET of thyroid N/A N/A
Gambardella et al. Total thyroidectomy 10 N/A Non-secretory MTC with double negative markers 20 months (+) recurrence in laterocervical lymph nodes
Cipri et al. Total thyroidectomy with right inferior parathyroidectomy 10 pT1aNxMx MTC 12 months No recurrence
Montgomery et al. Total thyroidectomy with bilateral lymph node dissection 23 N/A CNMTC N/A N/A
Murphy et al. Total thyroidectomy with bilateral central lymph node dissection 35 pT2, pNX, R0 Triple-negative MTC 3 years No recurrence
Cai et al. Total thyroidectomy with bilateral lymph node dissection 42 N/A Calcitonin-negative NET of thyroid 3 months Neurosecretory liver metastasis
Kim et al. [1–19] Total thyroidectomy with central compartment neck dissection and additional modified radical neck dissection if the lateral lymph node metastasis was present 6.8–5.5 T1 16 patients CNMTC 1–2 weeks post-operative, and every 6 months for 1–2 years, then yearly afterward No recurrence
T2 1 patient
T3 1 patient
Skutnik et al. Right hemithyroidectomy with isthmusectomy 28 pT2Nx CNMTC 2 months No recurrence
Rafaey et al. Irresectable. EBRT 65 N/A Calcitonin-negative medullary carcinoma of the thyroid N/A N/A
Baptista et al. Total thyroidectomy with central compartment lymph node dissection, resection of the single brain metastasis, followed by 3 sessions of adjuvant holo-cranial radiotherapy (27 Gray) 45×37×24 pT3b N1a M1 CNMTC 12, 30 months Lung metastasis
Yue et al. 7 underwent total thyroidectomy, 17 underwent hemithyroidectomy, all with central lymph node dissection 8 are ≤10 N/A CNMTC 3−6 months for the first 2 years and every 6−12 months thereafter No recurrence
16 are >10
Ballal et al. Total thyroidectomy with central compartment lymph node dissection followed by EBRT N/A N/A High grade MTC 6 weeks No recurrence
Licata et al. Total thyroidectomy with bilateral central neck and lateral left compartments dissection 3 pT1a(m) N1b, stage IVa CNMTC 1.5 months, 3 months, 3 years No recurrence

N/A, not applicable; CgA, chromogranin A; MTC, medullary thyroid carcinoma; NET, neuroendocrine tumor; CNMTC, calcitonin-negative medullary thyroid carcinoma; CEA, carcinoembryonic antigen; CT, calcitonin; EBRT, external beam radiation therapy; (+), positive.


Discussion

The diagnosis of MTC and other NETs is often challenging. Since both MTC and NET have amyloid and spindle-shaped or spherical cells in trabecular arrangements, it is often challenging to differentiate between them. Both cells are usually positive for CgA, neuron-specific enolase (NSE), and CEA-IHC staining. Therefore, it is crucial to assess the calcitonin serum level and IHC staining. In CNMTC cases where the diagnosis of a primary or secondary thyroidal NET is unclear, there exists a possibility of erroneous interpretation of treatment options and prognosis (5). MTC may have a similar histopathological appearance to other tumors, therefore confirming the diagnosis requires additional tests such as immunohistochemistry, electron microscopy, and in situ hybridization. Among the differentials for CNMTC is primary oat cell carcinoma of the thyroid gland. These tumors usually show cytoplasmic CEA positivity. Additionally, tumor cells are usually smaller in size; paragangliomas, which display S100 protein and GATA3 with negative CKs with IHC positivity; hyalinizing trabecular tumors that have a characteristic thyroglobulin positivity which indicate follicular origin (39-43). Another differential diagnosis is calcitonin-negative NET, which is also characterized by normal levels of calcitonin and CEA, yet positive IHC staining for thyroglobulin, accompanied by histopathological characteristics typical of a neuroendocrine origin (6).

Several hypotheses have been proposed to explain the pathophysiology of CNMTC. One hypothesis, presented by Cipri et al., suggests the “hook effect”, where calcitonin assay interference can occur. Various immunoassay techniques, including enzyme-linked immunosorbent assay (ELISA), radioimmunoassay (RIA), immunoradiometric assay (IRMA), and immunofluorometric assay (IFMA), can measure serum calcitonin levels (29). The hook effect occurs in one-step IRMA when the serum antigen level is excessively high, causing the signal antibodies to be washed out, resulting in inaccurate or lower measurements. Repeated dilutions of the same serum sample by 1:10 and 1:100 can be done to eliminate the hook effect, particularly in cases with advanced, poorly differentiated CNMTC (29,32). Frank-Raue et al. proposed the production of complex isoforms of calcitonin in CNMTC, which may not be detected by commonly used immunoassays (21). Another hypothesis suggests that the poor differentiation of tumor cells leads to lack of calcitonin production and poor prognosis (22). Additionally, a mutation in the CGRP may disrupt the synthesis and secretion capabilities of C-cells, affecting the production of modified forms of calcitonin (28). In cases of CNMTC where abnormal cellular processing of calcitonin occurs, serum PCT levels are expected to rise. However, if the pathogenesis involves defective cellular secretory mechanisms, both serum calcitonin and PCT levels may remain within the normal range. This suggests that the underlying cellular dysfunction primarily affects the secretion of calcitonin and does not significantly impact PCT production. The measurement of PCT levels can be helpful in distinguishing between these different mechanisms involved in CNMTC pathogenesis (10).

Elevated serum calcitonin levels can potentially serve as an early indication of MTC. As serum calcitonin, sensitivity ranges between 83% and 100%, and its specificity ranges between 94% and 100%. Stimulating tests such as pentagastrin or calcium have also been shown to increase the sensitivity and specificity of serum calcitonin (43). However, a few points must be considered when using calcitonin as an MTC marker. Firstly, an increased calcitonin serum level is suggestive of MTC but is not pathognomonic, and the possibility of false positives or other calcitonin-secreting NET should be considered (44). Secondly, slightly or moderately elevated levels could be attributable to various confounding factors. Thirdly, elevated calcitonin levels can be seen in C-cell hyperplasia (CCH), which is also commonly associated with chronic lymphocytic thyroiditis (45). Fourthly, the sensitivity of serum calcitonin measurement is limited in patients with small MTCs. Fifthly, the diagnostic accuracy of routine calcitonin measurements in patients with nodular thyroid disease remains controversial (46,47). Lastly, some MTCs may not secrete calcitonin, leading to false-negative results. Therefore, serum calcitonin measurement should be used in conjunction with other diagnostic tools, such as FNA and imaging studies, to improve the accuracy of MTC diagnosis and surveillance (48,49).

Pentagastrin and calcium stimulation tests are utilized to enhance the diagnostic accuracy of MTC by distinguishing it from other conditions with elevated calcitonin levels, such as CCH and non-thyroidal NET (50). These tests are also used for planning preventive thyroidectomy in RET-mutation carriers and for postoperative monitoring of MTC. Pentagastrin stimulation involves administering pentagastrin and measuring the peak calcitonin level, with a peak calcitonin of 275 ng/L after pentagastrin effectively differentiating MTC from CCH with 100% sensitivity and 89% specificity (51). On the other hand, calcium-stimulated calcitonin has varying cut-off values to distinguish MTC from CCH and normal cases. A recent paper suggests a threshold of 611 pg/mL for males and 445 pg/mL for females to differentiate MTC from normal or CCH cases (52). Calcium stimulation tests are increasingly preferred over pentagastrin due to their cost-effectiveness and widespread availability. However, variability in cut-off values across studies complicates standardization.

Calcium stimulation tests are increasingly preferred over pentagastrin due to their cost-effectiveness and widespread availability. However, variability in cut-off values across studies complicates standardization, with different thresholds reported for genders.

Recently, PCT has emerged as a valuable diagnostic and monitoring marker for MTC (53). PCT has several advantages over calcitonin, including its exclusive production by thyroid C cells, lower blood concentration, temperature stability, and accessibility for measurement. It is an extremely stable protein with a 25–35-hour in vivo half-life (54). Previous research has shown that the sensitivity and specificity of PCT for diagnosis vary depending on the threshold used, with a threshold of 0.95 ng/mL providing a specificity of 95.8% and a sensitivity of 100%. Moreover, the mean PCT values in active disease were higher than those in cured MTC (53,55,56). In this systematic review, PCT levels were measured preoperatively in two cases. In Brutsaert et al.’s case, the PCT level was elevated prior to surgery, but it normalized after operation. On the other hand, in Kim et al. case, the PCT level was within the normal range before the surgery (22,32). PCT shows promise as a diagnostic and monitoring marker for CNMTC. However, drawing a definitive conclusion is premature, as it was applied to only two out of 101 patients and yielded conflicting results.

CNMTC nomenclature

In 1989, the first case of MTC with normal serum calcitonin was reported (4). It was referred to as “calcitonin-negative, chromogranin A-positive endocrine tumor”. Since then, several different names such as “atypical MTC”, “non-secretory MTC”, and finally “CNMTC” have been used for such cases. We identified a significant level of variability in the nomenclature of the final diagnosis across the different studies that were included in the review.

For instance, Schmid et al. used the terms “atypical MTC” and “neuroendocrine tumors of the thyroid” to describe thyroid tumors that lack calcitonin but possess neuroendocrinological markers. They concluded that although such tumors display an obvious dilemma; calcitonin absence represents an atypical form (8). Wang et al. used the term “calcitonin negative MTC”, since tumor cells were positive for CEA and CgA, although minimally positive for calcitonin, with serum calcitonin being slightly above the upper limit (9). Ismi et al. used the term “calcitonin negative NET of thyroid”, patient’s serum calcitonin was in normal limits and IHC was negative for calcitonin, thyroglobulin, and amyloid staining (6). They preferred to use this term since all MTCs should be confirmed by calcitonin immunopositivity (57). Nakazawa et al. employed the term “C-cell-derived calcitonin free neuroendocrine carcinoma of thyroid” to describe tumor cells that were negative for calcitonin but positive for neuroendocrine markers. The diagnosis of atypical MTC was made through the use of IHC staining that demonstrated CGRP positivity (7).

Surveillance of CNMTC

Determining the best approach for postoperative surveillance of patients with CNMTC remains a daunting challenge. This is because serum biomarkers, which are commonly used to monitor cancer recurrence, have limited reliability in the context of CNMTC. This lack of dependable serum biomarkers for CNMTC adds to the complexity of the issue and makes it challenging to determine the most effective method for postoperative surveillance.

Although PCT was only measured in two patients preoperatively, several studies in this systematic review have used it for surveillance. In a case report by Baptista et al., PCT successfully identified a relapse even when all neuroendocrine markers yielded negative results (35). Nevertheless, akin to the diagnostic potential of PCT, its use for surveillance shows promising results, but the scarcity of studies makes it challenging to arrive at a definitive conclusion.

Interestingly, Frank-Raue et al. reported that in patients with CNMTC, an increase in calcitonin levels is commonly observed during relapse (21). This finding is consistent with the results of a study by Zhou et al. which also demonstrated an association between elevated calcitonin levels and recurrence (26). These findings suggest that monitoring calcitonin levels may be an important tool for detecting recurrence and guiding appropriate clinical management, even when calcitonin levels are normal at diagnosis.

While the overexpression of CGRP is not necessarily linked to tumor growth, it is a consistent feature of C-cell origin, particularly when expressed alongside TTF-1 and PAX-8. As reported by Brutsaert et al., a study involving 18 CNMTC patients showed that CGRP was expressed in 66% of primary tumor sites and 73% of metastases (22). CgA, a protein belonging to the granin family of neuroendocrine secretory proteins (58), has been implicated in various malignant and non-malignant conditions (59). In regard to CNMTC, CgA’s reliability as a marker of recurrence is questionable, as it was not elevated in any of the cases included in this literature. However, CgA was found to be elevated mainly in advanced stages of MTC (60), and failed to prove to be a reliable marker for MTC recurrence or metastasis (61).

Previous studies have shown that serum CEA can detect relapse of MTC even with normal calcitonin levels (62). However, in this systematic review, only one patient presented with increased CEA during relapse (21).

Other potential biomarkers, such as the neutrophil-to-lymphocyte ratio (NLR), platelet-to-lymphocyte ratio (PLR), and systemic immune-inflammation index (SII), have demonstrated some prognostic utility in various neoplasms (63). However, their relevance to MTC remains uncertain. These biomarkers are beneficial due to their low cost and wide availability, yet they are limited by their nonspecific nature (64,65). Given the conflicting results from previous studies, further research is necessary to establish their utility in secretory MTC before they can be considered for evaluating CNMTC.

Overall, the optimal approach for postoperative surveillance of patients with CNMTC is uncertain, as serum biomarkers have limited reliability in this context. Nevertheless, calcitonin serum levels remain the best surveillance marker even in CNMTC cases.

Several imaging techniques have been investigated, such as computed tomography scans, magnetic resonance imaging (MRI), and positron emission tomography (PET), for detecting recurrent MTC. However, it is still unclear what the best approach is for postoperative surveillance of patients with CNMTC, and combining imaging and serum biomarkers may be necessary to improve the accuracy of surveillance methods. Therefore, further research is needed to determine the most effective surveillance protocols for CNMTC cases.

Management of CNMTC

Most cases reviewed opted for central neck dissection alongside total thyroidectomy, paralleling the treatment strategies employed for secretory MTC, which characteristically involves central neck dissection regardless of the presence or absence of lymph node metastasis in the central compartment (2). This approach was based on the histopathological features typical of MTC, despite the absence of elevated serum calcitonin levels. Additionally, bilateral neck dissection is carried out when there is evidence of lateral compartment lymph node involvement. However, there are instances where neck dissection is deferred. Comparing outcomes between these varying strategies presents challenges due to the limited follow-up periods documented in the studies. Interestingly, several cases that opted for lobectomy instead of total thyroidectomy reported no recurrence during follow-up, suggesting favorable outcomes (7,33,36). In cases of unresectable CNMTC with distant metastases, Ismi et al. used chemotherapy, including cysplatin and etoposide (6). Nakazawa et al. reported a case of CNMTC on the left lobe with no evidence of cervical lymph node metastasis, which was treated with left hemithyroidectomy due to fixation revealed by an OctreoScan (7). Similarly, Kasajima et al. performed left hemithyroidectomy with lymph node dissection due to discrepancies between serum calcitonin/CEA levels and cytological findings (23). Skutnik et al. identified focal radiotracer activity in the right thyroid mid-lower pole in a PET/CT scan, leading to a right partial thyroidectomy with isthmusectomy (33). In cases where CNMTC was deemed inoperable due to vascular encasement, Rafaey et al. administered external radiation beam therapy (ERBT) (34). In a study of 24 cases of CNMTC, Yue et al. found that unilateral lobectomy with central lymph node dissection was adequate in 17 cases, while the rest underwent total thyroidectomy with central lymph node dissection. Interestingly, males had better outcomes compared to females (36). Overall, these varying approaches highlight the need for individualized treatment plans tailored to the unique characteristics of each case of CNMTC.

Prognosis of CNMTC

Several authors, as well as the guidelines proposed by the American Thyroid Association for managing MTC, propose that decreased calcitonin production might be linked to loss of cellular differentiation, which could indicate a poorer prognosis (2,15,66). In fact, low calcitonin serum levels and tumors with less than 25% of cells staining for calcitonin have been associated with a more aggressive form of MTC that presents with early metastasis (9). Supporting this hypothesis, Saad et al. found that weak immunostaining for calcitonin was linked to poorer prognosis (67). However, conflicting results have been reported in other studies. For example, one study reported that CNMTCs have a varied prognosis, ranging from long-term survival to rapid tumor progression based on RET gene mutations and Ki-67 expression (21). In this systematic review, it was observed that positive Ki-67 expression was linked to larger tumor size, distant metastases, higher recurrence rates, and increased likelihood of early mortality during follow-up. Moreover, a higher percentage of tumor cells expressing Ki-67 was associated with poorer outcomes. Therefore, Ki-67 proves to be a valuable prognostic marker for MTC.

Another potential prognostic marker is TTF-1, which is a transcription factor that mainly regulates the expression of thyroid-specific genes such as thyroglobulin and thyroperoxidase in the thyroid gland. TTF-1 expression is indicative of a thyroid origin and is usually expressed in MTC (23). TTF-1 serves as a functional marker for C cells and medullary C cell carcinomas (68). Among the 15 patients who underwent TTF-1 IHC testing, only three of them exhibited negative TTF-1 expression. The absence of TTF-1 expression was found to correlate with larger tumor size exceeding 4 cm, poor differentiation, high-grade tumors, and the presence of distant metastasis. Unfavorable outcomes were observed in two specific cases: Ismi et al. reported a scenario involving unresectable thyroid cancer with intrathoracic and intraabdominal peritoneal metastasis, necessitating chemotherapy (6), while Ballal et al. reported a case of aggressive, rapidly growing high-grade MTC associated with recurrence and liver metastasis (37). Thus, TTF-1 expression can be a potential predictor of prognosis in MTC and CNMTC cases.

Tumor size is a crucial clinical characteristic in MTC and serves as an independent prognostic indicator (26). In particular, when the MTC tumor diameter exceeds 1 cm, lymph node metastasis becomes more likely, leading to a poorer prognosis. Moreover, for tumors greater than 4 cm in diameter, the survival time is significantly shortened and the prognosis is particularly poor. In comparison with MTC, the rate of lymph node metastasis in the CNMTC group is remarkably lower. This finding suggests that the prognosis of CNMTC may be more favorable than that of secretory MTC. Besides lymph node metastasis, thyroid capsular invasion is also an independent prognostic factor. Notably, the CNMTC group appears to have a lower incidence of thyroid capsular invasion, which may suggest a better prognosis for these patients.

Limitations

The systematic review has several limitations that should be acknowledged. First, given the rarity of CNMTC, most of the studies included were case reports and case series, which could introduce bias and limit the generalizability of the findings. Furthermore, there was a lack of standardization in the diagnosis and management of CNMTC, resulting in varied approaches taken by different authors. This heterogeneity could lead to inconsistencies in the data and make it challenging to draw definitive conclusions about the optimal diagnostic and treatment strategies for CNMTC. Finally, although the review provides a comprehensive overview of the biomarkers used in the diagnosis and surveillance of CNMTC, it does not provide a detailed analysis of the accuracy or reliability of these biomarkers. Therefore, additional studies are needed to determine the sensitivity and specificity of these biomarkers, as well as their usefulness in predicting disease progression and response to treatment.


Conclusions

Despite the rarity of CNMTC, it is important to have a high index of suspicion when investigating thyroid nodules. In cases of CNMTC, surgery remains the primary treatment modality, with total thyroidectomy and central neck dissection being the standard approach. The role of adjuvant therapies, such as chemotherapy and radiation therapy, are limited to inoperable CNMTC cases. There is uncertainty regarding the prognosis of CNMTC in comparison to secretory MTC. It appears that CNMTC has a lower incidence of lymph node metastasis and thyroid capsular invasion. However, the conflicting data about the importance of calcitonin production as a prognostic marker emphasizes the necessity for more research to identify the most effective management and prognostic indicators for CNMTC. The use of alternative biomarkers such as PCT, CgA, and CEA has shown promising results in several studies. Moreover, the combination of various biomarkers such as calcitonin, CEA, PCT, and CgA may improve the sensitivity and specificity of CNMTC diagnosis and surveillance. This multimarker approach could be particularly useful in cases where calcitonin and CEA levels are inconclusive.


Acknowledgments

Funding: None.


Footnote

Reporting Checklist: The authors have completed the PRISMA reporting checklist. Available at https://gs.amegroups.com/article/view/10.21037/gs-24-292/rc

Peer Review File: Available at https://gs.amegroups.com/article/view/10.21037/gs-24-292/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://gs.amegroups.com/article/view/10.21037/gs-24-292/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.


References

  1. Fugazzola L. Medullary thyroid cancer - An update. Best Pract Res Clin Endocrinol Metab 2023;37:101655. [Crossref] [PubMed]
  2. Wells SA Jr, Asa SL, Dralle H, et al. Revised American Thyroid Association guidelines for the management of medullary thyroid carcinoma. Thyroid 2015;25:567-610. [Crossref] [PubMed]
  3. Roman S, Lin R, Sosa JA. Prognosis of medullary thyroid carcinoma: demographic, clinical, and pathologic predictors of survival in 1252 cases. Cancer 2006;107:2134-42. [Crossref] [PubMed]
  4. Sobol RE, Memoli V, Deftos LJ. Hormone-negative, chromogranin A-positive endocrine tumors. N Engl J Med 1989;320:444-7. [Crossref] [PubMed]
  5. Chernyavsky VS, Farghani S, Davidov T, et al. Calcitonin-negative neuroendocrine tumor of the thyroid: a distinct clinical entity. Thyroid 2011;21:193-6. [Crossref] [PubMed]
  6. Ismi O, Arpaci RB, Berkesoglu M, et al. Calcitonin-negative neuroendocrine tumor of thyroid gland mimicking anaplastic carcinoma: an unusual entity. Gland Surg 2015;4:344-9. [Crossref] [PubMed]
  7. Nakazawa T, Cameselle-Teijeiro J, Vinagre J, et al. C-cell-derived calcitonin-free neuroendocrine carcinoma of the thyroid: the diagnostic importance of CGRP immunoreactivity. Int J Surg Pathol 2014;22:530-5. [Crossref] [PubMed]
  8. Schmid KW, Ensinger C. "Atypical" medullary thyroid carcinoma with little or no calcitonin expression. Virchows Arch 1998;433:209-15. [Crossref] [PubMed]
  9. Wang TS, Ocal IT, Sosa JA, et al. Medullary thyroid carcinoma without marked elevation of calcitonin: a diagnostic and surveillance dilemma. Thyroid 2008;18:889-94. [Crossref] [PubMed]
  10. Murphy DC, Johnson SJ, Aspinall S. Calcitonin-negative medullary thyroid carcinoma: the 'triple-negative' phenotype. Ann R Coll Surg Engl 2020;102:e63-6. [Crossref] [PubMed]
  11. Page MJ, McKenzie JE, Bossuyt PM, et al. The PRISMA 2020 statement: an updated guideline for reporting systematic reviews. BMJ 2021;372: [Crossref] [PubMed]
  12. Higgins JPT, Thomas J, Chandler J, et al. editors. Cochrane handbook for systematic reviews of interventions. 2nd ed. Chichester: Wiley-Blackwell; 2019.
  13. Niccoli P, Wion-Barbot N, Caron P, et al. Interest of routine measurement of serum calcitonin: study in a large series of thyroidectomized patients. The French Medullary Study Group. J Clin Endocrinol Metab 1997;82:338-41. [Crossref] [PubMed]
  14. Redding AH, Levine SN, Fowler MR. Normal preoperative calcitonin levels do not always exclude medullary thyroid carcinoma in patients with large palpable thyroid masses. Thyroid 2000;10:919-22. [Crossref] [PubMed]
  15. Bockhorn M, Frilling A, Rewerk S, et al. Lack of elevated serum carcinoembryonic antigen and calcitonin in medullary thyroid carcinoma. Thyroid 2004;14:468-70. [Crossref] [PubMed]
  16. Sand M, Gelos M, Sand D, et al. Serum calcitonin negative medullary thyroid carcinoma. World J Surg Oncol 2006;4:97. [Crossref] [PubMed]
  17. Dora JM, Canalli MH, Capp C, et al. Normal perioperative serum calcitonin levels in patients with advanced medullary thyroid carcinoma: case report and review of the literature. Thyroid 2008;18:895-9. [Crossref] [PubMed]
  18. Giovanella L, Crippa S, Cariani L. Serum calcitonin-negative medullary thyroid carcinoma: role of CgA and CEA as complementary markers. Int J Biol Markers 2008;23:129-31. [Crossref] [PubMed]
  19. Alapat DV, Ain KB, Sloan DA, et al. Disparity between tissue and serum calcitonin and carcinoembryonic antigen in a patient with medullary thyroid carcinoma. Endocrine 2011;39:148-52. [Crossref] [PubMed]
  20. Chambon G, Alovisetti C, Idoux-Louche C, et al. The use of preoperative routine measurement of basal serum thyrocalcitonin in candidates for thyroidectomy due to nodular thyroid disorders: results from 2733 consecutive patients. J Clin Endocrinol Metab 2011;96:75-81. [Crossref] [PubMed]
  21. Frank-Raue K, Machens A, Leidig-Bruckner G, et al. Prevalence and clinical spectrum of nonsecretory medullary thyroid carcinoma in a series of 839 patients with sporadic medullary thyroid carcinoma. Thyroid 2013;23:294-300. [Crossref] [PubMed]
  22. Brutsaert EF, Gersten AJ, Tassler AB, et al. Medullary thyroid cancer with undetectable serum calcitonin. J Clin Endocrinol Metab 2015;100:337-41. [Crossref] [PubMed]
  23. Kasajima A, Cameselle-Teijeiro J, Loidi L, et al. A Calcitonin Non-producing Neuroendocrine Tumor of the Thyroid Gland. Endocr Pathol 2016;27:325-31. [Crossref] [PubMed]
  24. Samà MT, Rossetto Giaccherino R, Gallo M, et al. Clinical challenges with calcitonin-negative medullary thyroid carcinoma. J Cancer Res Clin Oncol 2016;142:2023-9. [Crossref] [PubMed]
  25. Parmer M, Milan S, Torabi A. Calcitonin-Negative Neuroendocrine Tumor of the Thyroid. Int J Surg Pathol 2017;25:191-4. [Crossref] [PubMed]
  26. Zhou Q, Yue S, Cheng Y, et al. Clinical and pathological analysis of 19 cases of medullary thyroid carcinoma without an increase in calcitonin. Exp Toxicol Pathol 2017;69:575-9. [Crossref] [PubMed]
  27. Tripathy S, Aggrawal S, Subudhi K, et al. Calcitonin-Negative Neuroendocrine Tumor of the Thyroid on 68Ga DOTANOC PET-CT. Clin Nucl Med 2019;44:e546-7. [Crossref] [PubMed]
  28. Gambardella C, Offi C, Clarizia G, et al. Medullary thyroid carcinoma with double negative calcitonin and CEA: a case report and update of literature review. BMC Endocr Disord 2019;19:103. [Crossref] [PubMed]
  29. Cipri C, Vescini F, Torresan F, et al. An Unusual Case of Medullary Thyroid Carcinoma and A Revision of Current Literature. Endocr Metab Immune Disord Drug Targets 2019;19:226-9. [Crossref] [PubMed]
  30. Montgomery G, Collins L, Coghlin C, et al. Calcitonin negative medullary thyroid cancer in ectopic thyroid tissue: a rare diagnosis in an unusual location. BMJ Case Rep 2020;13:e236865. [Crossref] [PubMed]
  31. Cai HJ, Wang H, Cao N, et al. Calcitonin-negative neuroendocrine tumor of the thyroid with metastasis to liver-rare presentation of an unusual tumor: A case report and review of literature. World J Clin Cases 2020;8:179-87. [Crossref] [PubMed]
  32. Kim SJ, Yun HJ, Shin SJ, et al. Serum Calcitonin-Negative Medullary Thyroid Carcinoma: A Case Series of 19 Patients in a Single Center. Front Endocrinol (Lausanne) 2021;12:747704. [Crossref] [PubMed]
  33. Skutnik E, Kinney R, Lopes R, et al. The Difficulty of Post-Operative Surveillance of Calcitonin Negative Medullary Thyroid Cancer. J Endocr Soc 2021;5:A901.
  34. Rafaey W, Munir Alvi A, Siddiqi AI, et al. Case Report: A Challenging Clinical Problem of Calcitonin-Negative Medullary Thyroid Cancer Diagnosis and Surveillance. Cureus 2022;14:e32088. [Crossref] [PubMed]
  35. Baptista PF, Fonseca LCM, Carvalho AFC, et al. Brain metastasis from calcitonin-negative medullary thyroid carcinoma. Ann Endocrinol (Paris) 2022;83:258-60. [Crossref] [PubMed]
  36. Yue W, Zhang Y. Oncologic outcomes of calcitonin-negative medullary thyroid carcinoma. Front Endocrinol (Lausanne) 2022;13:1025629. [Crossref] [PubMed]
  37. Ballal S, Yadav MP, Moon ES, et al. First-in-Human Experience With 177Lu-DOTAGA.(SA.FAPi)2 Therapy in an Uncommon Case of Aggressive Medullary Thyroid Carcinoma Clinically Mimicking as Anaplastic Thyroid Cancer. Clin Nucl Med 2022;47:e444-5. [Crossref] [PubMed]
  38. Licata L, Di Fidio CA, Vacante M, et al. A Rare Case of Negative Serum Calcitonin in Metastatic Medullary Thyroid Carcinoma: Diagnosis, Treatment, and Follow-Up Strategy. Am J Case Rep 2022;23:e935207. [Crossref] [PubMed]
  39. Asa SL, Ezzat S, Mete O. The Diagnosis and Clinical Significance of Paragangliomas in Unusual Locations. J Clin Med 2018;7:280. [Crossref] [PubMed]
  40. Eusebi V, Damiani S, Riva C, et al. Calcitonin free oat-cell carcinoma of the thyroid gland. Virchows Arch A Pathol Anat Histopathol 1990;417:267-71. [Crossref] [PubMed]
  41. Baloch ZW. LiVolsi VA. Neuroendocrine tumors of the thyroid gland. Am J Clin Pathol 2001;115:S56-67. [Crossref] [PubMed]
  42. Schmid KW, Mesewinkel F, Böcker W. Hyalinizing trabecular adenoma of the thyroid--morphology and differential diagnosis. Acta Med Austriaca 1996;23:65-8.
  43. Niederle MB, Scheuba C, Gessl A, et al. Calcium-stimulated calcitonin - The "new standard" in the diagnosis of thyroid C-cell disease - clinically relevant gender-specific cut-off levels for an "old test". Biochem Med (Zagreb) 2018;28:030710. [Crossref] [PubMed]
  44. Giannetta E, Guarnotta V, Altieri B, et al. ENDOCRINE TUMOURS: Calcitonin in thyroid and extra-thyroid neuroendocrine neoplasms: the two-faced Janus. Eur J Endocrinol 2020;183:R197-215. [Crossref] [PubMed]
  45. Gibelin H, Essique D, Jones C, et al. Increased calcitonin level in thyroid nodules without medullary carcinoma. Br J Surg 2005;92:574-8. [Crossref] [PubMed]
  46. Turk Y, Makay O, Ozdemir M, et al. Routine calcitonin measurement in nodular thyroid disease management: is it worthwhile? Ann Surg Treat Res 2017;92:173-8. [Crossref] [PubMed]
  47. Sencar ME, Hepsen S, Çalapkulu M, et al. The value of routine measurement of serum calcitonin on insufficient, indeterminate, and suspicious thyroid nodule cytology. Bosn J Basic Med Sci 2022;22:118-23. [Crossref] [PubMed]
  48. Scheuba C, Kaserer K, Moritz A, et al. Sporadic hypercalcitoninemia: clinical and therapeutic consequences. Endocr Relat Cancer 2009;16:243-53. [Crossref] [PubMed]
  49. Park H, Park SY, Park J, et al. Prognostic Value of Preoperative Serum Calcitonin Levels for Predicting the Recurrence of Medullary Thyroid Carcinoma. Front Endocrinol (Lausanne) 2021;12:749973. [Crossref] [PubMed]
  50. Colombo C, Verga U, Mian C, et al. Comparison of calcium and pentagastrin tests for the diagnosis and follow-up of medullary thyroid cancer. J Clin Endocrinol Metab 2012;97:905-13. [Crossref] [PubMed]
  51. Milone F, Ramundo V, Chiofalo MG, et al. Predictive value of pentagastrin test for preoperative differential diagnosis between C-cell hyperplasia and medullary thyroid carcinoma in patients with moderately elevated basal calcitonin levels. Clin Endocrinol (Oxf) 2010;73:85-8. [Crossref] [PubMed]
  52. Faggiano A, Giannetta E, Modica R, et al. Calcium-stimulated calcitonin test for the diagnosis of medullary thyroid cancer: results of a multicenter study and comparison between different assays. Minerva Endocrinol (Torino) 2023;48:253-60. [Crossref] [PubMed]
  53. Algeciras-Schimnich A, Preissner CM, Theobald JP, et al. Procalcitonin: a marker for the diagnosis and follow-up of patients with medullary thyroid carcinoma. J Clin Endocrinol Metab 2009;94:861-8. [Crossref] [PubMed]
  54. Athhan F, Akagündüz B, Genel F, et al. Procalcitonin: a marker of neonatal sepsis. J Trop Pediatr 2002;48:10-4. [Crossref] [PubMed]
  55. Woliński K, Kaznowski J, Klimowicz A, et al. Diagnostic value of selected biochemical markers in the detection of recurrence of medullary thyroid cancer - comparison of calcitonin, procalcitonin, chromogranin A, and carcinoembryonic antigen. Endokrynol Pol 2017;68:434-7. [Crossref] [PubMed]
  56. Giovanella L, Garo ML, Ceriani L, et al. Procalcitonin as an Alternative Tumor Marker of Medullary Thyroid Carcinoma. J Clin Endocrinol Metab 2021;106:3634-43. [Crossref] [PubMed]
  57. Pacini F, Castagna MG, Cipri C, et al. Medullary thyroid carcinoma. Clin Oncol (R Coll Radiol) 2010;22:475-85. [Crossref] [PubMed]
  58. Helman LJ, Ahn TG, Levine MA, et al. Molecular cloning and primary structure of human chromogranin A (secretory protein I) cDNA. J Biol Chem 1988;263:11559-63.
  59. Gkolfinopoulos S, Tsapakidis K, Papadimitriou K, et al. Chromogranin A as a valid marker in oncology: Clinical application or false hopes? World J Methodol 2017;7:9-15. [Crossref] [PubMed]
  60. Blind E, Schmidt-Gayk H, Sinn HP, et al. Chromogranin A as tumor marker in medullary thyroid carcinoma. Thyroid 1992;2:5-10. [Crossref] [PubMed]
  61. Franke WG, Pinkert J, Runge R, et al. Chromogranin A: an additional tumor marker for postoperative recurrence and metastases of medullary thyroid carcinomas? Anticancer Res 2000;20:5257-60.
  62. Chen L, Zhao K, Li F, et al. Medullary Thyroid Carcinoma With Elevated Serum CEA and Normal Serum Calcitonin After Surgery: A Case Report and Literature Review. Front Oncol 2020;10:526716. [Crossref] [PubMed]
  63. Modica R, Minotta R, Liccardi A, et al. Evaluation of Neutrophil-to-Lymphocyte Ratio (NLR), Platelet-to-Lymphocyte Ratio (PLR) and Systemic Immune-Inflammation Index (SII) as Potential Biomarkers in Patients with Sporadic Medullary Thyroid Cancer (MTC). J Pers Med 2023;13:953. [Crossref] [PubMed]
  64. Xu N, Jian Y, Wang Y, et al. Evaluation of neutrophil-to-lymphocyte ratio and calcitonin concentration for predicting lymph node metastasis and distant metastasis in patients with medullary thyroid cancer. Mol Clin Oncol 2018;9:629-34. [Crossref] [PubMed]
  65. Jiang K, Lei J, Li C, et al. Comparison of the prognostic values of selected inflammation based scores in patients with medullary thyroid carcinoma: A pilot study. J Surg Oncol 2017;116:281-7. [Crossref] [PubMed]
  66. Busnardo B, Girelli ME, Simioni N, et al. Nonparallel patterns of calcitonin and carcinoembryonic antigen levels in the follow-up of medullary thyroid carcinoma. Cancer 1984;53:278-85. [Crossref] [PubMed]
  67. Saad MF, Ordonez NG, Guido JJ, et al. The prognostic value of calcitonin immunostaining in medullary carcinoma of the thyroid. J Clin Endocrinol Metab 1984;59:850-6. [Crossref] [PubMed]
  68. Katoh R, Miyagi E, Nakamura N, et al. Expression of thyroid transcription factor-1 (TTF-1) in human C cells and medullary thyroid carcinomas. Hum Pathol 2000;31:386-93. [Crossref] [PubMed]
Cite this article as: Abaalkhail M, Alorainy J, Alotaibi O, Albuhayjan N, Alnuwaybit A, Alqaryan S, Alessa M. Diagnostic challenges in calcitonin negative medullary thyroid carcinoma: a systematic review of 101 cases. Gland Surg 2024;13(10):1785-1804. doi: 10.21037/gs-24-292

Download Citation
