Interpretable machine learning model based on the systemic inflammation response index and ultrasound features can predict central lymph node metastasis in cN0T1–T2 papillary thyroid carcinoma

Introduction

The primary histologic subtype of thyroid tumors is papillary thyroid cancer (PTC) (1,2). Individuals with lymph node metastasis (LNM) including central lymph node metastasis (CLNM) and lateral lymph node metastasis (LLNM) exhibit greater likelihood of disease persistence, recurrence, and re-operative surgery even though PTC commonly appears as an inert tumor (3-7). Meanwhile, an elevated incidence of postoperative complications is caused by prophylactic central lymph node dissection (pCLND) (8,9). pCLND should not be advised for individuals with the cN0T1–T2 subgroup following the principles of the 2015 American Thyroid Association (ATA) guidelines, whereas guidelines in the majority of East Asian nations prefer pCLND given the premise of ensuring sufficient parathyroid gland and recurrent laryngeal nerve protection (10-12). Consequently, it is essential to establish a reliable preoperative forecasting algorithm model and to determine potential indicators of CLNM.

Studies have revealed that the inflammatory index, including the systemic immune-inflammatory index (SII), neutrophil-to-lymphocyte ratio (NLR), platelet-to-lymphocyte ratio (PLR) and monocyte-to-lymphocyte ratio (MLR), can serve as crucial indicators regarding the malignant biological behavior that occurs in several cancers (13-17). Recently, a new blood inflammatory index, the systemic inflammation response index (SIRI), has been utilized for forecasting the prognosis of breast cancer, nasopharyngeal carcinoma, cervical cancer, pancreatic cancer, and colorectal cancer (18-22). However, the relationship between preoperative SIRI levels in peripheral blood and the risk of CLNM in PTC remains unclear.

Machine learning (ML) is a robust collection of algorithms equipped to comprehend, modify, evaluate, and forecast records. It has been extensively utilized to investigate a wide range of illnesses (23). Common ML algorithms include the decision tree (DT), random forest (RF), artificial neural network (ANN), support vector machine (SVM), and K-nearest neighbors (KNN) algorithms (24). categorical boosting (CatBoost), light gradient boosting machine (LightGBM), and extreme gradient boosting (XGBoost) are the most recognized frameworks in the academic discipline of boosting. They stand out among the alternative boosting algorithms owing to the integration of weak classifiers that minimize the loss function. However, most ML algorithms trigger black box issues (25). To tackle the inexplicability dilemma, the shapley additive explanations (SHAP) approach is presented as an alternative solution (26).

Hence, by using the preoperative inflammatory index and ultrasound (US) features, we embarked on establishing and validating eight interpretable ML models to assess CLNM likelihood in individuals with cN0T1–T2 PTC. We presented this article in accordance with the TRIPOD reporting checklist (available at https://gs.amegroups.com/article/view/10.21037/gs-23-349/rc).

Methods

Study population

A retrospective analysis was carried out on individuals with cN0T1–T2 PTC between January 2020 and December 2021. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of Third Xiangya Hospital, Central South University (No. quick23472), and individual consent for this retrospective analysis was waived.

Data collection

The inclusion criteria were as follows: (I) T1–T2 (≤40 mm); (II) cN0 (preoperatively non-suspicious positive lymph node); (III) PTC (firstly diagnosed). The exclusion criteria were as follows: (I) cervical irradiation during childhood; (II) previously diagnosed with head and neck cancer or any other kind of tumors (n=36, including secondary metastases to the lungs, primary tumors in other sites, etc.); (III) individuals with preoperative infection or other inflammation (except Hashimoto thyroiditis) (n=16, including rheumatoid arthritis, Sjogren syndrome, etc.); (IV) individuals who suffered from multiple organ dysfunction such as heart failure, liver failure, or uremia (n=9); (V) primary or secondary illnesses causing abnormalities of the blood system (n=6, including aplastic anemia, etc.); (VI) incompleteness of medical records (n=58). Ultimately, a total of 125 individuals were excluded; thus, 1,394 individuals were included to establish and assess the model, and they were randomly allocated into training (70%) and testing (30%) subsets.

Surgical strategy

Individuals diagnosed with PTC routinely undergo pCLND in our department. Thyroid lobectomy or total thyroidectomy corresponds to ipsilateral or bilateral pCLND, respectively.

Inflammatory indices and US features

The 20 features were as follows: gender, age, tumor size, capsular invasion, laterality, multifocality, location, echogenicity, solid composition (almost 100% solid component), unclear margin, shape, aspect ratio, microcalcifications, color Doppler flow imaging (CDFI) blood flow, Hashimoto thyroiditis and inflammatory indices, including MLR, PLR, NLR, SII, and SIRI. The inflammatory index ranks were split into high and low subgroups, which were determined by the receiver operating characteristic (ROC) curve’s optimal cutoff value for presence of lymph-node metastasis. By applying the aforementioned strategies, each of the optimum cut-off value was determined: NLR (low <1.83, high ≥1.83), PLR (low <146.58, high ≥146.58), MLR (low <0.27, high ≥0.27), SII (low <395.22, high ≥395.22), and SIRI (low <0.77, high ≥0.77).

Construction of the nomogram

We ran 10-fold cross-validation codes to calculate the optimum punishment parameter and conduct dimensionality reduction procedures on the statistical framework. Then, we screened the least absolute shrinkage and selection operator (LASSO) regression to obtain nonzero coefficient features. Subsequently, a nomogram plot was drawn based on the results of the multivariate regression analysis. Currently recognized tools for nomogram evaluation include the ROC curve, calibration curve, and decision curve analysis (DCA), all of which were employed.

Development, evaluation, and visual interpretation of ML models

There were eight supervised ML algorithms, including DT, KNN, SVM, ANN, RF, CatBoost, LightGBM, and XGBoost. Fivefold cross-validation was utilized to diminish overfitting, and then we performed repeated testing and tuning to obtain the optimal model parameters. The sensitivity, specificity, area under the ROC curve (auROC), accuracy, precision, recall, area under the precision-recall curve (auPR), F1-score, and Matthews correlation coefficient (MCC) of the ML algorithms were calculated. We used the confusion matrix as a visual illustration and employed DCA for assessing the clinical usefulness. Through game-theoretic tactics, SHAP presents a superior visual tool for evaluating the significance of the attributes.

Statistical analysis

We ran the software R (version 4.3.0), Anaconda 3, and Python (version 3.10.9) environments as statistical tools. The following packages were running in the generation of the code for algorithms: “pROC”, “caret”, “glmnet”, “rms”, “ggDCA”, “ggplot2”, “tidymodels”, “fastshap”, “bonsai”, “treesnip”, and “reticulate”.

Results

Patient characteristics

Table 1 displays the baseline traits of CLNM(+) and CLNM(−). There were no significant differences between the training and testing subsets (P>0.05) (Table 2).

LASSO regression feature selection in the training set

LASSO regression yielded 15 nonzero coefficient features, including gender, age, tumor size, capsular invasion, laterality, multifocality, location, solid component, unclear margin, microcalcifications, CDFI blood flow, Hashimoto’s thyroiditis, NLR, MLR, and SIRI (Figure 1).

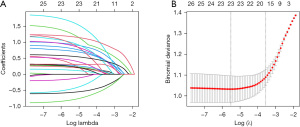

Figure 1 Feature selection using LASSO regression. (A) LASSO coefficient profile plots of the 15 variables. (B) Selection of features using cross-validation; dotted vertical lines were drawn at the optimal values using the minimum criteria and the one-fold standard error of the minimum criteria. LASSO, least absolute shrinkage and selection operator.

Construction and validation of the nomogram

Utilizing the 15 nonzero coefficient features, the multivariate analysis revealed that younger age, larger tumor size, capsular invasion, location (lower and isthmus), unclear margin, microcalcifications, CDFI blood flow, and higher SIRI (≥0.77) were independent positive predictors of CLNM, while female and Hashimoto thyroiditis were independent negative predictors (Table 3). Next, a nomogram plot was drawn on the basis of the training cohort’s multivariate analysis (Figure 2). The ROC curve demonstrated a desirable discrimination capacity, with AUCs of 0.834 and 0.803 in the training and testing cohorts, respectively (Figure 3A,3B). The calibration curve exhibited notable consistency, regarding mean absolute errors in the two cohorts of 0.017 and 0.015, respectively (Figure 3C,3D). The DCA showed broad clinical utility when the threshold probability of an individual was between approximately 20% and 90% (Figure 3E,3F).

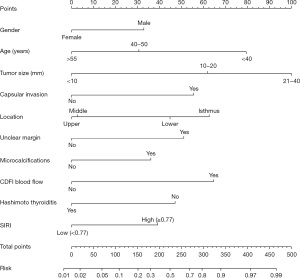

Figure 2 Nomogram for predicting CLNM in individuals with cN0T1–T2 PTC. CDFI, color Doppler flow imaging; SIRI, systemic inflammation response index; CLNM, central lymph node metastasis; PTC, papillary thyroid cancer.

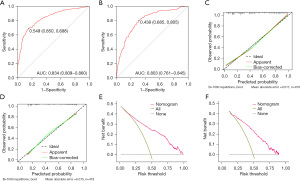

Figure 3 The differential capability of the nomogram. (A) The ROC curve in the training set. (B) The ROC curve in the testing set. (C) The calibration curve in the training set. (D) The calibration curve in the testing set. (E) The DCA in the training set. (F) The DCA in the testing set. AUC, area under curve; ROC, receiver operating characteristic area; DCA, decision curve analysis.

Development and evaluation of ML models

Utilizing the 15 potential features selected by LASSO regression, 8 ML algorithm prediction models for CLNM were developed. The RF model performed optimally, with auROC values of 0.8177 and auPR values of 0.8029, followed by XGBoost (0.8130 and 0.7987), CatBoost (0.8130 and 0.7985) and ANN (0.8105 and 0.7990). Detailed information concerning sensitivity, specificity, accuracy, precision, recall, f1 score and mcc is summarized in Table 4 and Figure S1. The DCA plot proved that RF had better clinical suitability (Figure S1C).

The RF model performance

Figure 4A shows the modeling process of the RF model, and choosing the appropriate parameters (mtry:2 and ntree:250) made the RF model perform best. Starting from the 100th DT, the error of the RF algorithm gradually flattened, indicating that the generalization ability of the RF algorithm gradually increased. We also used RF to explore the importance of variables. As illustrated in Figure 4B, the top 5 variables, CDFI blood flow, location, age, tumor size, and microcalcifications, are analogous when evaluated via two measures: a decrease in classification accuracy (mean lowered accuracy) and a decrease in node impurity (mean decreased Gini). The SIRI, which performed relatively better among the three inflammatory indices, ranked tenth and ninth in the mean decrease accuracy and Gini plot, respectively.

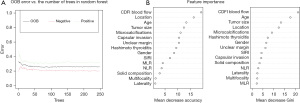

Figure 4 The fitting tuning and variable importance of the RF model. (A) Diagram of model error rate and tree. (B) Variable importance is given by the mean decrease accuracy (left) and mean decrease Gini (right). OOB, out-of-bag; CDFI, color Doppler flow imaging; SIRI, systemic inflammation response index; MLR, monocyte-to-lymphocyte ratio; NLR, neutrophil-to-lymphocyte ratio; RF, random forest.

The confusion matrix of RF is displayed in Figure S2A,S2B. The respective auROCs were 85.48% and 81.77%, and DeLong’s test between the training and testing cohorts revealed that there were no statistically significant differences (P>0.05) (Figure S2C). The learning curves indicate that the training and testing sets have a strong fitting ability and high stability (Figure S2D). In general, the RF model effectively prevents overfitting. Additionally, Figure S2E,S2F visually shows the predicted probability distribution of the RF model.

Explanation of the ML model with the SHAP method

We performed interpretability manipulations using the SHAP tool in the RF and XGBoost models. Ranking of variable contributions was assessed by the mean absolute SHAP values (Figure 5A,5B). The top ten features in the RF model were age, CDFI blood flow, tumor size, location, microcalcifications, Hashimoto thyroiditis, unclear margin, SIRI, gender, and solid composition. In addition, we constructed scatter plots of SHAP summary plots, which visualized the relationship between eigenvalues and predicted probabilities by color (Figure S3A,S3B). The larger the absolute value on the x-axis, the more the attribute affects the output, with colors representing high (red) and low (blue) raw eigenvalues. We can see that a higher SIRI has a positive impact, while Hashimoto thyroiditis has a negative impact. To visualize the contributions of individual variable levels, we implemented it with the help of the facet wrap method based on the SHAP value (Figure S4).

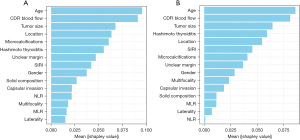

Figure 5 Feature importance ranking as indicated by SHAP assessing eigenvalue contribution. (A) RF model; (B) XGBoost model. CDFI, color Doppler flow imaging; SIRI, systemic inflammation response index; NLR, neutrophil-to-lymphocyte ratio; MLR, monocyte-to-lymphocyte ratio; SHAP, shapley additive explanations; RF, random forest; XGBoost, extreme gradient boosting.

Figure 6 presents a couple of classic scenarios that showcase the model’s capacity for interpretation. The CLNM-absent individual obtained a poorer SHAP value (0.15) (Figure 6A), while CLNM-present individual obtained a stronger SHAP value (0.94) (Figure 6B).

Figure 6 SHAP individual force plot for the local interpretation in the RF model. The base value is the predicted value without providing input to the model, while f(x) is the probability forecast value of each observation; red indicates an increased risk of CLNM, and blue indicates a reduced risk of CLNM; the length of the arrows helps visualize the extent to which the prediction is affected; the longer the arrow, the greater the effect. NLR, neutrophil-to-lymphocyte ratio; CDFI, color Doppler flow imaging; SIRI, systemic inflammation response index; SHAP, shapley additive explanations; RF, random forest; CLNM, central lymph node metastasis.

Discussion

Principal findings

We had three major findings in this research. First, in addition to traditional US features, the inflammatory index, especially the SIRI, was found to be a risk predictor for CLNM. Second, we established and verified eight ML models to assess CLNM likelihood in individuals with cN0T1–T2 PTC. The RF model performed the best (with maximum auROC and auPR), followed by XGBoost, CatBoost, and ANN. Third, the interpretability of the models was illustrated via the SHAP approach.

Consistent with numerous previous clinical studies, younger age, presence of CDFI blood flow, larger tumor, tumor located in the lower or isthmus, microcalcifications, absence of Hashimoto, unclear margin, male gender and capsular invasion were all found to be risk factors for CLNM (27-29). Several researchers have discovered that blood inflammatory indices such as MLR, PLR, NLR, and SII are predictive factors for CLNM and LLNM, and are even associated with poor prognosis and relapse (30-33). However, use of a new blood inflammatory index, SIRI, and research regarding its importance in PTC are still lacking. This could be the first investigation regarding the relationship between SIRI and CLNM to the best of our knowledge.

In previous studies, scholars have used several ML algorithms to predict CLNM and LLNM (34,35). Different algorithms have their pros and cons (36). The RF model performed the best in this research. Several new ensemble learning algorithms have also shown good predictive performance, including XGBoost and CatBoost. Ensemble learning is mainly divided into bagging algorithms and boosting algorithms. Via bagging theory, the RF algorithm incorporates many DTs. The gradient boosting decision tree (GBDT) represents a broad family of algorithms through the boosting theory of ensemble learning. LightGBM, XGBoost and CatBoost are the latest and most recognized algorithm members with enhanced capabilities in the GBDT theory family (37-39).

It is worth noting that a major flaw in most ML models is the black box problem. What we did to conquer this flaw was introduce the SHAP tool. In this study, we not only applied the global interpretations of SHAP to visually demonstrate the whole attributes but also delivered specific interpretations utilizing SHAP individual force plots encompassing both positive and negative effects.

Limitations

First, there is a need for more prospective extensive investigations, considering that these findings relied on retrospective observations. Second, the models were randomly allocated into training and testing cohorts to diminish overfitting due to a lack of external validation. Next, we will build the database with the collaboration of multiple medical centers to further examine the model’s capabilities.

Conclusions

Interpretable ML models based on the SIRI and US features can be used to predict CLNM in individuals with cN0T1–T2 PTC.

Acknowledgments

The authors would like to thank the numerous individuals who participated in this study.

Funding: None.

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://gs.amegroups.com/article/view/10.21037/gs-23-349/rc

Data Sharing Statement: Available at https://gs.amegroups.com/article/view/10.21037/gs-23-349/dss

Peer Review File: Available at https://gs.amegroups.com/article/view/10.21037/gs-23-349/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://gs.amegroups.com/article/view/10.21037/gs-23-349/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of Third Xiangya Hospital, Central South University (No. quick23472) and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
