An unusual finding of the auriculotemporal nerve: possible risk factor during preauricular skin incisions

Introduction

The auriculotemporal nerve (ATN) is one of the branches of the mandibular division (V₃) of the trigeminal nerve. Clinically, branches of the ATN have been implicated as an etiology of some migraine headaches potentially via compression by the superficial temporal artery (1) and Frey’s syndrome is a known postoperative complication of parotidectomy (2). Although there have been papers describing the anatomy of the ATN (3-5) and it the superficial temporal branches (STb), to our knowledge, none of these has mentioned a duplicated ATN. Herein, we report an extremely rare case of a duplicated ATN and discuss potential clinical implications. The protocol for the present study included no specific tissue requiring approval by our institutional ethics committees, and was performed in accordance with the requirements of the Declaration of Helsinki (64th WMA General Assembly, Fortaleza, Brazil, October 2013).

Case presentation

During the dissection of a cadaver that was 87-year-old at death, the left ATN was demonstrated (Figure 1) and found to bifurcate into two main trunks (anterior and posterior). This occurred just behind the base of the condylar process where each main trunk emerged from the superficial layer at approximately 10 mm above the middle of the tragus. The anterior trunk ascended in a similar way as the superficial temporal artery and gave off branches to the temporomandibular joint, parotid gland, external acoustic meatus, temporal region and a communicating branch with the posterior trunk of the ATN (Figure 2). The posterior trunk ascended via the subcutaneous layer 1 mm anterior to the auricle and gave rise to branches to the anterior auricular region, temporal region and a communicating branch with the anterior trunk of the ATN. In addition, two main trunks interconnected anterior to the auricle (Figures 1,2). The diameter of the anterior and posterior trunks was 1.35 and 1.73 mm, respectively. Branches to the zygoma were not observed.

Figure 1 The dissection of duplicated superficial temporal branches of the auriculotemporal nerve. (A) Anterior (white arrowheads) and posterior trunk (black arrowheads) of the superficial temporal branch can be seen; (B) magnification of Figure 1A. Two main trunks gave rise to many small branches and formed an interconnecting loop anterior to the auricle.

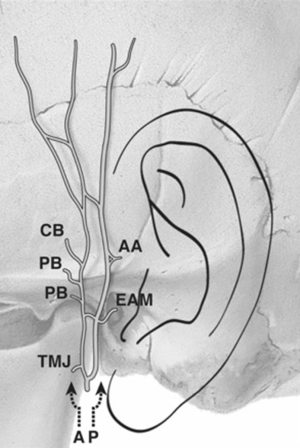

Figure 2 Schematic diagram of the duplicated superficial temporal branches of the auriculotemporal nerve. A, anterior trunk; AA, anterior auricular branch; CB, cutaneous branch; EAM, external acoustic meatus branch; PB, parotid branch; P, posterior trunk; TMJ, temporomandibular joint branch.

Discussion

The ATN is described as giving rise to branches to the temporomandibular joint, parotid gland, external acoustic meatus, anterior auricle, zygoma and superficial temporal region (1,6). Komarnitki (3,4) classified the branches based on the root system and relationships of the ATN and middle meningeal artery. Kwak (5) and Tansatit (7) noted communicating branches between the ATN and facial nerve. The STb of the ATN has been investigated by Andersen (8) who found that the most superficial part of the STb is located 8 and 20 mm anterior to the root of the helix and is found at a depth of 2–10 mm at the middle part of the tragus. In the present case, the posterior trunk ascended 1 mm anterior to the external ear in the subcutaneous tissues. Andersen (8) also mentioned that on 4 of 19 sides (21%), the ATN had only one main branch and that in 11 cases, the nerve was divided into smaller branches while in another four cases, it had a diffuse branching pattern. However, none of these authors mentioned two main trunks of the ATN that bifurcate in the infratemporal fossa. It is very important anatomical variation for clinical consideration. If the patient whose ATN ascends in a similar way as the posterior trunk of the present case or has two main trunks like our case, a preauricular skin incision might easily injure the ATN. Surgeons should be aware of this variation in order to avoid iatrogenic injury of the ATN.

Acknowledgements

The authors wish to thank all those who donate their bodies and tissues for the advancement of education and research.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.
