Original Article

The clinical characteristics of pancreatic colloid carcinoma and the development and validation of its cancer-specific survival prediction nomogram

Xinxue Wang1,2#^, Shenzhe Fang1,2#, Yiming Shen1,2, Jia Luo2, Huiwei Liu1, Dan Zhao3, Hua Ye1, Hong Li1

1Department of Gastroenterology, The Affiliated Lihuili Hospital of Ningbo University, Ningbo, China; 2Department of Pharmacology Laboratory, Health Science Center, Ningbo University, Ningbo, China; 3Department of Gastroenterology, Cixi People’s Hospital, Ningbo, China

Contributions: (I) Conception and design: X Wang, S Fang; (II) Administrative support: H Ye, H Li; (III) Provision of study materials or patients: S Fang; (IV) Collection and assembly of data: Y Shen, J Luo; (V) Data analysis and interpretation: H Liu, D Zhao; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

^ORCID: 0000-0002-8292-0016.

Correspondence to: Hua Ye; Hong Li. The Affiliated Lihuili Hospital of Ningbo University, Ningbo, China. Email: yh-med@163.com; lancet2017@163.com.

Background: Pancreatic colloid carcinoma (CC) is a subtype of pancreatic ductal adenocarcinoma (DAC) with low incidence but high malignancy. Unfortunately, there is no consensus regarding the clinical features and prognostic factors associated with CC, and the prognosis is unpredictable. We aimed to assess the clinicopathological characteristics of this rare disease and develop a nomogram for predicting cancer-specific survival (CSS) in CC.

Methods: We gathered comprehensive clinicopathological data from the Surveillance, Epidemiology, and End Results (SEER) database on 17,617 patients with DAC and 561 individuals with CC. Kaplan-Meier was used to plot each survival curve. Subsequently, we split the 561 patients with CC in a 7:3 split ratio between an internal training cohort (n=393) and an external validation cohort (n=168). The independent prognostic factors for CC patients in the training cohort were discovered using univariate and multivariate Cox regression analyses, and a nomogram was created. We assessed the nomogram’s performance by using the concordance index (C-index), the area under the receiver operating characteristic curve (AUC), calibration curves, and decision curve analysis (DCA).

Results: The median for follow-up of CC patients was 15 months (range: 1–163 months), and the 1-, 3-, and 5-year CSS were 58.4%, 30.2% and 22.6%. For CC patients in the training cohort, age [hazard ratio (HR) =1.29; 95% confidence interval (CI): 1.00–1.65], sex (HR =0.64; 95% CI: 0.51–0.81), T3 stage (HR =2.21; 95% CI: 1.26–3.88), T4 stage (HR =2.76; 95% CI: 1.47–5.18), N1 stage (HR =1.29; 95% CI: 1.02–1.63), M1 stage (HR =1.60; 95% CI: 1.17–2.18), surgery (HR =0.30; 95% CI: 0.22–0.42), and radiotherapy (HR =0.76; 95% CI: 0.58–1.01) were the main predictors of the nomogram. The C-indexes of the training cohort and the validation cohort were 0.734 and 0.732, respectively. The 1-, 3-, and 5-year AUC values of the nomogram were predicted to be 0.827, 0.816, and 0.831 in the training cohort, 0.801, 0.841, and 0.835 in the validation cohort, respectively.

Conclusions: Based on several clinical features, we established the first predictive model of CC. This nomogram could be used to guide treatment decisions in patients with CC.

Keywords: Pancreatic ductal adenocarcinoma (pancreatic DAC); nomogram; survival analysis; calibration curve; pancreatic colloid carcinoma (pancreatic CC)


Submitted Jan 10, 2023. Accepted for publication Mar 23, 2023. Published online Mar 31, 2023.

doi: 10.21037/gs-22-753


Highlight box

Key findings

• Our findings demonstrate that, in contrast to pancreatic ductal adenocarcinoma (DAC), pancreatic colloid carcinoma (CC) has better survival. A prognostic scoring model for the survival rate of CC patients was developed.

What is known, and what is new?

• CC is a rare subtype of pancreatic carcinoma with different clinical characteristics from pancreatic DAC.

• However, there is no clear consensus on the clinical characteristics and prognostic variables associated with CC, and the prognosis is unpredictable. This study established a new prognostic nomogram for CC patients to forecast the 1-, 3-, and 5-year cancer-specific survival (CSS).

What is the implication, and what should change now?

• Age, TNM stages, type of surgery, and radiotherapy should be considered when determining the prognosis of CC patients; a nomogram should be adopted to predict the survival rate of CC patients.


Introduction

As per the World Health Organization (WHO) categorization of pancreatic ductal adenocarcinoma (DAC), pancreatic colloid carcinoma (CC), also termed mucinous non-cystic adenocarcinoma, is a histologic variation of DAC (1,2). Tubular, conventional, ordinary, or ‘not-otherwise-specified’ carcinoma is the most prevalent histological type of DAC. Pancreatic CC is an uncommon subtype of invasive pancreatic adenocarcinoma, responsible for only 1–3% of cases (3,4). On average, only a few cases of CC are believed to occur in 1 million people each year (3,5).

A separate subtype of DAC, known as pancreatic CC, differs histologically and clinically from common DAC. Histologically, CC is featured by clusters of neoplastic cells that make up at least 50% of the tumor and float in extracellular stromal mucin lakes. Clinically, CC patients exhibit a range of symptoms, including diarrhea, weight loss, and abdominal pain (6). CC can also be complicated by acute pancreatitis (7). These clinical manifestations are not significantly different from those of pancreatic DAC. Indeed, many cases of pancreatic CC have been misdiagnosed by pathologists as mucinous cystic tumors or signet-ring cell adenocarcinoma or classified as conventional DAC (8). It has been reported that CC demonstrates an indolent clinical behavior, with a slower rate of proliferation and a more favorable prognosis than DAC (9). The five-year survival rate is 55% for CC and 10% for ordinary DAC (6,10). As a result, pancreatic CC is thought to be a distinct kind of pancreatic cancer that needs to be distinguished from other pancreatic tumors.

Currently, there were few case reports of pancreatic CC, and the studies were limited by the small sample size of CC. The clinical manifestations of CC and DAC are extremely similar, making differentiation between them complicated (5). As an uncommon tumor, CC has a better prognosis than DAC; however, there is no clear consensus regarding its clinical characteristics and prognostic variables. Moreover, there were no studies on developing clinical prognostic models for CC. In the present study, we collected information on 18,178 patients from the Surveillance, Epidemiology, and End Results (SEER) database to investigate the variation in clinical features and survival outcomes between CC and DAC. We divided patients with CC into a training cohort and a validation cohort and developed a nomogram using clinicopathologic variables based on the training cohort. The nomogram seeks to forecast cancer-specific survival (CSS) probability values for CC cases over the course of 1, 3, and 5 years. We hope the nomogram shown here will be useful for optimizing follow-up protocols and enhancing long-term survival. We present the following article in accordance with the TRIPOD reporting checklist (available at https://gs.amegroups.com/article/view/10.21037/gs-22-753/rc).


Methods

Study population and data sources

For this retrospective cohort study, the SEER registry was used. The National Cancer Institute in the United States funds the SEER database, a population-based database that compiles data on cancer incidence and survival rates. We looked at information on cases with CC and DAC from 2000 to 2018. Cancer data were periodically collected during the follow-up by identifying patients at the medical institution, and cancer registries retrieved information about cancer from the medical records. All patients were followed until they died or until their last follow-up in December 2021, any lost to follow-up cases was excluded from the study. Tumors with a histology code of 8480 were classified as CC, whereas those with 8140, 8141, 8142, 8143, 8144, 8145, 8146, and 8147 codes were classified as DAC per the International Classification of Disease in Oncology (ICD-0-3). Positive exfoliative cytology with no positive histology and positive histology on pathological analysis both supported the diagnosis. For each patient, complete data was gathered on their age, gender, race, surgery, lymph node dissection, chemotherapy, marital status, radiotherapy, TNM stages, grade, tumor size, and tumor site. Cases without the aforementioned information were deleted. The exclusion criteria were as follows: (I) CC and DAC as secondary cancer; (II) the absence of information on the definitive pathologic type, differentiation degree, or metastasis site; (III) incomplete follow-up information; (IV) the absence of autopsy confirmation. The case selection flow diagram is presented in Figure 1. To increase the credibility and applicability of our study, we included as many patient records as possible from the database that met the aforementioned criteria. All data are publicly available, deidentified, and not subjected to Institutional Review Board approval. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

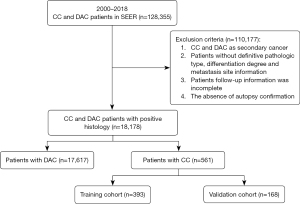

Figure 1 Flowchart for the study’s participant recruitment. CC, colloid carcinoma; DAC, ductal adenocarcinoma; SEER, Surveillance, Epidemiology, and End Results.

Outcome measurement

We used CSS as the primary endpoint. As the cause of death, CC was used to define CSS, which was calculated from the time of diagnosis to cancer-associated death or the end of follow-up. Baseline parameters were evaluated to ascertain whether there were significant variations in the study population’s distribution into CC and DAC groups. Investigators who were blind to the research predictor variables reviewed and noted all of the patients’ demographic and clinical details, and the records of patient survival information were established without considering the subjective judgment of the investigators, instead relying on the death certificates.

Nomogram construction and validation

To produce a useful CSS nomogram of CC, we randomly split the SEER database into training and validation cohorts with a 7:3 split ratio. We also compared basic clinical information between the training and validation cohorts. In the training cohort, the independent prognostic factors included age, sex, TNM stages, surgery, and radiotherapy. These were found using a multivariate Cox proportional hazards regression analysis. The training cohort was then used to develop a nomogram based on these prognostic variables to forecast CSS for the first, third, and fifth years. We evaluated the nomogram’s anticipated accuracy and discrimination by using the concordance index (C-index), receiver operating characteristic curve (ROC), and area under the curve (AUC). The validation cohort’s clinical data were then used for external validation, and calibration curves were created. The nomogram’s discriminatory ability was considered acceptable when its C-indexes fall between 0.7 and 1.0. For calibration, the expected probability of the nomogram was contrasted with the actual possible outcomes. Utilizing 1,000 bootstrap resamples, the nomogram’s predictive power was assessed. The nomogram’s clinical utility was evaluated using a decision curve analysis (DCA).

Patient risk stratification

The total scores were computed from the nomogram based on the cut-off values computed by the X-tile software program (version 3.6.1). The training cohort was divided into low- and high-risk groups based on their scores. With the help of Kaplan-Meier survival analyses, we compared the two groups. The validation cohort verified the prediction model.

Statistical analysis

R software was used to conduct all statistical analyses (version 4.0.3). The Chi-square test was used to compare categorical variables between various groups. Kaplan-Meier survival curves were created to evaluate CSS, and the log-rank test was used to compare them. The prognostic factors of the patients in the training cohort were examined using univariate Cox proportional hazards regression, and the variables with statistical significance in the univariate analysis, as well as the prognostic factors in conjunction with clinical research, were then included in the multivariate Cox proportional hazards regression model to determine the final independent prognostic factors. Cox regression modeling was used to conduct a multivariate analysis of the training cohort, and a stepwise process was used to choose the covariates. Then, using R, we constructed the nomogram, calculated the C-index, and simultaneously drew ROC and calibration curves. The X-tile software program was used to quantify the cut-off value to ascertain the variations in CC patients’ survival rates. A P value <0.05 was considered statistically significant for all two-sided statistical tests.


Results

Basic clinical information and survival analysis

From 2000 to 2018, a total of 561 people were diagnosed with CC, and 17,617 were diagnosed with DAC. Table 1 demonstrates the features of these cases. We found that there were more elderly patients (≥65 years old) and those of White race in both the CC and DAC cohorts, while the sex distribution was relatively even. The median follow-up for the survivors was 15 months in the CC cohort and 11 months in the DAC cohort. Most cases with DAC and CC tended to have stage III cancer. Patients with DAC were more likely to present with N1 stage than those with CC (54% vs. 44.9%). Long-distance metastases were found in 137 patients with CC and 4,403 patients with DAC (24.4% vs. 25%). CC tumors were generally larger than 4 cm, while DAC tumors measured mostly 2–4 cm. Histopathologically, most patients with CC and DAC had Grade II stage tumors. Nevertheless, cases with CC tended to have more well-differentiated tumors than those with DAC (28% vs. 10.6%). In terms of tumor location, they were most commonly found in the pancreas head (58.8% in CC and 66.7% in DAC). Tumors located in the pancreas body had the lowest incidence in patients with CC and DAC (11.9% vs. 10.5%). Therapeutically, CC and DAC patients were more likely to undergo surgery (61.7% vs. 58.8%). Patients with CC and DAC both underwent lymph node dissections for at least four lymph nodes, with CC patients accounting for 54.2% and DAC patients for 53.9%. In addition, the majority of CC and DAC cases received postoperative chemotherapy (61.1% vs. 64.9%); however, most did not receive postoperative radiotherapy (72.2% vs. 70.9%). After that, we used the Kaplan-Meier technique to conduct a survival analysis of CC and DAC patients and discovered that CC patients had a longer survival time than DAC patients (Figure 2). The 1-, 3-, and 5-year CSS was 58.4%, 30.2%, and 22.6% in patients with CC versus 47.2%, 16.5%, and 10.5% in patients with DAC, respectively.

Table 1

Demographic and clinical features of the DAC and CC cohorts

Characteristics Adenocarcinoma (N=17,617) Colloid (N=561) Overall (N=18,178) P
Age 0.06
   <65 years 7,604 (43.2%) 219 (39.0%) 7,823 (43.0%)
   ≥65 years 10,013 (56.8%) 342 (61.0%) 10,355 (57.0%)
Sex 0.41
   Female 8,651 (49.1%) 265 (47.2%) 8,916 (49.0%)
   Male 8,966 (50.9%) 296 (52.8%) 9,262 (51.0%)
Race 0.05
   American Indian/Alaska Native 86 (0.5%) 2 (0.4%) 88 (0.5%)
   Asian or Pacific Islander 1,335 (7.6%) 59 (10.5%) 1,394 (7.7%)
   Black 2,112 (12.0%) 57 (10.2%) 2,169 (11.9%)
   White 14,084 (79.9%) 443 (79.0%) 14,527 (79.9%)
Marital status 0.99
   Divorced 1,766 (10.0%) 57 (10.2%) 1,823 (10.0%)
   Married 10,685 (60.7%) 341 (60.8%) 11,026 (60.7%)
   Single 5,166 (29.3%) 163 (29.1%) 5,329 (29.3%)
T stage <0.01
   T1 740 (4.2%) 40 (7.1%) 780 (4.3%)
   T2 3,163 (18.0%) 117 (20.9%) 3,280 (18.0%)
   T3 10,938 (62.1%) 314 (56.0%) 11,252 (61.9%)
   T4 2,776 (15.8%) 90 (16.0%) 2,866 (15.8%)
M stage 0.80
   M0 13,214 (75.0%) 424 (75.6%) 13,638 (75.0%)
   M1 4,403 (25.0%) 137 (24.4%) 4,540 (25.0%)
N stage <0.01
   N0 8,108 (46.0%) 309 (55.1%) 8,417 (46.3%)
   N1 9,509 (54.0%) 252 (44.9%) 9,761 (53.7%)
Tumor size <0.01
   <2 cm 2,102 (11.9%) 80 (14.3%) 2,182 (12.0%)
   2–4 cm 8,139 (46.2%) 195 (34.8%) 8,334 (45.8%)
   >4 cm 7,376 (41.9%) 286 (51.0%) 7,662 (42.1%)
Tumor site <0.01
   Body 1,846 (10.5%) 67 (11.9%) 1,913 (10.5%)
   Head 11,752 (66.7%) 330 (58.8%) 12,082 (66.5%)
   Other 2,169 (12.3%) 84 (15.0%) 2,253 (12.4%)
   Tail 1,850 (10.5%) 80 (14.3%) 1,930 (10.6%)
Grade <0.01
   Grade I (well differentiated) 1,863 (10.6%) 157 (28.0%) 2,020 (11.1%)
   Grade II (moderately differentiated) 8,244 (46.8%) 253 (45.1%) 8,497 (46.7%)
   Grade III (poorly differentiated) 7,245 (41.1%) 144 (25.7%) 7,389 (40.6%)
   Grade IV (undifferentiated; anaplastic) 265 (1.5%) 7 (1.2%) 272 (1.5%)
Surgery 0.18
   No surgery 7,262 (41.2%) 215 (38.3%) 7,477 (41.1%)
   Surgery 10,355 (58.8%) 346 (61.7%) 10,701 (58.9%)
Lymph node dissection 0.18
   0 7,327 (41.6%) 223 (39.8%) 7,550 (41.5%)
   1–3 788 (4.5%) 34 (6.1%) 822 (4.5%)
   ≥4 9,502 (53.9%) 304 (54.2%) 9,806 (53.9%)
Chemotherapy 0.08
   No 6,187 (35.1%) 218 (38.9%) 6,405 (35.2%)
   Yes 11,430 (64.9%) 343 (61.1%) 11,773 (64.8%)
Radiotherapy 0.56
   No 12,495 (70.9%) 405 (72.2%) 12,900 (71.0%)
   Yes 5,122 (29.1%) 156 (27.8%) 5,278 (29.0%)
Survival time, months <0.01
   Mean (SD) 18.6 (23.4) 26.8 (31.6) 18.9 (23.7)
   Median (min, max) 11.0 (0, 167) 15.0 (0, 163) 11.0 (0, 167)

DAC, ductal adenocarcinoma. CC, colloid carcinoma; SD, standard deviation.

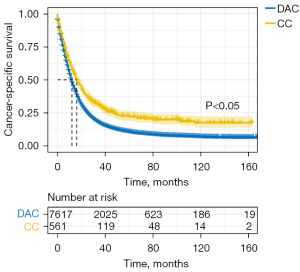

Figure 2 KM curves depicting the CSS of DAC and CC. DAC, ductal adenocarcinoma; CC, colloid carcinoma; KM curves, Kaplan-Meier curves; CSS, cancer-specific survival.

Univariate and multivariate analyses of CSS prognostic factors

The CC cases that were screened were split 7:3 into a training cohort (393 cases) and a validation cohort (168 cases). Age, gender, race, marital status, M stage, N stage, tumor size, tumor site, tumor differentiation, surgery, number of lymph node dissections, radiotherapy, and chemotherapy did not differ significantly between the two groups (Table 2). To identify the independent risk factors, we conducted univariate and multivariate Cox regression analyses, concentrating on the CSS of CC patients in the training cohort. The outcomes are shown in Table 3. In the univariate analysis, age, male, T and M stages, tumor size, poor differentiation, surgery, lymph node dissection, and radiotherapy were potentially associated with CSS. Clinically significant indices and variables with a P value <0.01 in the Cox univariate analysis were further analyzed using multivariate analysis. According to the multivariate analyses, age [≥65 vs. <65: hazard ratio (HR) =1.29; 95% confidence interval (CI): 1.00–1.65; P=0.04], sex (male vs. female: HR =0.64; 95% CI: 0.51–0.81; P<0.01), T3 stage (vs. T1 stage: HR =2.21; 95% CI: 1.26–3.88; P<0.01), T4 stage (vs. T1 stage: HR =2.76; 95% CI: 1.47–5.18; P<0.01), N1 stage (vs. N0 stage: HR =1.29; 95% CI: 1.02–1.63; P=0.04), M1 stage (vs. M0 stage: HR =1.60; 95% CI: 1.17–2.18; P<0.01), surgery (vs. no surgery: HR =0.30; 95% CI: 0.22–0.42; P<0.01), and radiotherapy (vs. no radiotherapy: HR =0.76; 95% CI: 0.58–1.01; P=0.05) were independently correlated with the CSS of patients with CC.

Table 2

Demographic and clinical features of the training and validation cohorts

Characteristics Training cohort (N=393) Validation cohort (N=168) Overall (N=561) P
Age 1.00
   <65 years 153 (39.0%) 66 (39.1%) 219 (39.0%)
   ≥65 years 239 (61.0%) 103 (60.9%) 342 (61.0%)
Sex 1.00
   Female 185 (47.2%) 80 (47.3%) 265 (47.2%)
   Male 207 (52.8%) 89 (52.7%) 296 (52.8%)
Race 0.39
   American Indian/Alaska Native 1 (0.3%) 1 (0.6%) 2 (0.4%)
   Asian or Pacific Islander 42 (10.7%) 17 (10.1%) 59 (10.5%)
   Black 45 (11.5%) 12 (7.1%) 57 (10.2%)
   White 304 (77.6%) 139 (82.2%) 443 (79.0%)
Marital status 0.16
   Divorced 39 (9.9%) 18 (10.7%) 57 (10.2%)
   Married 248 (63.3%) 93 (55.0%) 341 (60.8%)
   Single 105 (26.8%) 58 (34.3%) 163 (29.1%)
T stage 0.04
   T1 35 (8.9%) 5 (3.0%) 40 (7.1%)
   T2 84 (21.4%) 33 (19.5%) 117 (20.9%)
   T3 216 (55.1%) 98 (58.0%) 314 (56.0%)
   T4 57 (14.5%) 33 (19.5%) 90 (16.0%)
M stage 0.26
   M0 302 (77.0%) 122 (72.2%) 424 (75.6%)
   M1 90 (23.0%) 47 (27.8%) 137 (24.4%)
N stage 0.66
   N0 213 (54.3%) 96 (56.8%) 309 (55.1%)
   N1 179 (45.7%) 73 (43.2%) 252 (44.9%)
Tumor size 0.22
   <2 cm 62 (15.8%) 18 (10.7%) 80 (14.3%)
   2–4 cm 193 (49.2%) 93 (55.0%) 286 (51.0%)
   >4 cm 137 (34.9%) 58 (34.3%) 195 (34.8%)
Tumor site 0.95
   Body 45 (11.5%) 22 (13.0%) 67 (11.9%)
   Head 231 (58.9%) 99 (58.6%) 330 (58.8%)
   Other 60 (15.3%) 24 (14.2%) 84 (15.0%)
   Tail 56 (14.3%) 24 (14.2%) 80 (14.3%)
Grade 0.78
   Grade I (well differentiated) 113 (28.8%) 44 (26.0%) 157 (28.0%)
   Grade II (moderately differentiated) 177 (45.2%) 76 (45.0%) 253 (45.1%)
   Grade III (poorly differentiated) 98 (25.0%) 46 (27.2%) 144 (25.7%)
   Grade IV (undifferentiated; anaplastic) 4 (1.0%) 3 (1.8%) 7 (1.2%)
Surgery 0.37
   No surgery 145 (37.0%) 70 (41.4%) 215 (38.3%)
   Surgery 247 (63.0%) 99 (58.6%) 346 (61.7%)
Lymph node dissection 0.59
   0 151 (38.5%) 72 (42.6%) 223 (39.8%)
   1–3 23 (5.9%) 11 (6.5%) 34 (6.1%)
   ≥4 218 (55.6%) 86 (50.9%) 304 (54.2%)
Chemotherapy 0.24
   No 159 (40.6%) 59 (34.9%) 218 (38.9%)
   Yes 233 (59.4%) 110 (65.1%) 343 (61.1%)
Radiotherapy 0.76
   No 281 (71.7%) 124 (73.4%) 405 (72.2%)
   Yes 111 (28.3%) 45 (26.6%) 156 (27.8%)
Survival time, months <0.01
   Mean (SD) 28.0 (32.9) 23.8 (28.3) 26.8 (31.6)
   Median (min, max) 16.0 (0, 163) 15.0 (0, 153) 15.0 (0, 163)

SD, standard deviation.

Table 3

Univariate and multivariate Cox regression analyses of CSS in CC cases (the training cohort)

Characteristics Univariate analysis                  Multivariate analysis
HR 95% CI P HR 95% CI P
Age
   <65 Reference Reference
   ≥65 1.26 0.99–1.60 0.06 1.29 1.00–1.65 0.04
Sex
   Female Reference Reference
   Male 0.71 0.57–0.89 <0.01 0.64 0.51–0.81 <0.01
T stage
   T1 Reference Reference
   T2 2.71 1.51–4.86 <0.01 1.62 0.88–2.98 0.12
   T3 2.29 1.33–3.96 <0.01 2.21 1.26–3.88 <0.01
   T4 4.77 2.65–8.58 <0.01 2.76 1.47–5.18 <0.01
N stage
   N0 Reference Reference
   N1 1.17 0.94–1.48 0.17 1.29 1.02–1.63 0.04
M stage
   M0 Reference Reference
   M1 3.19 2.47–4.12 <0.01 1.60 1.17–2.18 <0.01
Tumor size
   <2 cm Reference
   2–4 cm 1.46 1.01–2.12 0.04
   >4 cm 1.79 1.26–2.54 <0.01
Tumor site
   Head Reference
   Body 1.72 1.20–2.46 <0.01
   Tail 1.27 0.95–1.81 0.10
   Other 1.31 0.92–1.75 0.14
Grade
   Grade I (well differentiated) Reference
   Grade II (moderately differentiated) 1.1 0.83–1.46 0.51
   Grade III (poorly differentiated) 1.44 1.05–1.97 0.02
   Grade IV (undifferentiated; anaplastic) 1.35 0.49–3.68 0.56
Surgery
   No surgery Reference Reference
   Surgery 0.24 0.19–0.30 <0.01 0.3 0.22–0.42 <0.01
Lymph node dissection
   0 Reference
   1–3 0.52 0.32–0.84 <0.01
   ≥4 0.28 0.22–0.35 <0.01
Radiotherapy
   No Reference Reference
   Yes 0.449 0.34–0.59 <0.01 0.76 0.58–1.01 0.05

CSS, cancer-specific survival; CC, colloid carcinoma; HR, hazard ratio; CI, confidence interval.

Nomogram validation and construction

The nomogram’s development was predicted on the above independent prognostic parameters in the training cohort, as demonstrated in Figure 3. Each factor is represented in the nomogram. The score for each CC patient was determined by multiplying the values of each factor, which ranged from 0 to 100 points. The nomogram calculated the 1-, 3-, and 5-year CSS based on the total points of the patients. A C-index value of 0.734 was found in the internal training cohort analysis for CSS nomogram predictions. The C-index for forecasting the CSS in the external validation cohort was 0.732. The 1-, 3-, and 5-year CSS AUC values for the training cohort were predicted to be 0.827, 0.816, and 0.831, respectively, and 0.801, 0.841, and 0.835 in the validation cohort, all of which were greater than 0.7 (Figure 4). In the calibration plots (Figure 5), the diagonal reference line indicates parity between the probability of survival as predicted by bootstraps and the actual survival rate. The DCA is shown in Figure 6A. These results show that the nomogram developed in this study was an effective prognostic predictor for calculating the long-term CSS for CC cases who have survived for 1, 3, and 5 years.

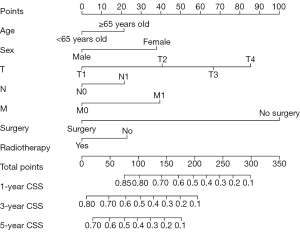

Figure 3 Nomogram anticipating the CSS of CC cases. CSS, cancer-specific survival; CC, colloid carcinoma.

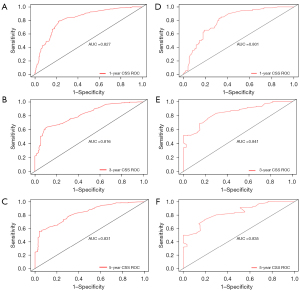

Figure 4 ROC curves for anticipating the 1-, 3-, and 5-year CSS of CC cases in the training cohort (A-C) and the validation cohort (D-F). AUC, area under the curve; CSS, cancer-specific survival; ROC, receiver operating characteristic curve; CC, colloid carcinoma.

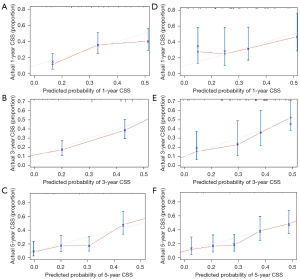

Figure 5 Bootstrap calibration of nomograms in the training cohort (A,C,E) and validation cohort (B,D,F). CSS, cancer-specific survival.

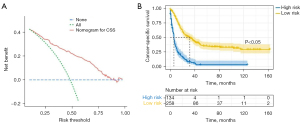

Figure 6 The DCA for predicting CSS in the training cohort (A) and survival analysis of CC cases in the training cohort after risk-stratification (B). CSS, cancer-specific survival; DCA, decision curve analysis; CC, colloid carcinoma.

Risk stratification as per the nomogram

The overall score of the training group of CC patients was determined using the nomogram model. The range of the overall score was 0–350. The training cohort was split into low-risk (n=134) and high-risk (n=258) groups using the ideal cut-off value of 216. The validation cohort was divided into groups using the same cut-off values. Figure 6B depicts the survival curves after the log-rank test and the Kaplan-Meier CSS analysis. The survival rate of cases allocated to the low-risk group was significantly higher (P<0.05).


Discussion

The clinical signs of pancreatic CC are comparable to those of DAC and are typically mild, including jaundice, weight loss, abdominal pain, and an abdominal lump (5). The differential diagnosis of the two types is critical, as the biological and molecular distinctions between them lead to a more aggressive clinical course, a better surgical outcome, and a higher survival rate for CC. Currently, no large-sample studies exist on the 1-, 3-, or 5-year survival rates for CC. To our knowledge, our study is the most extensive analysis so far of CC. It is also the first to compare clinical baseline characteristics and survival differences between them and generate a nomogram to determine the prognosis of CC cases.

Our study has shown that managing CC and DAC can be made easier by identifying variations in patient demographics and tumor features. By studying their clinicopathological features, we found that CC and DAC, like other tumors, were more common in elderly patients (11). This could be because older patients frequently have more comorbid conditions. According to the WHO, males are more likely than females to suffer from pancreatic cancer, and this gender disparity seems much greater in developed countries. Our outcomes are consistent with those of prior studies (4,6,12). In our study, most CC and DAC tumors were in the more advanced T stages, which is typical of most malignancies. The later the T stage, the worse the prognosis. Metastasis (the spread and proliferation of cancer cells in an organ other than the one they originated from) is the induction of mortality in cancer cases. The current AJCC staging criteria follow the basic paradigm of tumor progression: as the tumor grows, tumor cells acquire more mutations and eventually gain the potential to spread to regional lymph nodes and distant organs (13,14). A previous study reported that the rate of distant metastasis in DAC patients was 30.6% (15). In our study, the distant metastasis rates in DAC and CC were 25% and 24.4%, respectively, and the lymph node metastatic rates of DAC and CC were 54% and 44.9%, respectively, which is attributable to CC tumors’ relative indolence. According to a previous study, the tumor size of CC is larger than that of DAC (mean size: 5.3 vs. 3.5 cm) (6). The CC’s diameter varied between 1.2 and 16.0 cm, which is higher than that of tubular DAC at presentation (3,16). In our study, the majority of CC tumors measured 4 cm in diameter, whereas the majority of DAC tumors measured 2–4 cm in diameter. In general, CC tumors were larger than DAC tumors. The CSS rate of pancreatic body or tail cancer has historically been lower than that of pancreatic head cancer owing to its distant or advanced metastatic state and lower R0 resection rate (17-19). Our analysis confirmed the previous findings.

Although the five-year survival rate for CC varies from 13% to 83%, most medical experts believe that CC has a better prognosis than DAC (20,21). In a prior study, a 5-year survival rate of 57% for CC and 12% for resectable DAC was reported (6) while another study reported a survival rate of less than 10% for DAC (22). However, Seidel et al. (8) reported that the CC prognosis (5-year OS of 29%) was similar to that of DAC. The prognosis in 13 resected cases (median survival: 24 months, 5-year OS: 30%) was reported to be similar to that of DAC (23). However, these studies used small cohorts. According to our KM curves, the 1-, 3-, and 5-year survival rates of CC were superior to those of DAC, which were 20%, 40%, and 60%, respectively.

Since CC of the pancreas is uncommon, there are few thorough studies that cover its prognosis. Multivariate Cox regression analyses were carried out in this study. These analyses found that older age, being male, having more sophisticated TNM stages, not having surgery, and adjuvant radiotherapy were all independent factors that were significantly linked to worse CC outcomes and lower CSS rates.

Previous research has revealed that tumor size, lymph node metastases, vascular and nerve invasion, surgical margins, and immunohistochemistry expression of CC have little effect on the prognosis (6). Age, sex, TNM stage, tumor size, tumor site, tumor grade, surgery, and radiotherapy were all identified as determinants of CC prognosis in our study. In the multivariate Cox regression analysis, the prognosis for CC patients was shown to be worse with increasing age. One explanation could be that elderly patients suffer from more basic illnesses, whereas younger patients can undergo more thorough treatment and demonstrate better compliance during follow-up examinations (24). Additionally, in older patients with CC, organ senescence, combined with a decline in immunological function, results in a greater risk of tumor recurrence and lowers their survival rates. Meanwhile, the male sex was revealed to be a protective factor against CC. It is common knowledge that estrogen levels decline in postmenopausal women. According to articles published in The Lancet, estrogen deficiency raises the risk of pancreatic cancer (25,26). Most of our CC patients were elderly, and the elderly women were in menopause, which explains the high likelihood that male sex is a protective factor against CC.

TNM stages were independent risk factors for CC. Our findings showed that later stages were associated with a worse prognosis, which is in line with outcomes from prior research (13,27). Recent studies have reported that postoperative survival times are shorter for patients with poorly differentiated pancreatic cancer than those with well-differentiated pancreatic cancer. For instance, in a retrospective study of 396 cases of pancreatic cancer, Jeekel (28) observed that cases with well-differentiated cancer had a median survival duration of 35.5 months, while those with poorly-differentiated tumors had a median survival duration of 14.8 months. This is probably because tumors with less differentiation have more aggressive biology, which speeds up local and distant metastasis (29). In our study’s univariate analysis, tumor differentiation was identified as a prognostic factor; however, it was not an independent factor in the multivariate analysis. The lymph node clearance rate is reported to be higher for the excision of lesions in the pancreatic head than in the pancreatic tail (17). The larger number of node dissections in our study for CC likely implicated the higher rate of CC in the pancreatic head. Current research is investigating whether more extensive lymph node dissection has a therapeutic benefit in CC (30). Early DAC should be considered a high-risk disease with increased potential for systemic metastasis and may require systemic treatment (15). Sakoda et al. (31) discovered that, like DAC, CC metastasis frequently occurs in the liver. In our study, the proportions of CC and DAC patients without distant metastases were 75.6% and 75%, respectively.

Surgery is the preferred treatment for pancreatic cancer. Because more than 90% of pancreatic cancer patients will experience local recurrence or distant metastases following surgery (32-34), adjuvant therapy is also essential. As per the National Comprehensive Cancer Network (NCCN) standards, DAC cases undergoing surgical treatment should get adjuvant chemotherapy regardless of their postoperative clinical conditions (35). Recently, it was discovered that preoperative chemotherapy was significantly correlated with enhanced median overall survival in DAC patients compared with those who received surgery as the first-line treatment (36). The most likely reason for this is that the R1 resection rate is 15–35% when patients initially undergo surgery, which has a negative influence on survival (37,38). A previous case report indicated that a patient with a 15-cm locally-invasive pancreatic colloid carcinoma tumor remained asymptomatic and had a good quality of life 24 months after surgery (9). It is supposed that the 5-year survival rate for CC following radical surgical resection was 60%; however, the significance of this outcome in CC is uncertain because the study did not examine the influence of postoperative adjuvant therapy. Another case report described gastrointestinal hemorrhage caused by CC, and surgical excision of the tumor may be advantageous (39). Adsay et al. (6) analyzed 17 CC cases and found that 10 successfully underwent radical surgical resection with an 88% resection rate. After surgery, approximately half of the patients received no treatment, while four underwent both radiotherapy and chemotherapy, one underwent chemotherapy only, and one underwent radiotherapy only. Adjuvant chemoradiotherapy was found to be effective in patients with node-positive CC in another trial (40).

As shown above, there are no clear clinical guidelines for CC, which may be due to the small number of cases in these studies. In the present study, we noted that undergoing surgery and radiotherapy were crucial protective parameters for CC cases. However, chemotherapy was not an independent predictor of CC prognosis, which could be due to the SEER database’s small number of CC cases. Therefore, extensive clinical studies are needed to evaluate the prognostic value of various chemotherapy approaches. Currently, there are no specific recommendations for the management of CC. Surgical intervention and postoperative radiotherapy are still required, even though CC has a better prognosis than DAC.

Prognostic nomograms are well-known and accepted simple models for determining prognosis, in which intricate mathematical representations of complex statistical models are used (41-43). Prognostic nomograms have also been shown to be more precise and thorough than other models, with clinical qualities that are simple to evaluate and easy to use in clinical practice. Here, a novel nomogram for forecasting the 1-, 3-, and 5-year CSS percentages for CC was developed and validated. The AUC values and all C-indices were greater than 0.75, indicating high accuracy. Additionally, there was good agreement between the calibration curve and the diagonal reference line.

However, there were some limitations to our study. First, since it was a retrospective study, there may have been selection bias. Therefore, multicenter, extensive, prospective studies should be carried out to confirm our observations and rule out any bias. Second, surgical procedures, radiation doses, particular chemotherapy regimens, and further clinical information could not be acquired because of the limited information accessible in the SEER database, which may have impacted the findings. Third, the CC and DAC cases were all from the United States, so the cohort may not have been representative of patients worldwide.


Conclusions

Our findings demonstrate that compared with DAC, CC is featured by better survival. We noted that age, sex, TNM stages, surgery, and radiotherapy were independent prognostic parameters of CC. We also developed a nomogram forecasting 1-, 3- and 5-year CSS rates for CC based on the above factors, which showed good discriminative ability and accuracy. This nomogram could provide tailored prognostic evaluations to surgeons and patients and also act as a source for treatment planning.


Acknowledgments

The authors acknowledge the efforts of the Surveillance, Epidemiology, and Results (SEER) Program tumor registries in creating the SEER-Medicine database.

Funding: This work was supported by grants from the Zhejiang Provincial Natural Science Foundation of China (No. LGF19H030006), Ningbo Public Welfare Science & Technology Major Project (No. 2021S106), the Major Special Science and Technology Project of Ningbo city (No. 2022Z128) and the Ningbo Clinical Medicine Research Center Project (No. 2019A21003). The authors have no other relevant affiliations or financial involvement with any organization or entity with a financial interest in or conflict with the subject matter or materials discussed in the manuscript apart from those disclosed.


Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://gs.amegroups.com/article/view/10.21037/gs-22-753/rc

Peer Review File: Available at https://gs.amegroups.com/article/view/10.21037/gs-22-753/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://gs.amegroups.com/article/view/10.21037/gs-22-753/coif). All authors report that this work was supported by grants from the Zhejiang Provincial Natural Science Foundation of China (No. LGF19H030006), Ningbo Public Welfare Science & Technology Major Project (No. 2021S106), the Major Special Science and Technology Project of Ningbo City (No. 2022Z128) and the Ningbo Clinical Medicine Research Center Project (No. 2019A21003). The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.


References

  1. Nagtegaal ID, Odze RD, Klimstra D, et al. The 2019 WHO classification of tumours of the digestive system. Histopathology 2020;76:182-8. [Crossref] [PubMed]
  2. Shah PA, Ramaswamy V, Gopala SK, et al. Colloid carcinoma not associated with intraductal papillary mucinous neoplasm: special variant of pancreatic ductal adenocarcinoma. BMJ Case Rep 2022;15:e247729. [Crossref] [PubMed]
  3. Liszka L, Zielinska-Pajak E, Pajak J, et al. Colloid carcinoma of the pancreas: review of selected pathological and clinical aspects. Pathology 2008;40:655-63. [Crossref] [PubMed]
  4. Yasuoka H, Kato H, Asano Y, et al. Two cases of pancreatic colloid carcinoma with different pathogenesis: case report and review of the literature. Clin J Gastroenterol 2022;15:649-61. [Crossref] [PubMed]
  5. Whang EE, Danial T, Dunn JC, et al. The spectrum of mucin-producing adenocarcinoma of the pancreas. Pancreas 2000;21:147-51. [Crossref] [PubMed]
  6. Adsay NV, Pierson C, Sarkar F, et al. Colloid (mucinous noncystic) carcinoma of the pancreas. Am J Surg Pathol 2001;25:26-42. [Crossref] [PubMed]
  7. Fujii M, Okamoto Y, Fujioka SI, et al. Pancreatic Colloid Carcinoma Presenting with Acute Pancreatitis. Intern Med 2022;61:1151-6. [Crossref] [PubMed]
  8. Seidel G, Zahurak M, Iacobuzio-Donahue C, et al. Almost all infiltrating colloid carcinomas of the pancreas and periampullary region arise from in situ papillary neoplasms: a study of 39 cases. Am J Surg Pathol 2002;26:56-63. [Crossref] [PubMed]
  9. Rubio-Perez I, Martin-Perez E, Sanchez-Urdazpal L, et al. Colloid carcinoma of the pancreas: a distinct pancreatic neoplasm with good prognosis. Report of a case. JOP 2012;13:219-21.
  10. Adsay NV, Merati K, Nassar H, et al. Pathogenesis of colloid (pure mucinous) carcinoma of exocrine organs: Coupling of gel-forming mucin (MUC2) production with altered cell polarity and abnormal cell-stroma interaction may be the key factor in the morphogenesis and indolent behavior of colloid carcinoma in the breast and pancreas. Am J Surg Pathol 2003;27:571-8. [Crossref] [PubMed]
  11. Xu Y, Zhang Y, Han S, et al. Prognostic Effect of Age in Resected Pancreatic Cancer Patients: A Propensity Score Matching Analysis. Front Oncol 2022;12:789351. [Crossref] [PubMed]
  12. Schorn S, Demir IE, Haller B, et al. The influence of neural invasion on survival and tumor recurrence in pancreatic ductal adenocarcinoma - A systematic review and meta-analysis. Surg Oncol 2017;26:105-15. [Crossref] [PubMed]
  13. Allen PJ, Kuk D, Castillo CF, et al. Multi-institutional Validation Study of the American Joint Commission on Cancer (8th Edition) Changes for T and N Staging in Patients With Pancreatic Adenocarcinoma. Ann Surg 2017;265:185-91.
  14. Muralidhar V, Nipp RD, Mamon HJ, et al. Association Between Very Small Tumor Size and Decreased Overall Survival in Node-Positive Pancreatic Cancer. Ann Surg Oncol 2018;25:4027-34. [Crossref] [PubMed]
  15. Ansari D, Bauden M, Bergström S, et al. Relationship between tumour size and outcome in pancreatic ductal adenocarcinoma. Br J Surg 2017;104:600-7. [Crossref] [PubMed]
  16. Gao Y, Zhu YY, Yuan Z. Colloid (mucinous non-cystic) carcinoma of the pancreas: A case report. Oncol Lett 2015;10:3195-8. [Crossref] [PubMed]
  17. Artinyan A, Soriano PA, Prendergast C, et al. The anatomic location of pancreatic cancer is a prognostic factor for survival. HPB (Oxford) 2008;10:371-6. [Crossref] [PubMed]
  18. Lau MK, Davila JA, Shaib YH. Incidence and survival of pancreatic head and body and tail cancers: a population-based study in the United States. Pancreas 2010;39:458-62. [Crossref] [PubMed]
  19. van Erning FN, Mackay TM, van der Geest LGM, et al. Association of the location of pancreatic ductal adenocarcinoma (head, body, tail) with tumor stage, treatment, and survival: a population-based analysis. Acta Oncol 2018;57:1655-62. [Crossref] [PubMed]
  20. Sohn TA, Yeo CJ, Cameron JL, et al. Intraductal papillary mucinous neoplasms of the pancreas: an updated experience. Ann Surg 2004;239:788-97; discussion 797-9. [Crossref] [PubMed]
  21. Nara S, Shimada K, Kosuge T, et al. Minimally invasive intraductal papillary-mucinous carcinoma of the pancreas: clinicopathologic study of 104 intraductal papillary-mucinous neoplasms. Am J Surg Pathol 2008;32:243-55. [Crossref] [PubMed]
  22. Campos-Campos F. Cancer of the pancreas. Revista de gastroenterologia de Mexico 1997;62:202-11.
  23. Sugiyama M, Atomi Y, Kuroda A. Two types of mucin-producing cystic tumors of the pancreas: diagnosis and treatment. Surgery 1997;122:617-25. [Crossref] [PubMed]
  24. Kneuertz PJ, Chang GJ, Hu CY, et al. Overtreatment of young adults with colon cancer: more intense treatments with unmatched survival gains. JAMA Surg 2015;150:402-9. [Crossref] [PubMed]
  25. Devesa SS, Silverman DT. Protective effect of oestrogen in pancreatic cancer. Lancet 1988;2:905-6. [Crossref] [PubMed]
  26. Bourhis J, Lacaine F, Augusti M, et al. Protective effect of oestrogen in pancreatic cancer. Lancet 1987;2:977. [Crossref] [PubMed]
  27. Zhong R, Jiang X, Peng Y, et al. A nomogram prediction of overall survival based on lymph node ratio, AJCC 8th staging system, and other factors for primary pancreatic cancer. PLoS One 2021;16:e0249911. [Crossref] [PubMed]
  28. Jeekel H. Prognostic factors following curative resection for pancreatic adenocarcinoma. Ann Surg 2004;240:384. [Crossref] [PubMed]
  29. Hlavsa J, Cecka F, Zaruba P, et al. Tumor grade as significant prognostic factor in pancreatic cancer: validation of a novel TNMG staging system. Neoplasma 2018;65:637-43. [Crossref] [PubMed]
  30. Birk D, Beger HG. Lymph-node dissection in pancreatic cancer -- what are the facts? Langenbecks Arch Surg 1999;384:158-66. [Crossref] [PubMed]
  31. Sakoda T, Murakami Y, Uemura K, et al. Two cases of mucinous (non-cystic) carcinoma of the pancreas without intraductal papillary mucinous neoplasm. Presented at Pancreas 2016;
  32. Groot VP, Rezaee N, Wu W, et al. Patterns, Timing, and Predictors of Recurrence Following Pancreatectomy for Pancreatic Ductal Adenocarcinoma. Ann Surg 2018;267:936-45. [Crossref] [PubMed]
  33. Oettle H, Post S, Neuhaus P, et al. Adjuvant chemotherapy with gemcitabine vs observation in patients undergoing curative-intent resection of pancreatic cancer: a randomized controlled trial. JAMA 2007;297:267-77. [Crossref] [PubMed]
  34. Zhang Y, Frampton AE, Kyriakides C, et al. Loco-recurrence after resection for ductal adenocarcinoma of the pancreas: predictors and implications for adjuvant chemoradiotherapy. J Cancer Res Clin Oncol 2012;138:1063-71. [Crossref] [PubMed]
  35. Tempero MA, Malafa MP, Chiorean EG, et al. Pancreatic Adenocarcinoma, Version 1.2019. J Natl Compr Canc Netw 2019;17:202-10. [Crossref] [PubMed]
  36. Christians KK, Heimler JW, George B, et al. Survival of patients with resectable pancreatic cancer who received neoadjuvant therapy. Surgery 2016;159:893-900. [Crossref] [PubMed]
  37. Chang DK, Johns AL, Merrett ND, et al. Margin clearance and outcome in resected pancreatic cancer. J Clin Oncol 2009;27:2855-62. [Crossref] [PubMed]
  38. Oettle H, Neuhaus P, Hochhaus A, et al. Adjuvant chemotherapy with gemcitabine and long-term outcomes among patients with resected pancreatic cancer: the CONKO-001 randomized trial. JAMA 2013;310:1473-81. [Crossref] [PubMed]
  39. Udagawa D, Shimazu M, Sakuragawa T, et al. Surgery for colloid carcinoma of the pancreas with portal vein tumor thrombus: a case report. Surg Case Rep 2020;6:252. [Crossref] [PubMed]
  40. Picado O, Dosch AR, Garcia-Buitrago MT, et al. The Role of Perioperative Chemotherapy in the Management of Colloid Carcinoma of the Pancreas. Pancreas 2021;50:306-12. [Crossref] [PubMed]
  41. Balachandran VP, Gonen M, Smith JJ, et al. Nomograms in oncology: more than meets the eye. Lancet Oncol 2015;16:e173-80. [Crossref] [PubMed]
  42. Iasonos A, Schrag D, Raj GV, et al. How to build and interpret a nomogram for cancer prognosis. J Clin Oncol 2008;26:1364-70. [Crossref] [PubMed]
  43. Wang X, Lu J, Song Z, et al. From past to future: Bibliometric analysis of global research productivity on nomogram (2000-2021). Front Public Health 2022;10:997713. [Crossref] [PubMed]

(English Language Editor: D. Fitzgerald)

Cite this article as: Wang X, Fang S, Shen Y, Luo J, Liu H, Zhao D, Ye H, Li H. The clinical characteristics of pancreatic colloid carcinoma and the development and validation of its cancer-specific survival prediction nomogram. Gland Surg 2023;12(3):386-401. doi: 10.21037/gs-22-753

Download Citation
