Different biopsy techniques for different pancreas graft locations after homolateral simultaneous pancreas-kidney transplantation

Lei Zhang1,2#^, Li Li1#, Yirui Zhang1#, Xuewei Yang3, Xiaofeng Jiang3, Hainan Yang4, Xufeng Li4, Jiali Fang1, Jiao Wan1, Guanghui Li1, Junjie Ma1, Zheng Chen1^

1Department of Organ Transplantation, The Second Affiliated Hospital of Guangzhou Medical University, Guangzhou, China; 2Department of Organ Transplantation, the Third Affiliated Hospital of Sun Yat-sen University, Guangzhou, China; 3Department of Hepatobiliary Surgery, The Second Affiliated Hospital of Guangzhou Medical University, Guangzhou, China; 4Department of Radiology Intervention, The Second Affiliated Hospital of Guangzhou Medical University, Guangzhou, China

Contributions: (I) Conception and design: Z Chen, L Zhang; (II) Administrative support: Z Chen; (III) Provision of study materials or patients: L Zhang, L Li, Y Zhang, J Wan; (IV) Collection and assembly of data: L Zhang, L Li, Y Zhang, X Yang, X Jiang, H Yang, X Li; (V) Data analysis and interpretation: L Zhang, L Li, Y Zhang, J Fang, G Li, J Ma; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work and should be considered as co-first authors.

^ORCID: Lei Zhang, 0000-0003-1334-6900; Zheng Chen, 0000-0002-6367-7647.

Correspondence to: Zheng Chen, MD, PhD. Department of Organ Transplantation, The Second Affiliated Hospital of Guangzhou Medical University, Guangzhou 510260, China. Email: docchenzheng@163.com.

Background: Biopsy of a transplanted pancreas is sometimes necessary in patients who have undergone simultaneous pancreas-kidney (SPK) transplantation and have elevated serum lipase and amylase concentrations. However, the risks associated with pancreatic graft biopsy are high, and the best biopsy technique for different location of pancreatic graft remains unclear.

Methods: Depending on the anatomical location of the transplanted pancreas, percutaneous computed tomography (CT) combined with color Doppler-guided puncture biopsy or laparoscopic biopsy was used to obtain samples of transplanted pancreatic tissue that were shallow and deep, respectively.

Results: After SPK transplantation, 4 patients developed abnormal serum lipase and amylase concentrations and underwent pancreas graft biopsy, 1 patient underwent percutaneous CT combined with color Doppler-guided puncture biopsy, 2 patients underwent laparoscopic wedge biopsy, and 1 patient underwent laparoscopic and puncture biopsy. All biopsies were performed successfully, with no intra- or postoperative complications (e.g., bleeding, pancreatic leakage, intestinal leakage). Biopsy sampling was effective in 3 patients, including 1 case of acute pancreatic rejection, 1 case of pancreatitis, and 1 case of pancreatic plasmablastic lymphoma. Biopsy failed to retrieve samples in 1 patient with a deep pancreatic graft who underwent laparoscopic wedge biopsy.

Conclusions: Pancreas graft biopsy is safe and feasible after SPK transplantation. In addition to the two biopsy methods mentioned, other methods can also be used. Different biopsy strategies should be formulated according to the anatomical location of the transplanted pancreas.

Keywords: Biopsy; laparoscope; simultaneous pancreas-kidney transplantation; transplanted pancreas


Submitted Jul 19, 2022. Accepted for publication Nov 22, 2022. Published online Mar 22, 2023.

doi: 10.21037/gs-22-414


Highlight box

Key findings

• Pancreatic graft biopsy is safe and feasible after simultaneous pancreas-kidney transplantation.

• Different biopsy strategies should be considered according to the anatomical location of the transplanted pancreas.

What is known and what is new?

• A few centers have reported on various ways of biopsying transplanted pancreatic tissue.

• Unlike in previous studies, we recommend that different biopsy methods are selected depending on the anatomical location of the transplanted pancreas.

What is the implication, and what should change now?

• There are various surgical methods for simultaneous pancreas-kidney transplantation, and the anatomical location of the transplanted pancreas also differs, so different biopsy methods should be used.


Introduction

Simultaneous pancreas-kidney (SPK) transplantation is currently the most effective method for the treatment of diabetes complicated with stage 5 chronic kidney disease (1). Postoperative increases in serum amylase and lipase concentrations are common, and differential diagnosis is difficult, with the only way to confirm the diagnosis being pancreatic biopsy (2).

Because the transplanted pancreas is located in the abdominal cavity, surrounded by the intestinal tract, and often accompanied by adhesions, the risks associated with biopsy are high (3). However, there are few reports regarding the selection of different biopsy methods. In this paper, we summarize our experiences with pancreatic biopsy after SPK transplantation in 4 patients. We present the following article in accordance with the MDAR and AME Case Series reporting checklists (available at https://gs.amegroups.com/article/view/10.21037/gs-22-414/rc).


Methods

Baseline patient data

Between September 2016 and December 2021, 235 homolateral SPK transplantations were performed at the Department of Organ Transplantation, The Second Affiliated Hospital of Guangzhou Medical University. All organs were from deceased donors (citizens). Elevated serum amylase and lipase concentrations were observed in many recipients. A biopsy of the transplanted pancreas was performed in 4 of these patients after they provided written informed consent. Pathologists followed the Banff criteria to determine whether there was rejection of the graft (4). Baseline data for the 4 patients are presented in Table 1.

Table 1

Baseline data for the 4 patients in this study

Patient no. Sex Age (years) BMI (kg/m2) Primary disease and comorbidity Immunosuppressive maintenance regimen Time of biopsy after transplantation (months) Reason for biopsy
1 Female 31 20.6 DN FK506 + MPA 29 Elevated serum AMS and LPS
Type 1 diabetes
Renal anemia
2 Male 66 26.1 DN FK506 + MPA + Pred 22 Elevated serum AMS and LPS
Type 2 diabetes
Hyperlipidemia
CHD
3 Male 51 22.6 DN FK506 + MPA 4 Elevated serum AMS and LPS
Type 2 diabetes
Renal anemia
4 Male 50 22.4 DN FK506 + MPA + Pred 34 Recurrent fever after treatment for PTLD
Type 2 diabetes
Fever
Renal anemia

, primary disease. BMI, body mass index; DN, diabetic nephropathy; FK506, tacrolimus; MPA, mycophenolate mofetil; AMS, amylase; LPS, lipase; CHD, coronary heart disease; Pred, prednisolone; PTLD, posttransplant lymphoproliferative disorder.

This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by The Institutional Review Board of the Second Affiliated Hospital of Guangzhou Medical University (number 2020-hs-43) and informed consent was taken from all individual participants.

Immunosuppressive protocols

Polyclonal and monoclonal antibodies were selected for induction therapy. Preoperatively, patients received an intravenous injection of methylprednisolone (MP; 250–500 mg), and on days 1, 2, and 3 postoperatively, patients were administered 500, 250, and 250 mg of MP, respectively. For maintenance therapy, all patients who underwent SPK transplantation received tacrolimus (FK506; 0.05–0.1 mg/kg per day), mycophenolate mofetil (MMF; 1–1.5 g/day), and steroids (prednisone). At 3 months after transplantation, the dose of FK506 was adjusted to a trough concentration of 6–8 ng/mL. The dose of prednisone was 30 mg p.o. on day 4 after surgery, with a reduction of 5 mg of prednisone every 7 days until a maintenance dose of 10 or 5 mg was reached. If the preoperative diagnosis of diabetic nephropathy was confirmed, prednisone was withdrawn.

Location of the transplanted pancreas and selection of biopsy methods

Homolateral SPK transplantation was performed in the Department of Organ Transplantation, The Second Affiliated Hospital of Guangzhou Medical University. A schematic diagram of SPK transplantation is presented in a our previously published paper (5). The transplanted pancreas was located in the right lower abdomen.

Before biopsy, computed tomography (CT) was used to ascertain the anatomical position of transplanted pancreas (Figure 1) and facilitate selection of the biopsy method.

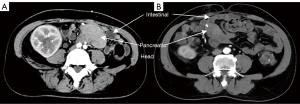

Figure 1 If there is no intestinal wrapping between the head of the transplanted pancreas and the anterior abdominal wall, and the head of the transplanted pancreas comes in direct contact with the anterior abdominal wall, percutaneous computed tomography combined with color Doppler-guided puncture biopsy is preferred (A). If there is intestinal wrapping between the head of the transplanted pancreas and the anterior abdominal wall, laparoscopic biopsy is preferred (B).

Percutaneous CT combined with color Doppler-guided needle biopsy

For percutaneous CT combined with color Doppler-guided needle biopsy, patients were supine in the CT interventional operating room. An enhanced CT scan was first performed to gain an understanding of the distribution of the artery of the head of the transplanted pancreas, with a location in the pancreatic head with sparse vascular distribution selected as the target puncture point. A needle was punctured through the abdominal wall to the pancreatic head under color Doppler imaging to visualize arteries and veins around the needlepoint and to avoid blood vessels as far as possible. Samples were obtained using an 18-G core biopsy needle as shown in Figure 2. Then, a gelatin sponge strip was inserted, and snake venom hemagglutinin was injected through the needle inlet channel to stop the bleeding. After withdrawal of the needle, pressure was applied for at least 20 min until there was no bleeding at the puncture point. Re-examination CT was used to confirm that there was no obvious effusion or blood around the puncture point.

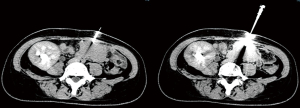

Figure 2 Under the guidance of CT, an appropriate skin puncture point, puncture path, and insertion depth and angle are selected. After routine disinfection, spreading of a towel, and the administration of local anesthesia, the insertion angle is adjusted according to the CT image. CT, computed tomography.

Laparoscopic biopsy

Patients underwent a laparoscopic transplanted pancreas biopsy under general anesthesia in the operating room. Direct wedge biopsy or complementary needle biopsy was used. The pancreas body or tail was selected for direct wedge biopsy, and the biopsy site was sutured to stop the bleeding. A combined puncture biopsy was performed if necessary. The skin projection area of the head of the transplanted pancreas was taken as the insertion point, and the puncture biopsy was performed, with the intestinal tract and blood vessels being avoided under direct laparoscopic vision, as shown in Figure 3.

Figure 3 The entire procedure of laparoscopic biopsy of the transplanted pancreas. (A) According to computed tomography images, the projected area of the transplanted pancreas is marked on the body surface. (B) A wedge-shaped tissue section is cut from the body or tail of the transplanted pancreas. (C) Sutures are then applied to stop the bleeding. (D) The parenchyma and tissues surrounding the transplanted pancreas are checked to ensure there is no blood oozing. (E,F) If the adhesion around the tail of the transplanted pancreas is serious and the tissue obtained by wedge biopsy cannot be confirmed as pancreatic tissue, combined puncture biopsy (E) can be performed and a postoperative abdominal drainage tube (F) can be inserted and left for several days.

Postbiopsy treatment

After returning to the ward, the patients were monitored with electrocardiography for 24 h for any abdominal pain and other symptoms. In addition, hemoglobin, serum lipase, and serum amylase concentrations were monitored. The color of the drainage fluid was observed, and the volume of the drainage fluid was measured and tested for amylase and lipase for 3 consecutive days. The transplanted pancreas was examined with ultrasound for 3 consecutive days to detect any bleeding, pancreatic leakage, and other complications.

Statistical analysis

Data were analyzed using SPSS 22 (IBM Corporation). The Shapiro-Wilk test was used to evaluate the distribution of count data, while comparisons between groups were made using the Wilcoxon test. P<0.05 indicate a statistically significant difference.


Results

Histological findings and management

Pancreatic graft specimens were obtained from 4 patients using the techniques described in the Methods. Patient 3 (see Table 2) was not successfully sampled, with histological results indicating that the biopsy sample consisted of adipose tissue; the remaining patients were successfully sampled. Patient 1 experienced acute pancreatic rejection, patient 2 experienced pancreatitis, and Patient 4 experienced pancreatic plasmablastic lymphoma. Patients underwent appropriate treatment according to the pathological results (Table 2, Figure 4).

Table 2

Biopsy technique, pathology results, and treatment for the 4 patients in this study

Patient no. Biopsy way Satisfactory specimen Pathology results Treatment
1 CT-guided puncture combined with color ultrasound Yes Multifocal acinar inflammation (predominantly CD8+ T cells), periacinar capillary vasculitis, interlobular septal inflammatory infiltration; predisposition to T cell-mediated rejection MP + ATG (after histological report)
2 Laparoscopic wedge biopsy Yes Interlobular inflammatory infiltration, small phlebitis, ductitis, acinar inflammation, some acinar cell swelling, degeneration, necrosis; transplantation pancreatitis considered (I) MP + ATG (before histological report)
(II) SS + PPI (before and after histological report)
(III) FK506 changed to CsA after histological report
3 Laparoscopic wedge biopsy No Adipose tissue, nerve tissue, and fibrous connective tissue; pancreatic tissue not seen (I) SS + PPI
(II) MP + ATG + rituximab + PE + IVIG
4 Laparoscopic wedge-shaped biopsy combined with needle biopsy Yes Lymphocytic cells diffuse in the pancreatic tissue, with medium to large size; some nuclear deviation consistent with plasmablastic lymphoma  (I) Rituximab + IVIG (diagnosis of PTLD and before histological report)
(II) MP + ATG + IVIG (before histological report)
(III) Rituximab + lenalidomide (after histological report)

CT, computed tomography; MP, methylprednisolone; ATG, anti-human T cell rabbit immunoglobulin; SS, somatostatin; PPI, proton pump inhibitor; FK506, tacrolimus; CsA, cyclosporin A; PE, plasma exchange; IVIG, intravenous immunoglobulin; PTLD, posttransplant lymphoproliferative disorder.

Figure 4 Histology of biopsy samples of the transplanted pancreas from (A,B) patients 1, (C,D) 2, and (E,F) 3. Hematoxylin and eosin staining and necessary immunohistochemistry were performed. (A) In patient 1, histology showed multifocal scattered lymphocyte infiltration (mainly CD8+ T cells) in the acinar lobules and varying lymphocyte infiltration with a small number of eosinophils in the capillary lumen between the acinar septum. (B) Immunohistochemical results were as follows: CD3+ (T cells), CD4+, and CD8+ (T cells; CD8+ > CD4+), and CD4. (C,D) In patient 2, histology showed interlobular inflammatory infiltration, small phlebitis, ductitis, acinar punctured lymphocyte-monocyte infiltration, some swelling of acinar cells or cytoplasmic vacuolar degeneration, no inflammatory cell infiltration in the artery, and no peritubular capillary vasculitis. (E,F) In patient 3, histology revealed diffuse distribution of tumor cells and some nuclear deviation with a plasma cell-like appearance. The immunohistochemical results were as follows: CD138+, CD38+, mum-1+, Kappa+, Lambda+, CD20, CD79a+, and Ki-67+ (70%).

Treatment effect

At present, there are no uniform criteria for the success of antirejection treatment. Successful treatment will reduce serum lipase and amylase, but the rate and degree of decline differ across individual patients.

In the present series, lipase and amylase concentrations in patient 1 decreased to normal after antirejection therapy according to the pathological results. Prior to the biopsy, patient 2 was being treated for acute rejection, but the treatment effect was not satisfactory. After the biopsy, based on the pathological results, patient 2 underwent routine treatment for pancreatitis. In addition, FK506 was changed to cyclosporin A, after which lipase and amylase concentrations decreased to normal.

Because the biopsy was unsuccessful in patient 3, this patient was treated based on clinical judgment. Clinically, patient 3 was diagnosed with acute rejection of the transplanted pancreas and kidney. After antirejection therapy, amylase and lipase concentrations decreased, and the renal function of the transplanted kidney improved.

In patient 4, color ultrasound detected a space-occupying lesion in the head of the transplanted pancreas 2 months before biopsy; posttransplant lymphoproliferative disorder was subsequently diagnosed by positron emission tomography (PET) /CT and immunofixation electrophoresis. After rituximab plus intravenous immune globulin treatment, the patient’s body temperature returned to normal, but fever recurred several days later. Due to a lack of clear evidence for infection, treatment for acute rejection had poor effect. After the biopsy, pancreatic plasmablastic lymphoma was indicated, and the patient was treated with rituximab plus lenalidomide. However, the patient died 2 months later after the oncotherapy; the causes of death were cachexia, bone marrow suppression, and pulmonary infection.

The renal function of the transplants was stable before and after biopsy in all 4 patients. Changes in pancreas-related indicators before and after biopsy are presented in Table 3. The paired-sample Wilcoxon test was used to compare the indicators at stable stage, before biopsy, and after treatment, and there were no statistically significant differences (P>0.05).

Table 3

Changes in parameters related to transplanted pancreas and kidney function before and after pancreatic biopsy

Patient no. Serum AMS (units/L) Serum LPS (units/L) FBG (mmol/L) HbA1c (%) Scr (µmol/L)
Stable period Before biopsy After treatment Stable period Before biopsy After treatment Stable period Before biopsy After treatment Stable period Before biopsy After treatment Stable period Before biopsy After treatment
1 60 1,078 123 47 2,119 145 4.9 5.6 4.8 6.0 5.9 6.0 74 77 68
2 106 482 144 68 1,415 152 5.2 5.6 5.4 5.9 5.6 7.1 126 154 120
3 110 1,470 402 58 933 738 5.7 5.8 6.4 4.8 5.0 5.6 127 159 132
4 90 127 116 48 188 179 4.4 4.3 4.6 5.2 5.1 5.2 98 91 86
Median 98 780 134 53 1,174 166 5.1 5.6 5.1 5.6 5.4 5.8 112 123 103

LPS, lipase; FBG, fasting blood glucose; Hb, hemoglobin; Scr, serum creatinine.

Perioperative observations and follow-up

None of the 4 patients had perioperative complications, such as hemorrhage or pancreatic leakage. With the exception of patient 4, who died, the patients continue to be followed up and show normal pancreas transplantation status and renal function.


Discussion

Because the recipients of the SPK transplants were all diabetic patients with stage 5 chronic kidney disease, there was no need to remove their original pancreas, and both the transplanted pancreas and the recipient’s own pancreas were simultaneously present. Clinical diagnoses are often difficult in patients with elevated serum amylase and lipase concentrations, and problems such as pancreatitis of the transplanted pancreas, rejection of the transplanted pancreas (6,7), and pancreatitis of the original pancreas can occur. Differential diagnoses are difficult, and biopsy of the transplanted pancreas is the gold standard for diagnosis.

Biopsy of the transplanted pancreas has been difficult to perform in clinical practice (8,9). Compared with that of renal graft biopsy, the vascular distribution of the transplanted pancreas is complicated, and the pancreas is surrounded by the adherent recipient intestine. Moreover, if the puncture causes pancreatic or intestinal leakage, the consequences may be serious. Although some transplant centers have performed or are currently performing combined pancreas-kidney transplantation, transplanted pancreas biopsies are routinely performed only in a small number of transplant centers, and in different ways. At present, there are 5 main types of transplanted pancreas biopsy: percutaneous ultrasound-guided needle biopsy, CT-guided percutaneous puncture biopsy, laparoscopic biopsy, biopsy via a laparotomy, and endoscopic ultrasound-guided pancreas graft biopsy.

Percutaneous ultrasound-guided needle biopsy

In 2005, the University of Pittsburgh Medical Center reported a group of 50 patients who underwent combined pancreas–kidney transplantation, pancreas transplantation alone, and pancreas transplantation after kidney transplantation (10). In all, 120 percutaneous ultrasound-guided pancreatic puncture biopsies were performed, and the pancreatic head was initially selected as the puncture site. To avoid intestinal injury, the puncture site was later changed to the pancreatic body. The sampling success rate was 85% (n=102 times), and the failure rate was15% (n=18). The reported complications were hemorrhage in 1 patient, pancreatic leakage in 1 patient, and an elevation in pancreatic enzymes after puncture in 9 patients with no clinical symptoms of pancreatitis (10).

CT-guided percutaneous puncture biopsy

A 2015 paper reported a group of 17 SPK patients who underwent CT-guided percutaneous puncture biopsy because of elevated pancreatic enzymes (11). Complications included appendix perforation, subcutaneous hematoma, and sciatic nerve transient injury. Most of the pathological results were acute rejection (11).

In our case, the first technique we used was a combination of percutaneous ultrasound-guided needle biopsy and CT-guided percutaneous puncture biopsy, which had the advantages of convenient operation and little trauma to patients on the premise that CT suggested no intestinal wrapping between the transplanted pancreatic head and the anterior abdominal wall. The head of the pancreas was chosen as the puncture point because there were splenic arteries and splenic veins in the body and tail of the pancreas, for which bleeding could not be controlled easily, and there are 2 areas with little vascularity in the head of the pancreas. The first of these is above the head of the pancreas, between the anterior and posterior superior pancreaticoduodenal arteries, and the other is below the head of the pancreas, between the anterior and posterior inferior pancreaticoduodenal arteries. According to the homolateral SPK transplantation method, the latter area was placed toward the anterior abdominal wall, making it a more appropriate puncture point. The advantage of CT combined with ultrasound is that the best puncture point can be determined with CT angiography to avoid the artery (3), while the splenic vein can be avoided with use of color Doppler when the needle is inserted to the surface of the transplanted pancreatic head, which further ensures safety.

Laparoscopic biopsy

In 2017, Uva et al. reported a group of 95 combined pancreas-kidney transplantation recipients who underwent a total of 160 laparoscopic pancreas biopsies (89 diagnostic, 71 procedural) in Argentina (12). Kidney biopsies were performed with a 16-G needle puncture, and pancreas biopsies were performed with a wedge biopsy combined with a 16-G needle puncture. An open biopsy was performed in 4 patients due to the inability to obtain materials under laparoscopy. In 14 cases, there was too little pancreatic tissue, with some being mistaken for adipose and lymphatic tissue. Histological findings of the pancreas included 29 cases of acute cellular rejection, 1 case of acute fluid rejection, and 18 cases of nonrejection chronic disease, with normal pancreatic tissue being found in the remaining cases. There were 4 cases of intraoperative complications (2 cases each of duodenal contusion and renal hemorrhage). All complications were successfully treated by a small incision operation without pancreatic leakage or graft failure.

The advantages of a laparoscopic biopsy are that it is safe, reliable, and suitable for cases of intestinal wrapping around the pancreas head. Cases where the intestine is wrapped around the transplanted pancreas head are often accompanied by adhesions to varying degrees, and the coverage of the greater omentum makes it difficult to perform a wedge biopsy, so wedge sampling is mainly performed in the body and tail. If the adhesion around the body and tail of the pancreas is also serious, fine needle biopsy under the laparoscopic field of vision can be additionally applied, and the puncture site is still selected in the less vascular area of the pancreatic head. This was the situation in patient 4 in the present study, with laparoscopic operation in the process of mild separation having the potential to lead to bleeding because of adhesion. We could not confirm whether the tissue was peripancreatic fat or pancreas by wedge biopsy, so an auxiliary puncture biopsy under laparoscopic view was used. We were thus able to confirm that the wedge biopsy sample was fat tissue and the puncture biopsy sample was transplanted pancreas tissue.

In summary, although laparoscopic biopsy requires general anesthesia, the field of view is clear and bleeding at the biopsy site can be stopped using electrocoagulation or suture hemostasis, which is safer than percutaneous puncture biopsy.

Particular attention should be paid to the location of the visual and operation ports of the laparoscope. Because homolateral SPK transplantation is mainly located in the right lower abdomen, the right abdominal adhesion is more obvious than is the left, and the body and tail of the pancreas are the preferred biopsy sites, so we believe that it is more appropriate to use the left upper abdomen and left middle abdomen areas for visual and operation ports. In addition, we suggest that the surface projection area of the transplanted pancreas be marked preoperatively to facilitate the search for the transplanted pancreas in the adherent abdominal structure.

Laparotomy and endoscopic ultrasound-guided pancreas graft biopsy

Biopsies can also be performed via a laparotomy. In 2009, a report was published from Kyushu University, Japan, on 13 cases of biopsy for whom this method was used (13). The University of Oslo, Norway, reported endoscopic ultrasound-guided pancreas graft biopsy using donor-recipient duodenal-duodenal anastomosis (14). Neither of these 2 techniques has been adopted in our center due to greater trauma and different surgical style.

Selection of biopsy strategy

We believe that the selection of biopsy strategy is based on 2 key factors: safety, which is particularly important, and the success rate of sampling. A biopsy can result in serious complications, such as pancreatic leakage, intestinal leakage, and abdominal hematoma, and removal of the transplanted pancreas is unacceptable to both doctors and patients. Laparoscopic biopsy is slightly more invasive but less risky, whereas percutaneous CT combined with ultrasound-guided puncture biopsy is less invasive but more risky. The selection of the biopsy method should be based on the comprehensive evaluation of CT images before the biopsy.

Despite the overall risk of pancreatic biopsy being greater than that of kidney or liver biopsy, its significance is obvious, and treatment must be based on accurate diagnosis. In addition, some morphological changes must have histological evidence, and, as was the case with patient 4 in the present series, without histological support, it is extremely difficult to obtain correct results based on clinical judgment alone.

Although there were only 4 patients in this case study, we explored the options for transplanted pancreas biopsy for homolateral SPK transplantation. Pancreas graft biopsy is currently being performed in a few centers. How to determine the best biopsy strategy requires further investigation, and we hope our preliminary study can contribute to this work.


Conclusions

Many biopsy methods can be used for pancreas graft after SPK transplantation. Different biopsy strategies should be formulated according to the anatomical location of the transplanted pancreas.
