The analysis and validation of the prediction value of conventional and contrast-enhanced ultrasonography for BRAF mutant papillary thyroid microcarcinoma

Introduction

Thyroid cancer is one of the most common endocrine malignancies, with an incidence rate that has been increasing by approximately 20% annually worldwide (1) and cases in the United States (US) tripling in recent decades (2). Approximately 80–90% of thyroid cancer cases are papillary thyroid carcinoma (PTC) (3), and nearly 50% of PTCs involve tumors with a maximum diameter of no larger than 1.0 cm, which is known as papillary thyroid microcarcinoma (PTMC) (4).

The standard method for diagnosing thyroid cancer is fine-needle aspiration biopsy (FNAB) (5,6) along with simultaneous genetic testing for BRAF^V600E (termed BRAF in the paper) mutation. The BRAF gene, with a Val600Glu substitution in the protein, encodes the most active of three RAF kinases and is the most frequent genetic mutation in thyroid cancer (7). It can predict PTCs with a positive predictive value of >99% (8).

FNAB is invasive, and technically difficult for potential PTMCs, especially for those smaller than 0.5 cm, or those close to trachea or recurrent laryngeal nerve. The American Thyroid Association recommends it only for suspicious thyroid nodules ≥1 cm, but BRAF mutation is associated with a higher risk of PTMC recurrence (7,9,10), which in turn strongly increases the risk of PTMC-related mortality and worsens prognosis (11-13). Since BRAF testing was always conducted using residual specimens through FNAB, we sought to explore a safer, non-invasive method to help predict PTMC involving BRAF mutation.

Previous studies have confirmed ultrasound features in evaluating the malignancy in thyroid nodules, some suggested that certain ultrasound findings correlate with BRAF mutation in PTCs, including the aspect ratio, microcalcification, nodule size after enhancement, as well as the enhancement method and time (14); centripetal and non-significant enhancement (15); or microbubble arrival time or time-to-peak (TTP) in quantitative contrast-enhanced ultrasonography (16). On the other hand, other studies have found no significant associations between ultrasound findings and BRAF mutation (17,18). However, most of these studies were based on objective ultrasonic findings and did not specify differences of PTMC among PTC cases.

Herein, we aimed to screen for ultrasound findings that may predict BRAF mutation in patients with PTMC. We explored the independent risk factors for such mutations using a combination of conventional and contrast-enhanced ultrasonography. We present the following article in accordance with the STARD reporting checklist (available at https://gs.amegroups.com/article/view/10.21037/gs-22-493/rc).

Methods

Patients

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This retrospective study was approved by institutional ethics board of China-Japan Friendship Hospital (No. 2019-103-K71). Individual consent for this retrospective analysis was waived. From January 2020 and January 2021, we consecutively enrolled 156 PTC patients underwent conventional and contrast-enhanced ultrasound with pathological results and potentially available for quantitative analysis. Eventually, we involved 103 PTMC patients, each with a single lesion, who (I) underwent fine needle aspiration biopsy between January 2020 and January 2021 at our hospital; (II) had cytologically or pathologically confirmed PTMC; (III) were older than 18 years; (IV) had available BRAF genotyping results; (V) were in Bethesda stage V or VI based on cytopathology or Bethesda stage I–IV and positive for BRAF mutation; (VI) had available contrast-enhanced ultrasound images in Digital Imaging and Communication in Medicine (DICOM) format adequate for quantitative analysis during >60 sec, in which sufficient healthy thyroid tissue adjacent to the tumor was visible to serve as a reference region of interest (ROI) (Figure 1).

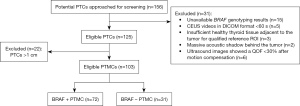

Figure 1 Flow diagram of 103 patients with papillary thyroid microcarcinoma stratified by BRAF genotype. PTCs, papillary thyroid carcinomas; CEUS, contrast-enhanced ultrasound; DICOM, Digital Imaging and Communication in Medicine; ROI, region of interest; QOF, quality of fit; PTMC, papillary thyroid microcarcinoma.

Patients were excluded if they underwent total thyroidectomy, or if their ultrasound images showed a quality of fit (QOF) <30% after motion compensation. Patients were classified either as having mutant BRAF (BRAF-positive group) or as having wild-type BRAF (BRAF-negative group).

Conventional ultrasonography

Conventional ultrasonography was performed by radiologists with 5–20 years of experience in thyroid ultrasonography using a 5–14 MHz transducer (Siemens, ACUSON Sequoia, Siemens Medical Solutions USA, Inc.). The ultrasound contrast agent was sulphur hexafluoride microbubbles (SonoVue^®, Bracco, Milan, Italy). Images were stored digitally as DICOM cine loops in the axial and/or sagittal planes of the thyroid nodules. Data on the following conventional ultrasound features were recorded: echogenicity, categorized as hyperechoic, isoechoic, hypoechoic, or very hypoechoic; echo homogeneity, homogeneous or heterogeneous; echogenic foci: none, punctate echogenic foci, macrocalcifications, or peripheral (rim) calcifications; location, distal from capsules or adjacent to them; margin, regular or irregular; boundary, unclear or clear; aspect ratio, ≤1 or >1; Adler blood flow volume (19), 0 (no blood flow signal in the tumor), 1 (1–2 punctate or short-stick blood flow signals in the tumor), 2 (3–4 punctate blood flow signals or one vessel with a clear wall in the tumor), or 3 (multiple colored blood flow signals in the tumor, with reticular or patchy distribution, or two vessels with clear walls).

Contrast-enhanced ultrasonography

Contrast-enhanced ultrasonography was performed using the same system and contrast agent as that for conventional ultrasonography. Following the detection of thyroid nodules, 0.5–2.4 mL of microbubble contrast agent was injected as an intravenous bolus, and contrast harmonic imaging was conducted at a reduced mechanical index of 0.09.

Data on the following contrast-enhanced ultrasound features were recorded: degree of enhancement, non-, hypo-, iso-, or hyper-enhancement; pattern of enhancement, centripetal or non-centripetal (the latter could be centrifugal or diffuse enhancement); homogeneity of enhancement, inhomogeneous or homogeneous; and completeness of enhancement, incomplete or complete.

Contrast-enhanced ultrasound images were further analyzed quantitatively using VueBox software (Bracco, Suisse SA, Geneva, Switzerland). We linearized DICOM cine loops, applied curve-fitting models, then evaluated time-intensity curves for the following parameters (Figure 2) (20): peak enhancement (arbitrary units, AU), defined as the maximum intensity of the curve; wash-in area under the curve (WiAUC, AU); wash-out area under the curve (WoAUC, AU); wash-in and wash-out areas under the curve (WiWoAUC, AU); wash-in rate (WiR), in terms of maximum slope (AU) (6); wash-out rate (WoR), in terms of minimum slope (AU); rise time (s); fall time (s); mean transit time local (mTTl, s); time-to-peak (TTP, s); wash-in perfusion index (WiPI), defined as WiAUC/rise time; and quality of fit (%) between echo-power signal and f (t). Data for these variables were plotted as parametric images (color-coded maps), to which time-intensity curves were fitted and linearized (Figure 3).

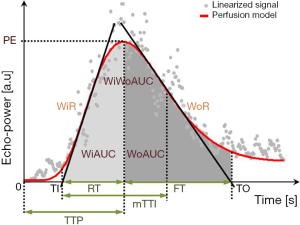

Figure 2 Time-intensity curve analysis of contrast-enhanced ultrasound features, based on ROI, as recommended by VueBox software. (Image reproduced with permission from VueBox documentation, seen online at https://www.contrastultrasound-modality.com/quantification-software/support/user-manual). WiAUC, wash-in area under the curve; mTTl, mean transit time local; TTP, time-to-peak; WiR, wash-in rate; WoR, wash-out rate; WoAUC, wash-out area under the curve; WiWoAUC, wash-in and wash-out areas under the curve; RT, rise time; FT, fall time; PE, peak enhancement; ROI, regions of interest; TI, the time at which the maximum slope tangent intersects the X-axis; TO, the time at which the minimum slope tangent intersects the X- axis.

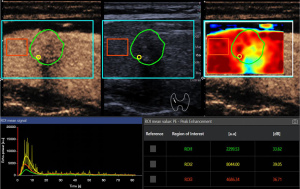

Figure 3 Example of a ROI-driven workflow for analyzing contrast-enhanced ultrasound images. Delimitation ROI (blue) delineates the processing area, excluding any non-echo data such as text, color bars, or image borders. ROI 1 (green) included the entire tumor boundary on conventional ultrasound with reference to the contrast-enhanced image. ROI 2 (yellow) included 1mm circles that targeted the greatest enhancement point, aided by the color-coded imaging and peak enhancement values generated by VueBox. ROI 3 (red) encircled a large surrounding normal gland including the same image acquisition plane in the same depth and without obvious vessels. Time-intensity curves were generated, and the color-coded perfusion parameters were analyzed. ROI, regions of interest.

Furthermore, these variables were measured in various manually delineated ROIs. ROI 1 delineated the entire tumor boundary on conventional ultrasound images with reference to the corresponding contrast-enhanced image. ROI 2 was a 1-mm circle enclosing the area of greatest enhancement, which was identified based on color-coded imaging and peak enhancement values generated by VueBox. ROI 3 encircled a large normal thyroid gland without obvious vessels and surrounding the tumor in the same image acquisition plane and at the same depth as the tumor (Figures 4,5). The relative rise time and relative TTP for the whole tumor were defined as the ratios of the values in ROI 1 to the values in the reference ROI 3.

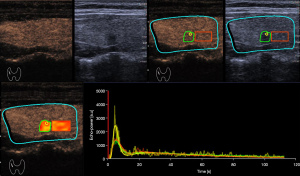

Figure 4 Example of ultrasound analysis. Delimitation ROI (blue) delineates the processing area, excluding any non-echo data such as text, color bars, or image borders. ROI 1 (green) included the entire tumor boundary on conventional ultrasound with reference to the contrast-enhanced image. ROI 2 (yellow) included 1mm circles that targeted the greatest enhancement point, aided by the color-coded imaging and peak enhancement values generated by VueBox. ROI 3 (red) encircled a large surrounding normal gland including the same image acquisition plane in the same depth and without obvious vessels. The patient was a 36-year-old man with PTMC (1.0 cm diameter) and BRAF mutation. Relative TTP was 1.05, the tumor was well defined, punctate echogenic foci were present, and the tumor was adjacent to the thyroid capsule. These data led to a score of 0.97 in the predictive model. ROI, regions of interest; TTP, time-to-peak; PTMC, papillary thyroid microcarcinoma.

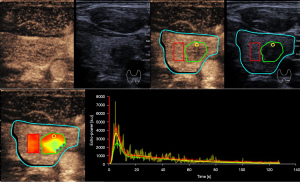

Figure 5 Another example of ultrasound analysis. Delimitation ROI (blue) delineates the processing area, excluding any non-echo data such as text, color bars, or image borders. ROI 1 (green) included the entire tumor boundary on conventional ultrasound with reference to the contrast-enhanced image. ROI 2 (yellow) included 1mm circles that targeted the greatest enhancement point, aided by the color-coded imaging and peak enhancement values generated by VueBox. ROI 3 (red) encircled a large surrounding normal gland including the same image acquisition plane in the same depth and without obvious vessels. The patient was a 32-year-old woman with PTMC (0.5 cm diameter) and wild-type BRAF. Relative TTP in the area of strongest enhancement was 0.92, the tumor border was ill defined, echogenic foci were absent, and the tumor was adjacent to thyroid capsules. These data led to a score of 0.57 in the predictive model. PTMC, papillary thyroid microcarcinoma; TTP, time to peak; ROI, region of interest.

Analysis was performed in dual-screen mode for B-mode and contrast-enhanced ultrasonography, starting with the synchronization of B-mode and contrast-enhanced imaging of the first arterial loop. Contrast-enhanced ultrasound features were assessed using color-coded imaging in VueBox. The largest value of peak enhancement was colored dark red and the lowest value was colored dark blue. Also, the lowest values of rise time and TTP were colored dark red and the largest values were colored dark blue.

These variables above were assessed independently; if ambiguity was encountered, a more experienced radiologist made a decision.

Fine needle aspiration biopsy

Ultrasound-guided biopsy was performed by a radiologist with more than 20 years of experience in fine needle aspiration of thyroid nodules. Each suspected nodule was biopsied without suction using the freehand technique (15). At least two aspirations were performed in different directions. Samples obtained with 23-gauge needles were expelled onto glass slides, smeared, and immediately placed in 95% ethyl alcohol for Papanicolaou staining. Material left in the needle after aspiration was then used for molecular testing; DNA was extracted using the QIAGEN QIAamp DNA FFPE Tissue Kit (56404, QIAGEN) according to the manufacturer’s protocol. The DNA spectral absorbance was measured by a spectrophotometer (SMA4000, Merinton, Beijing, China), and the DNA was diluted to approximately 2–3 ng/µL with an ATE (Tris Acetate-EDTA) elution buffer (QIAGEN).

The DNA was analyzed for the presence of BRAF mutation using a validated, China Food and Drug Administration (CFDA)-approved (State medical permitment number: No. 2010-3401226) Human BRAF ARMS-PCR (The tetra-primer amplification refractory mutation system-polymerase chain reaction) Kit (Amoy Diagnostics, Xiamen, China) based on the Amplification Refractory Mutation System (ARMS), with a forward primer of 5'-TCATAATGCTTGCTCTGATAGGA-3' and reverse primer of 5'-GGCCAAAAATTTAATCAGTGGA-3'. For each sample, there was an external control assay and a mutation assay (in the same well), and each run contained a negative and positive control. Thermal cycling was conducted on a Prism 7500 real-time PCR instrument (Life Technologies, Carlsbad, CA, USA) as follows: stage I, 5 min at 95 ℃; stage 2, 15 cycles of 25 s at 95 ℃, 20 s at 64 ℃, 20 s at 72 ℃; and stage 3, 31 cycles of 25 s at 93 ℃, 35 s at 60 ℃, 20 s at 72 ℃. Data were collected at 60 ℃ in stage 3.

Statistical analysis

The normality of data was tested using the Shapiro-Wilk test if no more than 50 data points were available, or using the Kolmogorov-Smirnov test if >50 data points were available. Homogeneity of variance was assessed using Levene’s test. The inter-group differences in quantitative parameters were assessed for significance using an independent-samples t-test and Wilcoxon rank-sum test. Differences in qualitative data were assessed using the χ² test and Fisher’s exact test. Statistical analyses were performed using SAS 9.4 (SAS Institute Inc., Cary, NC, USA). Results were expressed as mean ± standard deviation (SD) for quantitative variables, or as frequencies for categorical variables. P<0.05 was considered to indicate a statistically significant difference.

Independent ultrasound risk factors for BRAF mutation in PTMC were explored using multivariate stepwise logistic regression. Independent risk factors were used to develop a predictive model with the formula,

P=11+e−(α+β1x1+...+βmxm)[1]

where P refers to the probability of BRAF mutation; α, intercept; and β, logistic regression coefficient. This model was assessed for accuracy using internal validation with a random seed number of 2021 in STATA 15 (StataCorp, College Station, TX, USA). Ten-fold cross-validation was performed, and bootstrapping was used to calculate the mean cross-validation area under the curve (cvAUC), along with the SD and 95% confidence interval (CI).

Results

Clinicodemographic characteristics of patients

A total of 103 patients (including 78 women), each with a single lesion, were enrolled in this study. Univariate analysis showed that tumors were significantly larger among patients with mutated BRAF (P=0.042), whereas the two groups of patients did not differ significantly in age or sex (Table 1).

Comparison of patient groups based on conventional ultrasonography

Patients with mutated or wild-type BRAF did not differ significantly in tumor location, shape, boundary, echogenicity, aspect ratio, or blood supply based on the color Doppler flow imaging (Table 2). The proportion of patients with echo heterogenicity was markedly higher among those with mutated BRAF than among those with wild-type BRAF (81.94% vs. 54.84%), as was the proportion of patients with echogenic foci (56.94% vs. 29.03%). Conversely, the proportion of patients with macrocalcifications was notably higher among patients with wild-type BRAF (6.94% vs. 12.90%), as was the proportion of patients with peripheral calcifications (2.78% vs. 3.23%).

Comparison of patient groups based on contrast-enhanced ultrasonography

Patients with mutated or wild-type BRAF did not differ significantly in enhancement degree, pattern, homogeneity, or completeness (Table 3). Similarly, they did not differ markedly in WiAUC, mTTl, WiR, WiPI, WoAUC, WiWoAUC, FT, or WoR. The relative rise time and relative TTP were considerably longer among patients with mutated BRAF. Also, the proportions of patients with relative TTP >1 in tumors and the strongest enhancement area within the tumor were significantly higher among those with mutated BRAF.

Independent ultrasound risk factors for mutated BRAF in PTMC

Several ultrasound findings emerged from the multivariate analysis as independent risk factors of BRAF mutation (Table 4): relative TTP for the area of strongest enhancement inside the tumor, unclear tumor boundary, tumor location adjacent to thyroid capsules, maximum tumor diameter >0.5 cm, and punctate echogenic foci. These factors were used to generate the following model to predict BRAF mutation (corresponding examples are shown in Figures 4,5):

P’ = −1.799 + 1.761 (TTP of the strongest enhancement point >1) – 1.176 (blurred boundary) + 1.446 (adjacent to thyroid capsules) + 1.692 (maximum diameter >0.5 cm) + 1.226 (punctate echogenic foci) − 0.832 (peripheral/rim calcification) − 0.588 (macrocalcifications) (P’= logit P).

When we interpreted P>0.62 as indicative of the presence of BRAF mutation, the model showed moderate diagnostic performance: sensitivity, 77.8%; specificity, 64.5%; accuracy, 73.8%; Youden index, 0.432; and AUC, 0.824 (Figure 6). According to the Hosmer-Lemeshow χ² test, the model’s goodness of fit was relatively high (P=0.54). Internal validation using 10-fold cross-validation showed a cvAUC of 0.723 (>0.7), with SD =0.170 and 95% CI: 0.591–0.814 (Figure 7), verifying moderate predictive value of the model.

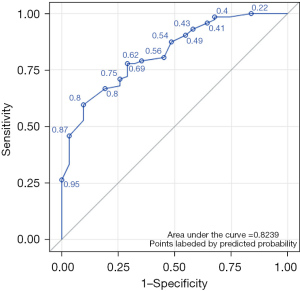

Figure 6 Receiver operating characteristic curve for multivariate stepwise regression. All of the statistically significant factors (P<0.05) and selective factors without statistical significance (P>0.05) in the univariate analysis were then used in the logistic analysis.

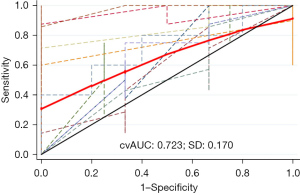

Figure 7 Ten-fold cross-validation of the model to predict BRAF mutation in patients with PTMC. The dashed lines depict the receiver operating characteristic curves, the solid red line represents the 10-fold mean cvAUC, and the solid black line denotes the reference line for perfect performance. The mean cvAUC was 0.723, with SD =0.170 and 95% CI: 0.591–0.814. cvAUC, cross-validation area under the curve; SD, standard deviation; PTMC, papillary thyroid microcarcinoma; CI, confidence interval.

Discussion

The rate of BRAF mutation among our PTMC patients was 70%, which was comparable to the rates in other Chinese, Japanese, and Caucasian patient populations (14,21-23). BRAF mutation leading to Val600Glu substitution in the protein strongly increases its activity, upregulates RAF/MEK (mitogen-activated protein kinase kinase) signaling (24,25), and stimulates cell division, proliferation, and differentiation in thyroid cancers (7,24,26). Herein, we showed evidence that combining conventional and contrast-enhanced ultrasonography may provide a relatively straightforward, non-invasive way to predict BRAF mutation in patients with PTMC, without the need for invasive FNAB. We developed a model to predict such mutation based on five ultrasound features: TTP in strongest enhancement, tumor boundary, presence of echogenic foci, tumor location, and maximum tumor diameter.

Of all the conventional ultrasound features that we assessed, only two were significantly associated with BRAF mutation: the presence of echo homogeneity and punctate echogenic foci. In contrast to another study of Asian patients, we did not observe a significant association with nodule margin (27). We observed that the presence of microcalcifications was associated with BRAF mutation, in contrast to some previous research (18), but similar to several other studies of Chinese and American patients (14,28,29). Yet, other studies have failed to detect significant associations between conventional ultrasound features and BRAF mutation (17,18,21). This discrepancy in the literature highlights the need for further investigation in this area, including external validation of our predictive model.

Moreover, of all the contrast-enhanced ultrasound features that we assessed, BRAF mutation was significantly associated with a longer rise time and TTP. This may indicate greater fibroblastic stromal response, resistance to apoptosis, cell proliferation, and angiogenesis (30), which leads to greater vascularization (15,31). Consistent with our findings, a study of another Chinese patient cohort showed that BRAF mutation was associated with TTP (16). We did not observe significant associations between BRAF mutation and centripetal, insignificant, or complete enhancement, in contrast to previous work (14,15). Our negative findings should be verified in larger samples, especially since differences in angiogenesis may be smaller in PTMC than in the larger tumors in several previous studies (14,15) and therefore require greater statistical power to detect.

Our results should be interpreted with caution considering that there were several limitations in this study. Firstly, the retrospective design and relatively small sample of patients, all of whom had been definitively diagnosed with PTMC based on fine-needle aspiration biopsy. Also, since PTMCs cannot represent all high-risk nodules, the predictive model described here must be validated using patient populations with high-risk sonographic features, including hypoechoic, aspect ratio ≥1, irregular margin, and echogenic foci. Another limitation is that a single researcher conducted all of the quantitative analyses, preventing us from assessing the effects of inter-observer variability that is inevitable in the clinic. Similarly, our analyses reflect only a few clinicians’ interpretations of ultrasound images, which can differ from center to center. Thirdly, the pathological subtype analyses were more accurately conducted with surgical resection samples rather than with tissues obtained by fine-needle aspiration, so we cannot exclude that our results may have been affected by different subtypes of PTMC. Furthermore, limited sample size enabled internal validation, which is inferior to external validation. Given these limitations, our findings should be verified and extended in larger studies, preferably with a prospective, multicenter design.

Acknowledgments

Funding: The study was supported by National Natural Science Foundation of China (No. 81971627), and China Japan Friendship Hospital talent introduction project (No. 2019-RC-2).

Footnote

Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://gs.amegroups.com/article/view/10.21037/gs-22-493/rc

Data Sharing Statement: Available at https://gs.amegroups.com/article/view/10.21037/gs-22-493/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://gs.amegroups.com/article/view/10.21037/gs-22-493/coif). All authors report that the study was supported by National Natural Science Foundation of China (No. 81971627), and China Japan Friendship Hospital talent introduction project (No. 2019-RC-2). SL is from Bracco Imaging Medical Technologies Co., Ltd. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics board of China-Japan Friendship Hospital (No. 2019-103-K71). Individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
